Product Description

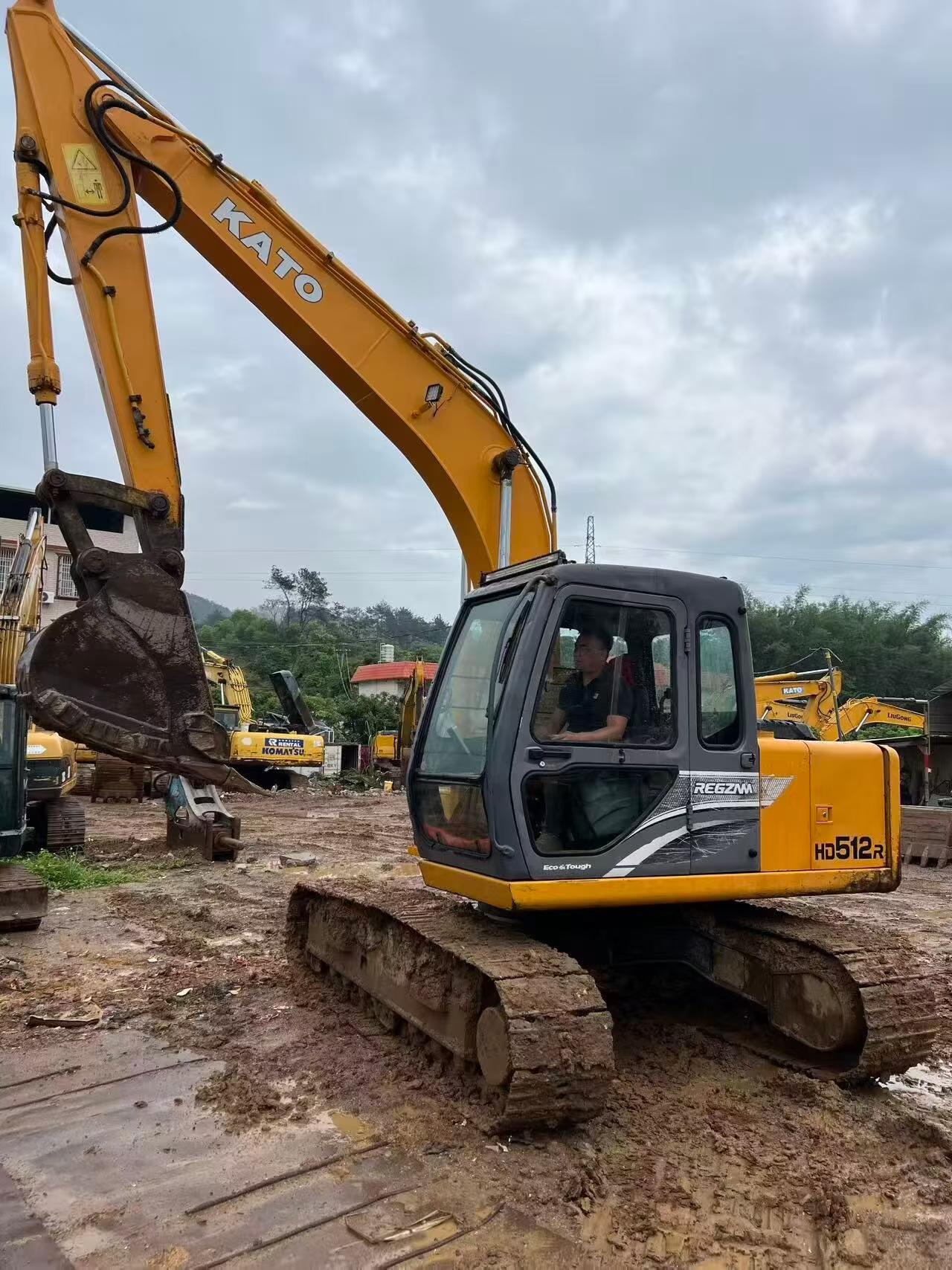

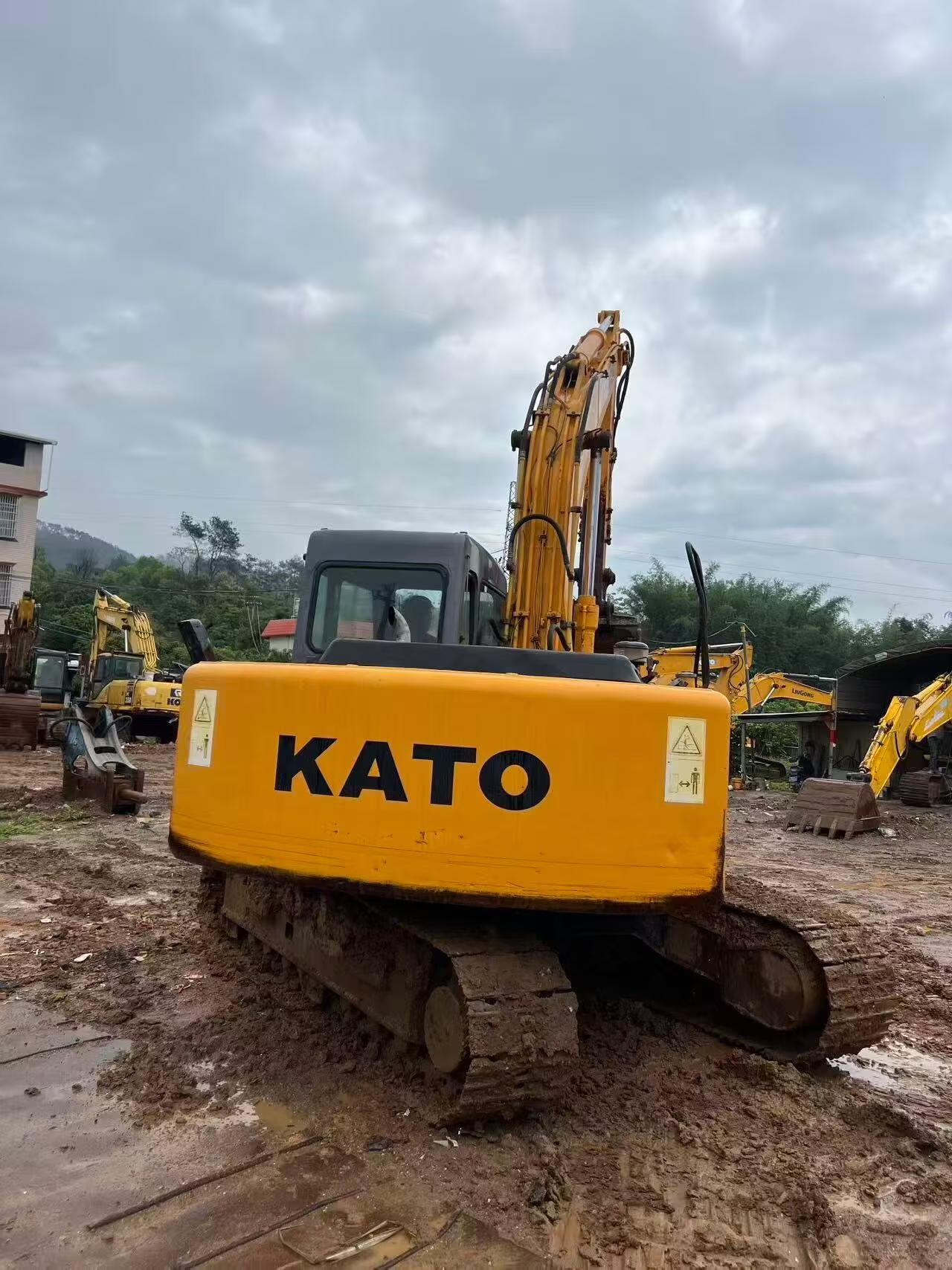

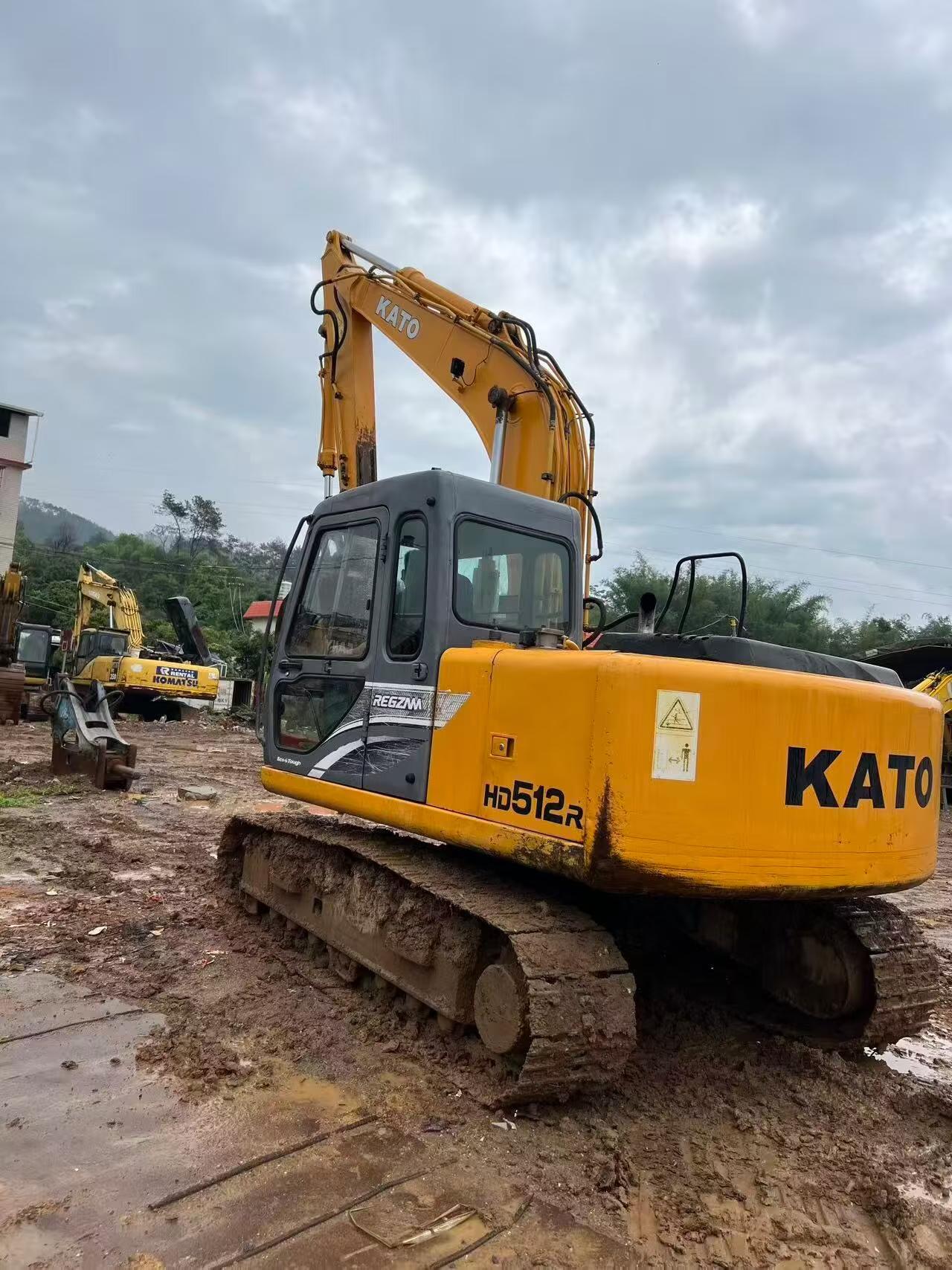

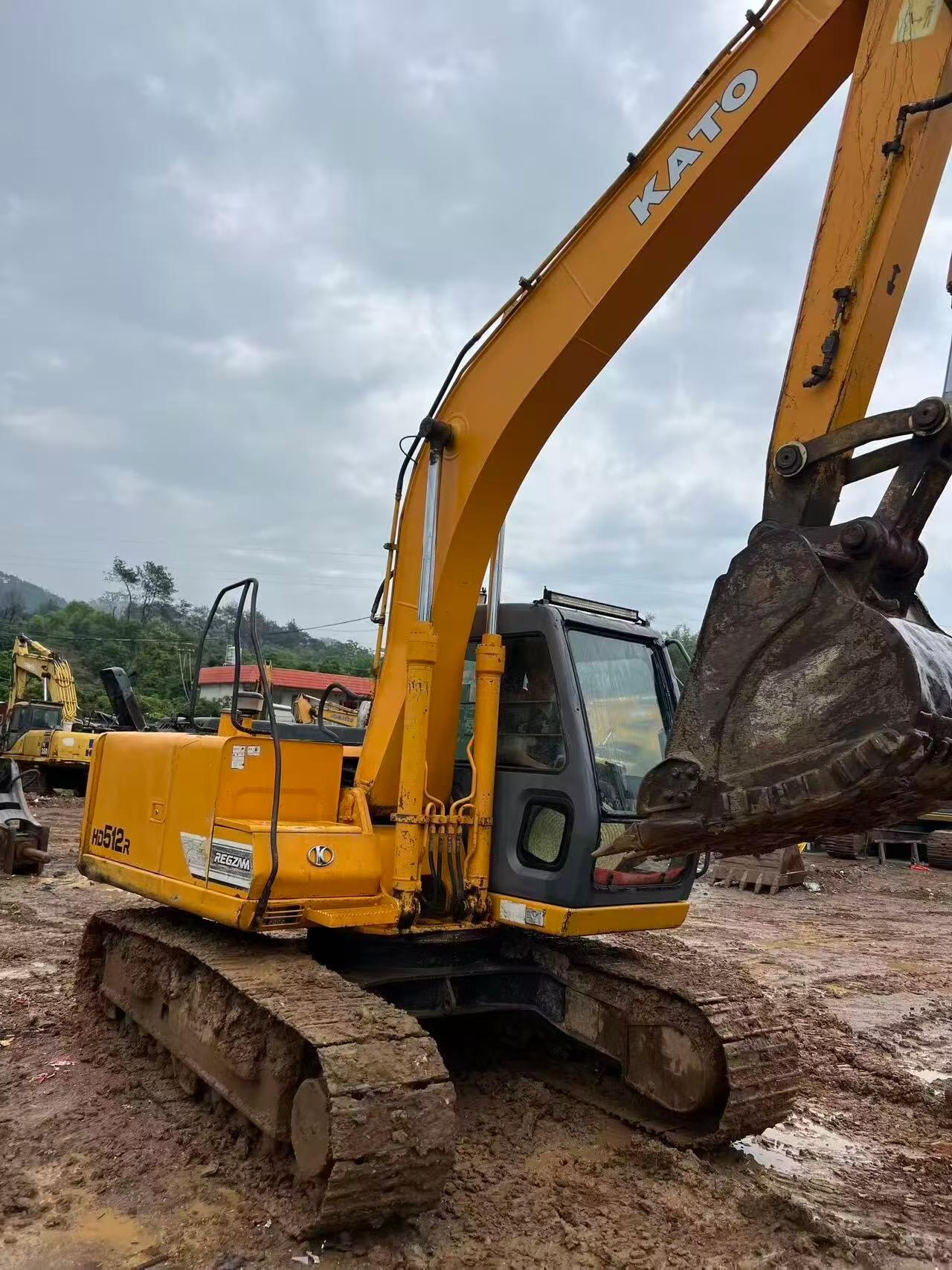

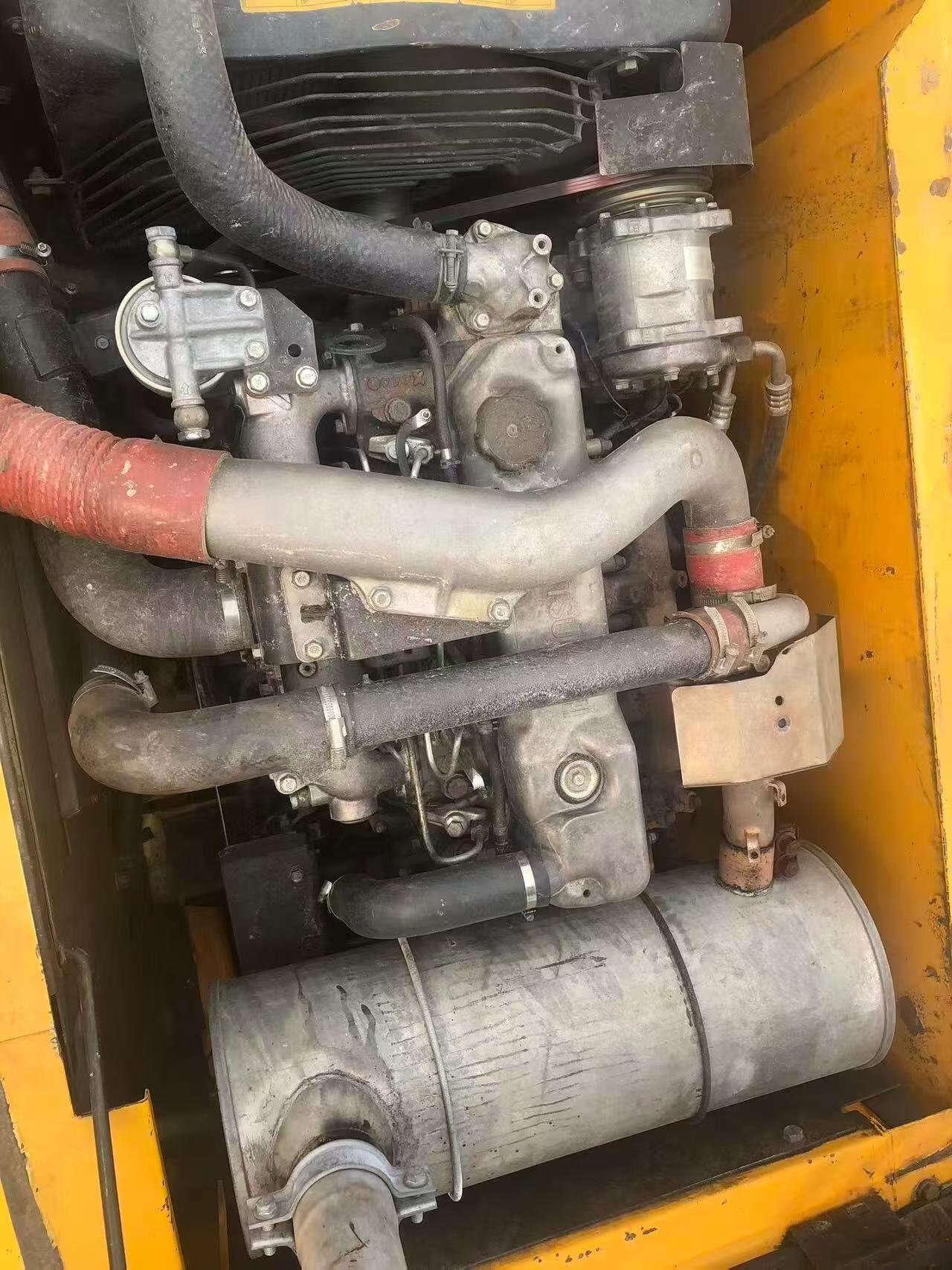

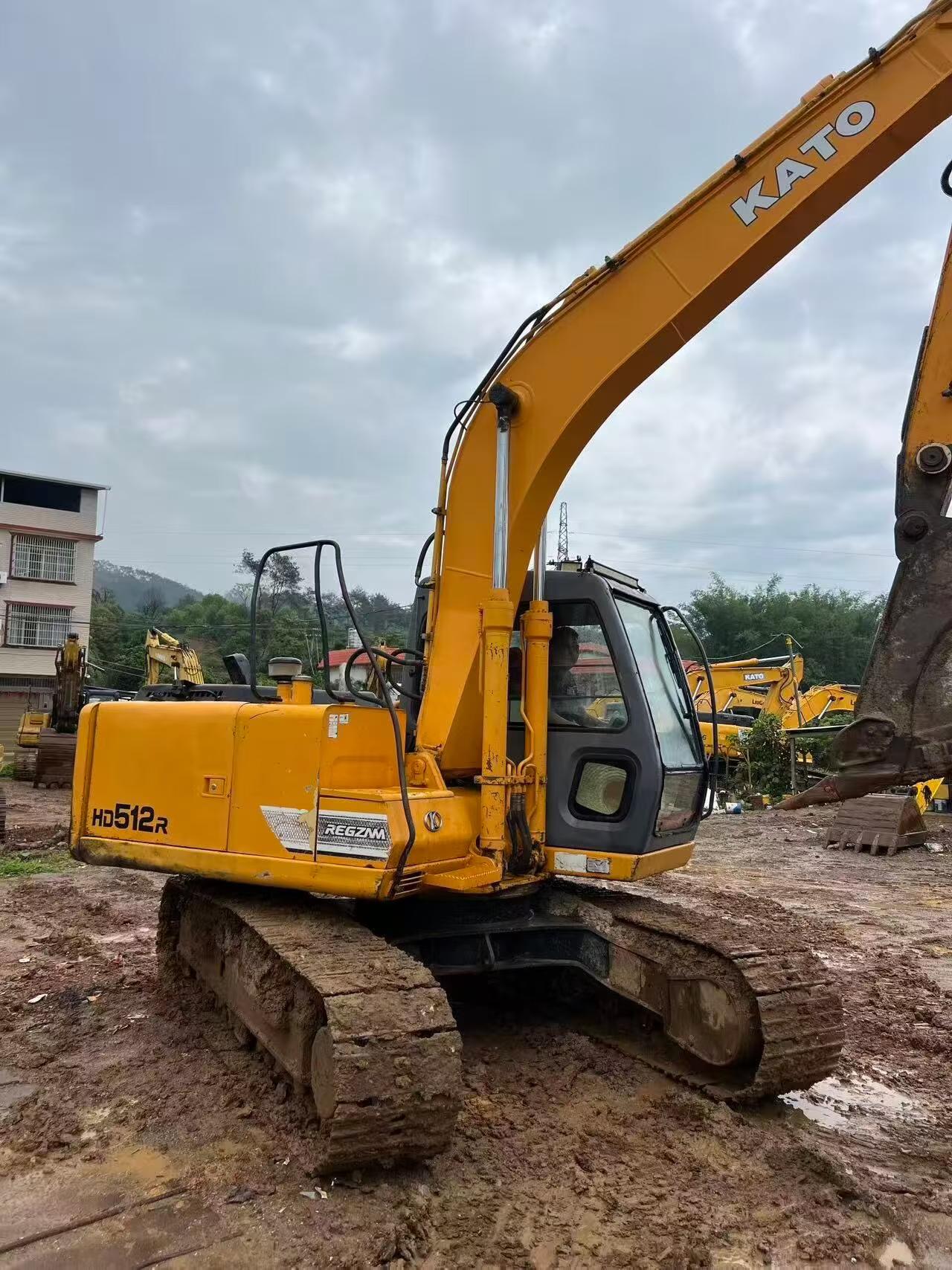

Built on precision Japanese engineering, the Kato HD512R delivers 12-ton class performance driven by a Mitsubishi 4D34-TLE2A turbocharged, intercooled engine producing 68 kW at 2,050 RPM and a peak torque of 360 N·m at 1,600 RPM. Water-cooled and direct-injected, this 3.91L four-cylinder powerplant is engineered for consistent output across demanding excavation cycles.

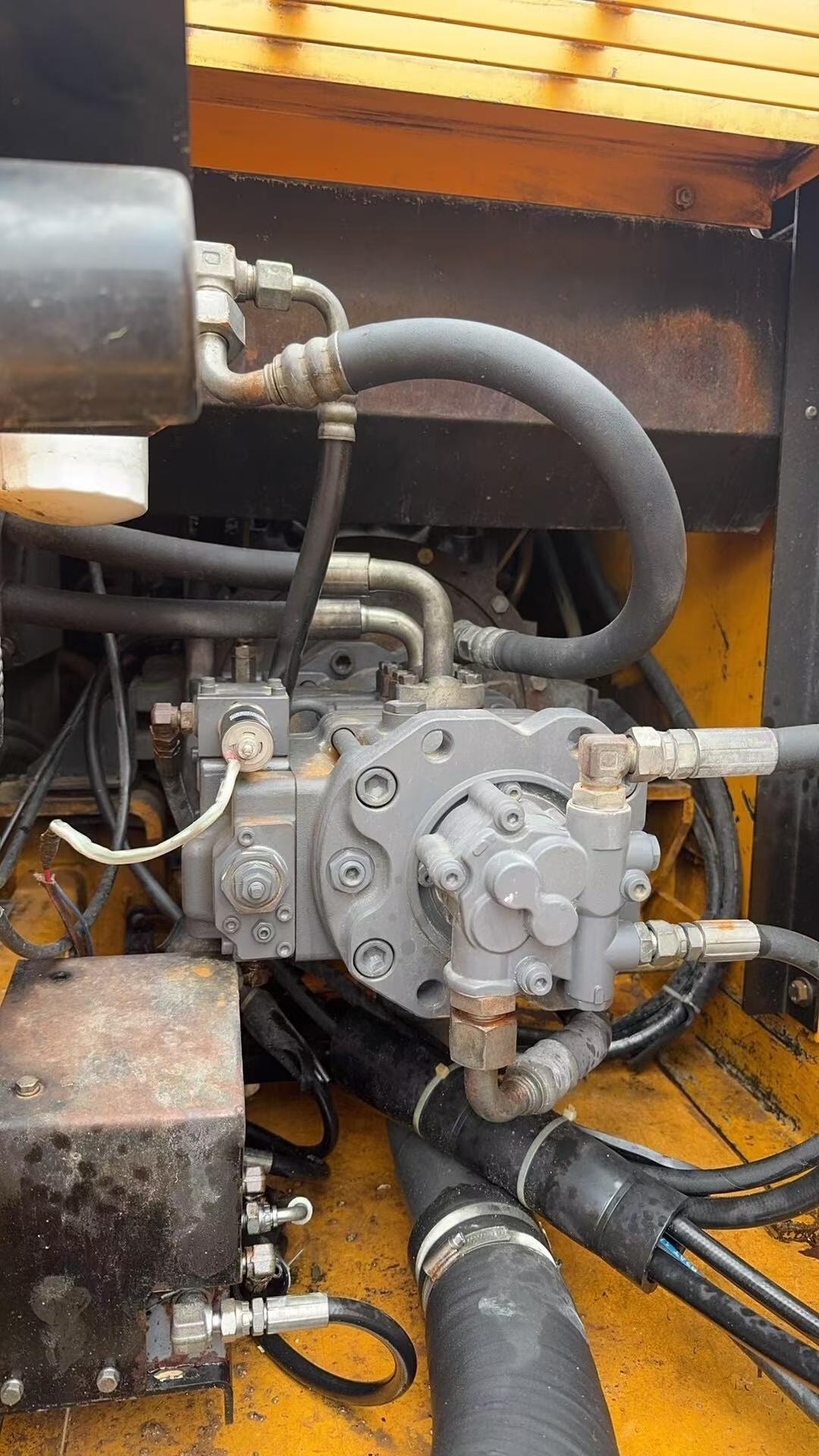

At the core of its hydraulic architecture sits a dual variable piston pump system delivering 2 × 121 L/min, with main overflow pressure rated at 29.4 MPa standard and 32.9 MPa in high-power mode — ensuring precise, responsive bucket control across varying load conditions.
- Working Weight: 12,100 kg
- Bucket Capacity: 0.4–0.6 m³ (backhoe)
- Maximum Digging Depth: 5,620 mm
- Maximum Digging Radius: 8,300 mm
- Travel Speed: 5.5 / 3.1 km/h
- Maximum Tractive Force: 100 kN
- Climbing Ability: 70% (35°)
- Ground Pressure: 38 kPa
- Fuel Tank Capacity: 275 L
- Location: Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1056496 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12100 |
| Bucket capacity (m³) | 0.4-0.6 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4D34-TLE2A |
| Rated power (kw/rpm) | 68/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m/rpm) | 360N*m/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.91 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.1 |
| Main overflow set pressure (Mpa) | Standard 29.4/ High Power 32.9 |
| Type of walking hydraulic motor | 32.9 |
| Maximum flow of main pump (l/min) | 2 x 121 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 74 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 18 |
| Hydraulic System (L) | 155 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2710 |
| Counterweight ground clearance (mm) | 880 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2390 |
| Back end turning radius (mm) | 2120 |
| Total track length (mm) | 3570 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2490/2590/2690 |
| Maximum digging radius (mm) | 8300 |
| Maximum digging depth (mm) | 5620 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6240 |
| Maximum vertical digging depth (mm) | 5070 |
