Name: Used Excavators 2016 Kato HD512V
Brand: Kato
SKU: USED-1046532
Availability: InStock
Rating: 4.3 (25 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

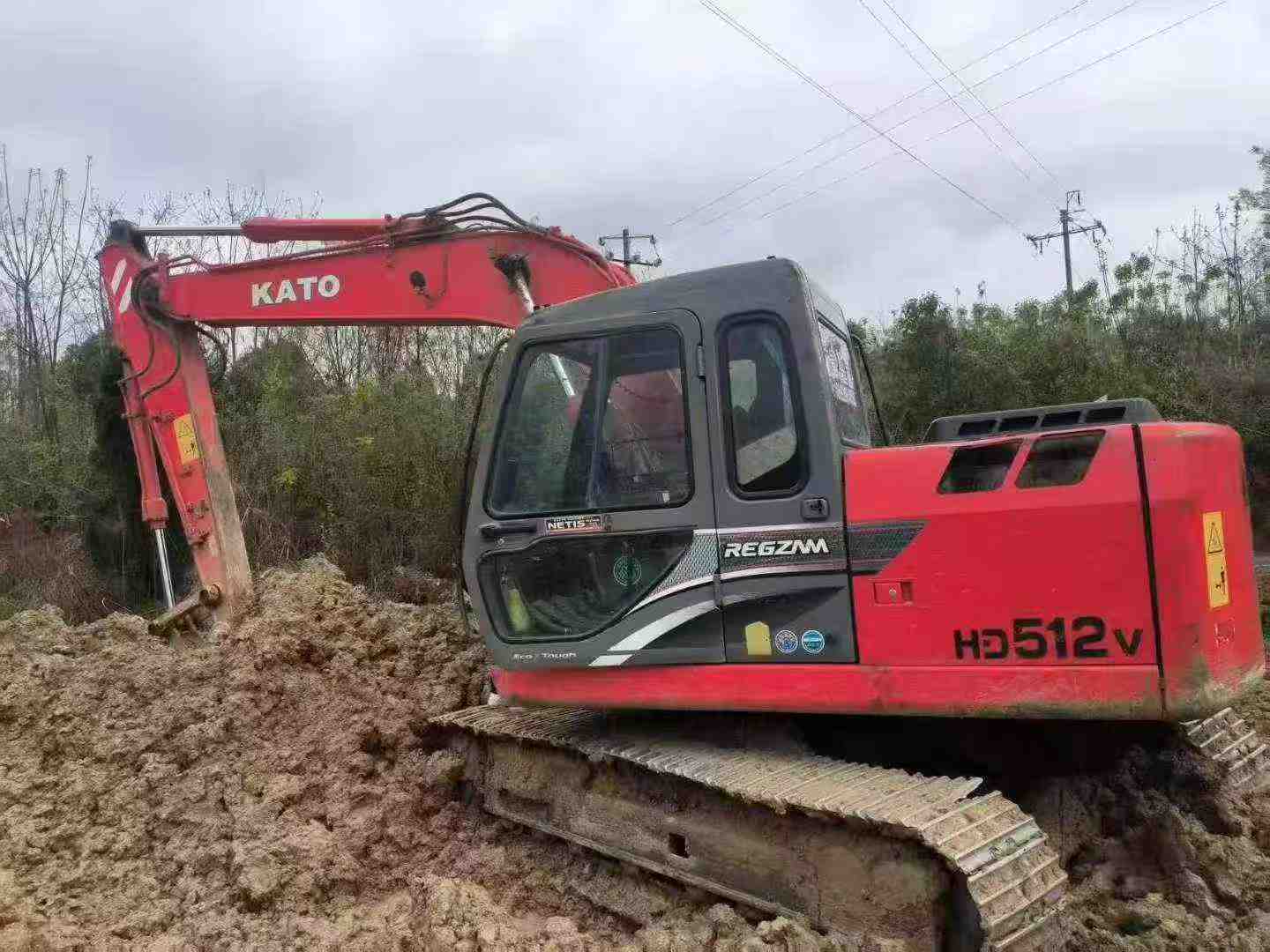

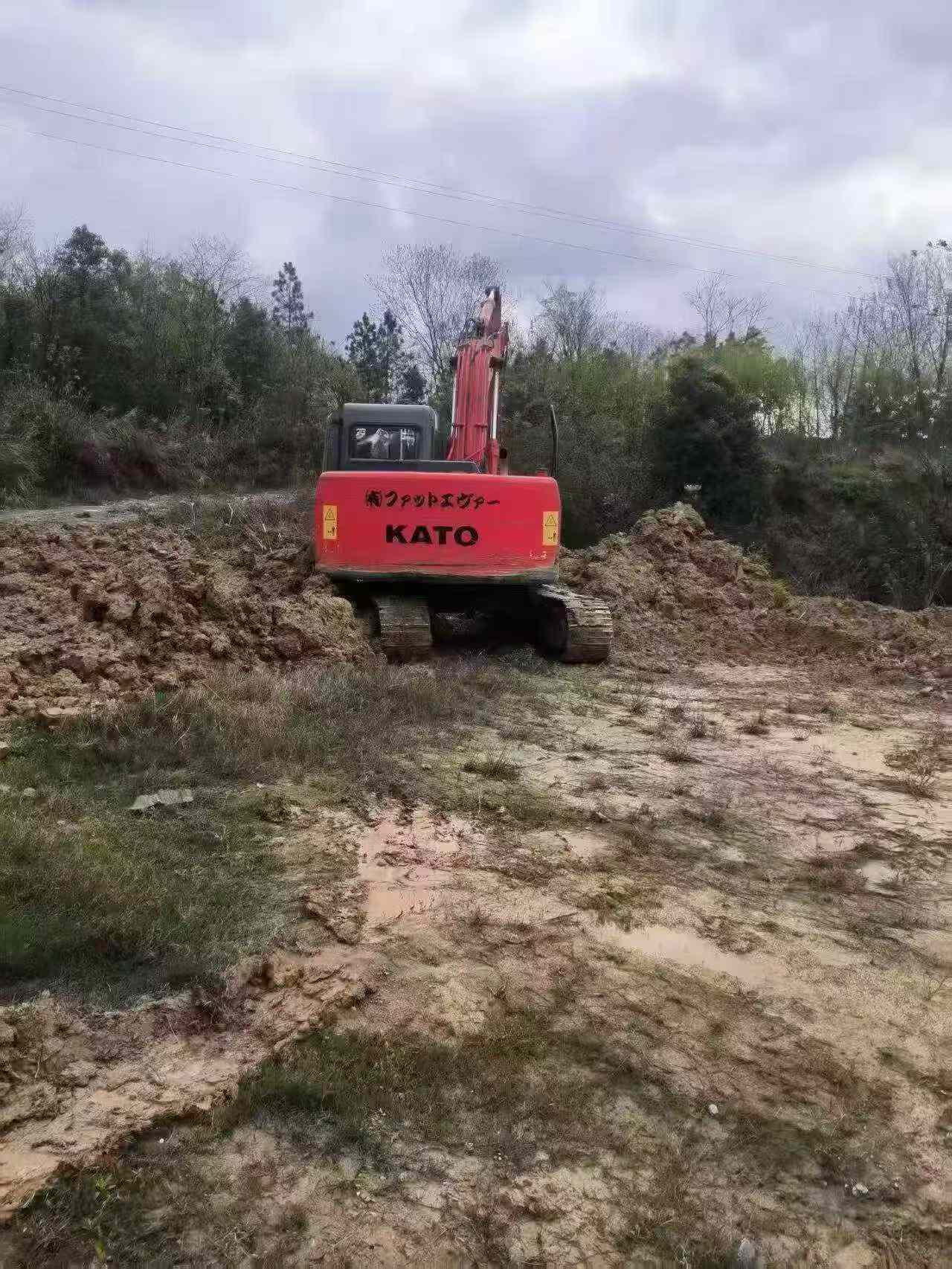

Built in 2016, this Kato HD512V 12-ton excavator delivers precise control and reliable performance for medium-duty excavation projects. Powered by a 71kW engine at 2000 rpm, this joint venture machine combines Japanese engineering standards with practical operator-focused design. The spacious cabin offers excellent visibility across the 8,310mm maximum digging radius, while the 500mm-wide track plates and 1,990mm track gauge provide exceptional stability on varied terrain.

Operators benefit from responsive hydraulics controlling the 0.5m³ backhoe bucket through a maximum digging depth of 5,600mm and vertical digging depth of 4,610mm. With 880mm counterweight ground clearance and 440mm minimum ground clearance, this excavator navigates uneven sites confidently. The compact transport dimensions—8,000mm length, 2,490mm width, 2,460mm height—simplify logistics between job sites.

<ul>
<li>Working weight: 13,200kg with balanced load distribution</li>
<li>Maximum excavation height: 8,750mm for elevated work</li>
<li>Track ground length: 2,870mm for superior traction</li>
<li>Maximum unloading height: 6,390mm for efficient truck loading</li>
<li>Currently located in Luzhou, Sichuan</li>
</ul>

Built for demanding excavation work, this 2016 Kobelco SK200-8 delivers 20 tons of proven performance across construction, demolition, and earthmoving projects. Powered by a Hino J05E engine producing 114kW at 2000rpm with water-cooling and turbocharging, this machine handles continuous operation in challenging conditions. The 0.8m³ bucket and 2.94m rod configuration provide optimal reach and capacity for foundation work, trenching, and material handling tasks.

Operational specifications include:
<ul>
<li>Maximum digging depth of 6700mm and reach extending to 9900mm</li>
<li>Bucket digging force of 143kN with 102kN rod digging force for breaking tough ground</li>
<li>Dual variable displacement hydraulic pumps delivering 2×220 l/min flow</li>
<li>Travel speeds up to 6.0 km/h with 70% grading capability</li>
<li>Standard hydraulic crushing pipeline for attachment versatility</li>
<li>370L fuel capacity supporting extended work shifts</li>
</ul>

Currently located in Jiangsu, this SK200-8 arrives site-ready with complete hydraulic systems, reliable Japanese engineering, and the digging power your project demands. Contact Fair Trade Machinery for shipping arrangements and competitive pricing.

Kobelco SK200-8

Engineered with Komatsu's proven SAA6D107E-1 engine delivering 110 kW at 2000 rpm, this 2014 PC210LC-8 represents a benchmark in 21-ton excavator performance. The 6.69-liter displacement unit drives a sophisticated hydraulic system generating 152 kN bucket digging force and 130 kN arm digging force, ensuring consistent power delivery across demanding earthmoving applications.

Built to joint venture/import standards, the PC210LC-8 features precision-engineered reach capabilities including a 9,380 mm maximum digging radius and 6,095 mm digging depth. Operating weight of 20,900 kg provides exceptional stability during full-extension operations, while the 1.0 m³ backhoe bucket optimizes material handling efficiency.

Key technical specifications:
<ul>
<li>Maximum digging height: 9,800 mm with 6,890 mm unloading clearance</li>
<li>Transport dimensions: 9,495 mm × 2,980 mm × 3,190 mm</li>
<li>Travel speed: 5.5 km/h for efficient site mobility</li>
<li>Vertical digging depth: 5,430 mm for trench work</li>
</ul>

Currently located in Jiangsu, this machine offers proven Komatsu durability backed by comprehensive component engineering. Immediate availability for international shipping.

Komatsu PC210LC-8

Built to endure the toughest jobsites, this 2016 Caterpillar 374D excavator represents proven engineering excellence with years of reliable performance already logged. Operating at 70 tons with traditional power systems, this joint venture/import machine delivers the durability and consistent output that Caterpillar is renowned for worldwide. Currently located in Jinhua, Zhejiang, this workhorse has demonstrated its capability to handle demanding excavation tasks day after day.

<ul>
<li>70-ton operating weight for heavy-duty applications</li>
<li>Backhoe configuration optimized for versatile digging operations</li>
<li>Traditional power system ensuring straightforward maintenance</li>
<li>Joint venture/import manufacturer quality standards</li>
<li>2016 model year with established track record</li>
<li>Available in Jinhua, Zhejiang for inspection</li>
</ul>

Proven on international projects, the 374D combines robust construction with field-tested reliability. This machine stands ready to deliver the productivity your operation demands without compromise.

Caterpillar 374D

Available now from our Jiangsu facility, this 2011 Hitachi EX200-3 delivers immediate deployment without factory wait times. Operating at 20 tons with proven traditional power, this joint venture-manufactured excavator is ready for fast mobilization to your project site. Skip months of lead time and secure a backhoe-equipped machine that's inspection-ready and prepared for immediate shipping across domestic and international routes.

<ul>
<li>20-ton operating capacity for medium-duty excavation</li>
<li>Traditional power system with reliable fuel efficiency</li>
<li>Factory backhoe configuration for trenching and foundation work</li>
<li>Joint venture manufacturing ensures quality component integration</li>
<li>Stationed in Jiangsu for rapid logistics throughout Asia-Pacific</li>
<li>2011 model year with documented service history</li>
</ul>

Bypass extended manufacturing queues and accelerate project timelines. This EX200-3 represents immediate equipment access from a strategic logistics hub, cutting weeks from your procurement cycle. Contact our team for current inspection reports, shipping quotes, and same-week departure scheduling from Jiangsu.

Hitachi EX200-3

Engineered for precision work in confined spaces, this 2020 Kobelco SK20SR mini excavator delivers exceptional maneuverability without compromising operator comfort. Weighing in at 2 tons, this compact machine combines responsive hydraulic controls with superior cabin visibility, enabling operators to maintain full awareness of their surroundings during demanding tasks. Built by a trusted joint venture manufacturer, the SK20SR features traditional power delivery that ensures reliable performance across varied job sites.

<ul>
<li>Enhanced cabin design provides panoramic sightlines for safer operation in tight quarters</li>
<li>Intuitive joystick controls reduce operator fatigue during extended shifts</li>
<li>Low center of gravity ensures stable operation on uneven terrain</li>
<li>Backhoe configuration optimizes digging efficiency for trenching and utility work</li>
<li>Compact footprint allows access to restricted urban and residential sites</li>
</ul>

Currently located in Wenzhou, Zhejiang, this SK20SR represents a proven solution for contractors requiring dependable performance in landscaping, utility installation, and light construction applications. Kobelco's reputation for operator-focused engineering is evident throu

Kobelco SK20SR

Secure immediate deployment with this 2019 Doosan DH220-3 excavator, positioned in Jiangsu and ready for rapid dispatch. Built as a joint venture/import model, this 22-ton workhorse delivers proven traditional power without the months-long factory queues that drain your project timeline. Skip extended lead times—this machine is available now for fast mobilization to your construction site, quarry, or infrastructure project.

<ul>
<li>Model Year: 2019</li>
<li>Operating Weight: 22 tons</li>
<li>Power System: Traditional diesel</li>
<li>Configuration: Backhoe bucket</li>
<li>Manufacturer Origin: Joint venture/Import quality standards</li>
<li>Current Location: Jiangsu, China</li>
</ul>

Operators benefit from Doosan's field-proven hydraulics and responsive controls, minimizing training time while maximizing productivity from day one. With immediate availability from our Jiangsu facility, you eliminate procurement delays and keep equipment budgets predictable. Arrange inspection and logistics coordination today—your project schedule won't wait, and neither should your equipment acquisition.

Doosan DH220-3

Available now in Fujian, this 2020 Kobelco SK495D eliminates factory wait times and delivers immediate productivity to your project. Operating at 49 tons with a robust 52,700 kg working weight, this crawler excavator combines Hino P11C power (257 kW at 1850 rpm) with exceptional reach capabilities—11,770 mm maximum digging radius and 7,360 mm digging depth. Dual variable displacement axial piston pumps deliver 2 × 370 l/min flow for responsive hydraulic performance across demanding applications.

<ul>
 <li>Engine: Hino P11C, 6-cylinder, 10.52L displacement, water-cooled with intercooling</li>
 <li>Digging Force: 266 kN bucket force, 223 kN arm force for tough material handling</li>
 <li>Capacity: 2.3 m³ backhoe bucket, 650L fuel tank for extended operation</li>
 <li>Performance: 7.8 rpm swing speed, 70% grading ability, 417 kN maximum tractive force</li>
 <li>Transport Dimensions: 12,080 × 3,570 × 3,800 mm</li>
</ul>

Fast deployment from Fujian ensures minimal downtime. Ready to ship directly to your site—contact Fair Trade Machinery today for immediate availability and competitive export pricing.

Kobelco SK495D

Cut weeks off your project timeline with this 2020 Volvo EC55 mini excavator, ready for immediate dispatch from 浙江金华. Rated at 5 tons with reliable traditional power, this joint venture/import machine delivers proven Volvo engineering without the 6–12 month factory wait. Perfect for urban construction, utility work, and tight-access sites where speed and maneuverability matter most.

<ul>
<li>Year: 2020</li>
<li>Model: Volvo EC55</li>
<li>Tonnage: 5 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Joint venture/Import</li>
<li>Location: 浙江金华, China</li>
</ul>

Available now for fast deployment to your site. Skip the lead times and secure this compact performer while inventory lasts. Ideal for contractors who need equipment on the ground this month, not next quarter. Contact Fair Trade Machinery today for shipping quotes and technical specifications.

Volvo EC55

Powered by the robust C6.4 ACERT engine delivering 92.3 kW at 2000 rpm, this 2016 Caterpillar 320DGC combines proven hydraulic architecture with field-tested durability. With a 20-ton operating weight and 0.9 m³ bucket capacity, this excavator handles demanding earthmoving applications with precision. The hydraulic system operates at 35 MPa working pressure, fed by a 205 L/min main pump that ensures responsive cycle times across all functions.

Engineering highlights include:
<ul>
<li>140.1 kN bucket digging force and 106.4 kN arm digging force for superior breakout performance</li>
<li>6.71-meter maximum dig depth with 9.85-meter reach at ground level</li>
<li>Water-cooled 6-cylinder engine with 6.37L displacement for sustained output</li>
<li>260-liter hydraulic system capacity ensuring thermal stability during extended operation</li>
<li>70% gradeability (35°) and 11.5 rpm swing speed for versatile job site mobility</li>
</ul>

Currently located in Jinhua, Zhejiang, this joint-venture manufactured unit represents Caterpillar's commitment to hydraulic efficiency and component longevity in the 20-ton class.

Caterpillar 320DGC

Maximize your equipment budget with this 2018 Doosan DX75 midi excavator, delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 7-ton machine combines exceptional fuel efficiency with robust digging capabilities—53.4kN bucket force and 36.9kN arm force handle demanding excavation tasks with ease.

Currently located in Guangxi, this joint-venture manufactured unit offers impressive operational specs:

<ul>
<li>Maximum digging reach of 6,270mm and depth to 3,930mm</li>
<li>Compact 2,100mm transport width for easy site mobility</li>
<li>30° climbing ability and 370mm ground clearance for challenging terrain</li>
<li>111L fuel tank supporting extended work cycles</li>
<li>Variable piston pump hydraulics for precise control</li>
</ul>

Investing in quality used machinery means acquiring proven technology without the depreciation hit of new purchases. This DX75 represents smart capital allocation for contractors seeking reliable mid-size excavation capacity without compromising project budgets.

Doosan DX75

With a robust 8-ton working weight and a powerful 4JG1TPC engine, this 2016 XCMG XE85C excavator is an ideal fleet addition for busy contractors. Located in 广西, it offers a bucket capacity of 0.34 m³ and a maximum digging depth of 4130 mm, ensuring efficient performance on various job sites. Equipped with a traditional power system, the XE85C delivers a rated power of 53.8 kW at 2150 rpm, providing reliable and consistent operation. Its 35% climbing ability and 4.9 km/h travel speed enhance mobility and versatility, making it perfect for both primary and backup roles in your fleet. The excavator's hydraulic system, with a maximum flow of 198+21 l/min, ensures smooth and powerful operation, while its 130-liter fuel tank supports extended work periods without frequent refueling. Add this versatile and dependable unit to your fleet to boost productivity and reliability.

XCMG XE85C

Compact power meets proven engineering in this 2.6-ton mini excavator, built by one of the world's most trusted heavy equipment manufacturers. Powered by a reliable Yanmar 3TNV80F engine delivering 15.2kW at 2500rpm, this SY26U handles tight urban sites and landscaping projects with precision. Maximum digging depth reaches 2,820mm while maintaining a minimal footprint of just 1,550mm transport width—ideal for residential access and confined work zones.

Sany's reputation for parts availability and factory support makes this machine a smart investment in the used market. With extensive dealer networks across Asia, Europe, and beyond, sourcing components remains straightforward years after purchase. Strong resale values reflect the brand's growing global footprint and proven durability in demanding applications.

<ul>
<li>Bucket digging force: 24.3kN for efficient material handling</li>
<li>Compact dimensions: 4,285mm length × 2,430mm height</li>
<li>47% climbing ability on challenging terrain</li>
<li>34L fuel tank for extended operation</li>
<li>Maximum digging radius: 4,850mm</li>
<li>Currently located in Jinhua, Zhejiang, China</li>
</ul>

Sany SY26U

With immediate availability in 福建, the 2021 Caterpillar 新一代CAT352 液压 excavator is ready for rapid deployment to your site. Skip the factory lead times and enhance your project's logistics with this high-performance machine. Featuring advanced hydraulic systems, it ensures efficient operation and fast turnaround times, crucial for any demanding construction or excavation task.
<ul>
 <li>Available now in 福建</li>
 <li>Advanced hydraulic technology for superior performance</li>
 <li>Ideal for quick mobilization and high-speed operations</li>
</ul>

Caterpillar CAT352

Built for precision and control, this 2006 Komatsu PC200-7 hydraulic excavator delivers reliable performance across demanding job sites. Operating at 20 tons with a robust Komatsu SAA6D102E-2 engine producing 107 kW, this machine combines power with operational finesse. Operators benefit from enhanced cabin visibility and ergonomic controls that reduce fatigue during extended shifts, while the water-cooled system maintains consistent performance in varied conditions.

<ul>
<li>Spacious cab design with 2095mm height provides excellent sightlines to working zones</li>
<li>Smooth hydraulic response from dual variable piston pumps (2×214 L/min) ensures precise bucket and arm movements</li>
<li>Stable 3000mm track width and 20,253 kg working weight deliver solid grounding on uneven terrain</li>
<li>0.8 m³ bucket capacity with 149 kN digging force handles tough excavation tasks efficiently</li>
<li>Maximum digging depth of 5380mm and reach of 9380mm offers versatile working range</li>
<li>12.4 km/h travel speed enables quick repositioning between work areas</li>
</ul>

Currently located in Jiangsu, this joint venture/import model represents Komatsu's commitment to operator-focused engineering and proven Japanese manufacturing stand

Komatsu PC200-7

Available now from our 浙江 facility, this 2017 Caterpillar 305B mini excavator delivers immediate deployment without factory wait times. Powered by a reliable 34.1 kW engine, this compact 5-ton machine combines precision with productivity for urban construction, utility work, and confined-space applications. Skip months of lead times and mobilize your project today with fast logistics from one of China's most connected industrial hubs.

<ul>
 <li>Working Weight: 5,350 kg – ideal for transport and maneuverability</li>
 <li>Bucket Capacity: 0.22 m³ backhoe configuration for trenching and excavation</li>
 <li>Rated Power: 34.1 kW – proven traditional powertrain</li>
 <li>Joint Venture/Import Quality: Built to Caterpillar global standards</li>
 <li>Strategic 浙江 Location: Rapid shipping access to domestic and international ports</li>
</ul>

Reduce downtime with immediate equipment acquisition. This ready-to-work 305B has been maintained to operational standards and is positioned for quick delivery across Asia and beyond. Secure your machine today and keep your project timeline on track.

Caterpillar 305B

Strengthen your fleet capacity with this 2014 Case CX130 excavator, currently positioned in Zhejiang Jinhua and ready for immediate deployment. Operating at 13 tons with proven traditional power, this joint venture-manufactured machine delivers consistent performance across multiple job sites. Contractors managing overlapping projects require dependable backup equipment that integrates seamlessly with existing operations—this unit fulfills that critical role without compromise.

<ul>
 <li>13-ton operating weight optimized for mid-range excavation tasks</li>
 <li>Factory backhoe configuration for versatile digging applications</li>
 <li>Traditional power system ensures straightforward maintenance protocols</li>
 <li>2014 production year offers mature technology with proven reliability</li>
 <li>Joint venture manufacturing guarantees international quality standards</li>
</ul>

Fleet managers understand that equipment downtime directly impacts project timelines and profitability. Adding this CX130 to your rotation provides essential redundancy when primary machines undergo scheduled maintenance or face unexpected repairs. Standardizing on Case equipment simplifies operator training, parts inventory, and service procedures.

Specifications	Value
No.	1046532
Tonnage (tons)	12
Working weight (kg)	13200
Bucket capacity (m³)	0.5
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Rated power (kw/rpm)	71 / 2000
Total transport length (mm)	8000
Total transport width (mm)	2490
Total transport height (mm)	2460
Counterweight ground clearance (mm)	880
Minimum ground clearance (mm)	440
Total track length (mm)	3570
Track gauge (mm)	1990
Track plate width (mm)	500
Track ground length (mm)	2870
Maximum digging radius (mm)	8310
Maximum digging depth (mm)	5600
Maximum excavation height (mm)	8750
Maximum unloading height (mm)	6390
Maximum vertical digging depth (mm)	4610

2016 Kato HD512V
