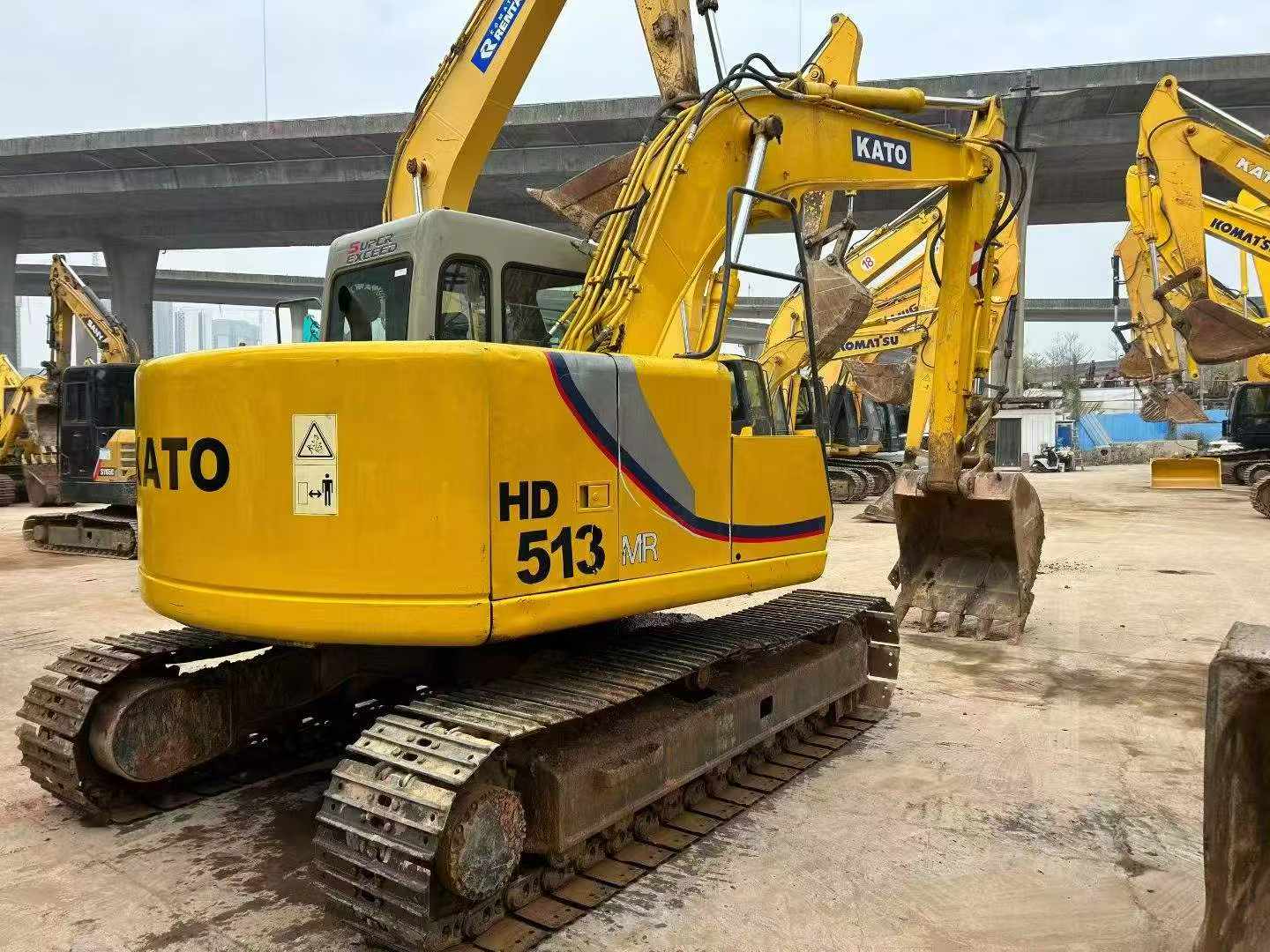

Available now in Guangdong Zhuhai, this 2016 Kato HD513MR delivers 13-ton performance without factory wait times. Powered by a proven Mitsubishi 4D34-TE1 engine generating 68kW at 2050rpm, this Japanese-engineered excavator combines reliable water-cooled operation with dual variable axial piston pumps for consistent hydraulic power across demanding jobsites.
Fast deployment to your operation means immediate productivity. With a maximum digging reach of 8,380mm and depth capacity of 5,580mm, this machine handles excavation, trenching, and loading applications efficiently. The Extra Mode delivers enhanced bucket digging force up to 98.1kN when you need maximum breakout power.
Key Specifications:
- Working weight: 13,200kg with 0.25-0.6m³ bucket capacity
- Boom/arm configuration: 4,650mm/2,500mm for versatile reach
- Travel speeds: 2.4/3.1/5.0 km/h for efficient repositioning
- Compact transport dimensions: 7,370mm × 2,490mm × 2,710mm
- Fuel capacity: 210L for extended runtime
Skip the lead times. Contact us today for immediate availability from Zhuhai.
| Specifications | Value |
|---|---|
| No. | 1019005 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.25-0.6 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

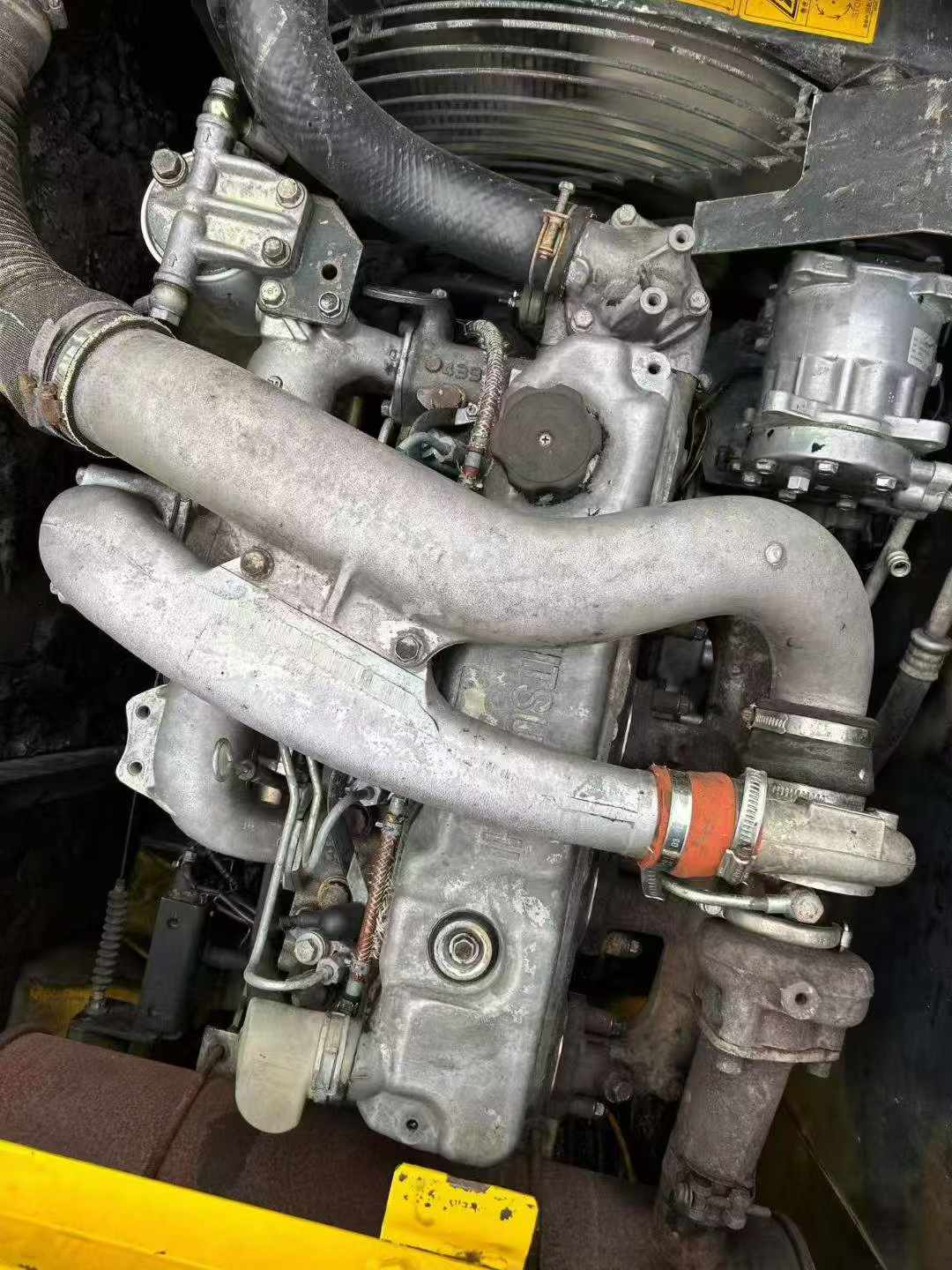

| Engine type | Mitsubishi 4D34-TE1 |
| Rated power (kw/rpm) | 68/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Ground specific pressure (Kpa) | 41.2 |
| Rotation speed (rpm) | 12.5 |
| Bucket digging force (kN) | 88.3 (Standard Mode) /98.1 (Extra mode) |
| Rod digging force (kN) | 63.7 (Standard mode) /70.6 (Extra mode) |
| Travel speed (km/h) | 2.4/3.1/5.0 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |

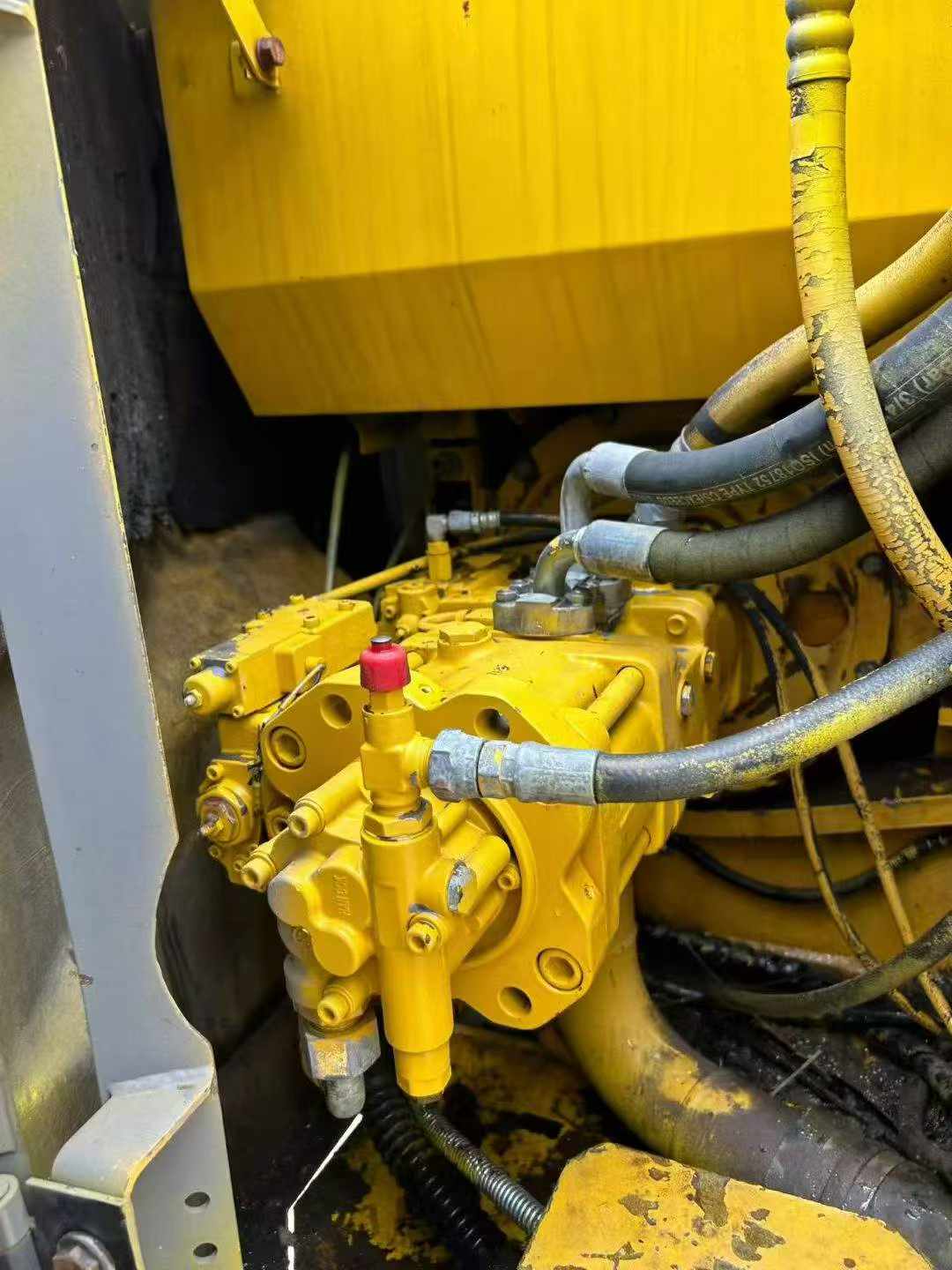

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 210 |
| Hydraulic Tank (L) | 74 |
| Hydraulic System (L) | 136 |
| Total transport length (mm) | 7370 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2710 |
| Counterweight ground clearance (mm) | 880 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 1680 |
| Total track length (mm) | 3590 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2870 |
| Maximum digging radius (mm) | 8380 |
| Maximum digging depth (mm) | 5580 |
| Maximum excavation height (mm) | 8850 |
| Maximum unloading height (mm) | 6480 |
| Maximum vertical digging depth (mm) | 4960 |
| Bulldozer lift or depth (mm) | 550/330 |
