Product Description
2011 Kato HD820III hydraulic excavator available from Hubei, China. This mid-size crawler excavator delivers reliable performance for earthmoving, site preparation, and general construction applications. The machine shows well-maintained condition with strong operational capability.
Key features include:
- Proven Kato HD820III platform with robust hydraulic system
- Fuel-efficient engine design for reduced operating costs
- Stable undercarriage suitable for varied terrain conditions
- Well-preserved mechanical components
- Ready for immediate deployment
Ideal for contractors and operators seeking dependable excavation equipment with established service history. Machine available for inspection in Hubei province. Contact us for detailed specifications, recent service records, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1082442 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.45-1.1 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

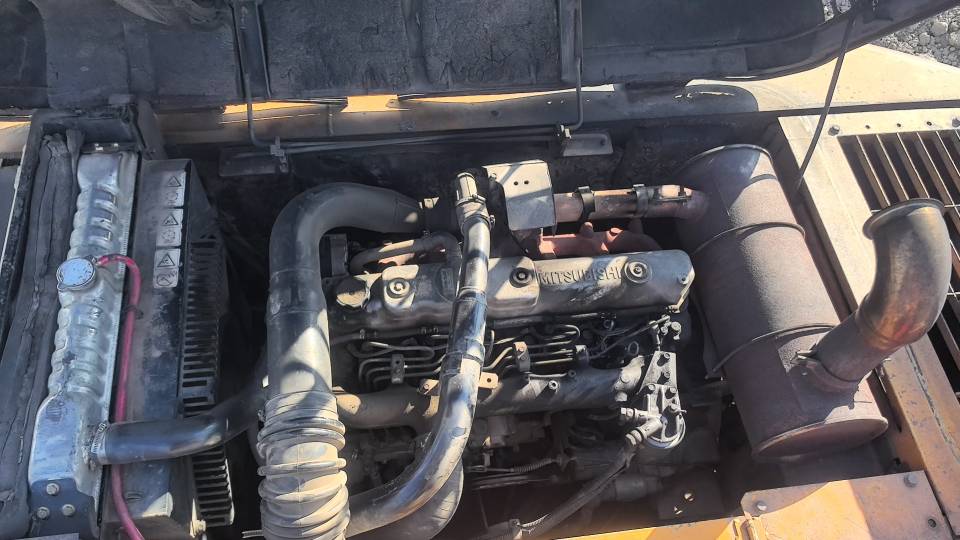

| Engine type | Mitsubishi 6D34-TLE2A |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 136 (Standard mode) /144 (Extra mode) |
| Rod digging force (kN) | 99 (Standard mode) /104 (Plus mode) |
| Travel speed (km/h) | 2.5/3.6/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 465 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2820 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 9740 |
| Maximum effective digging depth (mm) | 6530 |
