Product Description
Built in 2012, this HD820R represents Kato's commitment to engineering excellence in the 20-ton excavator class. Currently located in Shaoxing, Zhejiang, this Japanese-manufactured machine delivers proven reliability through its Mitsubishi 6D34-TLC1B engine, producing 110kW at 2050rpm with turbocharged, intercooled performance. Operating weight of 19,800kg combines with standard 0.8m³ bucket capacity to handle demanding excavation tasks with precision.
Kato's reputation in the used equipment market stems from exceptional parts availability and strong resale value retention. This model features:
- Maximum digging reach of 9,910mm with 6,700mm depth capability
- Robust hydraulic system: dual 235 l/min variable piston pumps operating at 31.4MPa
- Standard bucket digging force of 136kN, upgradeable to 144kN high-power configuration
- Proven Mitsubishi powertrain with 5.86L displacement and 580N·m maximum torque
- Comprehensive service support through established dealer networks
With 320L fuel capacity and efficient water-cooled operation, this HD820R offers the dependability that keeps projects on schedule and maintenance costs predictable.
| Specifications | Value |
|---|---|
| No. | 1007059 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | Standard 0.8/ Enhanced 0.9 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

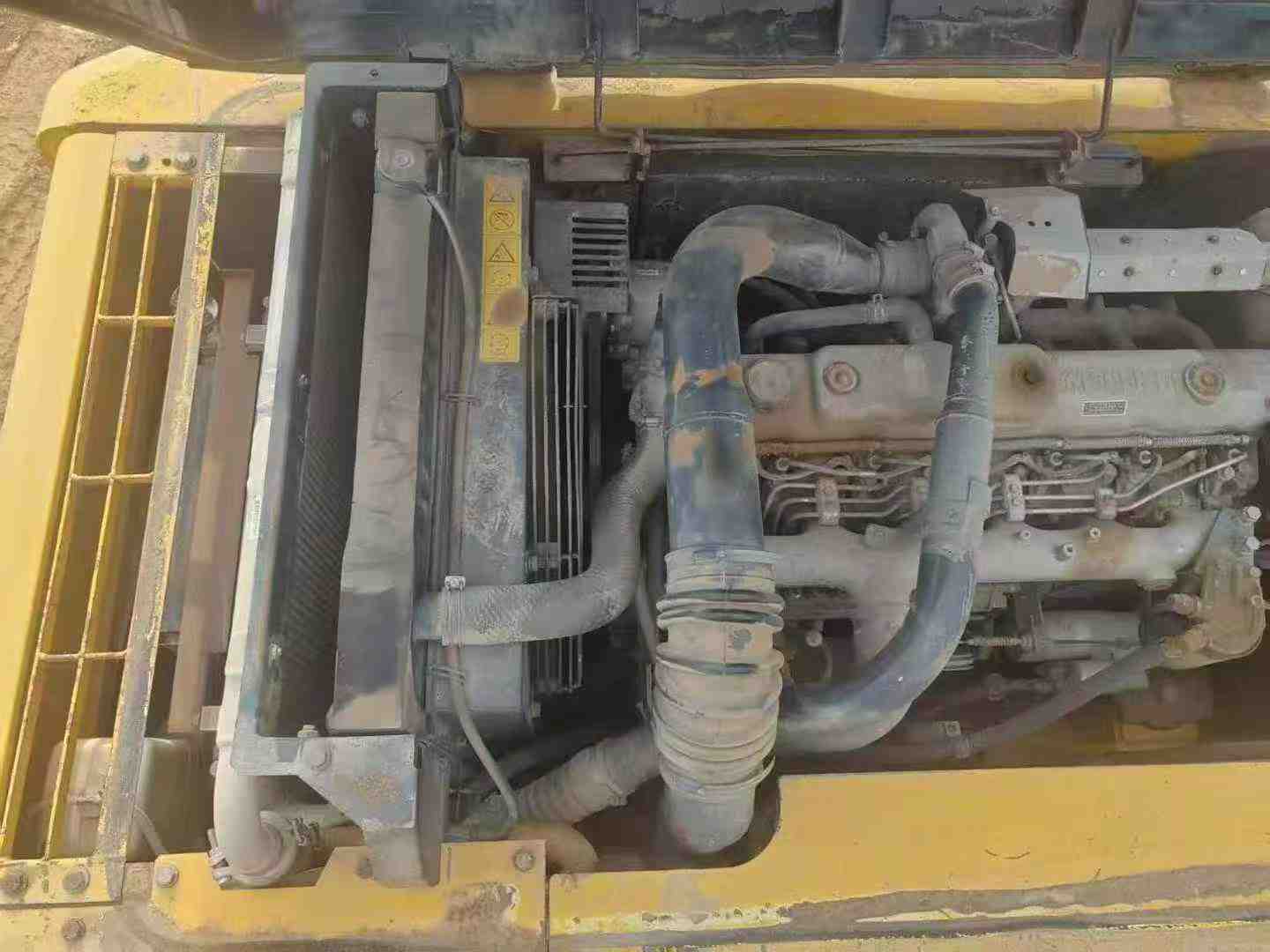

| Engine type | Mitsubishi 6D34-TLC1B |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m) | 580N*m/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 136/ High power 144 |
| Rod digging force (kN) | Standard 99/ High Power 104 |
| Maximum tractive force (kN) | 179.5 |
| Travel speed (km/h) | 5.5/3.6 |

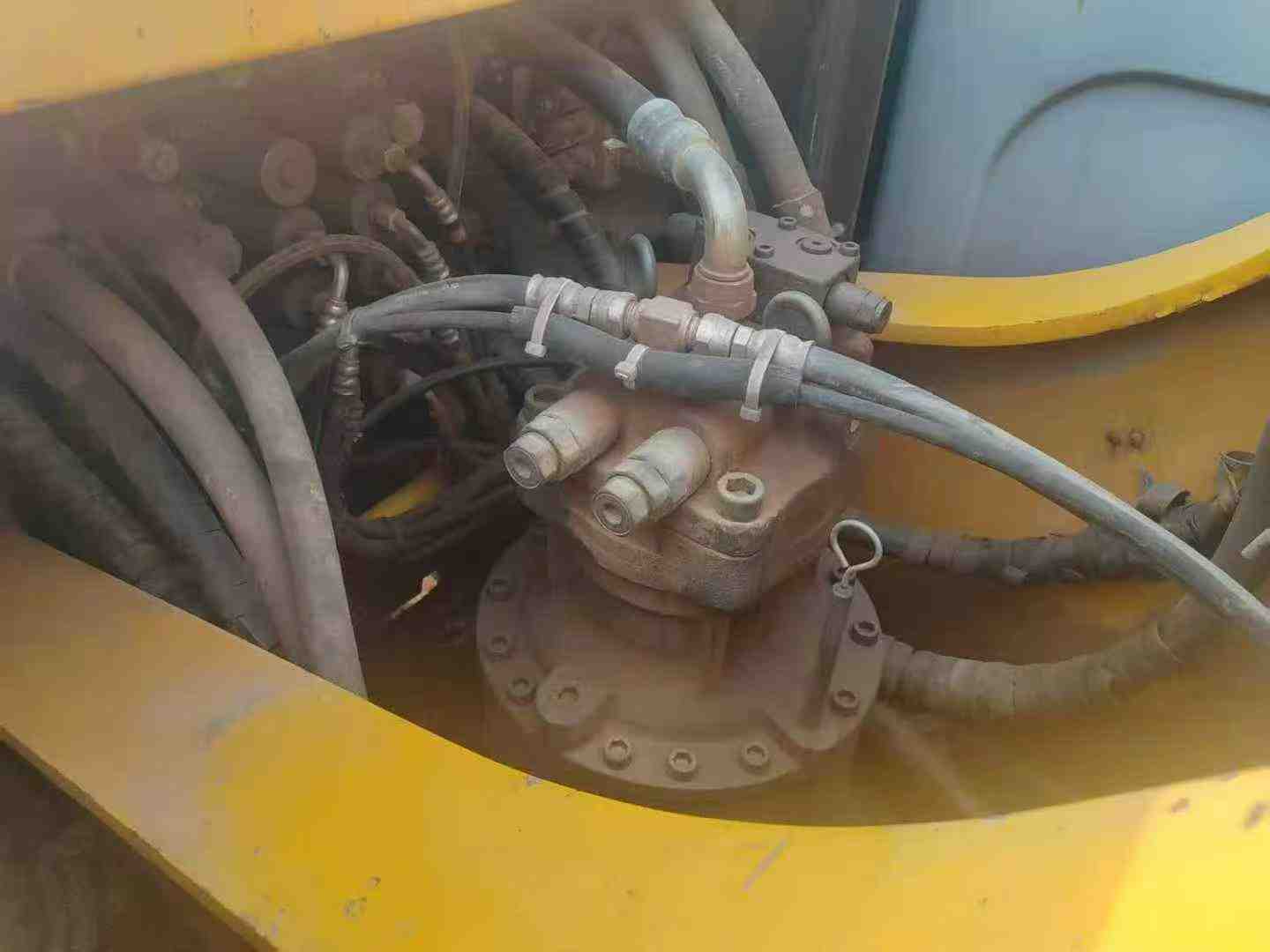

| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2970 (to hose top) |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 4650 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2820/2920/3020 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
