Product Description

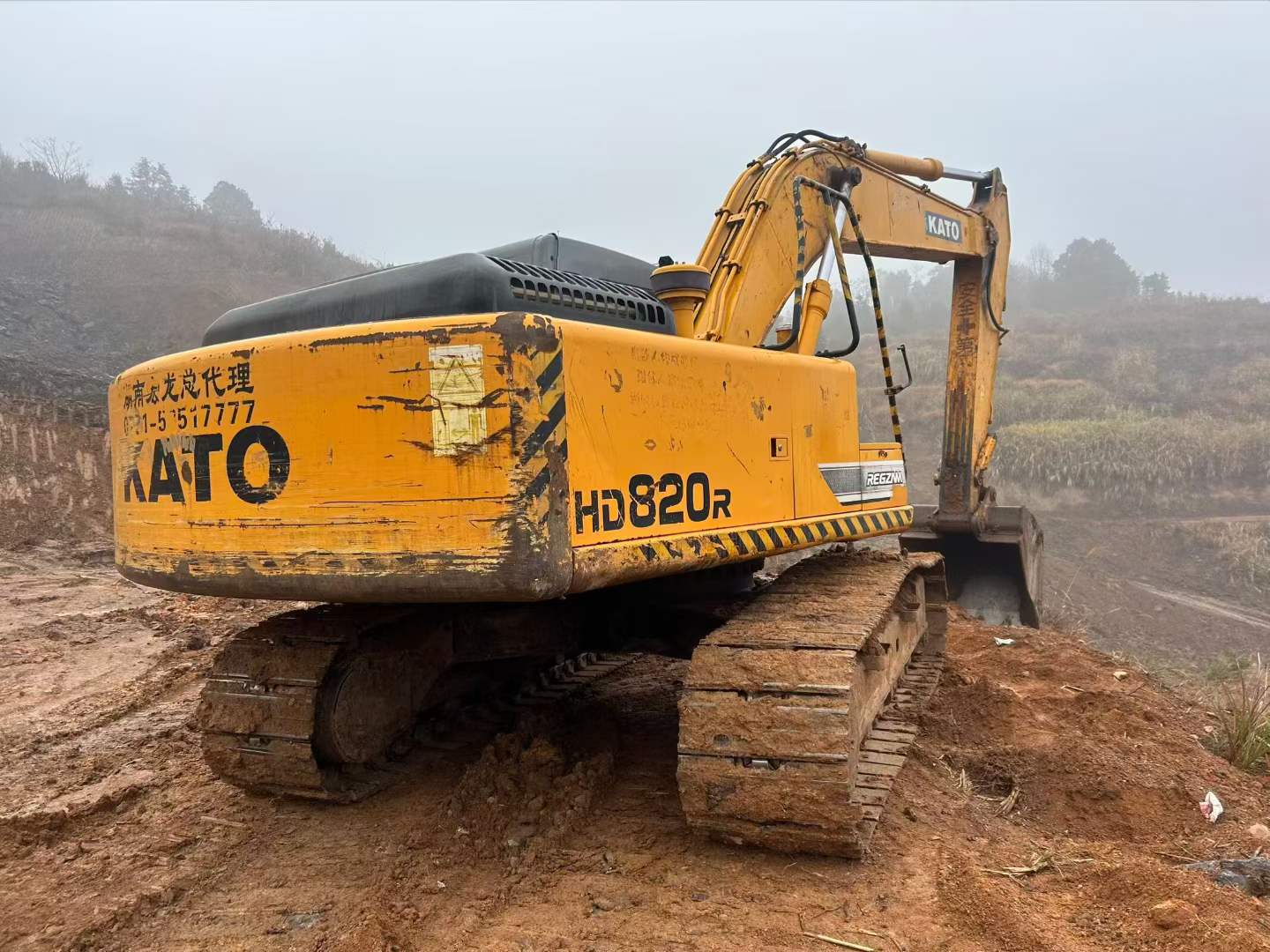

Powered by a Mitsubishi 6D34-TLC1B engine, this 2014 Kato HD820R excavator delivers 110 kW at 2050 rpm, ensuring robust performance. Equipped with an intercooler and turbocharged, the 6-cylinder, 5.86 L engine provides a maximum torque of 580 N*m at 1400 rpm. The hydraulic system is equally impressive, featuring a dual variable capacity piston pump and gear pump, with a main pump flow rate of 235 l/min. This setup supports a travel speed of up to 5.5 km/h and a rotation speed of 13 rpm.
- Engine: Mitsubishi 6D34-TLC1B, 6 cylinders, 5.86 L displacement
- Hydraulic System: Variable capacity piston pump ×2 + gear pump, 235 l/min flow rate
- Travel Speed: 5.5/3.6 km/h
- Bucket Capacity: Standard 0.8 m³ / Enhanced 0.9 m³
- Boom Length: 5630 mm
- Rod Length: 2930 mm
Designed for durability and efficiency, the HD820R boasts a working weight of 19,800 kg and a maximum tractive force of 179.5 kN, making it ideal for demanding construction sites. Its advanced hydraulics and robust engine make it a reliable choice for any heavy-duty application.
| Specifications | Value |
|---|---|
| No. | 1000670 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | Standard 0.8/ Enhanced 0.9 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLC1B |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m) | 580N*m/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 136/ High power 144 |
| Rod digging force (kN) | Standard 99/ High Power 104 |
| Maximum tractive force (kN) | 179.5 |
| Travel speed (km/h) | 5.5/3.6 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2970 (to hose top) |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 4650 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2820/2920/3020 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
