Product Description

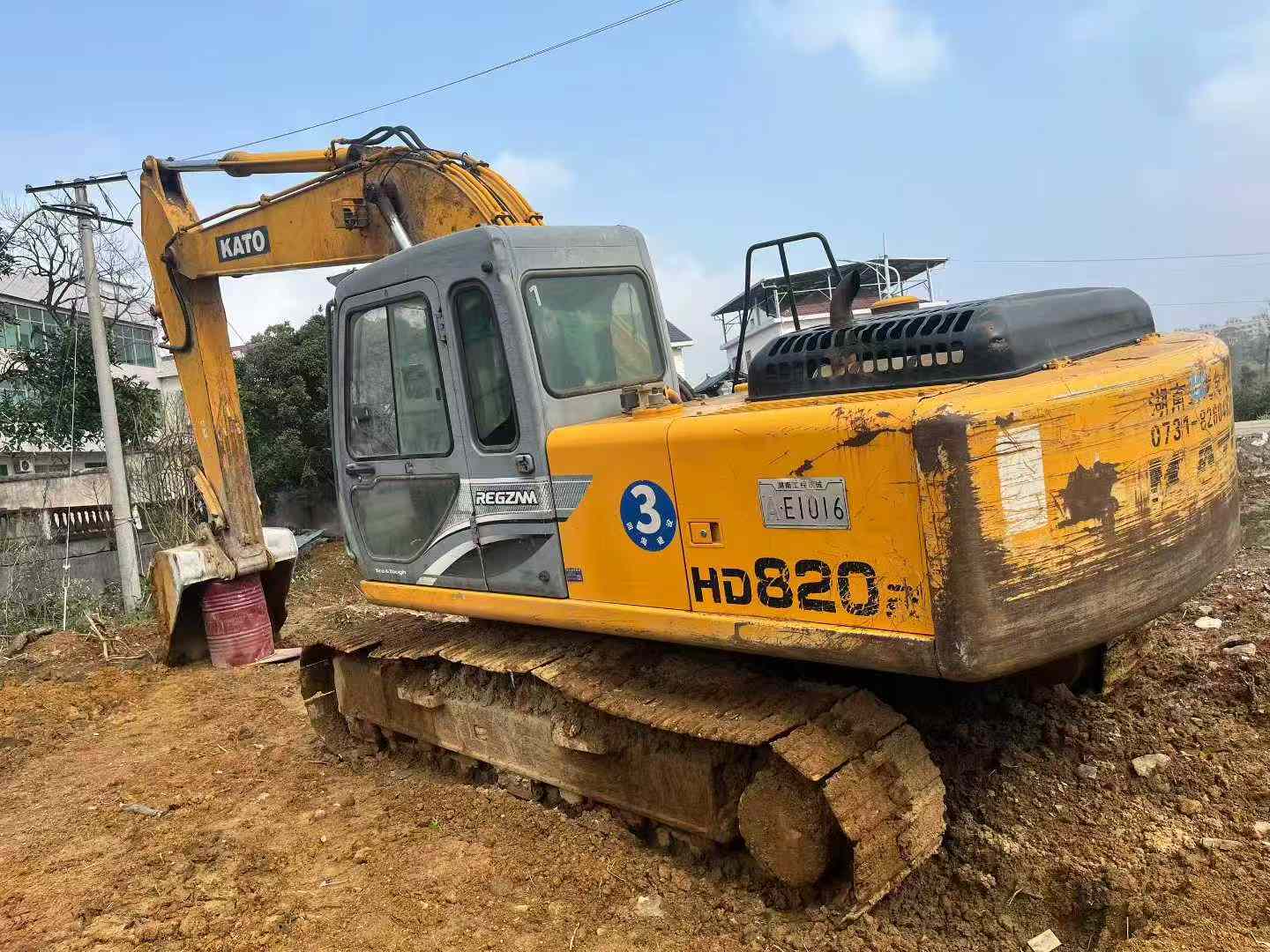

Available now in Hunan Changsha, this 2014 Kato HD820R 20-ton excavator eliminates factory wait times and delivers immediate deployment to your project site. Powered by a Mitsubishi 6D34-TLC1B engine producing 110kW at 2050rpm with turbocharged intercooler technology, this Japan-engineered machine combines proven reliability with exceptional digging performance. Standard bucket digging force reaches 136kN, while the enhanced configuration pushes to 144kN for demanding excavation tasks.
- Operating Weight: 19,800kg with optimized 44kPa ground pressure
- Reach & Depth: 9,910mm maximum digging radius, 6,700mm digging depth
- Hydraulics: Dual 235 L/min variable piston pumps, 31.4MPa working circuit
- Mobility: 70% (35°) climbing ability, 5.5km/h travel speed
- Boom Configuration: 5,630mm boom, 2,930mm arm with 0.8m³ standard bucket
- Location: Hunan Changsha – ready for fast logistics across China and export markets
Skip months of lead time. This HD820R is inspected, documented, and prepared for immediate shipment to your construction, mining, or infrastructure pr
| Specifications | Value |
|---|---|
| No. | 1028230 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | Standard 0.8/ Enhanced 0.9 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLC1B |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m) | 580N*m/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 136/ High power 144 |
| Rod digging force (kN) | Standard 99/ High Power 104 |
| Maximum tractive force (kN) | 179.5 |
| Travel speed (km/h) | 5.5/3.6 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2970 (to hose top) |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 4650 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2820/2920/3020 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
