Product Description

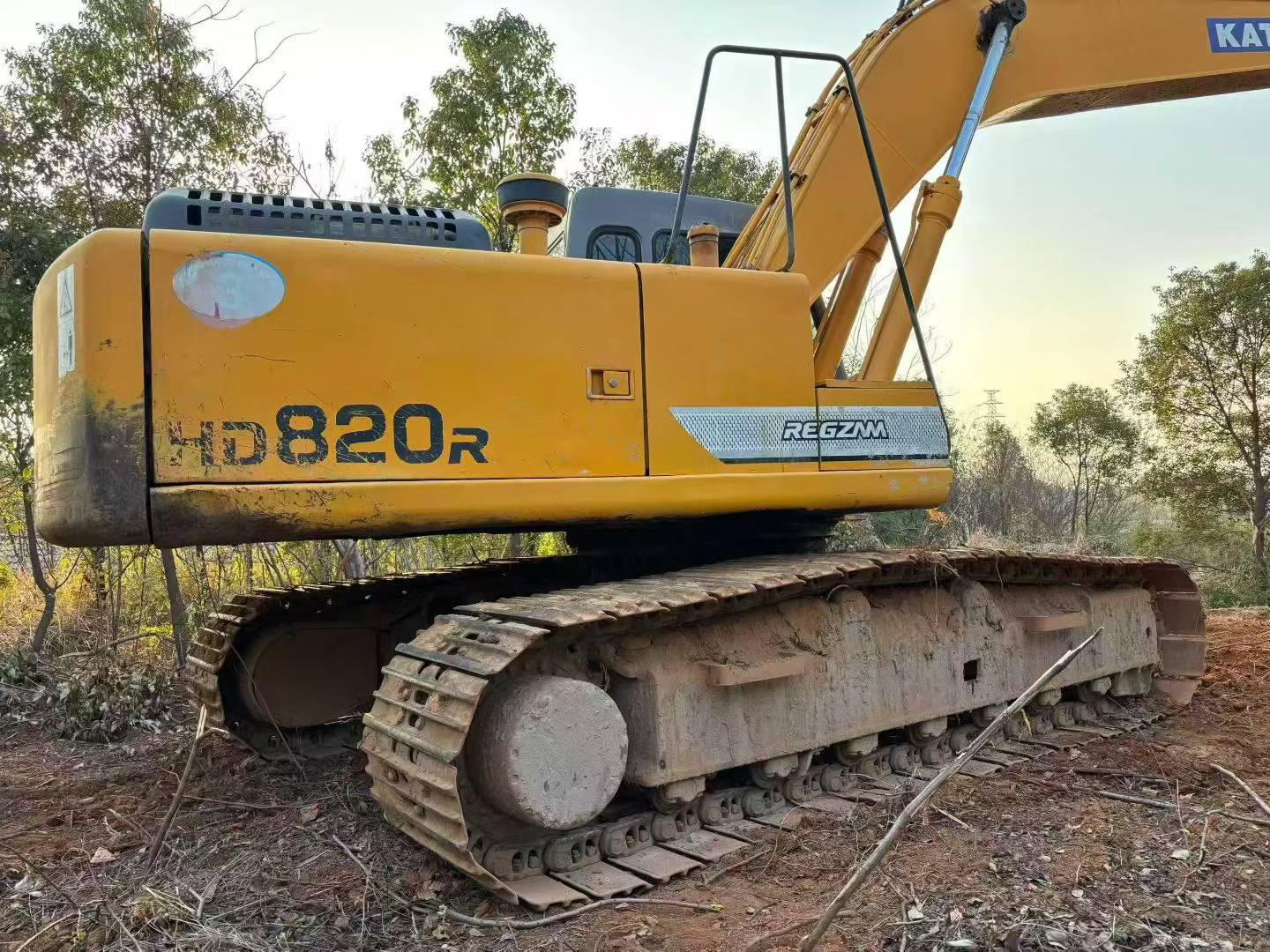

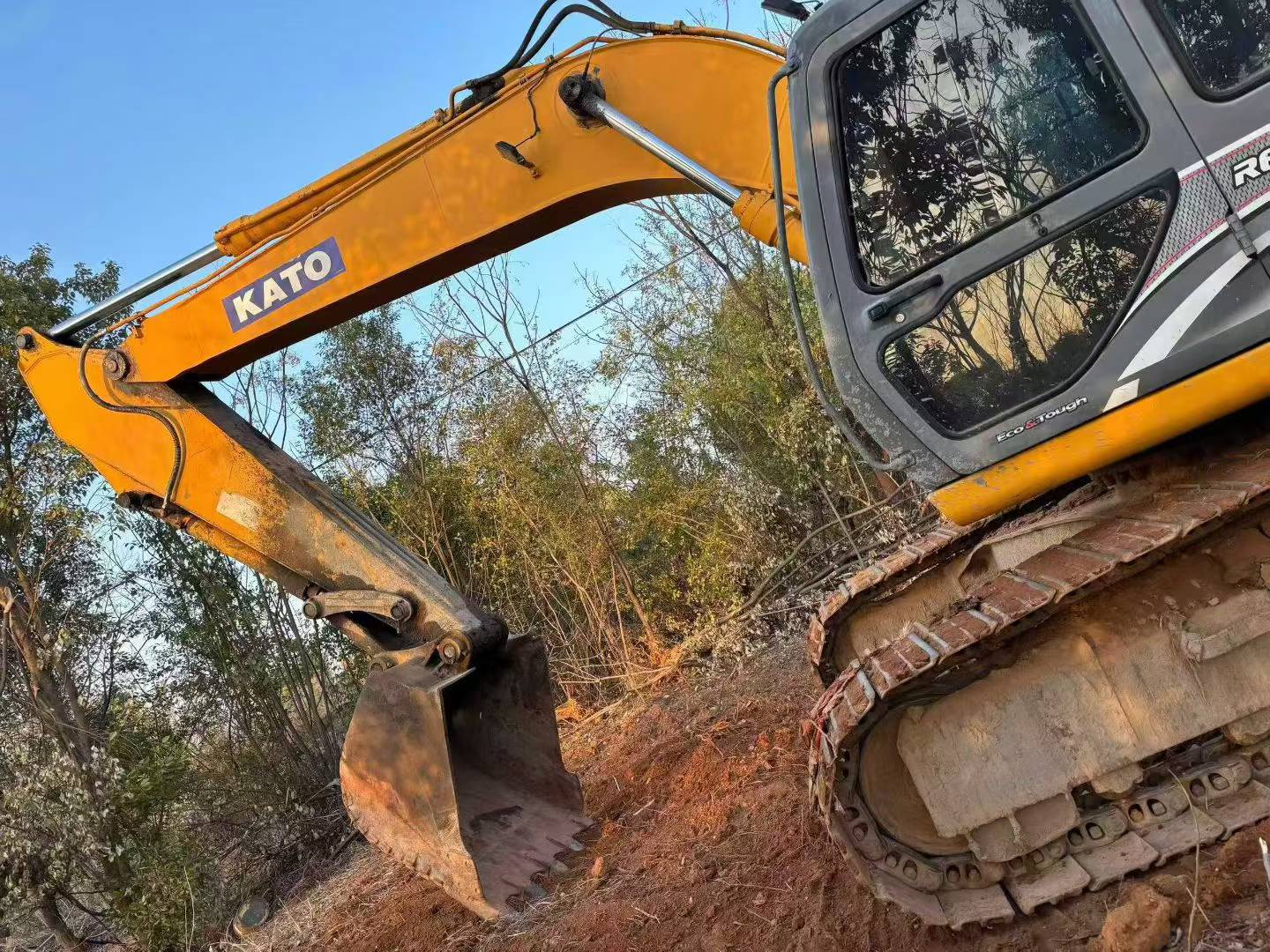

With a robust 20-ton working weight and a Mitsubishi 6D34-TLC1B engine, this 2015 Kato HD820R excavator is an ideal addition to any busy contractor's fleet. Located in Jiangxi, this unit offers a standard bucket capacity of 0.8 m³ and an enhanced option of 0.9 m³, ensuring versatility on various job sites. The boom length of 5630 mm and rod length of 2930 mm provide ample reach and digging depth, making it suitable for a wide range of construction and excavation tasks.
- Rated power: 110 kW at 2050 rpm
- Maximum torque: 580 Nm at 1400 rpm
- Bucket digging force: Standard 136 kN / High power 144 kN
- Travel speed: 5.5 km/h (high) / 3.6 km/h (low)
- Track plate width options: 600/700/800 mm
Equipped with a water-cooled, turbocharged, and intercooler system, this excavator ensures reliable performance even under demanding conditions. Its maximum tractive force of 179.5 kN and climbing ability of 70% (35°) make it a dependable choice for challenging terrains. Add this Kato HD820R to your fleet for consistent, high-quality performance and reliability.
| Specifications | Value |
|---|---|
| No. | 1000346 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | Standard 0.8/ Enhanced 0.9 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

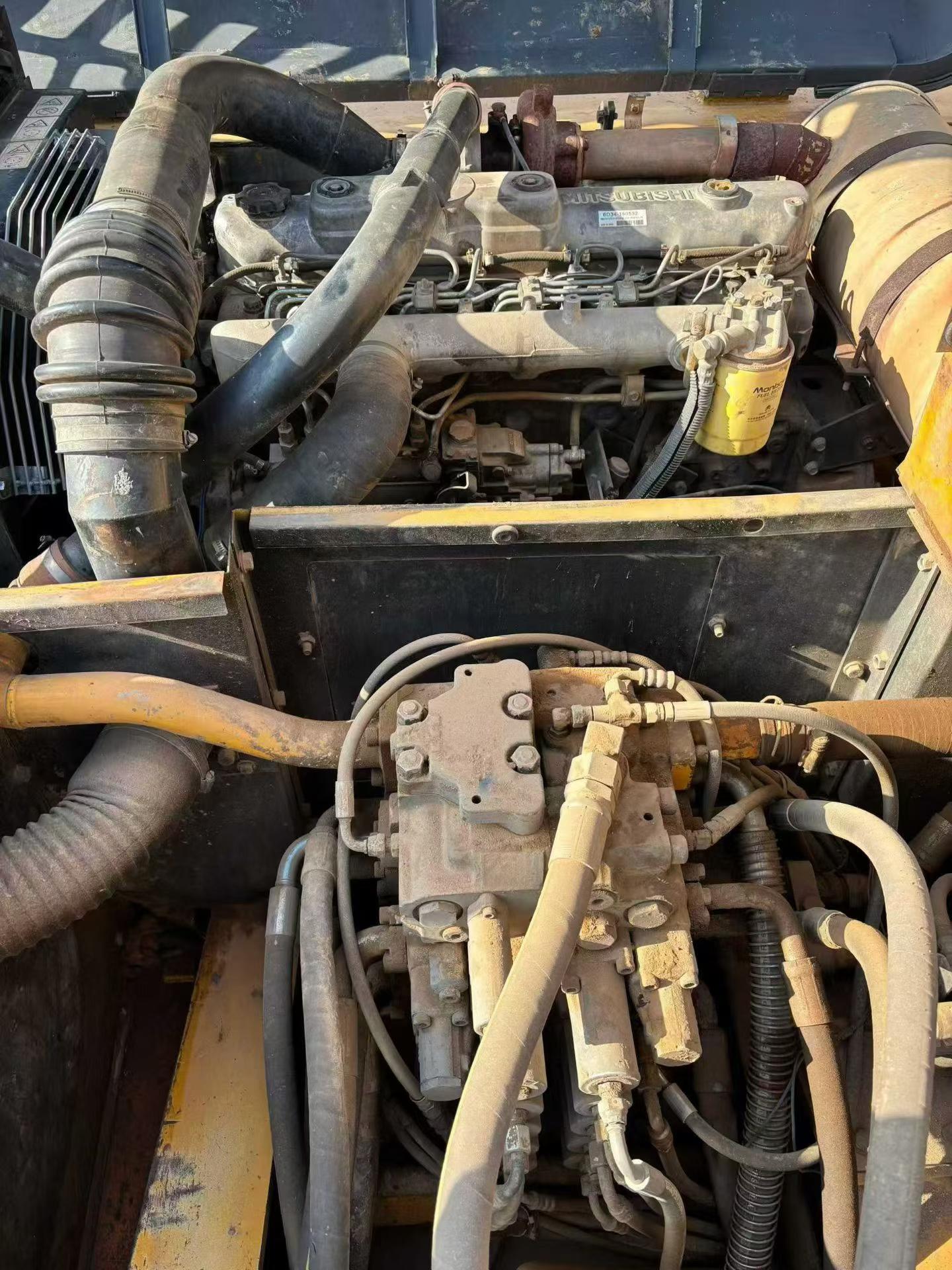

| Engine type | Mitsubishi 6D34-TLC1B |
| Rated power (kw/rpm) | 110/2050 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 104 x 115 |
| Maximum torque (N.m) | 580N*m/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.86 |
| Working form | Intercooler; Turbocharged engine; Direct injection |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 136/ High power 144 |
| Rod digging force (kN) | Standard 99/ High Power 104 |
| Maximum tractive force (kN) | 179.5 |
| Travel speed (km/h) | 5.5/3.6 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |

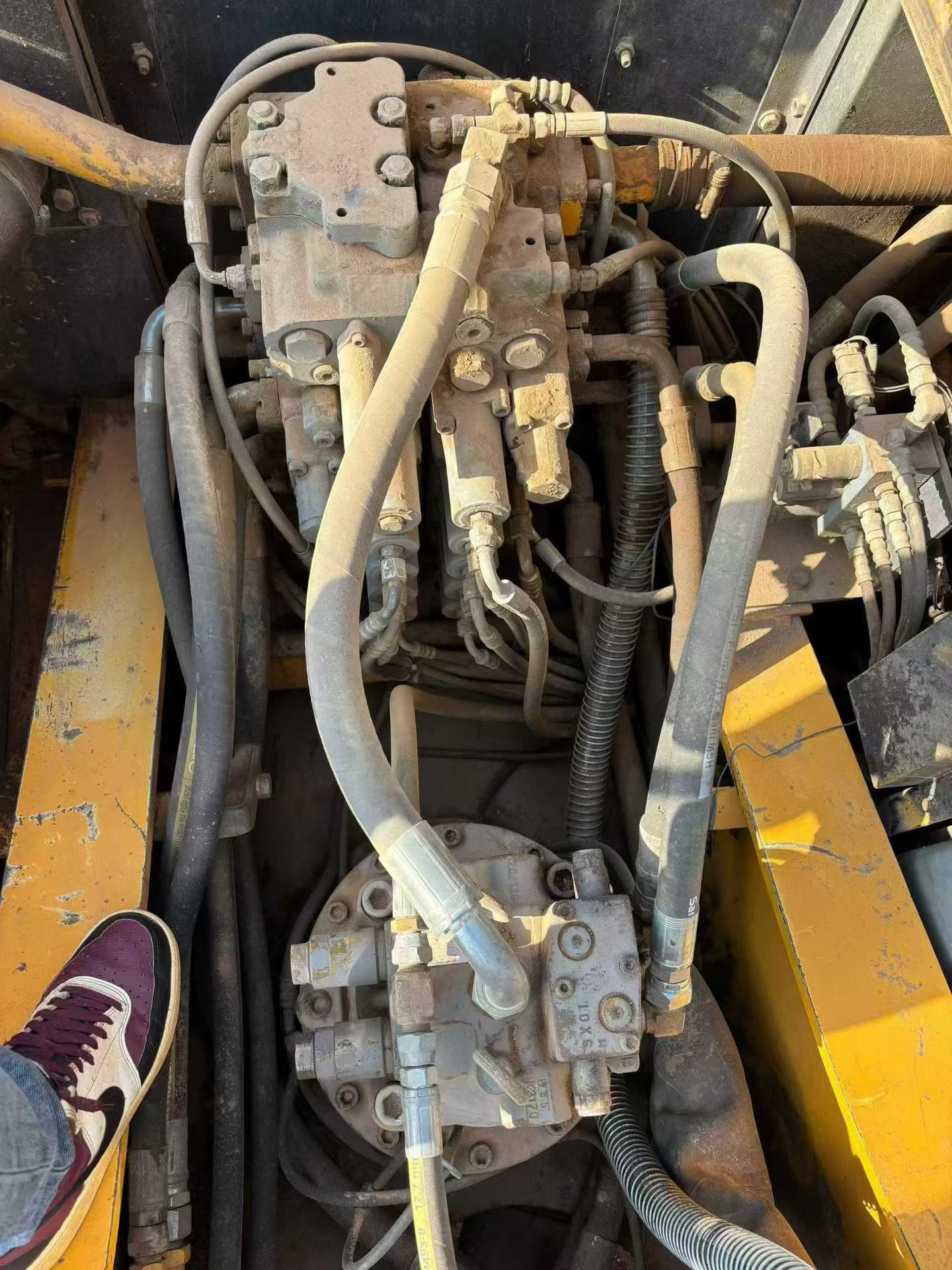

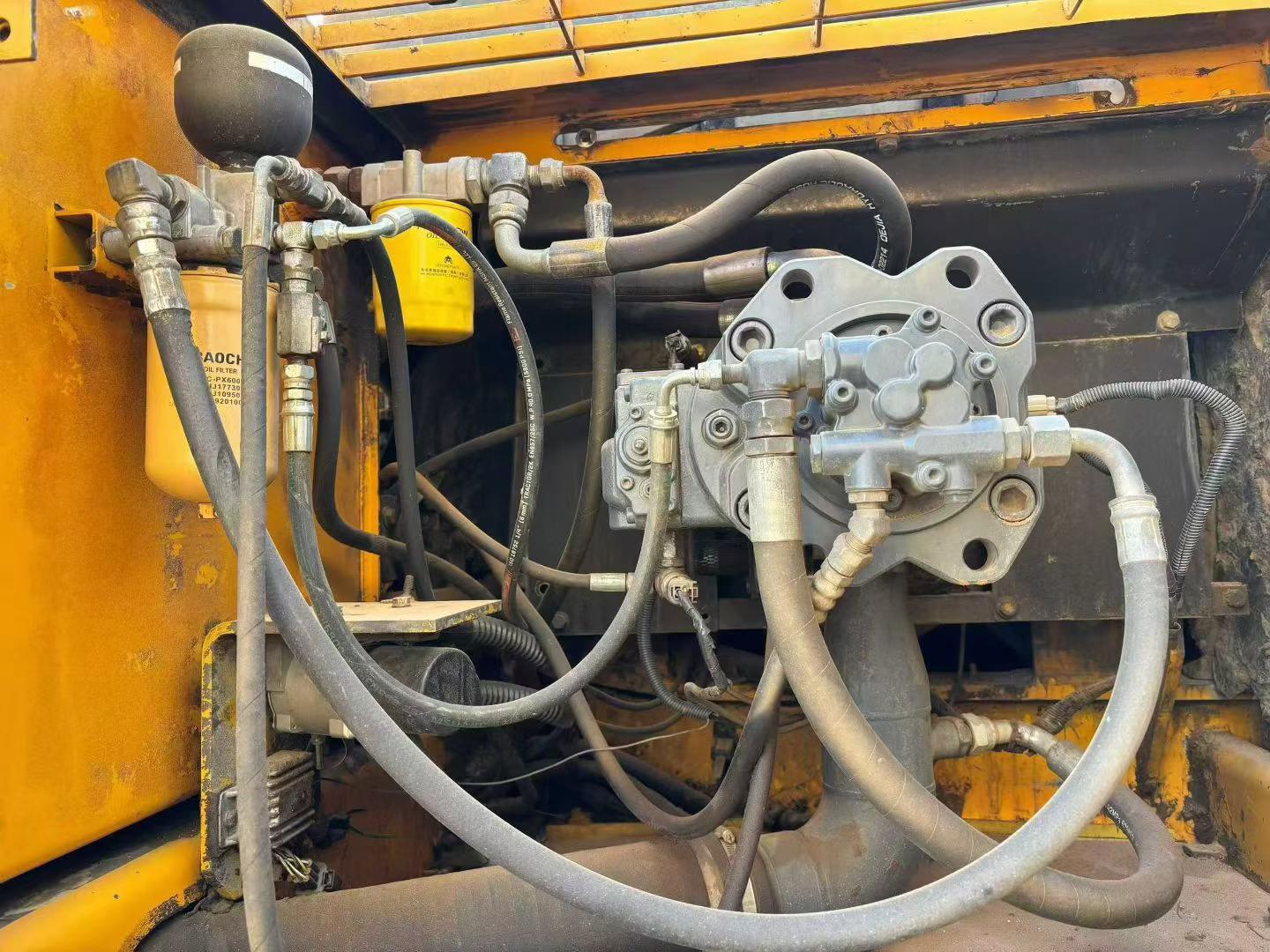

| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2970 (to hose top) |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 4650 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2820/2920/3020 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 6120 |
