Product Description

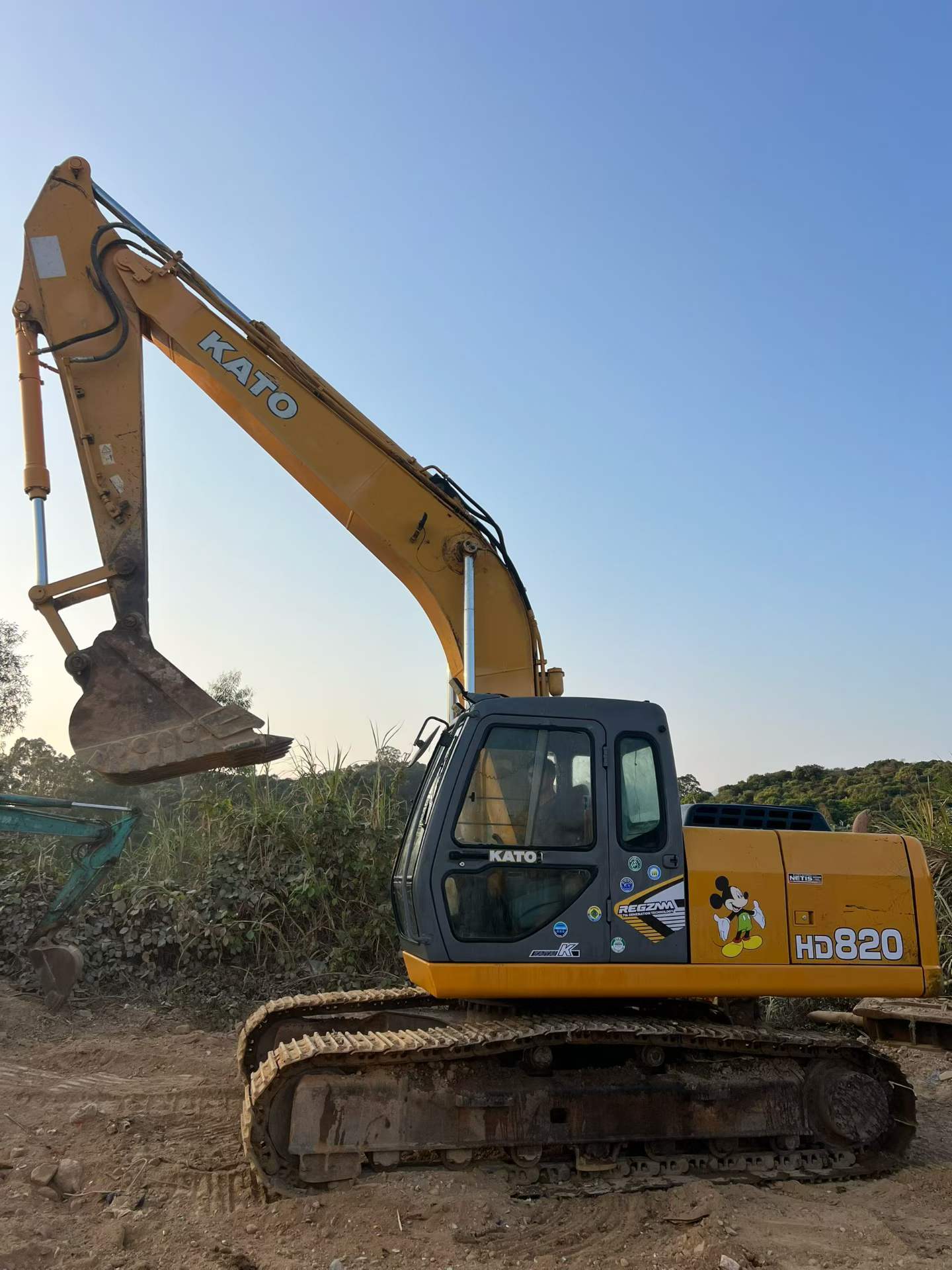

Engineered for precision and operator confidence, this 2016 Kato HD820V delivers 20-ton performance with exceptional control characteristics. Powered by a Mitsubishi 4M50-TLE3A engine producing 112.5 kW, this machine combines reliable Japanese engineering with practical jobsite versatility. Located in Shenzhen, Guangdong, this excavator offers proven hydraulic efficiency through its dual variable axial piston pump system and 235 l/min flow capacity.
Operator-focused design features include:
- Enhanced stability with 45 kPa ground pressure and 2,220 mm track gauge for confident operation on varied terrain

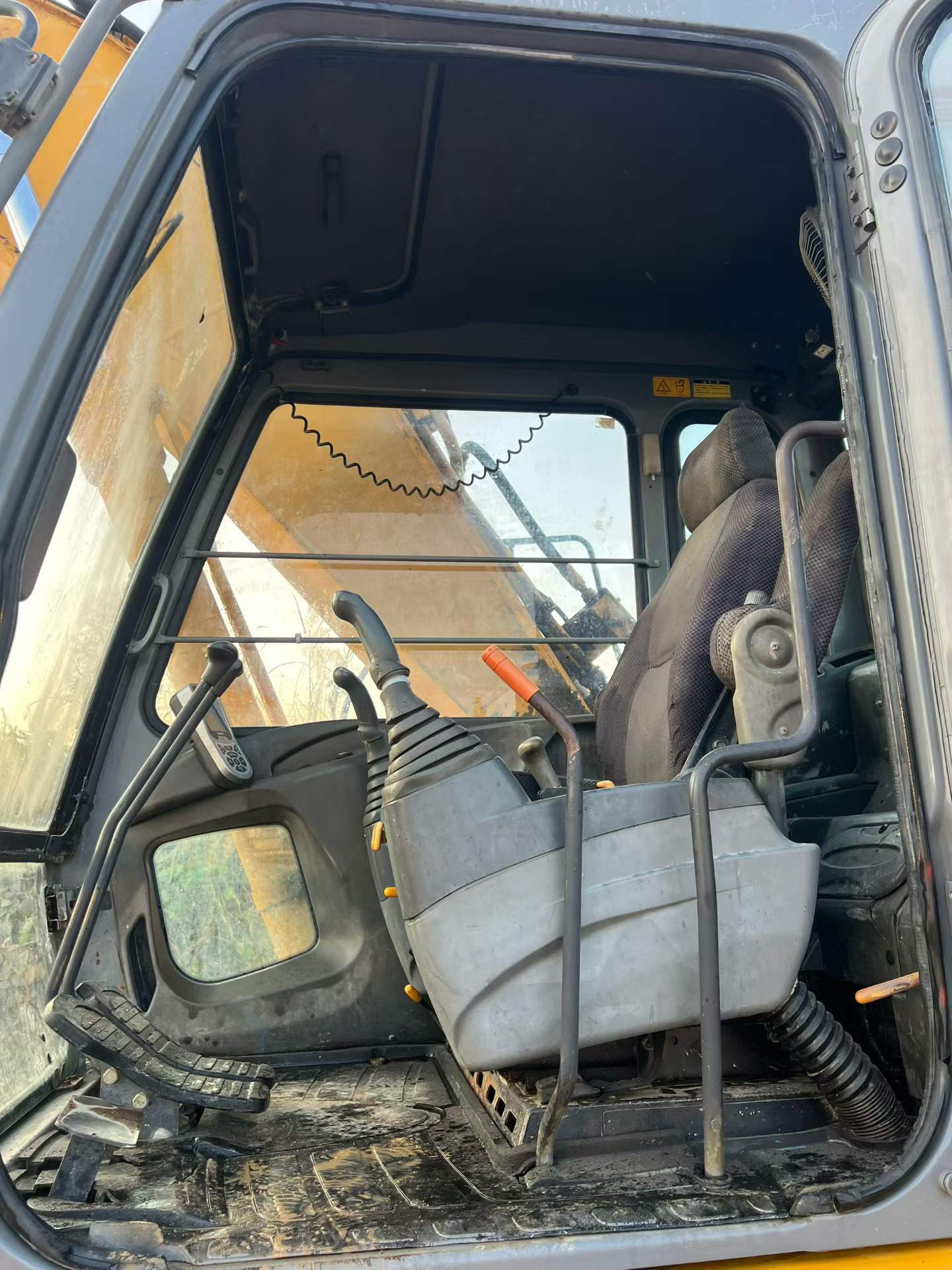

- Spacious cab positioning at 2,910 mm height providing superior visibility across the 9,910 mm working radius
- Responsive hydraulic controls with dual-mode digging force: 150 kN bucket force in standard, 159 kN in extra mode
- Smooth 13.5 rpm rotation speed and variable travel speeds (3.6/5.5 km/h) for precise positioning
- Comfortable handling with water-cooled engine and optimized counterweight clearance of 1,010 mm
With a maximum digging depth of 6,700 mm and 70% climbing ability, this HD820V handles demanding applications while maintaining operator comfort throughou
| Specifications | Value |
|---|---|
| No. | 1004846 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.45-1.1 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

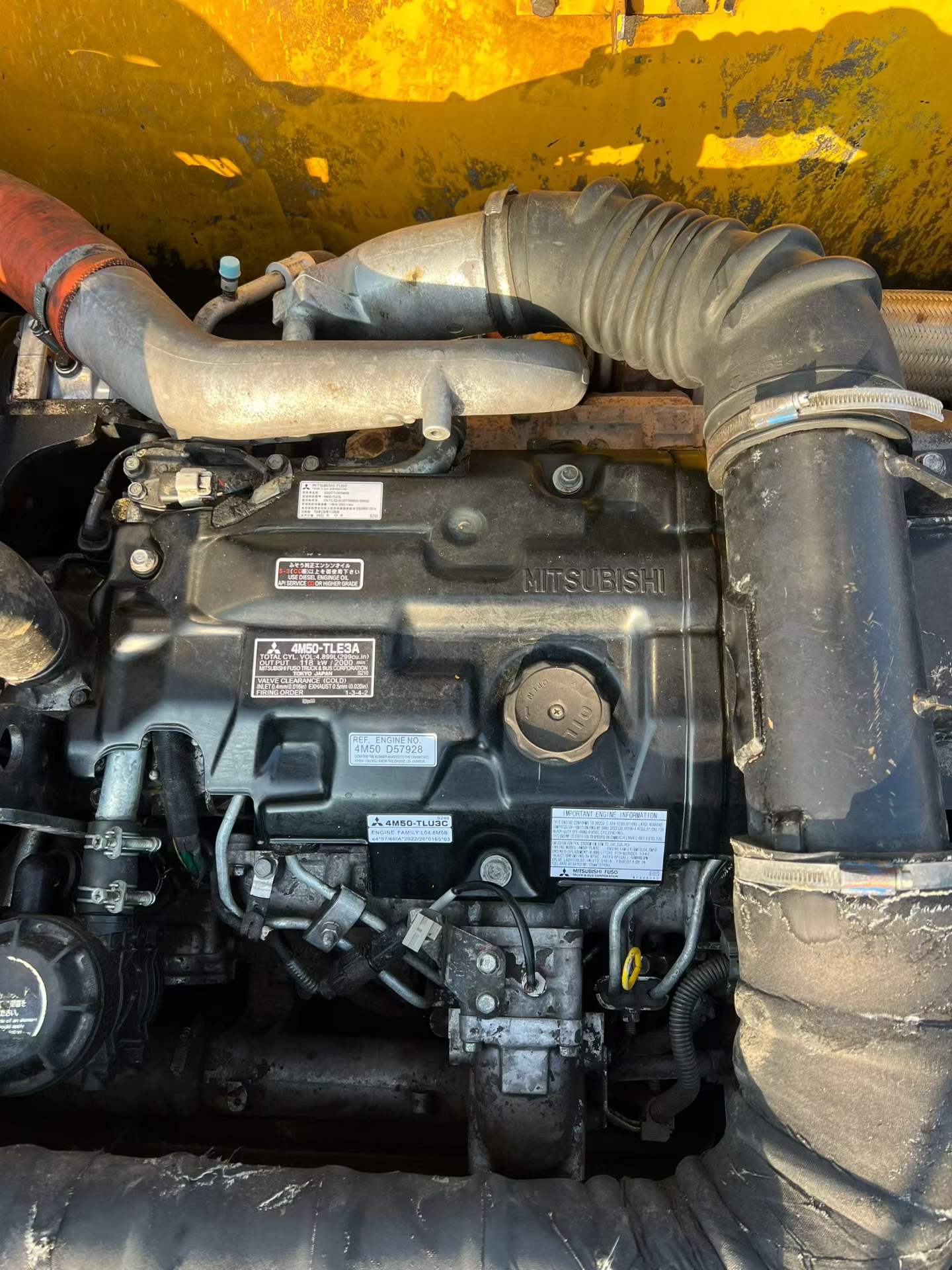

| Engine type | Mitsubishi 4M50-TLE3A |
| Rated power (kw/rpm) | 112.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 120 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 (Standard mode) /159 (Extra mode) |
| Rod digging force (kN) | 109 (Standard mode) /115 (Extra mode) |
| Travel speed (km/h) | 3.6/5.5 |

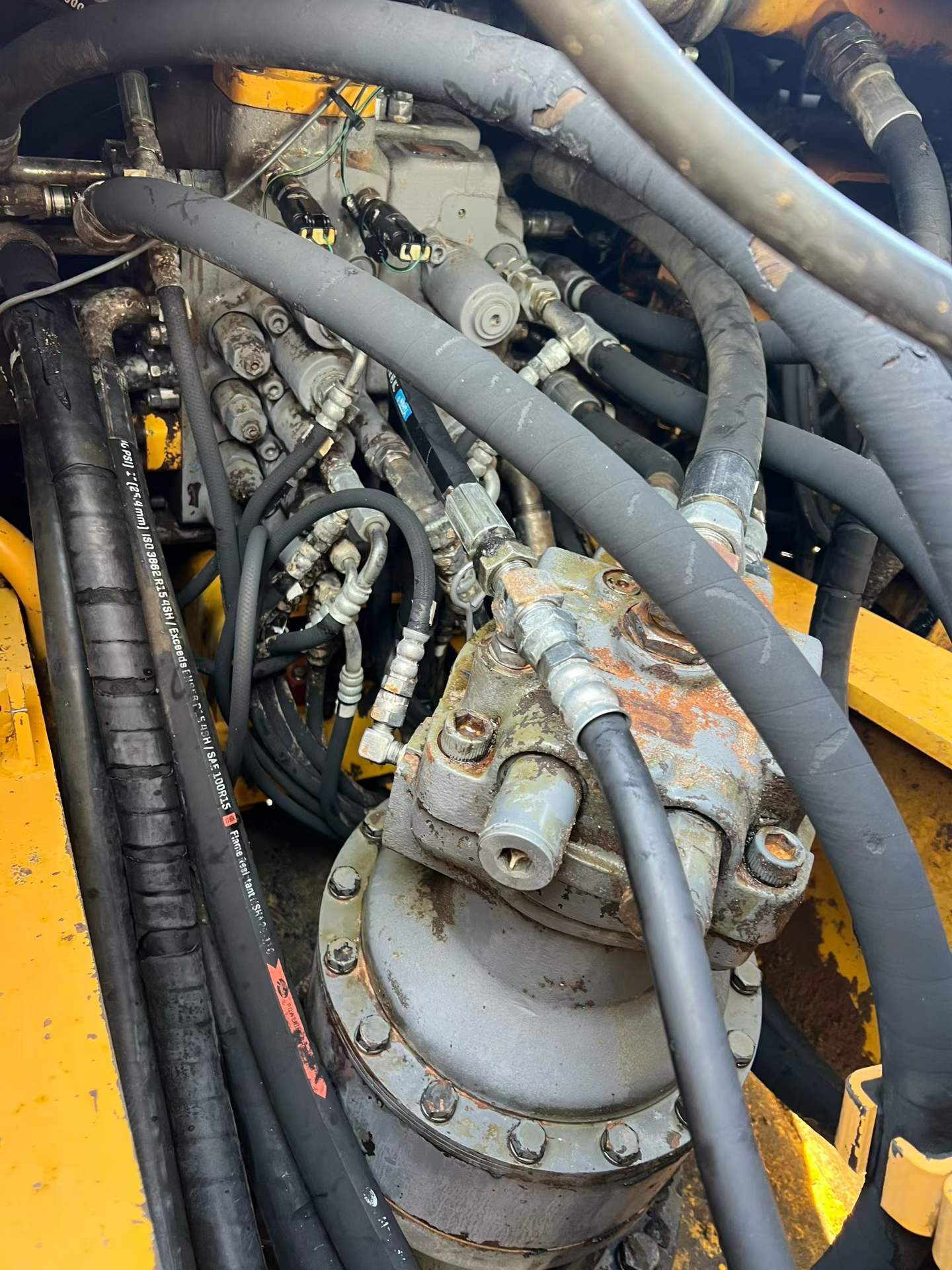

| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |

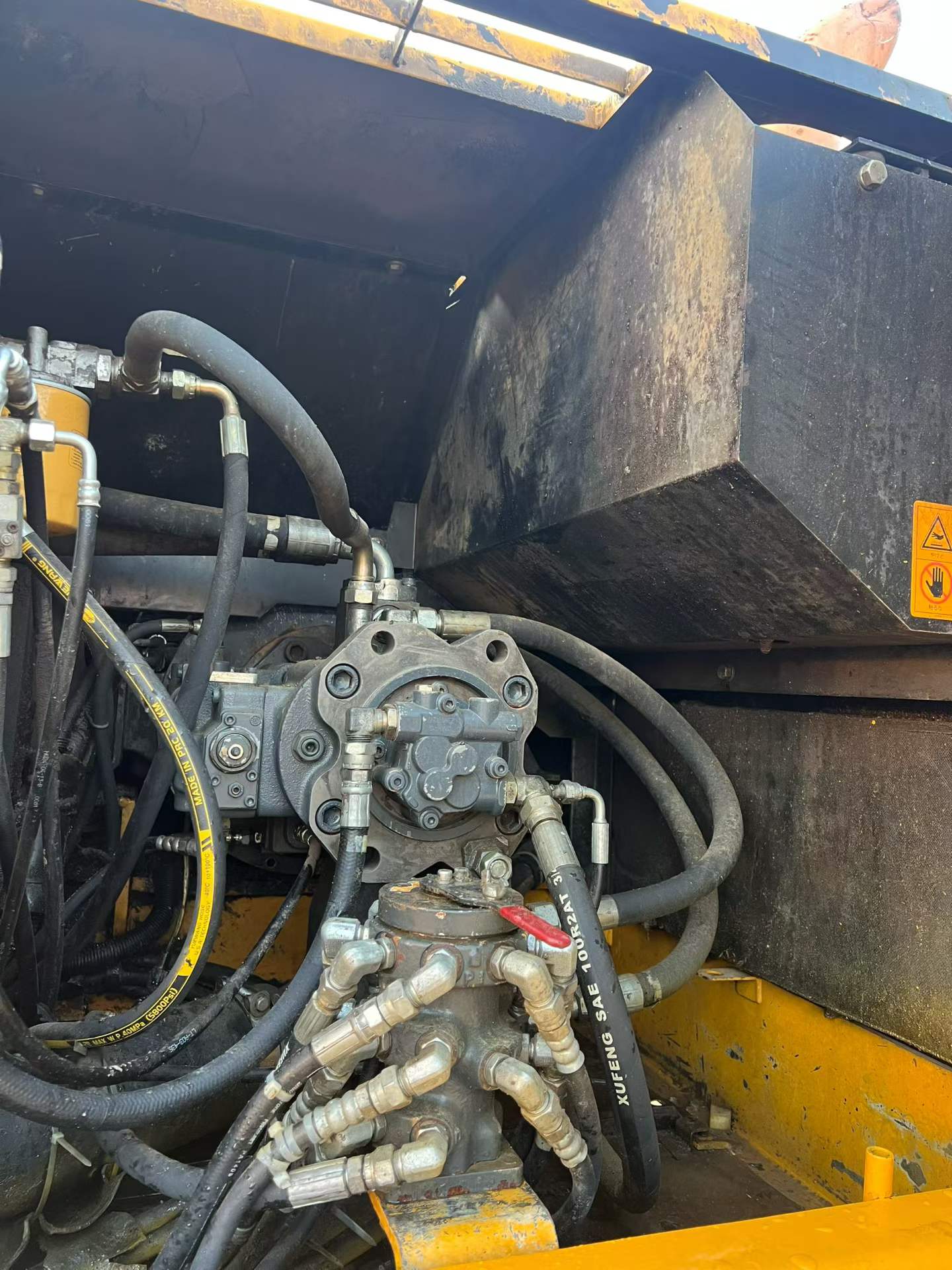

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 420 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2960 |
| Full cab height (mm) | 2910 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 465 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2820 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5870 |
