Product Description

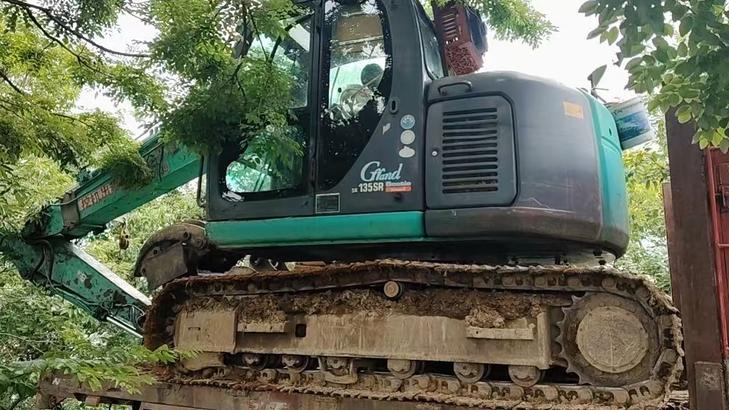

Discover the reliability and efficiency of the 2015 Kobelco 135SR, now available in Guangxi, China. This used excavator is tailored for forestry applications, offering a robust solution for your heavy machinery needs. Designed with durability in mind, the 135SR model has proven its worth in challenging environments, ensuring that it can handle the demands of your projects. Ideal for operations requiring precision and power, this machine represents a cost-effective investment for businesses looking to enhance their fleet without compromising on quality.
- Year: 2015
- Brand: Kobelco
- Model: 135SR
- Location: Guangxi, China
- Application: Forestry
| Specifications | Value |
|---|---|
| No. | 1132600 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 14002.4 |
| Bucket capacity (m³) | 0.38/0.23/0.67 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 70.1/2200 |
| Ground specific pressure (Kpa) | 35.2 |
| Bucket digging force (kN) | 126.8 |
| Travel speed (km/h) | 6 |
| Fuel Tank (L) | 168.1 |
| Engine Oil changes (L) | 12.9 |
| Coolant (L) | 18.2 |
| Hydraulic System (L) | 140.1 |
| Total transport length (mm) | 7470 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 1430 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3040 |
| Maximum digging depth (mm) | 6010 |
| Maximum excavation height (mm) | 8860 |
| Maximum unloading height (mm) | 6440 |
| Maximum vertical digging depth (mm) | 5250 |
| Maximum excavation radius of stop surface (mm) | 8650 |
