Product Description

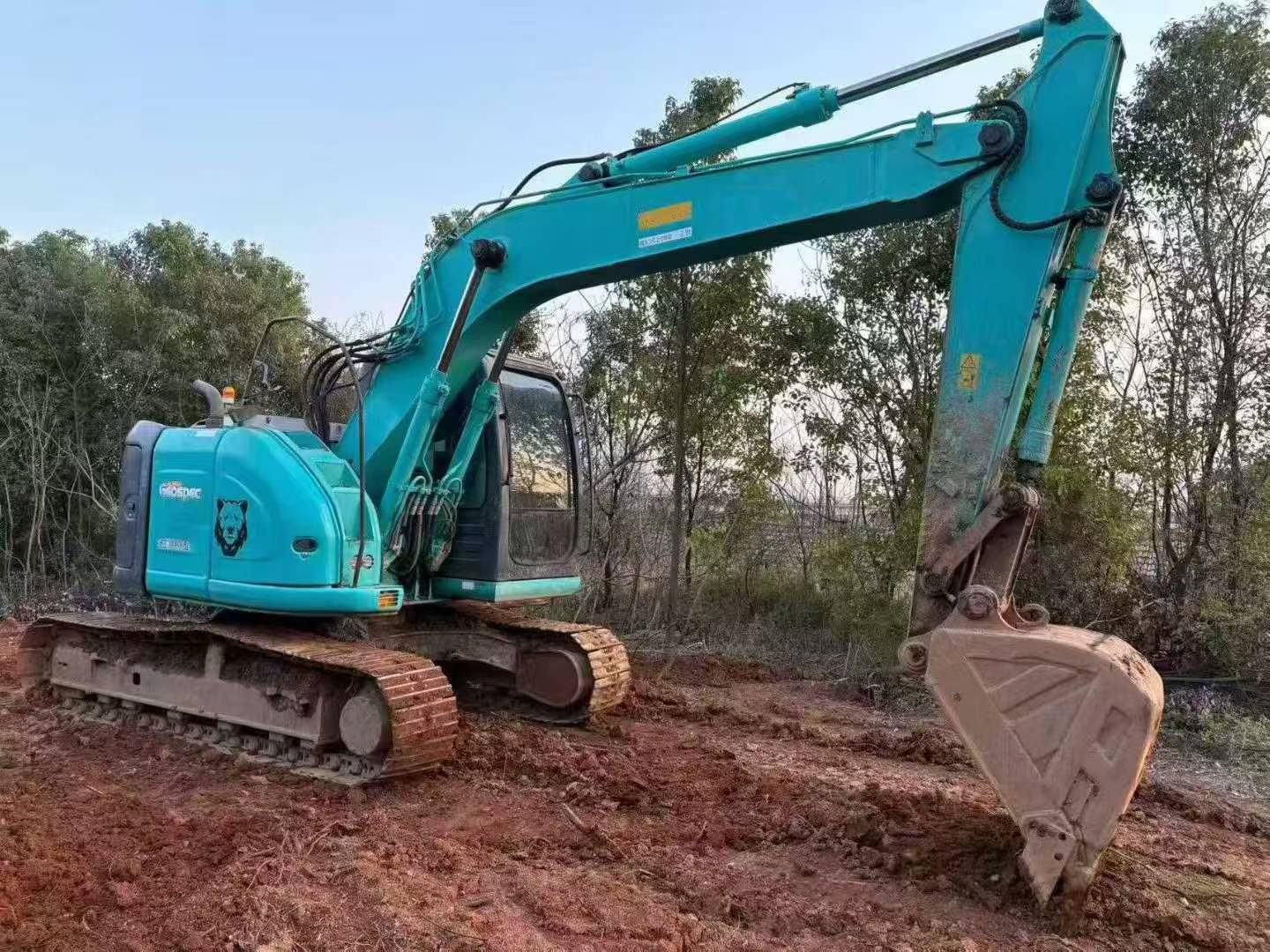

With a working weight of 14,000 kg and a bucket capacity ranging from 0.23 to 0.67 m³, this 2016 Kobelco 135SR-LC excavator, located in Jiangxi, offers high performance at a fraction of the cost of new equipment. Powered by an Isuzu A-4BG1T engine, it delivers a rated power of 70.1 kW at 2200 rpm, ensuring reliable and efficient operation. The machine's ground specific pressure of 35.2 Kpa and impressive bucket digging force of 126.8 kN make it suitable for a variety of tough jobs. Traveling at a speed of 6 km/h, it features a fuel tank capacity of 168.1 L, supporting extended work periods without frequent refueling. Its total transport dimensions (7470 mm x 2590 mm x 2740 mm) facilitate easy transportation. This excavator is a smart investment, combining robust performance with significant cost savings.
| Specifications | Value |
|---|---|
| No. | 1030919 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 14002.4 |
| Bucket capacity (m³) | 0.38/0.23/0.67 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

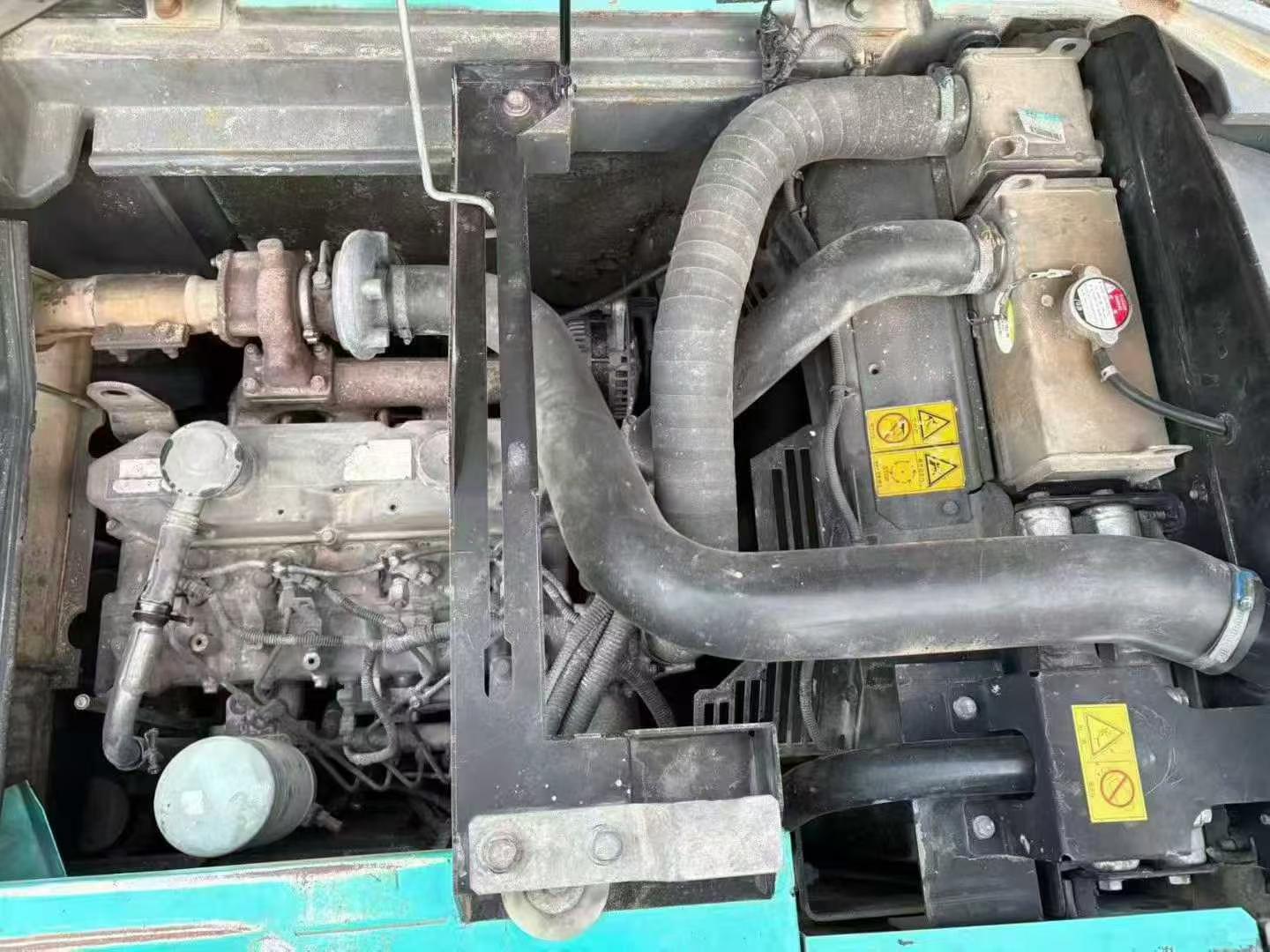

| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 70.1/2200 |
| Ground specific pressure (Kpa) | 35.2 |
| Bucket digging force (kN) | 126.8 |
| Travel speed (km/h) | 6 |
| Fuel Tank (L) | 168.1 |
| Engine Oil changes (L) | 12.9 |
| Coolant (L) | 18.2 |

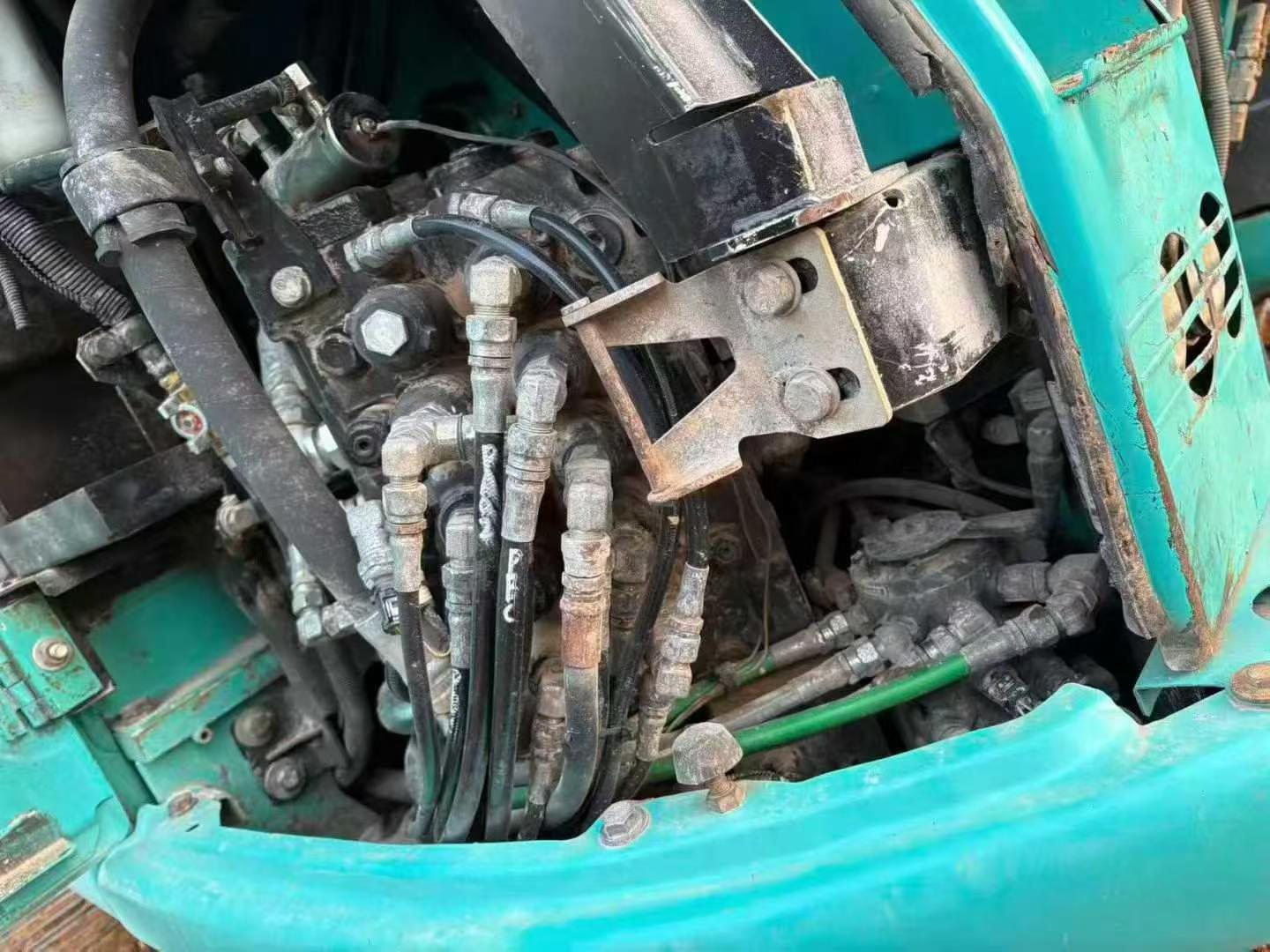

| Hydraulic System (L) | 140.1 |
| Total transport length (mm) | 7470 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 1430 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3040 |
| Maximum digging depth (mm) | 6010 |
| Maximum excavation height (mm) | 8860 |
| Maximum unloading height (mm) | 6440 |
| Maximum vertical digging depth (mm) | 5250 |
| Maximum excavation radius of stop surface (mm) | 8650 |
