2000 Kobelco 200-8

Buy Kobelco 200-8 Used Excavator / 21/1
Buy Kobelco 200-8 Used Excavator / 1

Product Description

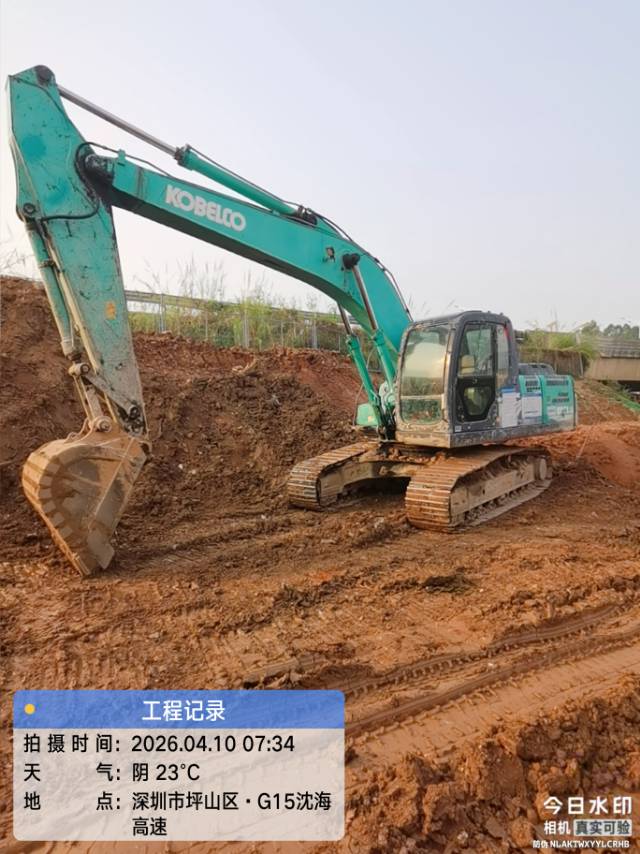

This Kobelco SK200-8 excavator is now available from Guangdong, China. Originally deployed on a single worksite, this hydraulic excavator has been maintained under direct ownership, ensuring consistent operational care throughout its service life.

The SK200-8 represents Kobelco's commitment to hydraulic efficiency and reliable performance in demanding construction environments. This unit features responsive hydraulic systems that deliver smooth operation across digging, lifting, and grading applications.

Key features include:

  • Single-owner work history from original construction site
  • Well-maintained hydraulic system with responsive controls
  • Proven Kobelco SK200-8 platform
  • Currently located in Guangdong, China
  • Ready for inspection and deployment

This excavator suits contractors seeking dependable mid-size equipment with traceable ownership history. Contact us for detailed inspection reports and shipping arrangements.

SpecificationsValue
No.1052860
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600/700/800
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.1052860

Brand Name:

Kobelco

Model Number:

200-8

Year:

2000

Location:

Guangdong China

Pub Date
