2020 Kobelco 210LC-9

1/9

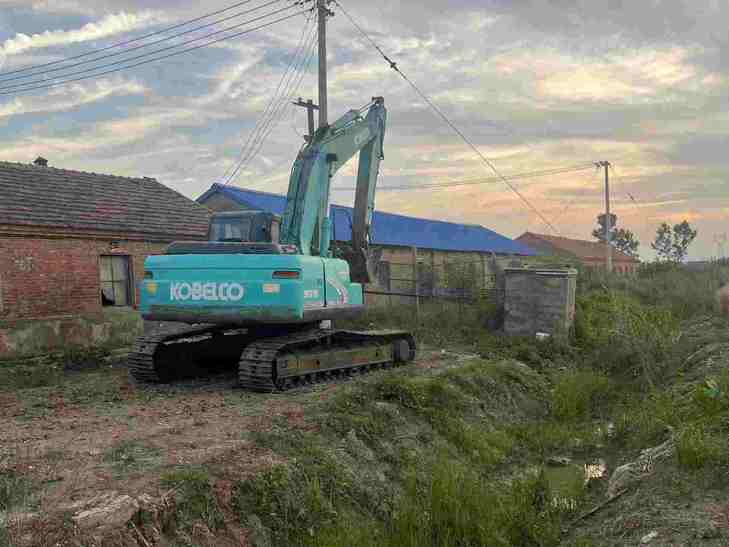

Buy Kobelco 210LC-9 Used Excavator / 1
Buy Kobelco 210LC-9 Used Excavator / 2
Buy Kobelco 210LC-9 Used Excavator / 3
Buy Kobelco 210LC-9 Used Excavator / 4
Buy Kobelco 210LC-9 Used Excavator / 5
Buy Kobelco 210LC-9 Used Excavator / 6
Buy Kobelco 210LC-9 Used Excavator / 7
Buy Kobelco 210LC-9 Used Excavator / 8
Buy Kobelco 210LC-9 Used Excavator / 9

Product Description

This 2020 Kobelco SK210LC-9 excavator represents a solid investment opportunity for contractors seeking reliable mid-size performance. Currently located in Jiangsu, China, this machine comes from Kobelco's proven Generation 9 series, known for fuel efficiency and operator comfort in demanding excavation applications.

The SK210LC-9 features a 21-ton operating weight class with long carriage configuration, making it well-suited for general construction, utility work, and site development projects. Kobelco's engineering delivers excellent digging force and cycle times while maintaining competitive fuel consumption.

  • Year of Manufacture: 2020
  • Model: SK210LC-9 (Long Carriage)
  • Current Location: Jiangsu Province, China
  • Condition: Used
  • Price: Negotiable

Inspection welcome. Contact us for detailed specifications, service records, and shipping arrangements to your location.

SpecificationsValue
No.1084157
Tonnage (tons)21
Working weight (kg)21600/21800/22000
Bucket capacity (m³)0.7/0.8/0.93
Boom length (mm)5650
Rod length (mm)2940
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHINO Hino J05E-TA
Rated power (kw/rpm)124/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.7
Working formDirect injection; Turbocharged, intercooled, meets EPA Tier IV and EU Stage IIIB
Ground specific pressure (Kpa)33.8
Rotation speed (rpm)12.5
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)222
Maximum tractive force (kN)229
Travel speed (km/h)6.0/3.6
Type of walking hydraulic motorAxial piston pump x 2
Maximum flow of main pump (l/min)2 x 220
Main pump typeDouble variable pump + single gear pump
Pilot pump flow (L/min)20
Fuel Tank (L)370
Hydraulic Tank (L)130
Engine Oil changes (L)20
Coolant (L)26
Hydraulic System (L)230
Total transport length (mm)9560
Total transport width (mm)3190
Total transport height (mm)2980
Full cab height (mm)3080
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)6910
Onboard width (mm)2710
Track gauge (mm)2390
Track plate width (mm)800
Track ground length (mm)3660
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum vertical digging depth (mm)6100
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.1084157

Brand Name:

Kobelco

Model Number:

210LC-9

Year:

2020

Location:

Jiangsu China

Pub Date
