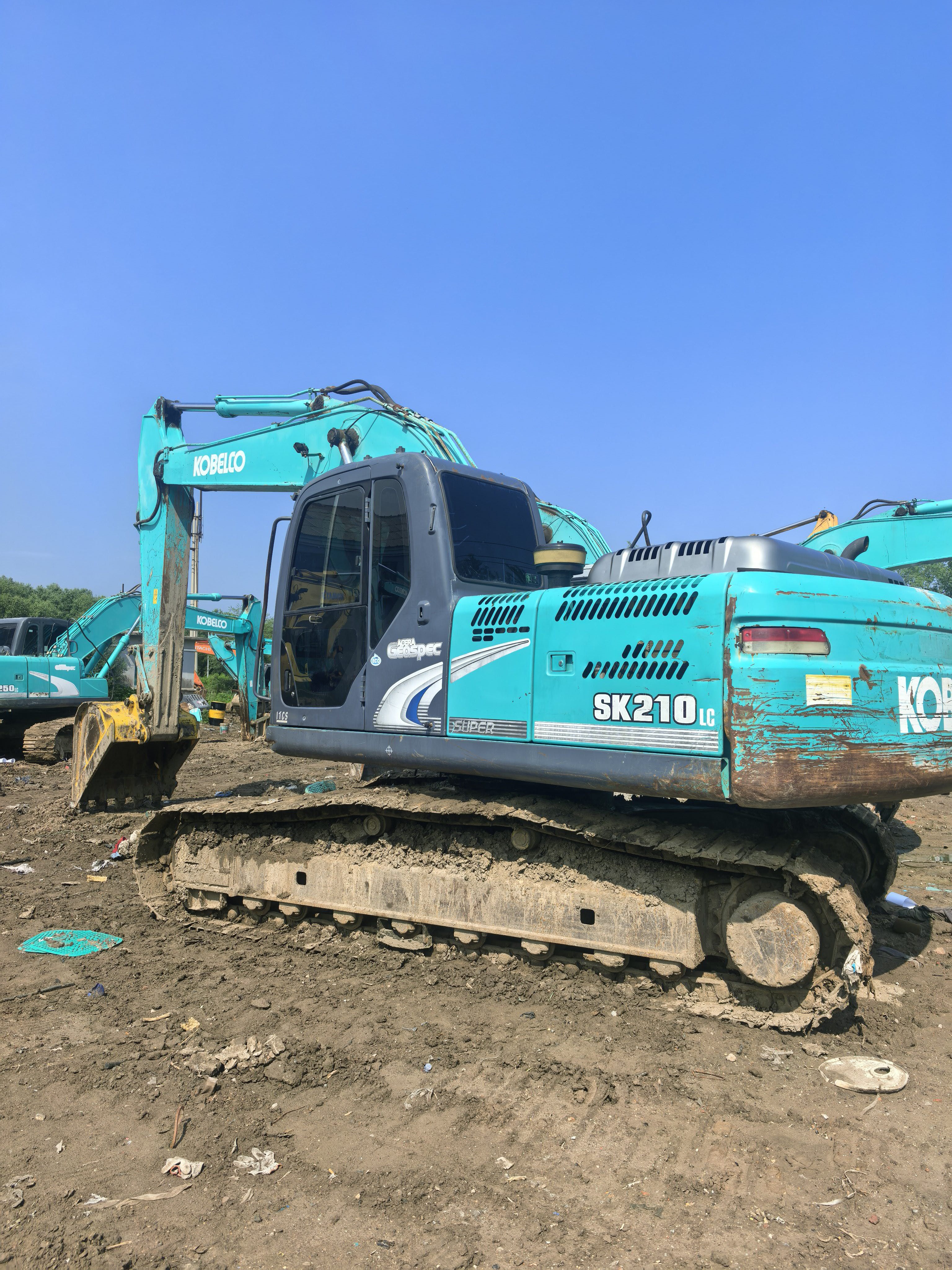

Buy Kobelco 210LC-9 Used Excavator / 2

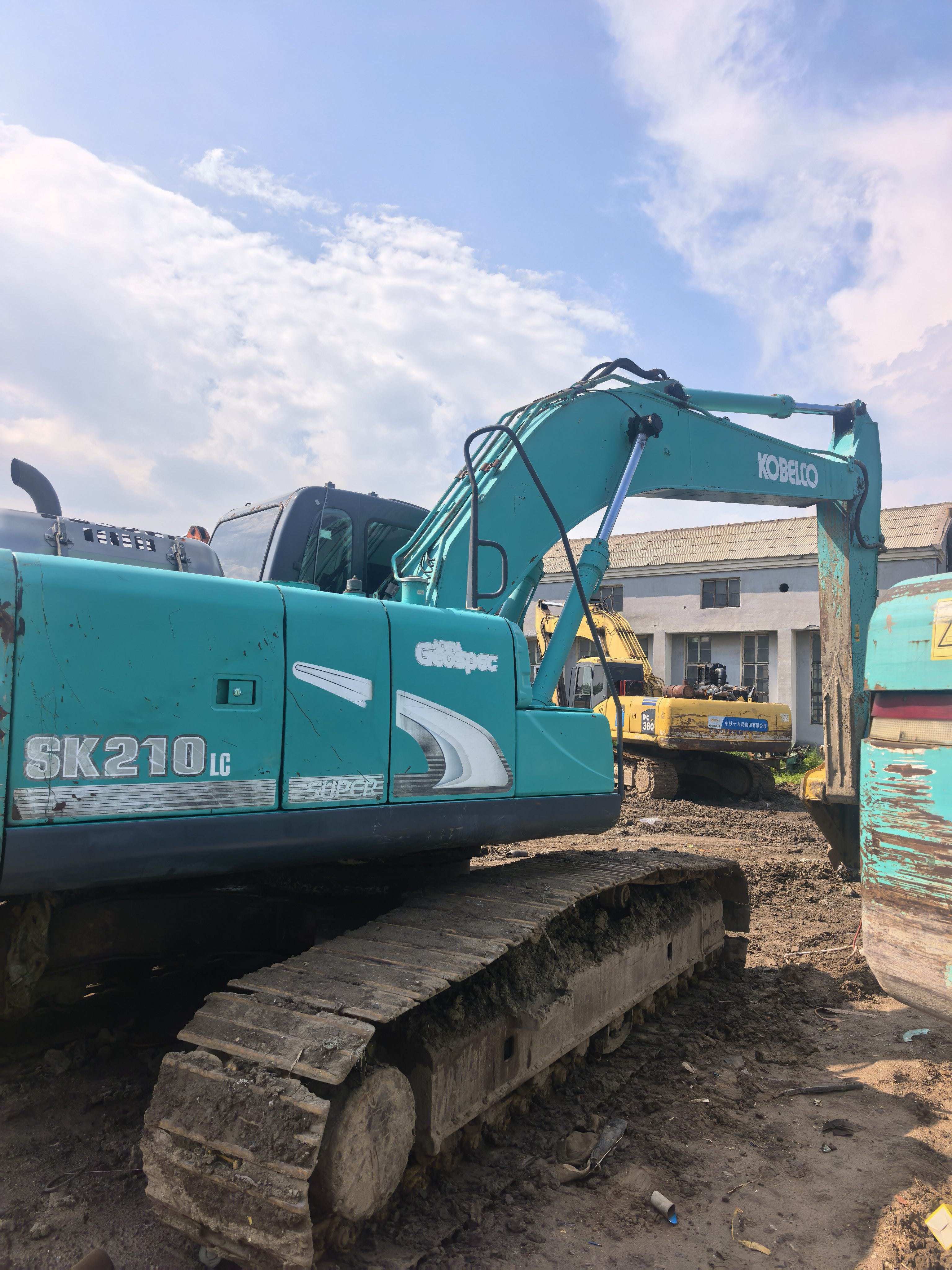

Buy Kobelco 210LC-9 Used Excavator / 3

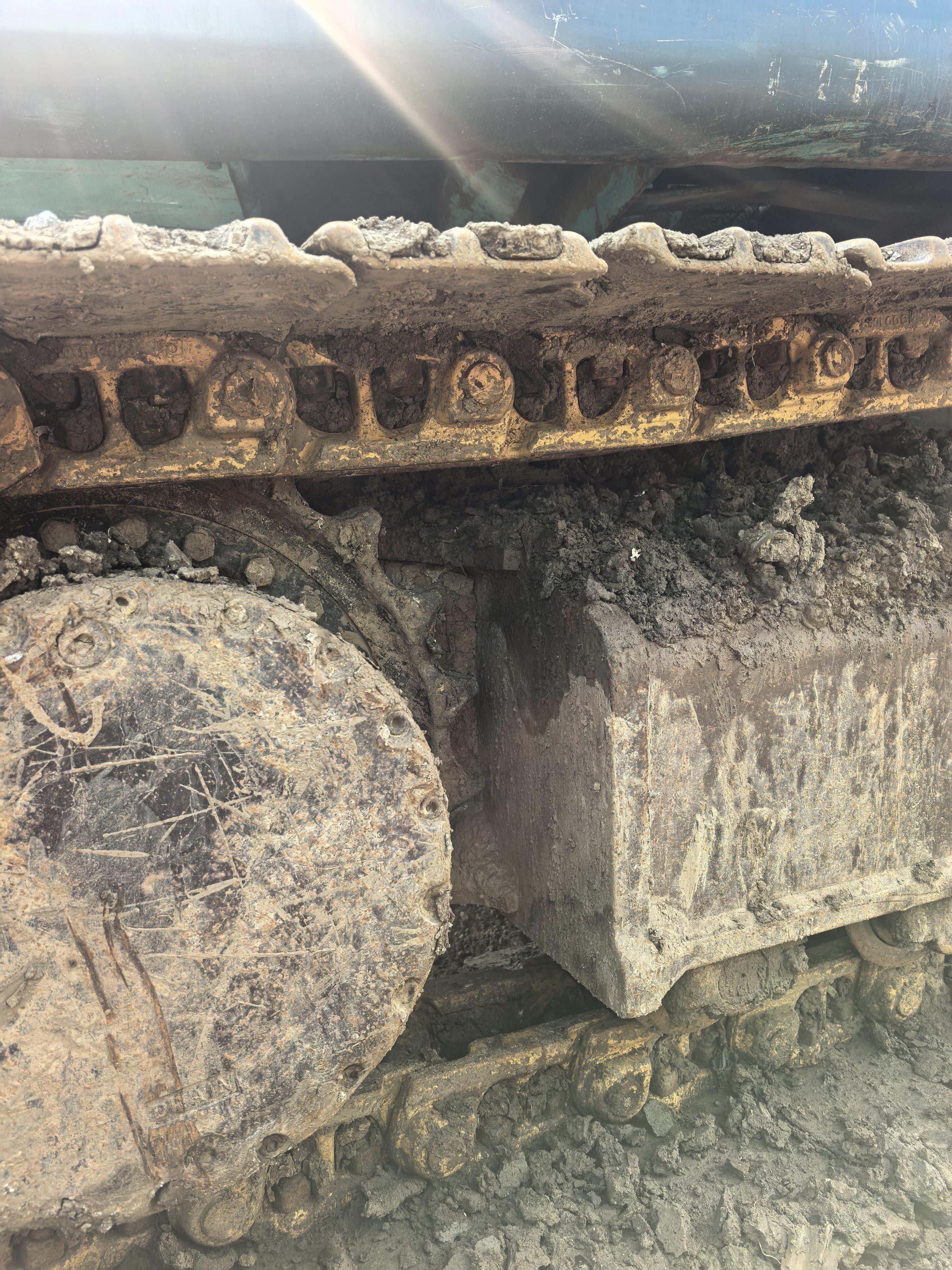

Buy Kobelco 210LC-9 Used Excavator / 4

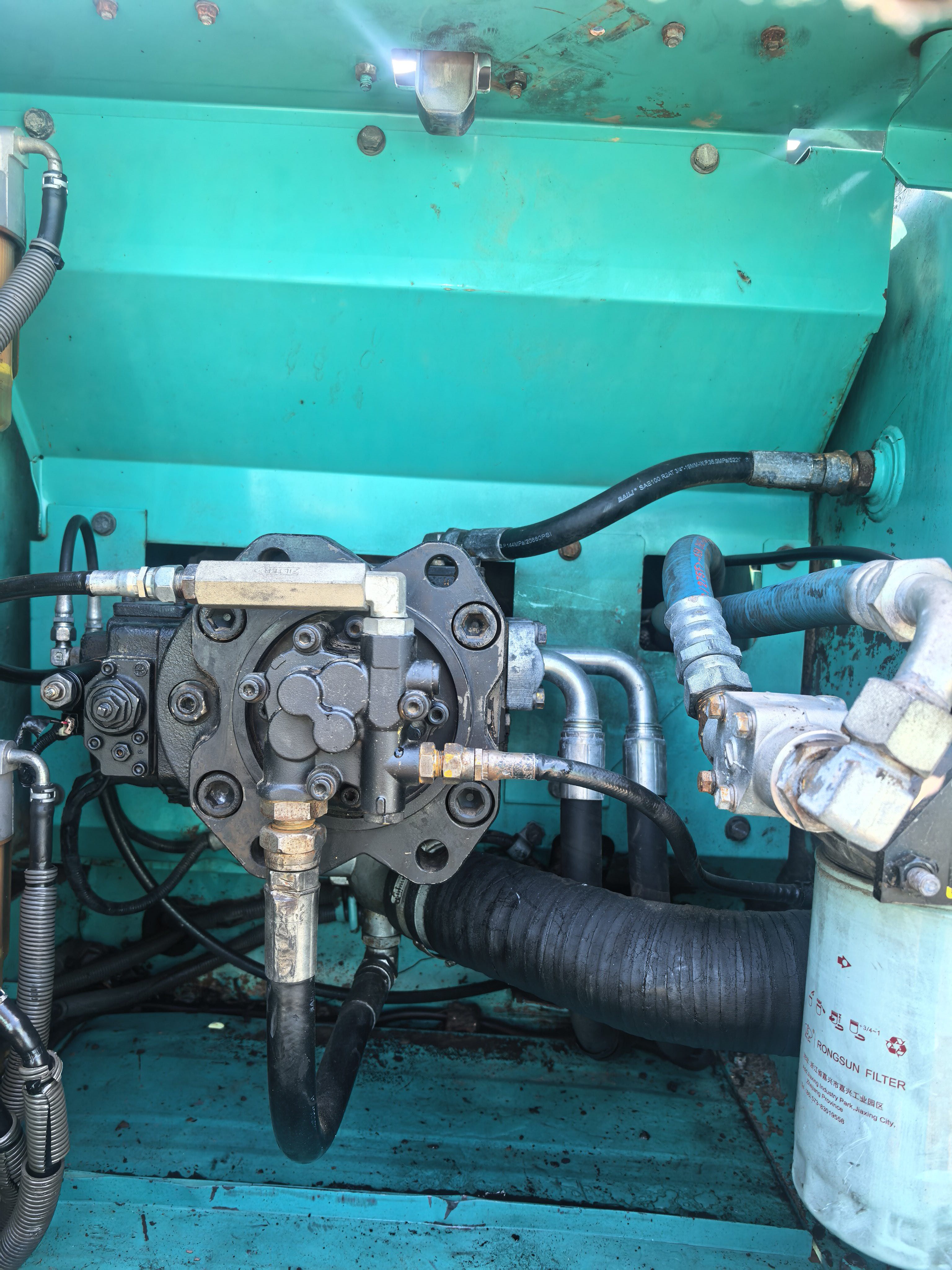

Buy Kobelco 210LC-9 Used Excavator / 5

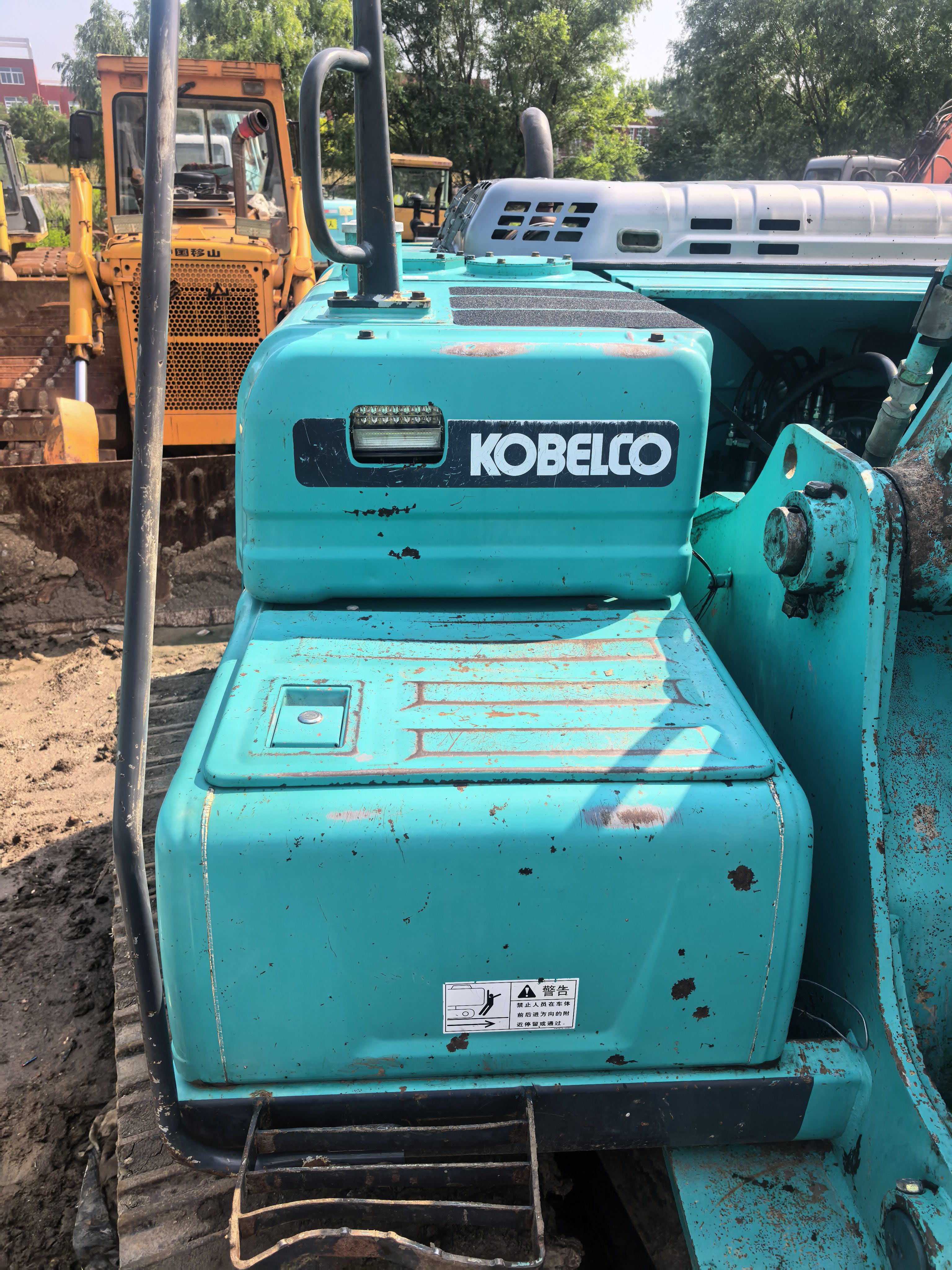

Buy Kobelco 210LC-9 Used Excavator / 6

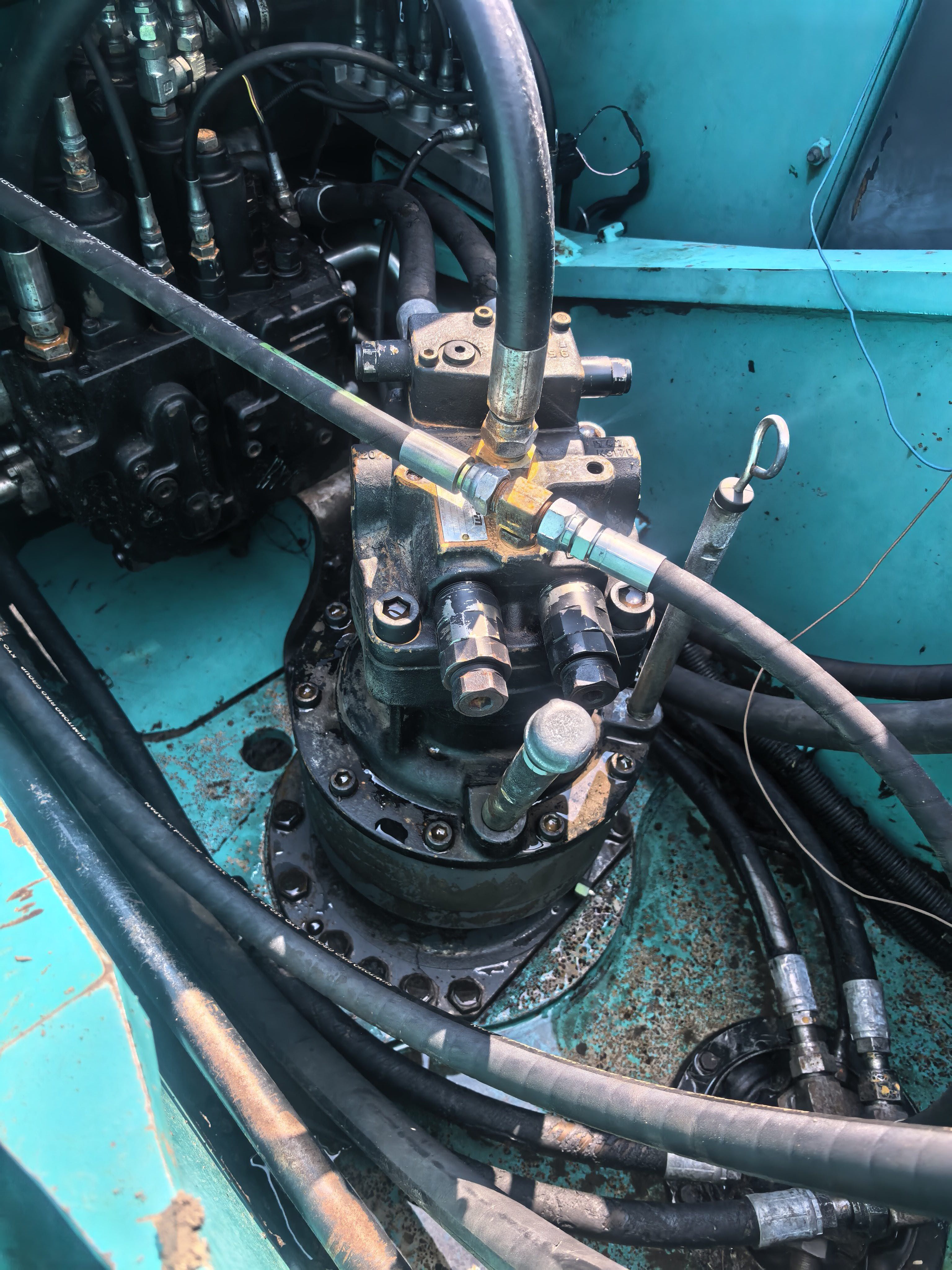

Buy Kobelco 210LC-9 Used Excavator / 7

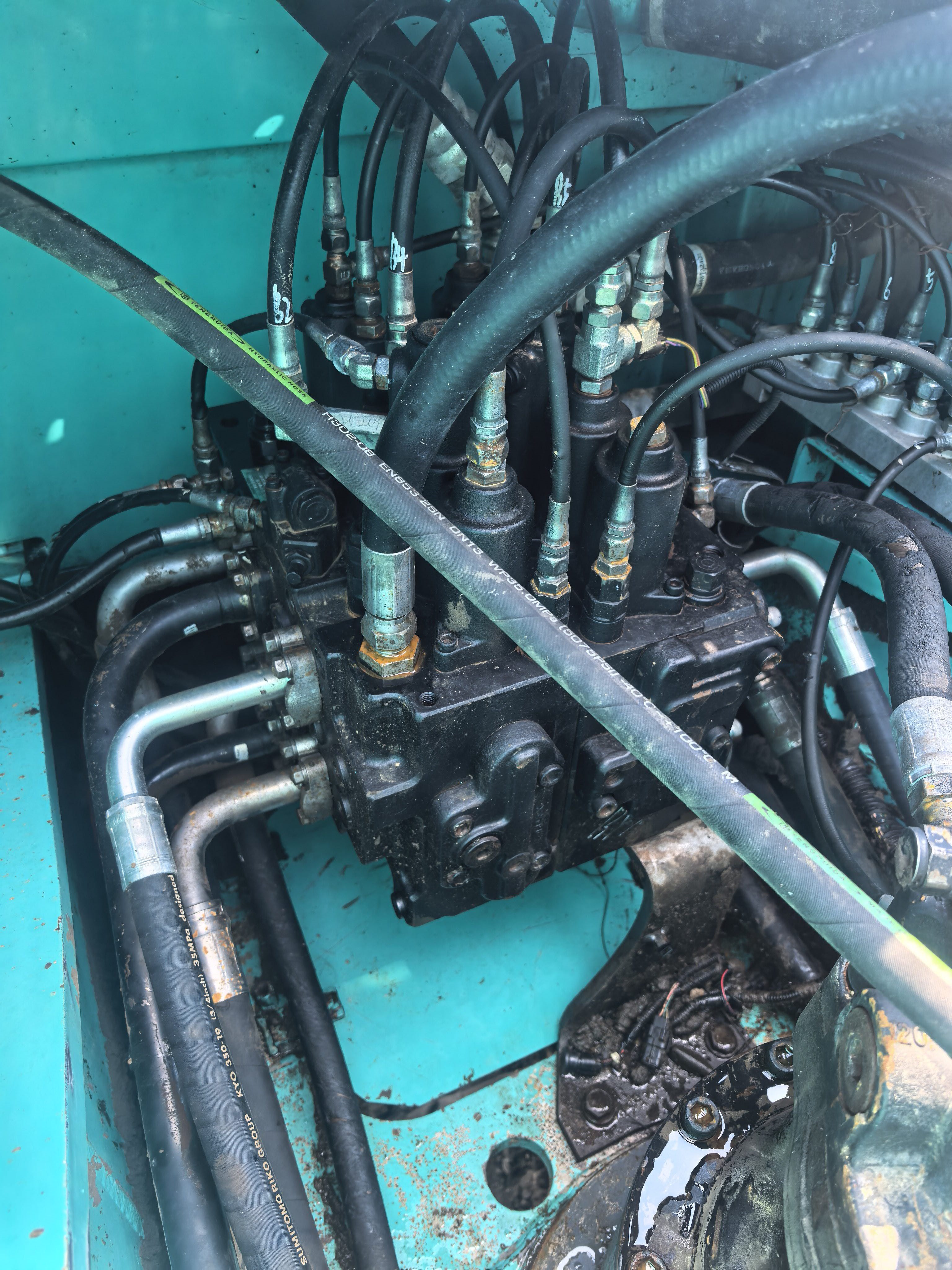

Buy Kobelco 210LC-9 Used Excavator / 8

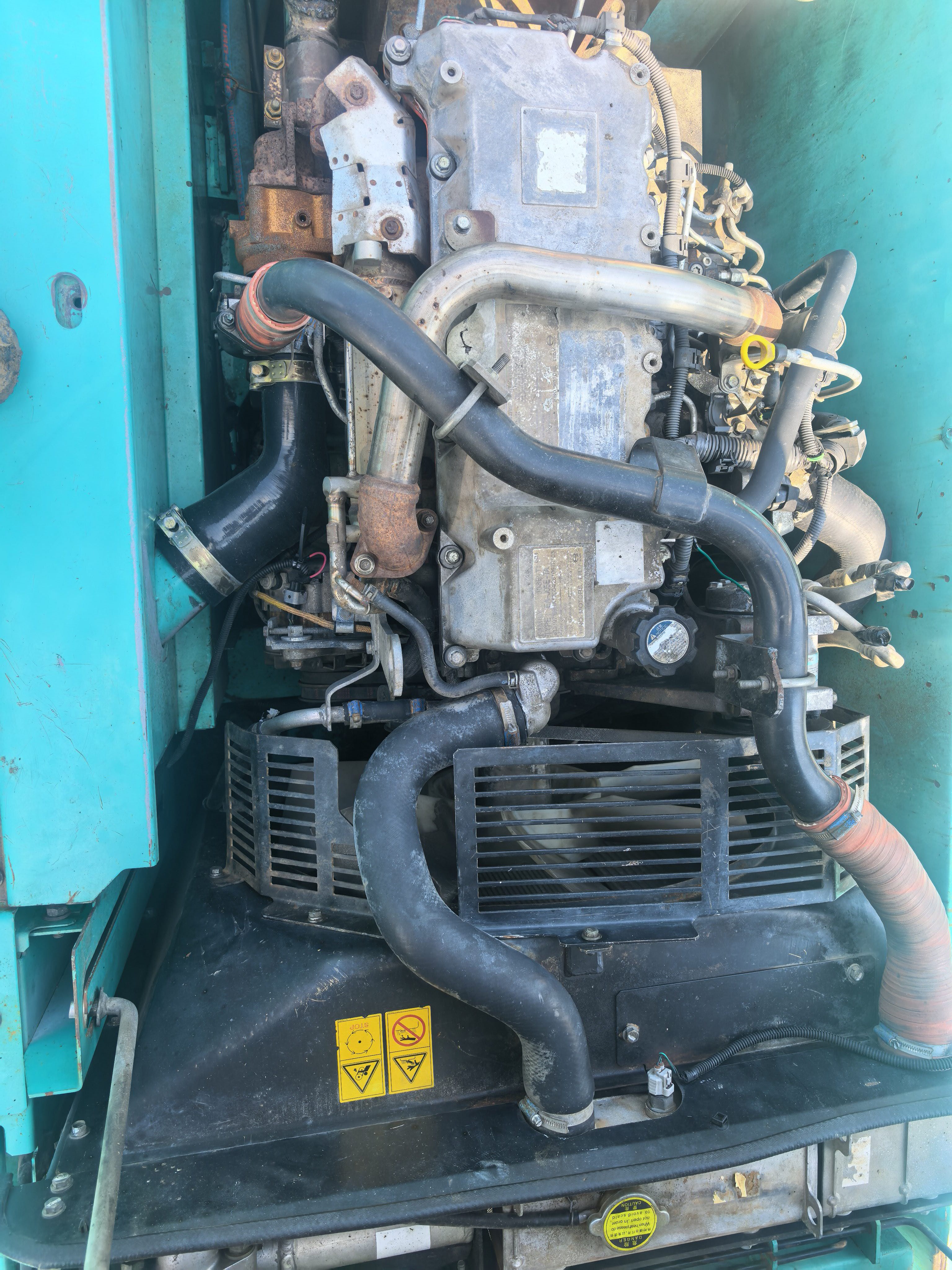

Buy Kobelco 210LC-9 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Kobelco 210LC-9, now available in Liaoning, China. This used excavator is in excellent condition, featuring its original paint, a testament to its well-maintained history. The machine's major components are dry and clean, ensuring optimal performance and longevity. Ideal for construction, mining, and infrastructure projects, the 210LC-9 offers robust digging power and precision control, making it a valuable addition to any fleet.

  • Year: 2020
  • Brand: Kobelco
  • Model: 210LC-9
  • Location: Liaoning, China
  • Condition: Original paint, major components in good, dry condition
SpecificationsValue
No.1092779
Tonnage (tons)21
Working weight (kg)21600/21800/22000
Bucket capacity (m³)0.7/0.8/0.93
Boom length (mm)5650
Rod length (mm)2940
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHINO Hino J05E-TA
Rated power (kw/rpm)124/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.7
Working formDirect injection; Turbocharged, intercooled, meets EPA Tier IV and EU Stage IIIB
Ground specific pressure (Kpa)33.8
Rotation speed (rpm)12.5
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)222
Maximum tractive force (kN)229
Travel speed (km/h)6.0/3.6
Type of walking hydraulic motorAxial piston pump x 2
Maximum flow of main pump (l/min)2 x 220
Main pump typeDouble variable pump + single gear pump
Pilot pump flow (L/min)20
Fuel Tank (L)370
Hydraulic Tank (L)130
Engine Oil changes (L)20
Coolant (L)26
Hydraulic System (L)230
Total transport length (mm)9560
Total transport width (mm)3190
Total transport height (mm)2980
Full cab height (mm)3080
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)6910
Onboard width (mm)2710
Track gauge (mm)2390
Track plate width (mm)800
Track ground length (mm)3660
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum vertical digging depth (mm)6100
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
