Product Description

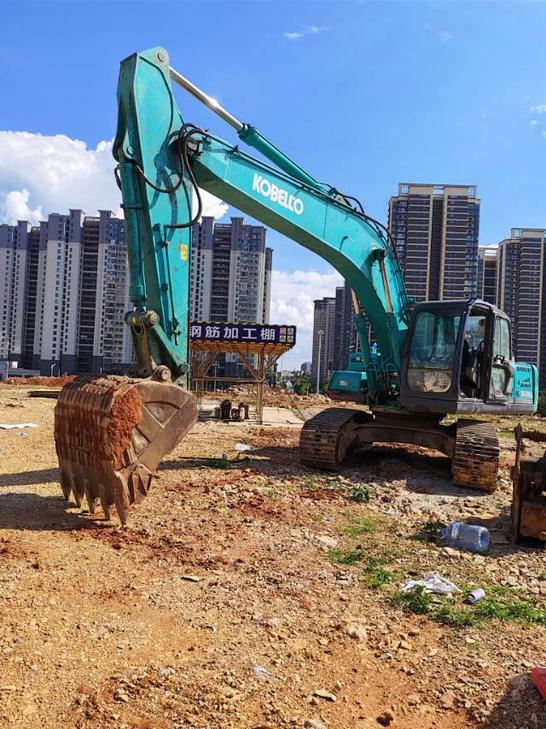

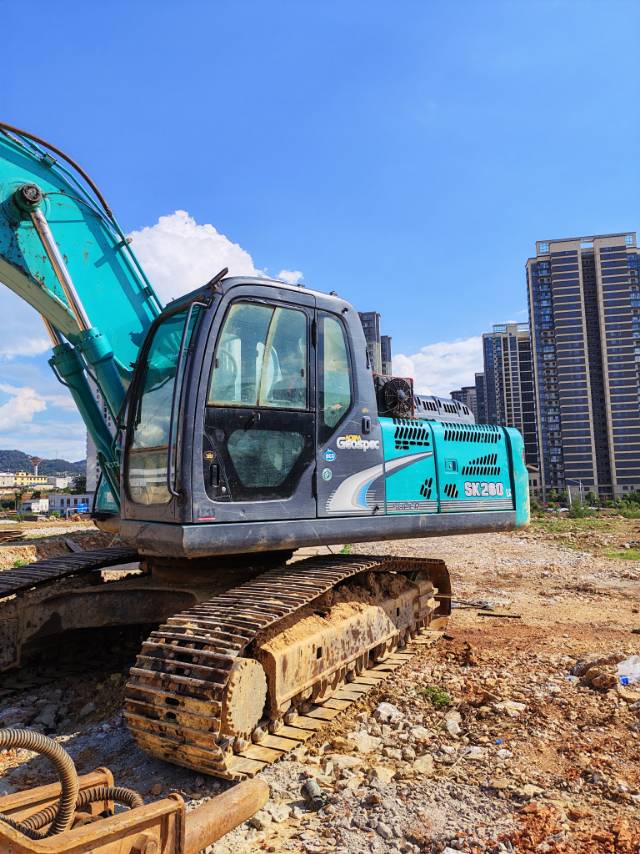

This 2020 Kobelco SK250-8 hydraulic excavator is now available from our Yunnan, China facility. As part of Kobelco's proven 8-series generation, this mid-sized excavator offers reliable performance for general earthmoving, site development, and utility applications. The SK250-8 features Kobelco's fuel-efficient engine technology and robust hydraulic system designed for demanding jobsite conditions.
Key features of the Kobelco SK250-8 include:
- Operating weight class: approximately 25 tons
- Fuel-efficient diesel engine with reduced emissions
- Advanced hydraulic system for smooth operation
- Spacious operator cabin with improved visibility
- Durable undercarriage and excavation components
- Suitable for construction, mining, and infrastructure projects
This unit represents a cost-effective solution for contractors seeking dependable excavation equipment. Available for immediate inspection in Yunnan, China. Contact us for detailed specifications, current condition assessment, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1080883 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25000 |
| Bucket capacity (m³) | 1.1 |
| Rod length (mm) | 2980 |
| Country of origin | Chengdu/Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
