2014 Kobelco 350LC-8

1/18

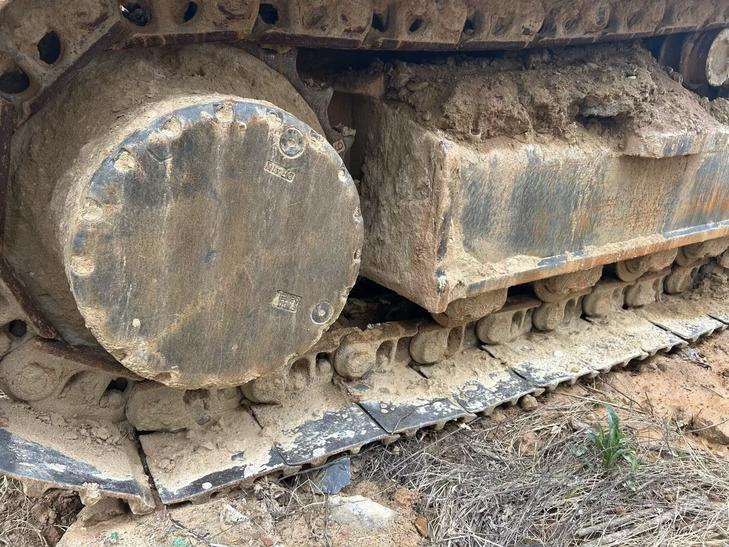

Buy Kobelco 350LC-8 Used Excavator / 1
Buy Kobelco 350LC-8 Used Excavator / 2
Buy Kobelco 350LC-8 Used Excavator / 3

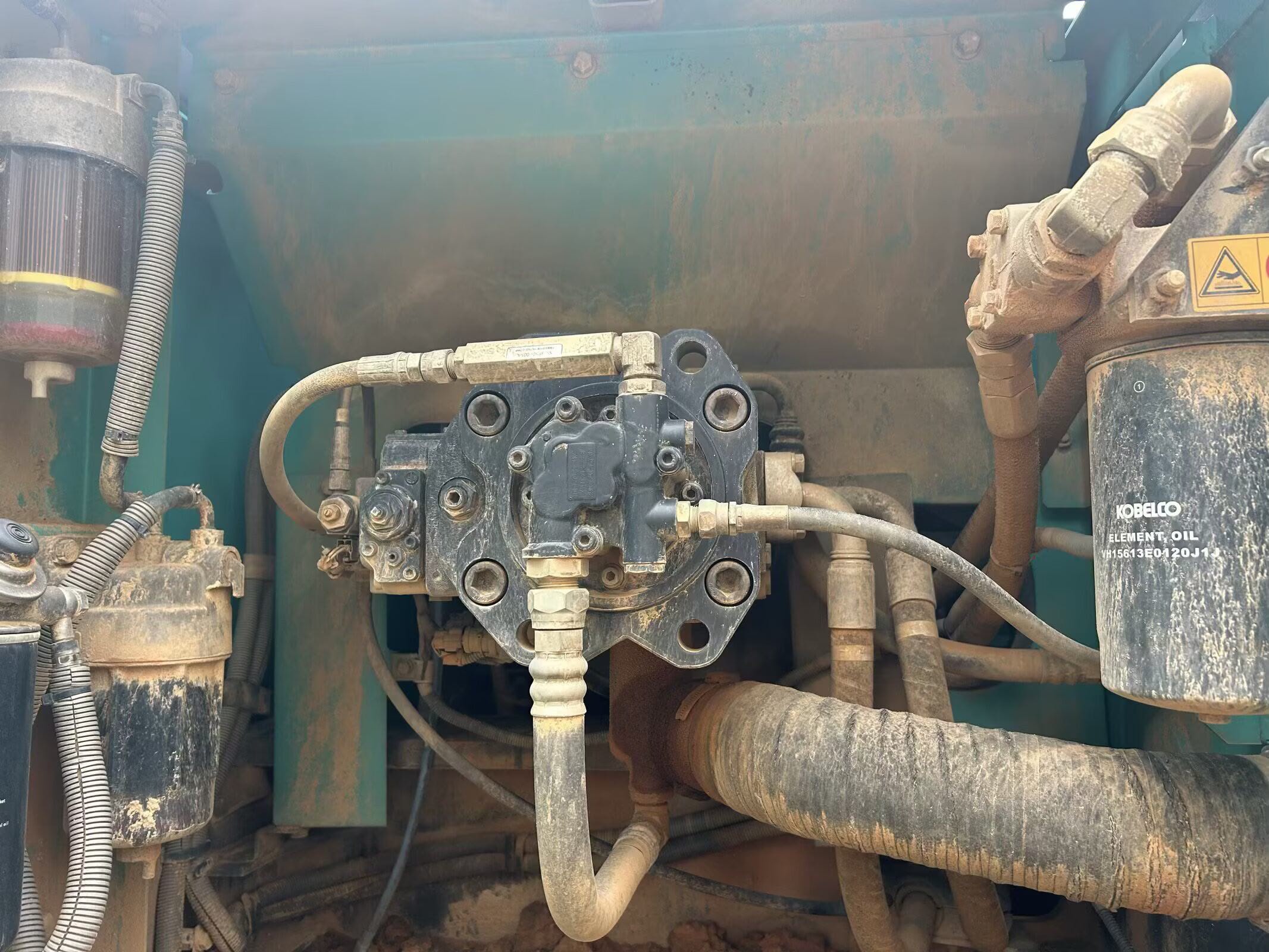

Buy Kobelco 350LC-8 Used Excavator / 4

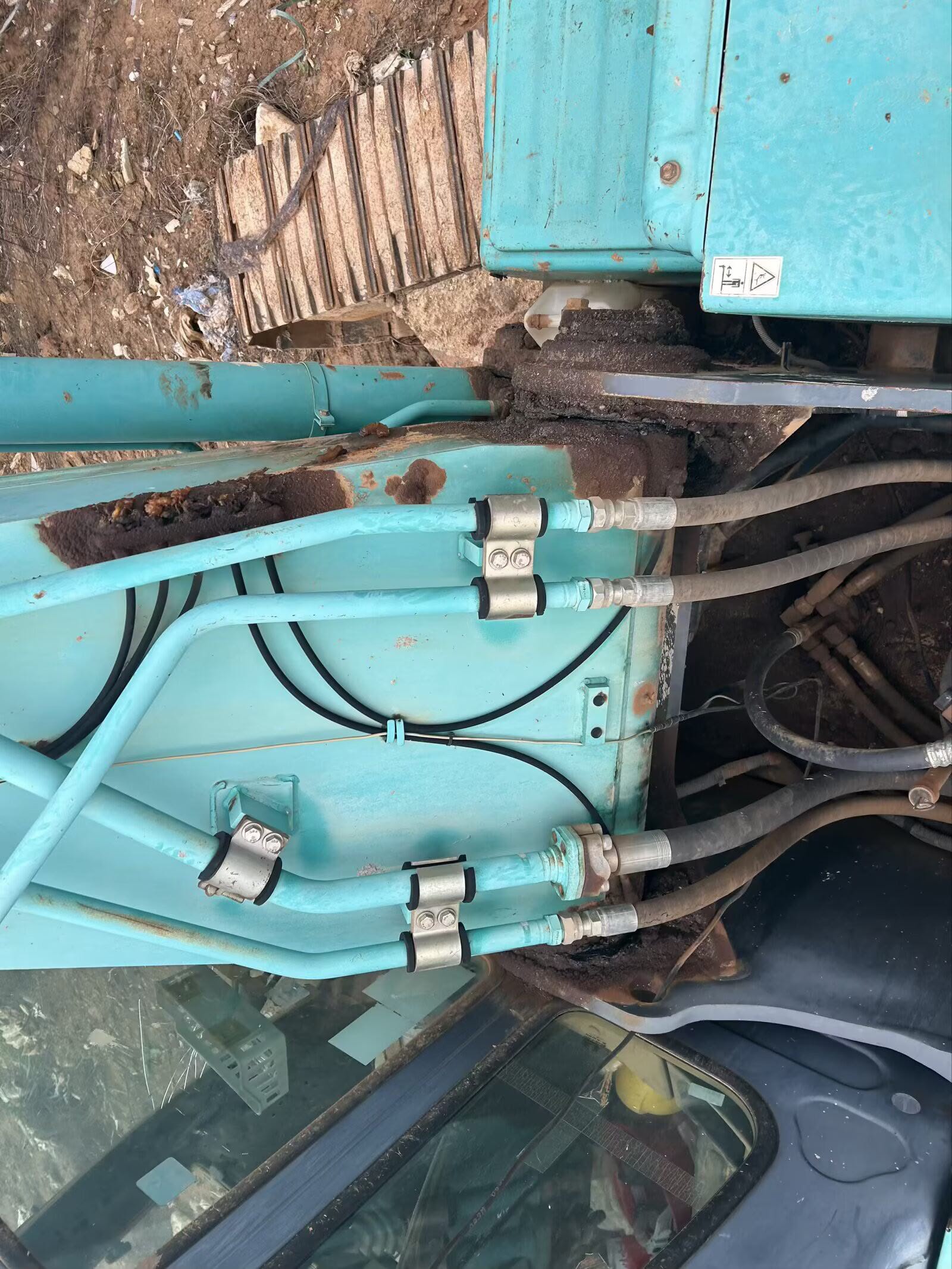

Buy Kobelco 350LC-8 Used Excavator / 5
Buy Kobelco 350LC-8 Used Excavator / 6
Buy Kobelco 350LC-8 Used Excavator / 7
Buy Kobelco 350LC-8 Used Excavator / 8
Buy Kobelco 350LC-8 Used Excavator / 9
Buy Kobelco 350LC-8 Used Excavator / 10
Buy Kobelco 350LC-8 Used Excavator / 11
Buy Kobelco 350LC-8 Used Excavator / 12
Buy Kobelco 350LC-8 Used Excavator / 13

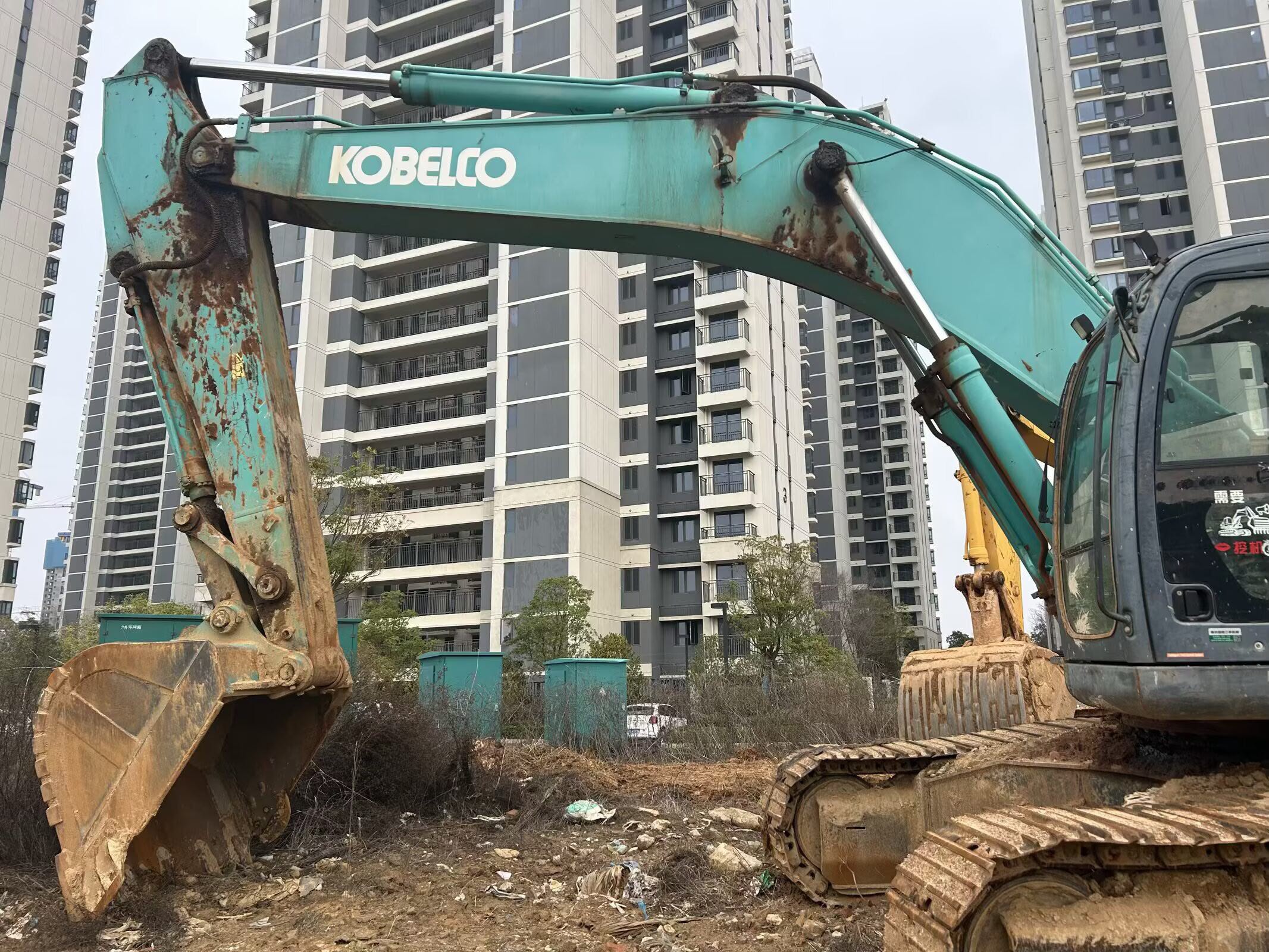

Buy Kobelco 350LC-8 Used Excavator / 14
Buy Kobelco 350LC-8 Used Excavator / 15
Buy Kobelco 350LC-8 Used Excavator / 16
Buy Kobelco 350LC-8 Used Excavator / 17
Buy Kobelco 350LC-8 Used Excavator / 18

Product Description

Discover the robust performance of the 2014 Kobelco 350LC-8 excavator, available for purchase from our location in Jiangxi, China. This used heavy machine is a testament to Kobelco's commitment to durability and efficiency, making it an ideal choice for demanding construction and excavation projects. With its powerful engine and reliable design, the 350LC-8 is ready to tackle tough jobs with ease. Pricing is available upon request, ensuring you receive a competitive offer tailored to your business needs.

  • Year: 2014
  • Brand: Kobelco
  • Model: 350LC-8
  • Location: Jiangxi, China
SpecificationsValue
No.1114449
Tonnage (tons)35
Working weight (kg)34700
Bucket capacity (m³)1.6
Rod length (mm)3300
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino JO8E
Rated power (kw/rpm)196.9/2100
Cylinder diameter × stroke (mm)112*130
Number of cylinders (PCS)6
Displacement (L)7.7
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)50.5
Rotation speed (rpm)10
Climbing ability (%)70 (35°)
Bucket digging force (kN)222
Rod digging force (kN)165
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Type of walking hydraulic motorTwo sets of two-speed plunger motors
Maximum flow of main pump (l/min)2*294
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Main pump typeDouble variable displacement axial piston pump, pilot gear pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)150*1193
Bucket rod cylinders - Number × diameter × stroke (mm)170*1788
Boom cylinders - Number × diameter × stroke (mm)2*140*1550
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11200
Total transport width (mm)3400
Total transport height (mm)3420
Full cab height (mm)3160
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4370
Back end turning radius (mm)3500
Total track length (mm)4980
Track gauge (mm)2600
Track plate width (mm)600/800/900
Total track width (mm)3200
Track ground length (mm)4050
Maximum digging radius (mm)11260
Maximum digging depth (mm)7560
Maximum excavation height (mm)10580
Maximum unloading height (mm)7370
Maximum vertical digging depth (mm)6610
Maximum excavation radius of stop surface (mm)11060
Maximum effective digging depth (mm)7400
see more

Overview

No.1114449

Brand Name:

Kobelco

Model Number:

350LC-8

Year:

2014

Location:

Jiangxi China

Pub Date
