Product Description

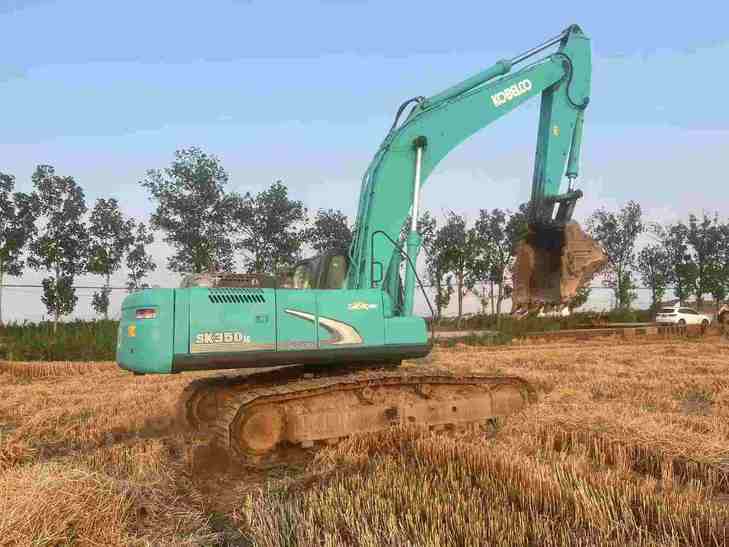

This 2020 Kobelco SK350LC-8 hydraulic excavator represents a reliable solution for demanding earthmoving operations. Currently located in Jiangsu, China, this machine from Kobelco's respected Generation 8 series offers proven performance in a mid-size excavator platform. The SK350LC-8 features a long-carriage configuration designed for enhanced stability and extended reach capabilities across construction, quarrying, and infrastructure projects.
Key features of the Kobelco SK350LC-8 include:
- Advanced hydraulic system for efficient fuel consumption and responsive control
- Spacious operator cab with ergonomic controls for extended work sessions
- Durable undercarriage components engineered for various terrain conditions
- Low operating hours consistent with 2020 manufacture year
- Competitive pricing at $126,000 USD for immediate acquisition
This excavator is available for inspection in Jiangsu Province and represents an opportunity to acquire quality Japanese engineering at an accessible price point for your fleet expansion needs.
| Specifications | Value |
|---|---|
| No. | 1084161 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34700 |
| Bucket capacity (m³) | 1.6 |
| Rod length (mm) | 3300 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino JO8E |
| Rated power (kw/rpm) | 196.9/2100 |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.7 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 50.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800/900 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
