Product Description

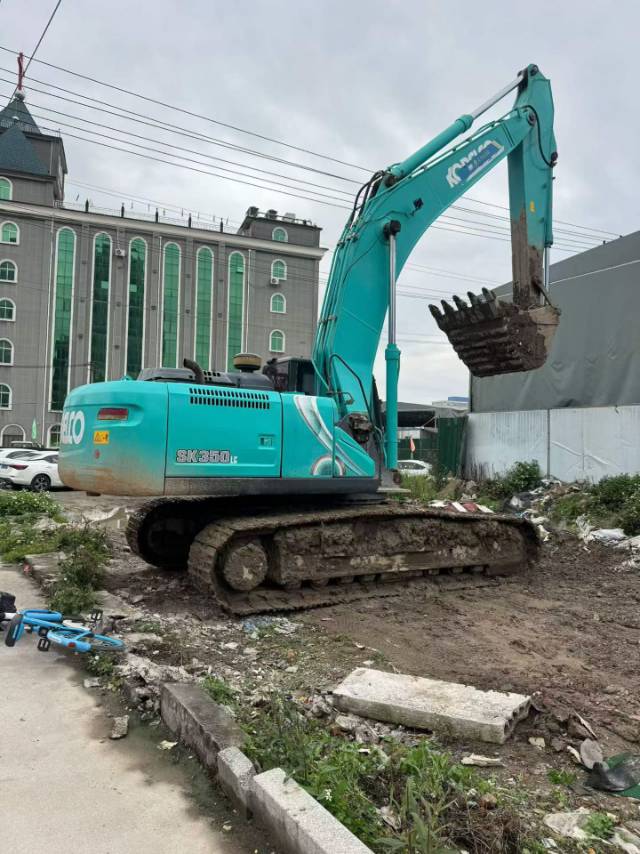

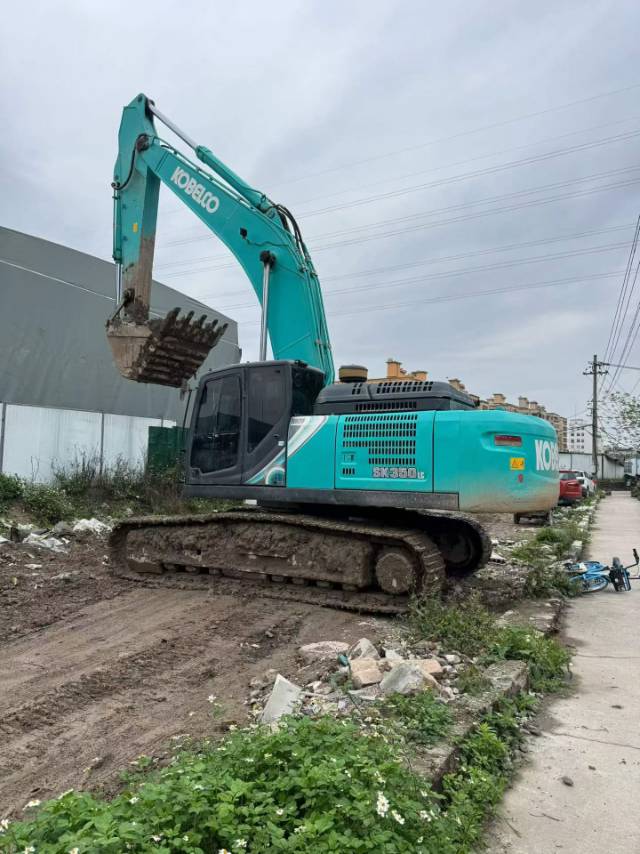

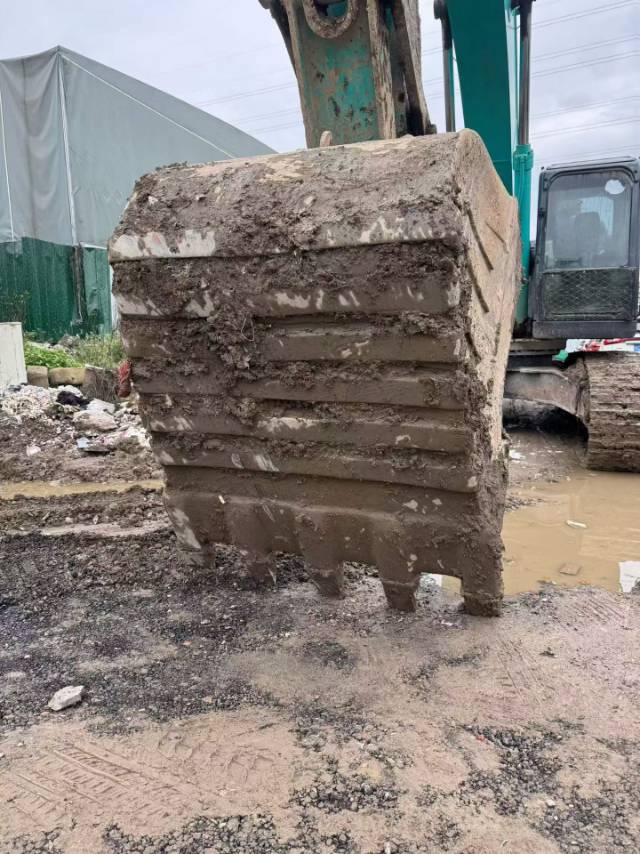

This 2021 Kobelco SK350LC-8 excavator represents a well-maintained addition to any heavy construction fleet. Currently located in Zhejiang, China, this machine demonstrates the reliability Kobelco is known for in the hydraulic excavator segment.
Key highlights include:
- Major components remain original with no rebuilds or replacements
- Hydraulic system operates at standard pressure specifications
- Smooth, coordinated operation across all functions
- Fuel-efficient performance with responsive cycle times
- Overall condition requires minimal pre-deployment inspection
The SK350LC-8 is designed for demanding earthmoving applications where productivity and fuel economy are critical. This unit's low operating hours relative to its model year make it an attractive option for contractors seeking proven Japanese engineering without the premium of new equipment.
Available for inspection by appointment. Export documentation assistance available.
| Specifications | Value |
|---|---|
| No. | 1074015 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34700 |
| Bucket capacity (m³) | 1.6 |
| Rod length (mm) | 3300 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

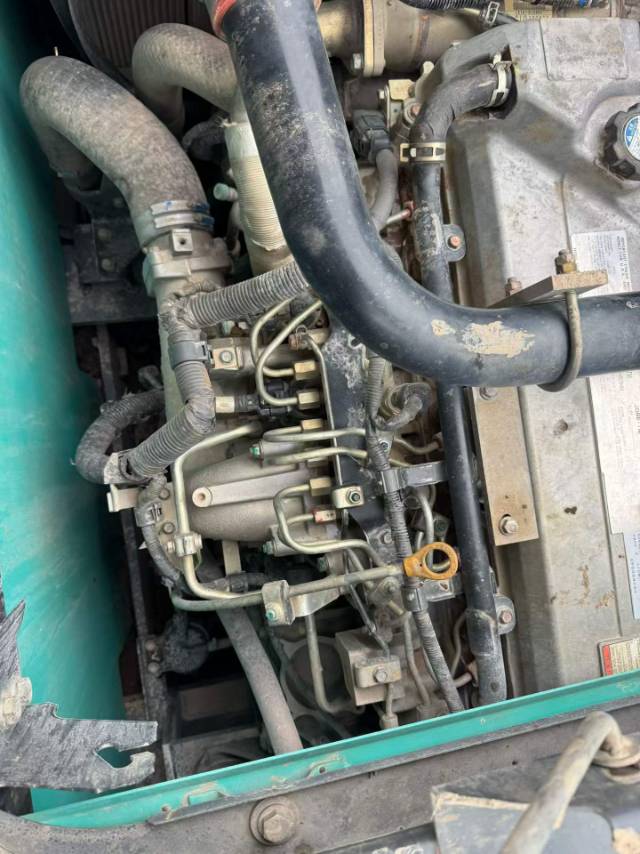

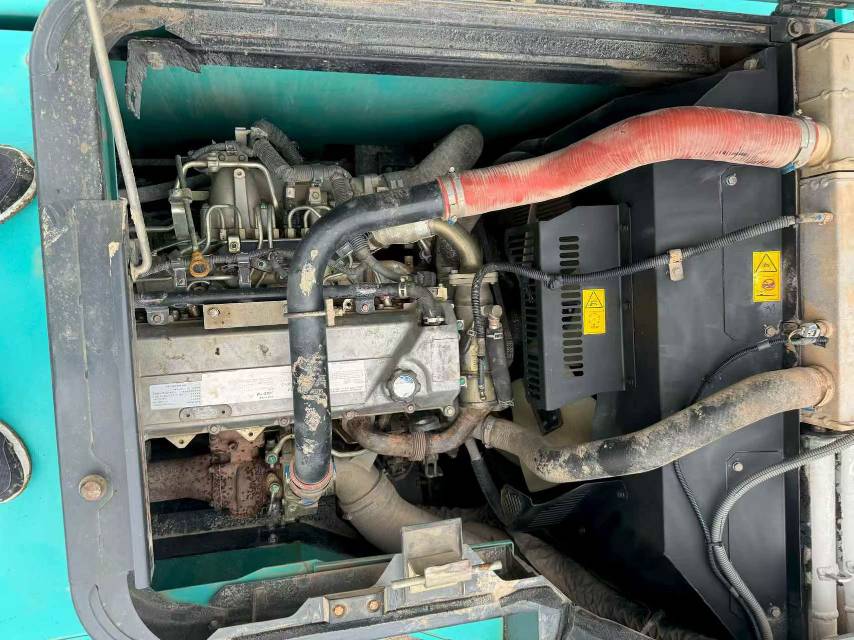

| Engine type | Hino JO8E |
| Rated power (kw/rpm) | 196.9/2100 |
| Cylinder diameter × stroke (mm) | 112*130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.7 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 50.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |

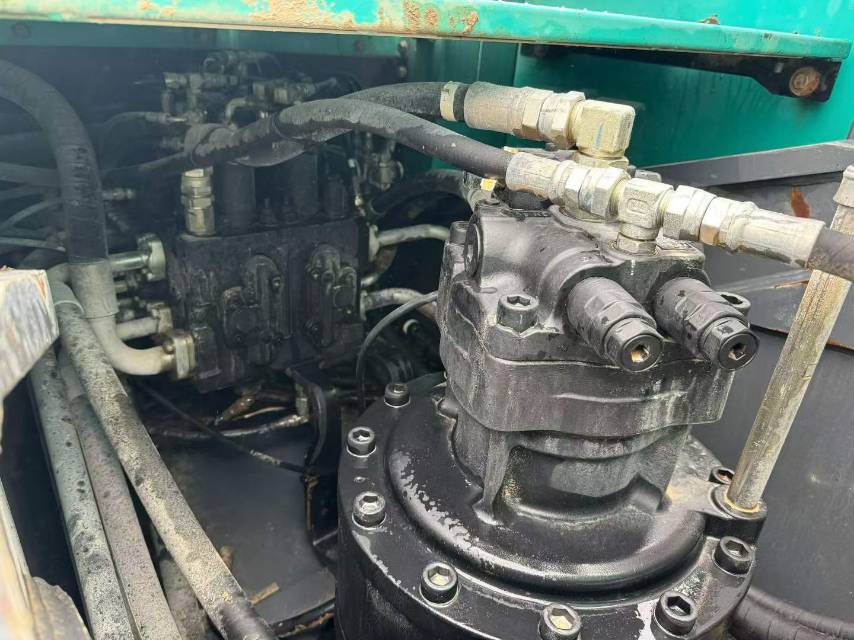

| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*294 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150*1193 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170*1788 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*140*1550 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3420 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800/900 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10580 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6610 |
| Maximum excavation radius of stop surface (mm) | 11060 |
| Maximum effective digging depth (mm) | 7400 |
