2016 Kobelco 380D-8

1/16

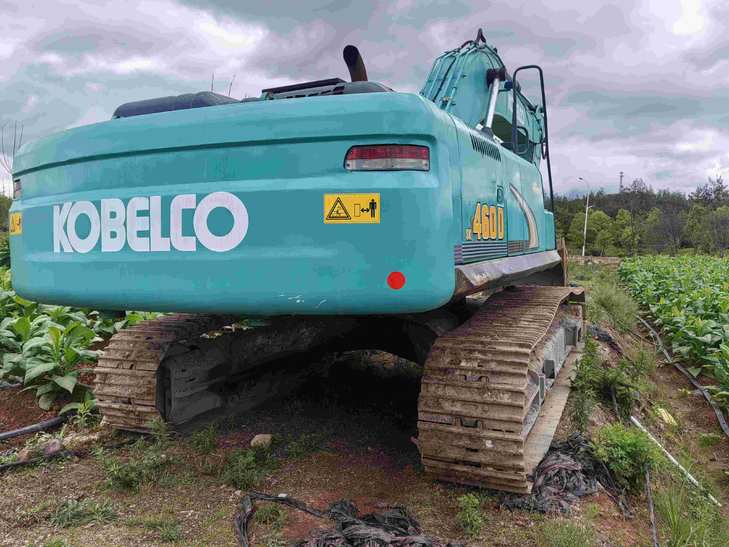

Buy Kobelco 380D-8 Used Excavator / 1
Buy Kobelco 380D-8 Used Excavator / 2
Buy Kobelco 380D-8 Used Excavator / 3
Buy Kobelco 380D-8 Used Excavator / 4
Buy Kobelco 380D-8 Used Excavator / 5
Buy Kobelco 380D-8 Used Excavator / 6
Buy Kobelco 380D-8 Used Excavator / 7
Buy Kobelco 380D-8 Used Excavator / 8
Buy Kobelco 380D-8 Used Excavator / 9
Buy Kobelco 380D-8 Used Excavator / 10
Buy Kobelco 380D-8 Used Excavator / 11
Buy Kobelco 380D-8 Used Excavator / 12
Buy Kobelco 380D-8 Used Excavator / 13
Buy Kobelco 380D-8 Used Excavator / 14
Buy Kobelco 380D-8 Used Excavator / 15
Buy Kobelco 380D-8 Used Excavator / 16

Product Description

Available for sale or rent, this 2016 Kobelco 380D-8 excavator is a robust and reliable choice for your heavy-duty earthmoving projects. Located in Yunnan, China, this machine has been well-maintained with the counterweight recently repainted, while the rest of the body retains its original paint, indicating minimal wear. The undercarriage is in excellent condition, rated at approximately 90% new, ensuring that this excavator is ready for immediate deployment without the need for additional investment. Ideal for construction and mining operations, the Kobelco 380D-8 offers the durability and efficiency you expect from a leading brand in heavy machinery.

  • Year: 2016
  • Brand: Kobelco
  • Model: 380D-8
  • Location: Yunnan, China
  • Condition: Counterweight repainted, rest of the machine in original paint, undercarriage 90% new
SpecificationsValue
No.1086045
Tonnage (tons)38
Working weight (kg)36900
Bucket capacity (m³)2.1
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08E
Rated power (kw/rpm)209/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112X130
Maximum torque (N.m)998
Number of cylinders (PCS)6
Displacement (L)7.684
Working form4 stroke water cooled direct injection, turbocharged intercooled, Euro 3 standard
Ground specific pressure (Kpa)69
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)221
Rod digging force (kN)205
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2X294
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Main pump typePlunger pump
Pilot Oil Circuit (MPa)5
Pilot pump flow (L/min)120
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11280
Total transport width (mm)3270
Total transport height (mm)3640
Full cab height (mm)3233
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3500
Onboard width (mm)3080
Track gauge (mm)2600
Track plate width (mm)600
Maximum digging radius (mm)10610
Maximum digging depth (mm)6860
Maximum excavation height (mm)10260
Maximum unloading height (mm)7060/3320
Maximum vertical digging depth (mm)5840
Maximum excavation radius of stop surface (mm)10460
see more

Overview

No.1086045

Brand Name:

Kobelco

Model Number:

380D-8

Year:

2016

Location:

Yunnan China
