2020 Kobelco 380D-8

1/9

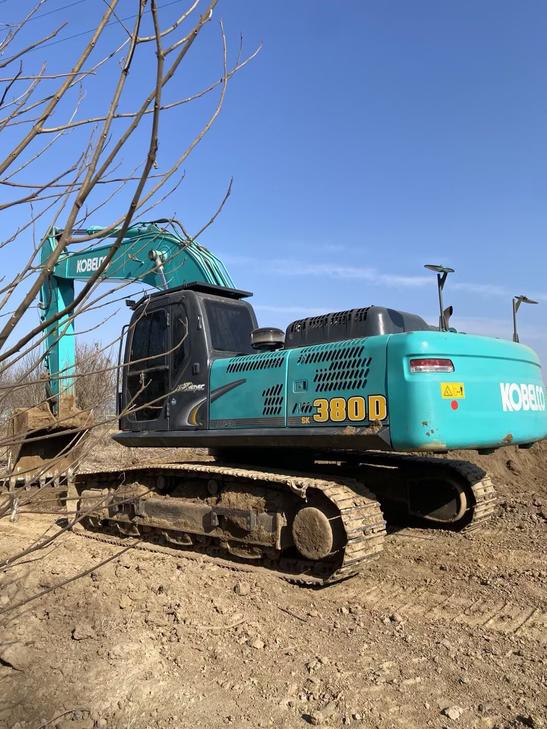

Buy Kobelco 380D-8 Used Excavator / 1
Buy Kobelco 380D-8 Used Excavator / 2
Buy Kobelco 380D-8 Used Excavator / 3
Buy Kobelco 380D-8 Used Excavator / 4
Buy Kobelco 380D-8 Used Excavator / 5
Buy Kobelco 380D-8 Used Excavator / 6
Buy Kobelco 380D-8 Used Excavator / 7
Buy Kobelco 380D-8 Used Excavator / 8
Buy Kobelco 380D-8 Used Excavator / 9

Product Description

This 2020 Kobelco SK380D-8 hydraulic excavator is available from a verified single-owner source in Hebei Province, China. The machine carries a strong operational track record with no outstanding performance issues — ready to go to work without extensive pre-purchase vetting.

The SK380D-8 is a 38-tonne class excavator well suited for heavy earthmoving, deep foundation work, quarrying, and bulk material handling. Kobelco's iNDr closed cooling system and load-sensing hydraulics are standard to this platform, contributing to reliable fuel efficiency and consistent digging force across varied site conditions.

  • Year: 2020
  • Brand: Kobelco
  • Model: SK380D-8
  • Ownership: First-hand, single-owner history
  • Condition: Operationally sound, performance verified
  • Location: Hebei Province, China
  • Availability: Ready for inspection and prompt delivery

Suitable for contractors, fleet operators, and project developers seeking dependable large-class excavation capacity. Contact FairTradeMachinery for full service records and to arrange an on-site inspection.

SpecificationsValue
No.1141456
Tonnage (tons)38
Working weight (kg)36900
Bucket capacity (m³)2.1
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08E
Rated power (kw/rpm)209/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112X130
Maximum torque (N.m)998
Number of cylinders (PCS)6
Displacement (L)7.684
Working form4 stroke water cooled direct injection, turbocharged intercooled, Euro 3 standard
Ground specific pressure (Kpa)69
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)221
Rod digging force (kN)205
Maximum tractive force (kN)322
Travel speed (km/h)5.6/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2X294
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Main pump typePlunger pump
Pilot Oil Circuit (MPa)5
Pilot pump flow (L/min)120
Fuel Tank (L)580
Hydraulic Tank (L)280
Engine Oil changes (L)28.5
Coolant (L)31.1
Hydraulic System (L)353
Total transport length (mm)11280
Total transport width (mm)3270
Total transport height (mm)3640
Full cab height (mm)3233
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3500
Onboard width (mm)3080
Track gauge (mm)2600
Track plate width (mm)600
Maximum digging radius (mm)10610
Maximum digging depth (mm)6860
Maximum excavation height (mm)10260
Maximum unloading height (mm)7060/3320
Maximum vertical digging depth (mm)5840
Maximum excavation radius of stop surface (mm)10460
see more

Overview

No.1141456

Brand Name:

Kobelco

Model Number:

380D-8

Year:

2020

Location:

Hebei China

Pub Date
