Product Description

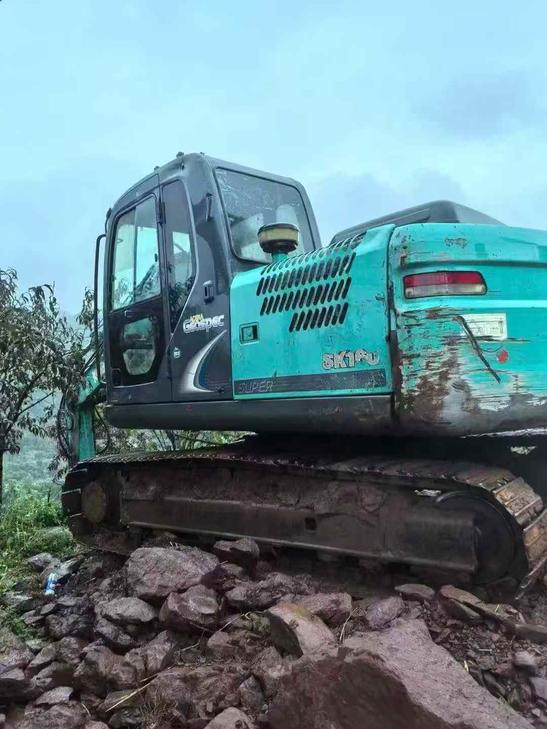

This 2014 Kobelco SK130 hydraulic excavator represents a reliable mid-size solution for construction and earthmoving operations. With approximately 12 years of operational history, this machine demonstrates Kobelco's engineering legacy in the 13-ton excavator class. Currently located in Guizhou, China, the SK130 offers proven performance for contractors seeking dependable equipment at competitive value.
The Kobelco SK130 is engineered for:
- General excavation and trenching applications
- Urban construction projects requiring maneuverability
- Foundation work and utility installation
- Material handling and site development
Kobelco excavators are recognized for fuel efficiency and operator comfort in demanding work environments. This unit is available for inspection in Guizhou Province. Interested buyers should conduct thorough on-site evaluation to verify current mechanical condition, hydraulic system performance, and overall operability prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1080885 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
