Product Description

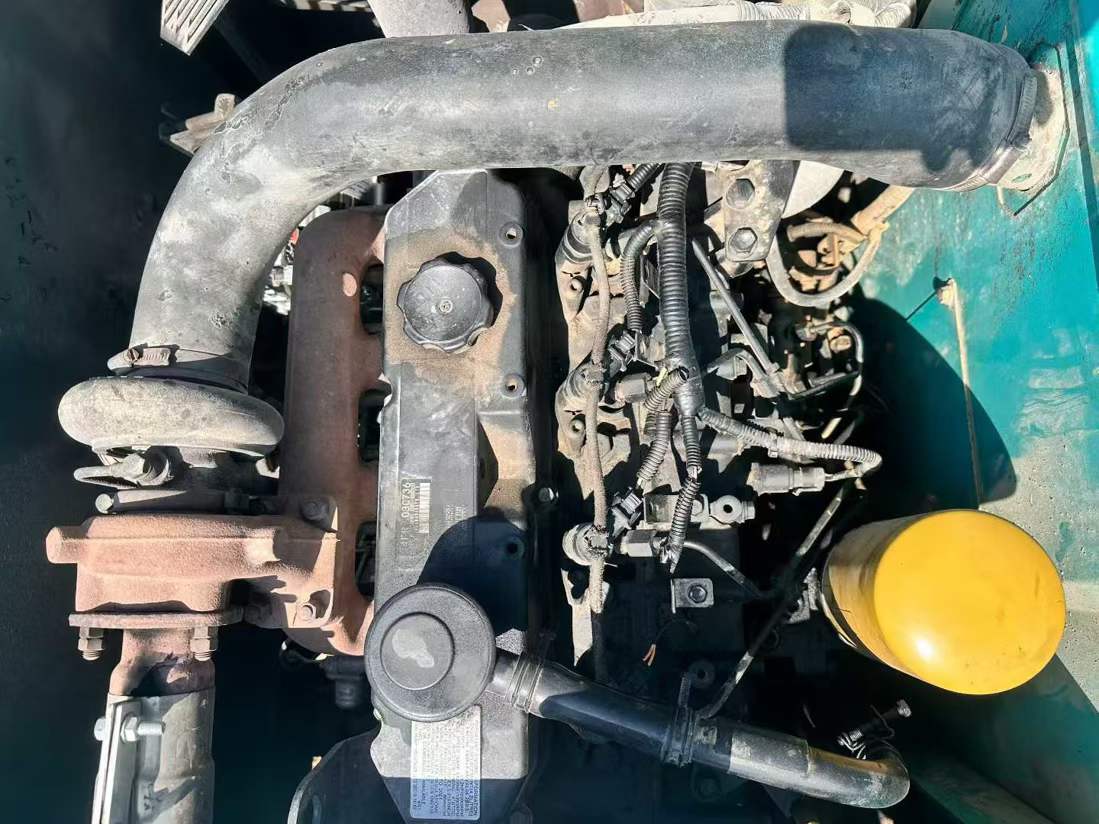

Built for precision and all-day productivity, this 2016 Kobelco SK130 excavator delivers 13-ton performance with operator-first engineering. Powered by a reliable Mitsubishi D04FR engine producing 74 kW at 2000 rpm, this machine combines responsive hydraulics with exceptional fuel efficiency from its 275-liter tank. Currently located in Ningde, Fujian, this Japanese-designed excavator offers proven durability for demanding jobsites.
Operator advantages include:
- Superior visibility with 2870 mm full cab height and 440 mm ground clearance for navigating uneven terrain
- Stable 12,800 kg working weight ensures controlled operation during heavy digging cycles
- Impressive 70% climbing ability (35°) tackles steep grades with confidence
- Compact 2190 mm rear turning radius enables tight-space maneuverability without sacrificing reach
- Maximum digging depth of 5520 mm and 8340 mm operating radius handle versatile excavation tasks
- Dual travel speeds (3.4/5.6 km/h) optimize movement between precision work and site repositioning
With 90.1 kN bucket digging force and 0.52 m³ capacity, this SK130 maintains consistent performance across grading, trenching, and loading app
| Specifications | Value |
|---|---|
| No. | 1030952 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
