Product Description

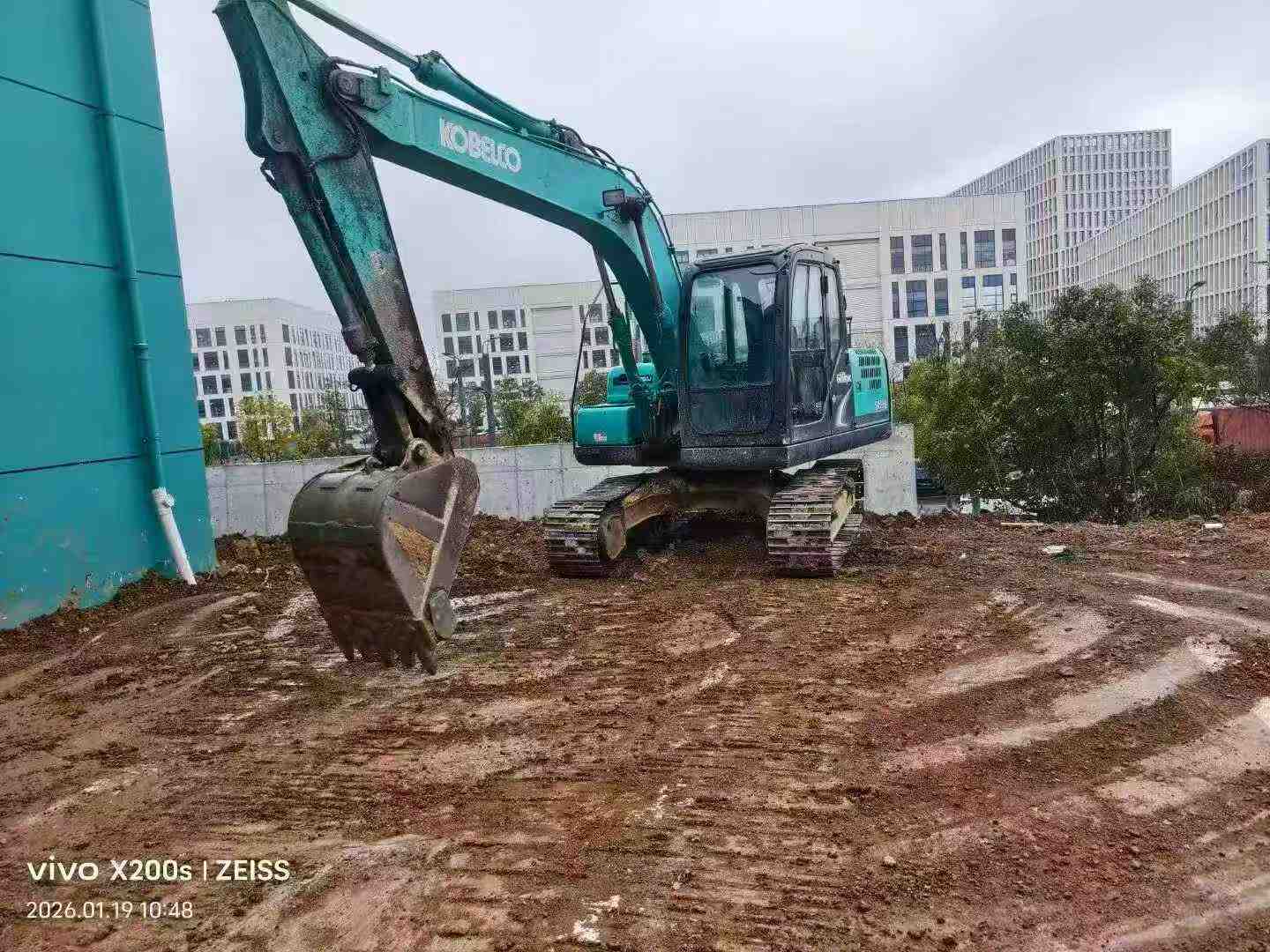

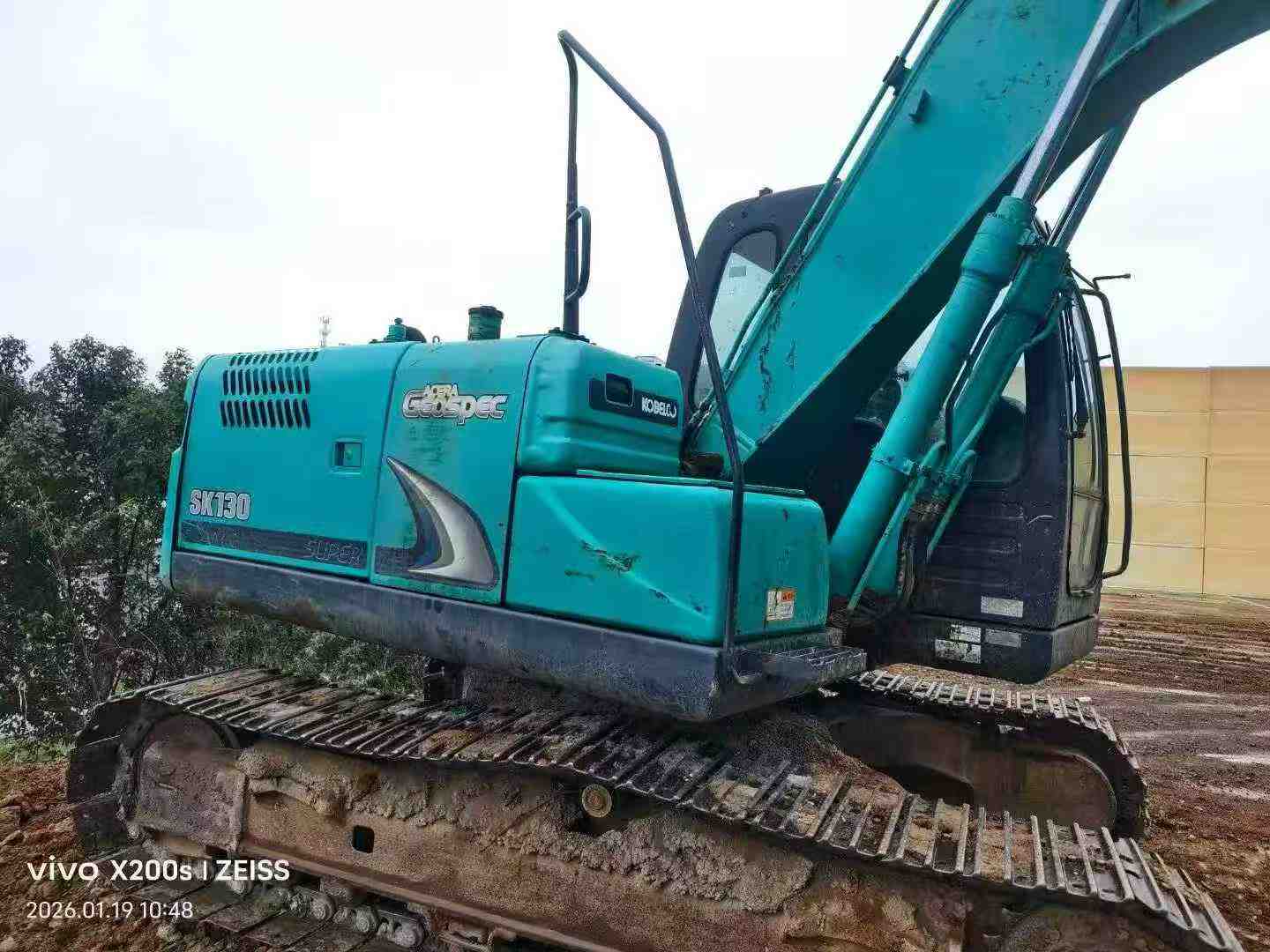

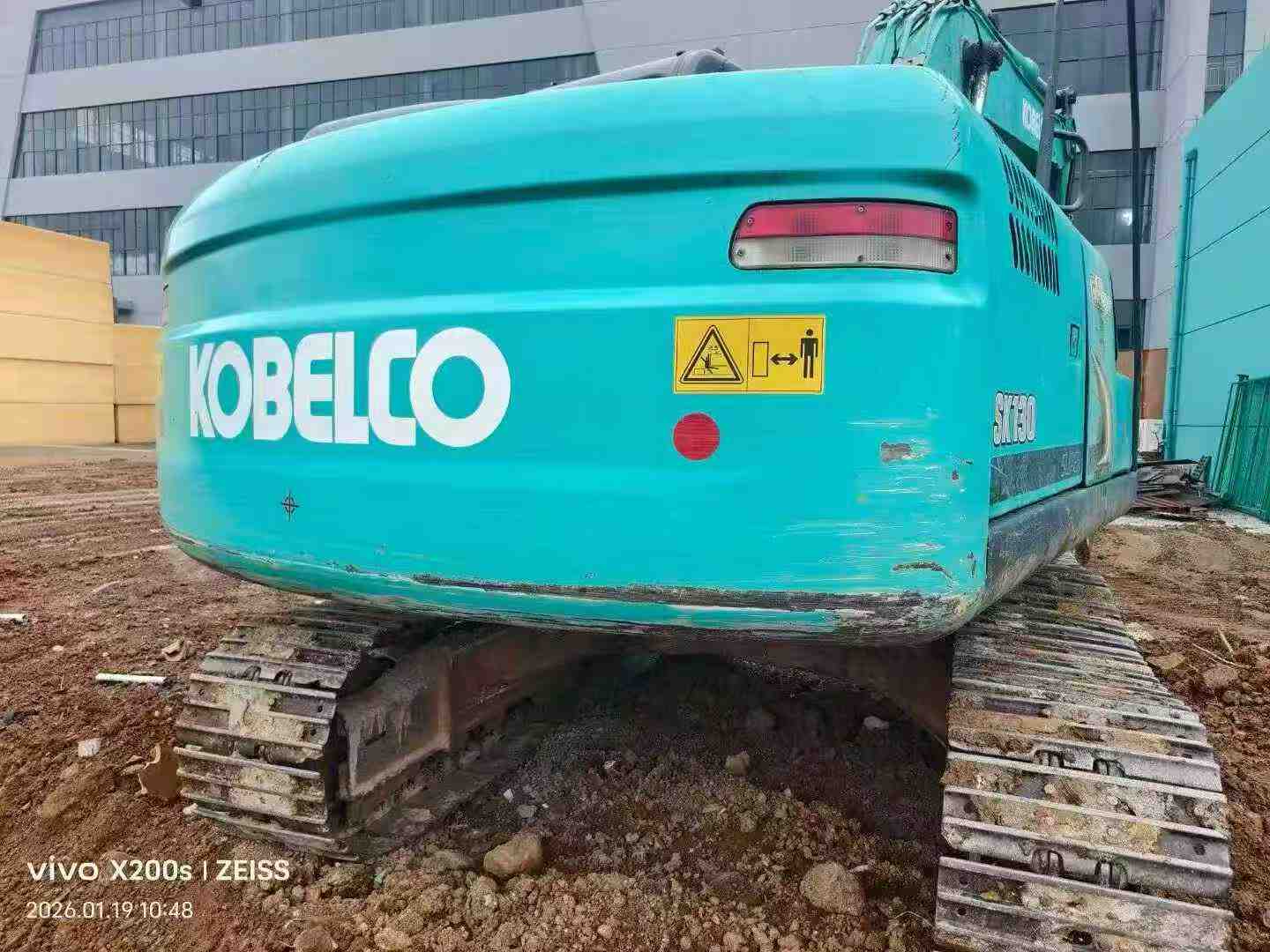

With a working weight of 12,800 kg and a bucket capacity of 0.52 m³, this 2018 Kobelco SK130 excavator is a proven workhorse in the construction industry. Built to last, it features a Mitsubishi D04FR engine, delivering 74 kW at 2000 rpm, ensuring reliable performance on any job site. Originating from Japan, this machine boasts a robust design with a climbing ability of 70% and a maximum digging force of 90.1 kN, making it ideal for challenging terrains. Its travel speed of 3.4/5.6 km/h and fuel tank capacity of 275 L ensure efficient operation and extended working hours. The SK130's total transport dimensions (7790 mm length, 2490 mm width, 2710 mm height) make it easy to transport, while its full cab height of 2870 mm provides excellent visibility and comfort. This excavator is currently located in 浙江绍兴 and is ready to tackle your next project with durability and reliability.
| Specifications | Value |
|---|---|
| No. | 1000630 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
