HOME>>Kobelco>>Kobelco SK130

2018 Kobelco SK130

1/6
Buy Kobelco SK130 Used Excavator / 1

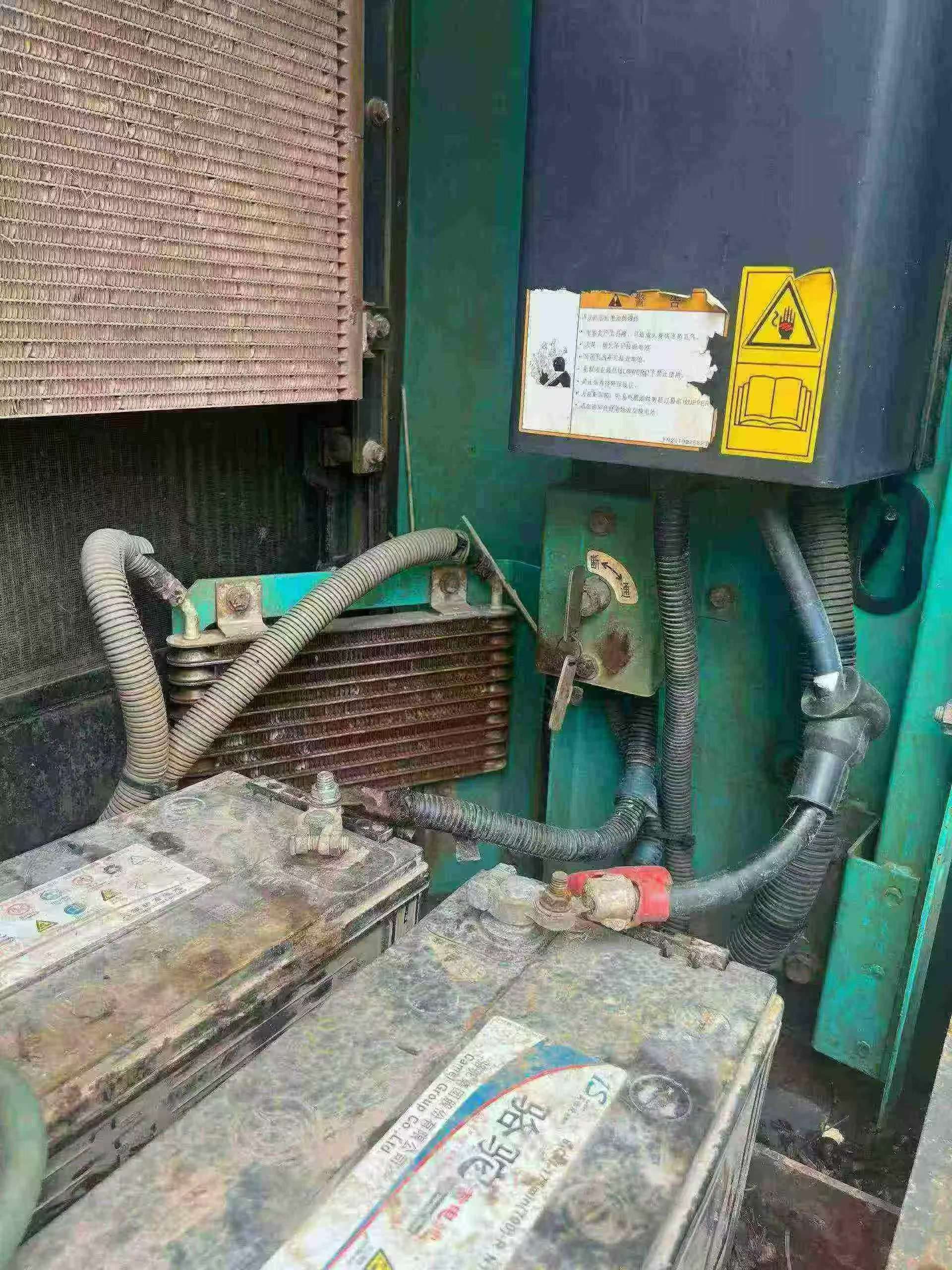

Buy Kobelco SK130 Used Excavator / 2

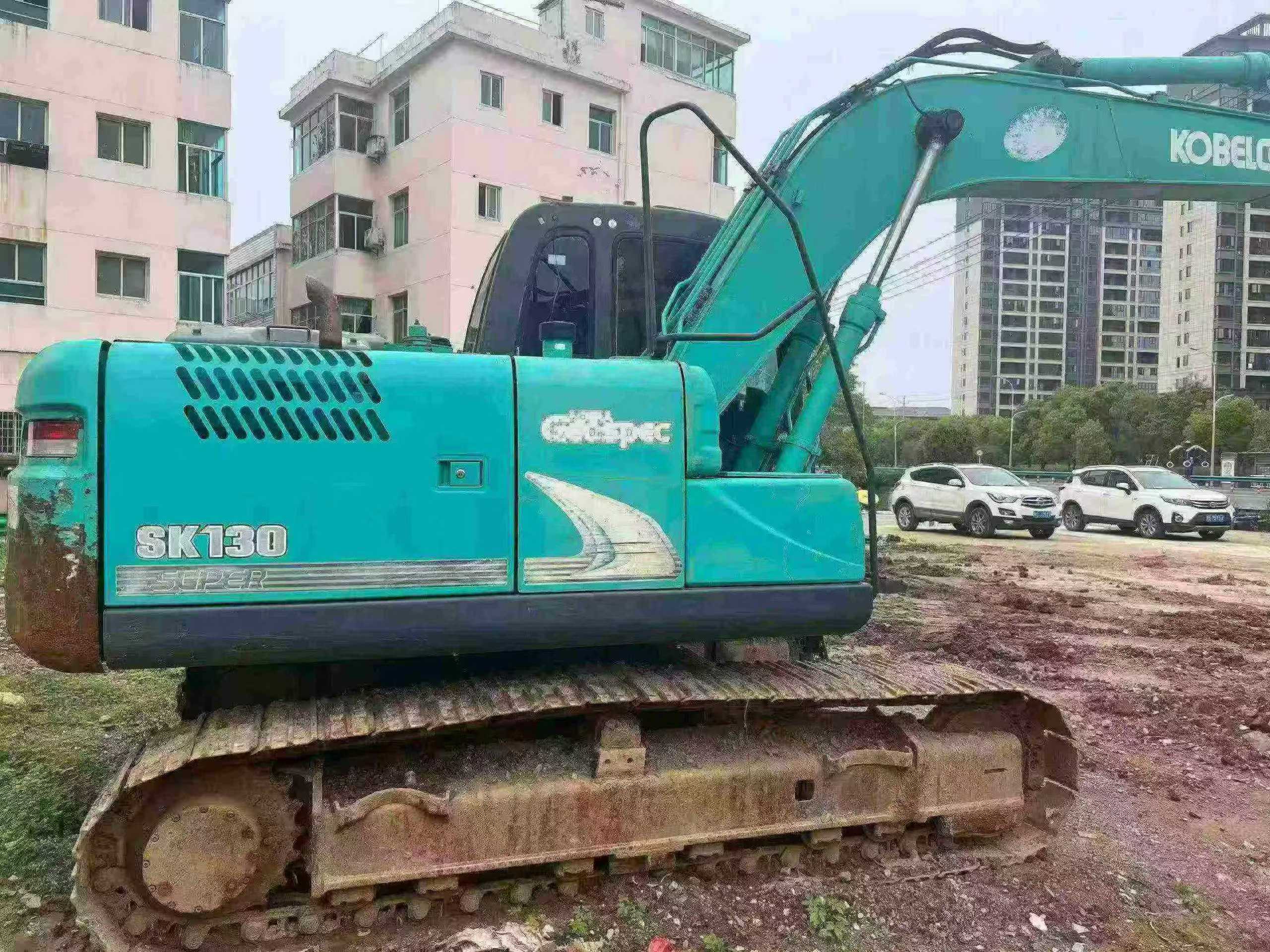

Buy Kobelco SK130 Used Excavator / 3

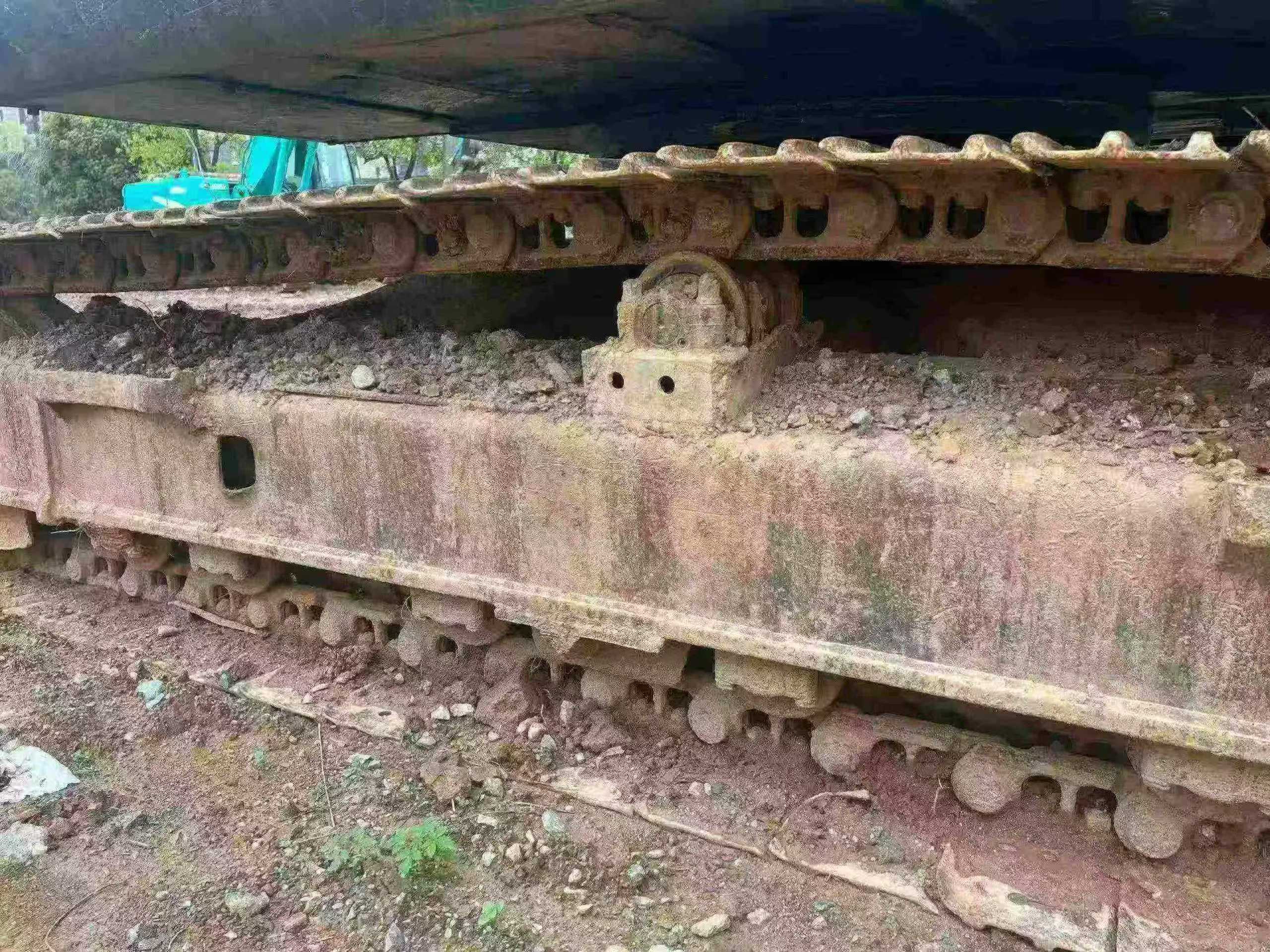

Buy Kobelco SK130 Used Excavator / 4

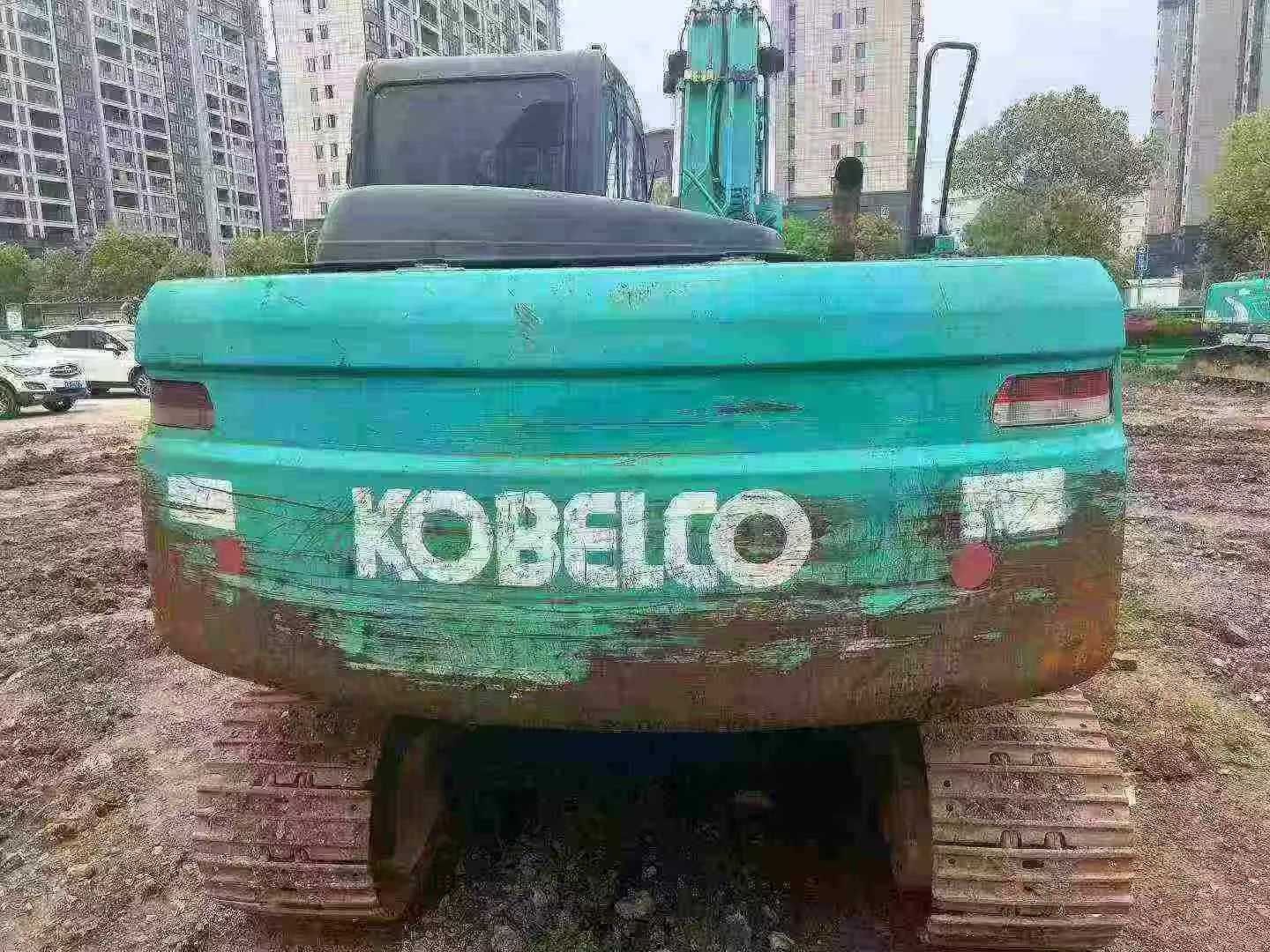

Buy Kobelco SK130 Used Excavator / 5

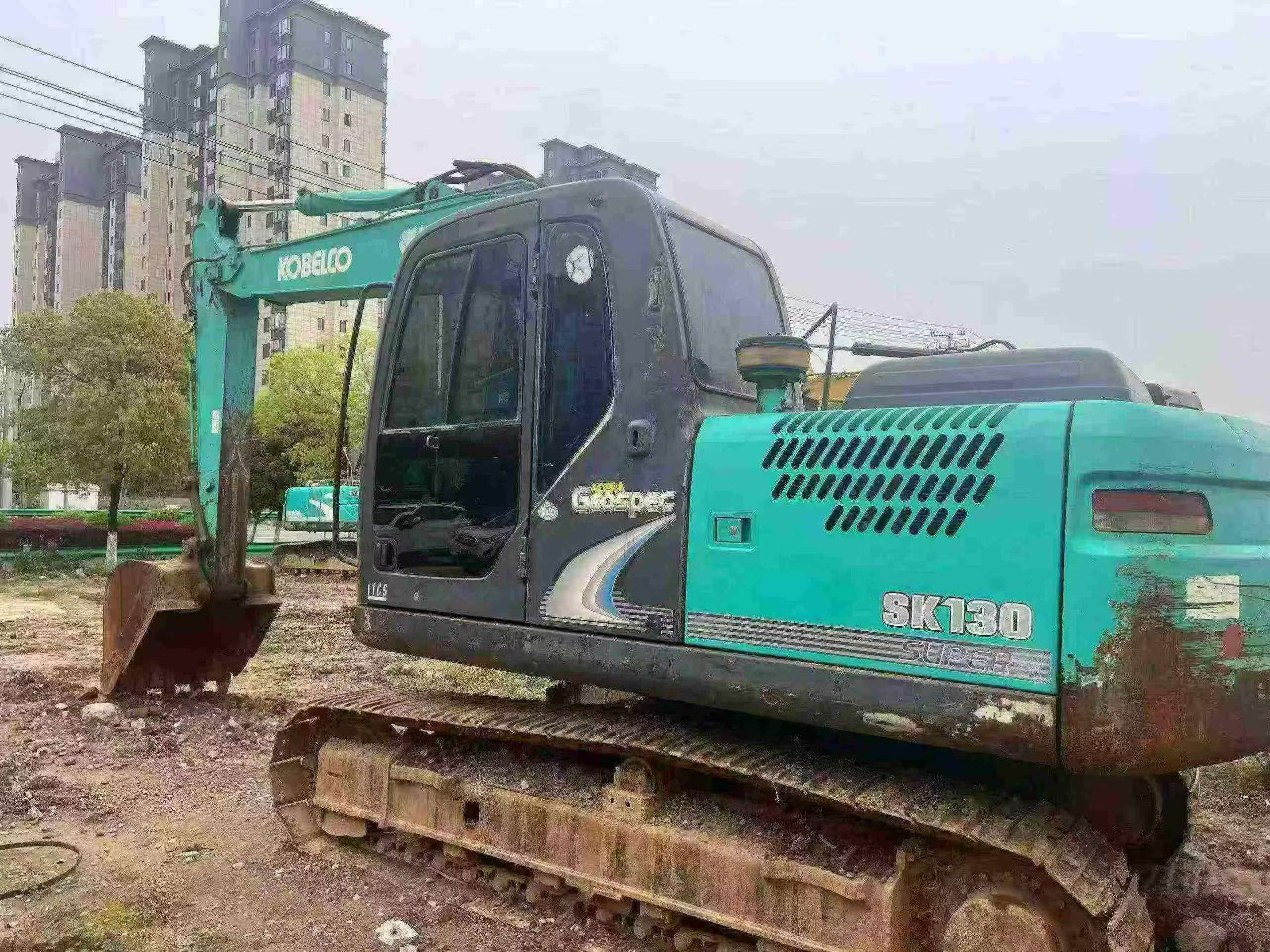

Buy Kobelco SK130 Used Excavator / 6

Product Description

Strengthen your equipment lineup with this 2018 Kobelco SK130 excavator, currently stationed in Wenzhou, Zhejiang. Built for contractors managing multiple jobsites, this 13-ton machine delivers consistent performance as a primary workhorse or strategic backup unit. The Mitsubishi D04FR engine generates 74 kW at 2000 rpm, providing reliable power for continuous operation across diverse applications.

Operational specifications include:

  • Working weight of 12,800 kg with 0.52 m³ bucket capacity for versatile material handling
  • Maximum digging depth of 5,520 mm and reach of 8,340 mm for standard excavation tasks
  • Bucket digging force of 90.1 kN ensures efficient loading cycles
  • Compact transport dimensions (7,790 mm × 2,490 mm × 2,710 mm) facilitate trailer mobility between sites
  • 275L fuel tank supports extended shifts without frequent refueling
  • 70% gradeability and 440 mm ground clearance handle challenging terrain

Japanese-engineered precision combined with practical jobsite dimensions makes this SK130 an intelligent fleet addition. Minimize downtime risks and maintain project momentum with proven Kobelco reliability backing your operations.

SpecificationsValue
No.1049534
Tonnage (tons)13
Working weight (kg)12800
Bucket capacity (m³)0.52
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi D04FR
Rated power (kw/rpm)74/2000
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)90.1
Travel speed (km/h)3.4/5.6
Fuel Tank (L)275
Hydraulic Tank (L)101
Total transport length (mm)7790
Total transport width (mm)2490
Total transport height (mm)2710
Full cab height (mm)2870
Minimum ground clearance (mm)440
Back end turning radius (mm)2190
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)2870
Track plate width (mm)500/600/700
Maximum digging radius (mm)8340
Maximum digging depth (mm)5520
Maximum excavation height (mm)8500
Maximum unloading height (mm)6090
Maximum vertical digging depth (mm)4880
Dodging plate width × height (mm)500
Maximum excavation radius of stop surface (mm)8190
Maximum effective digging depth (mm)5290
see more

Overview

No.1049534

Brand Name:

Kobelco

Model Number:

SK130

Year:

2018

Location:

Zhejiang China

Pub Date
