Product Description

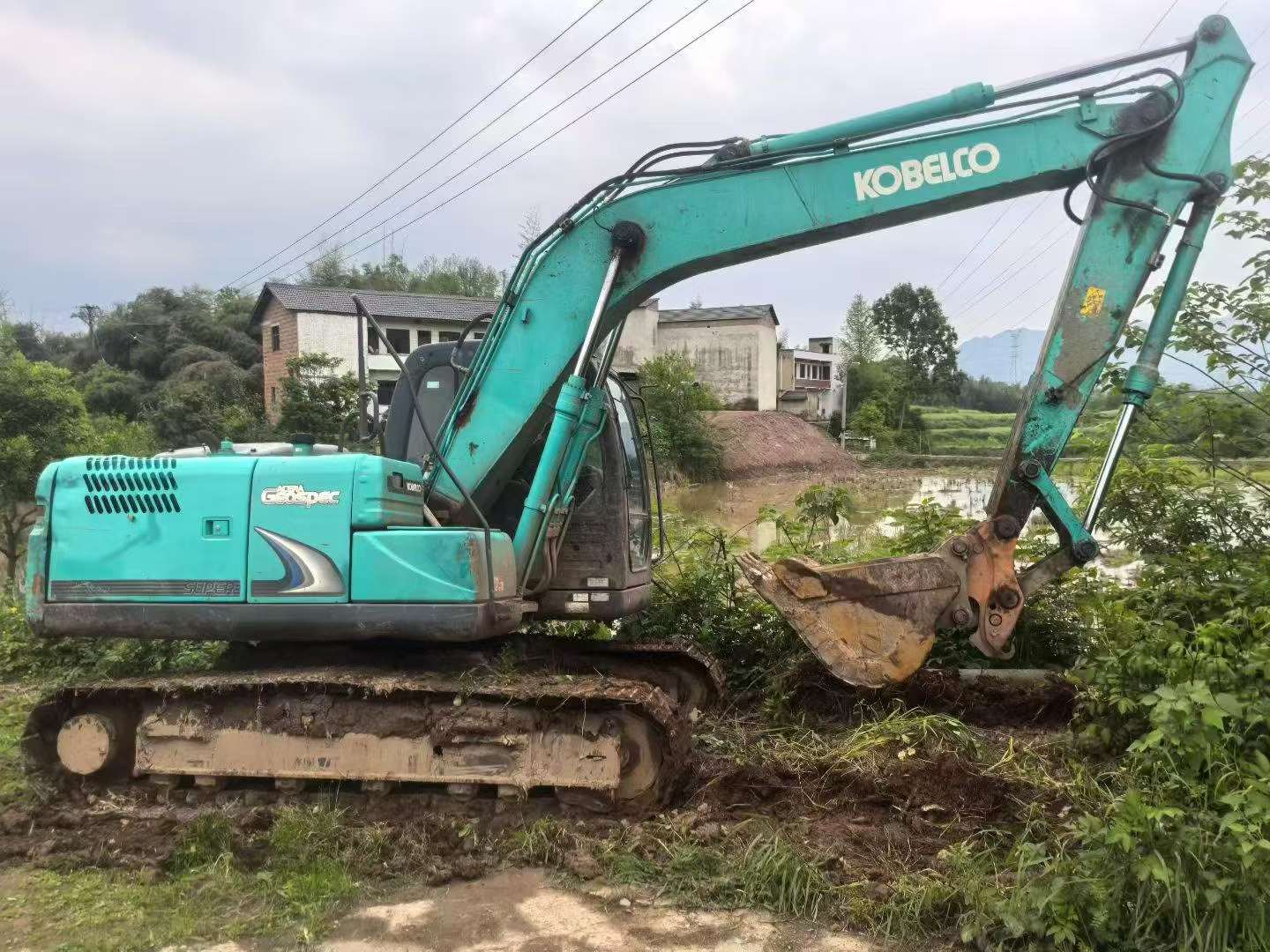

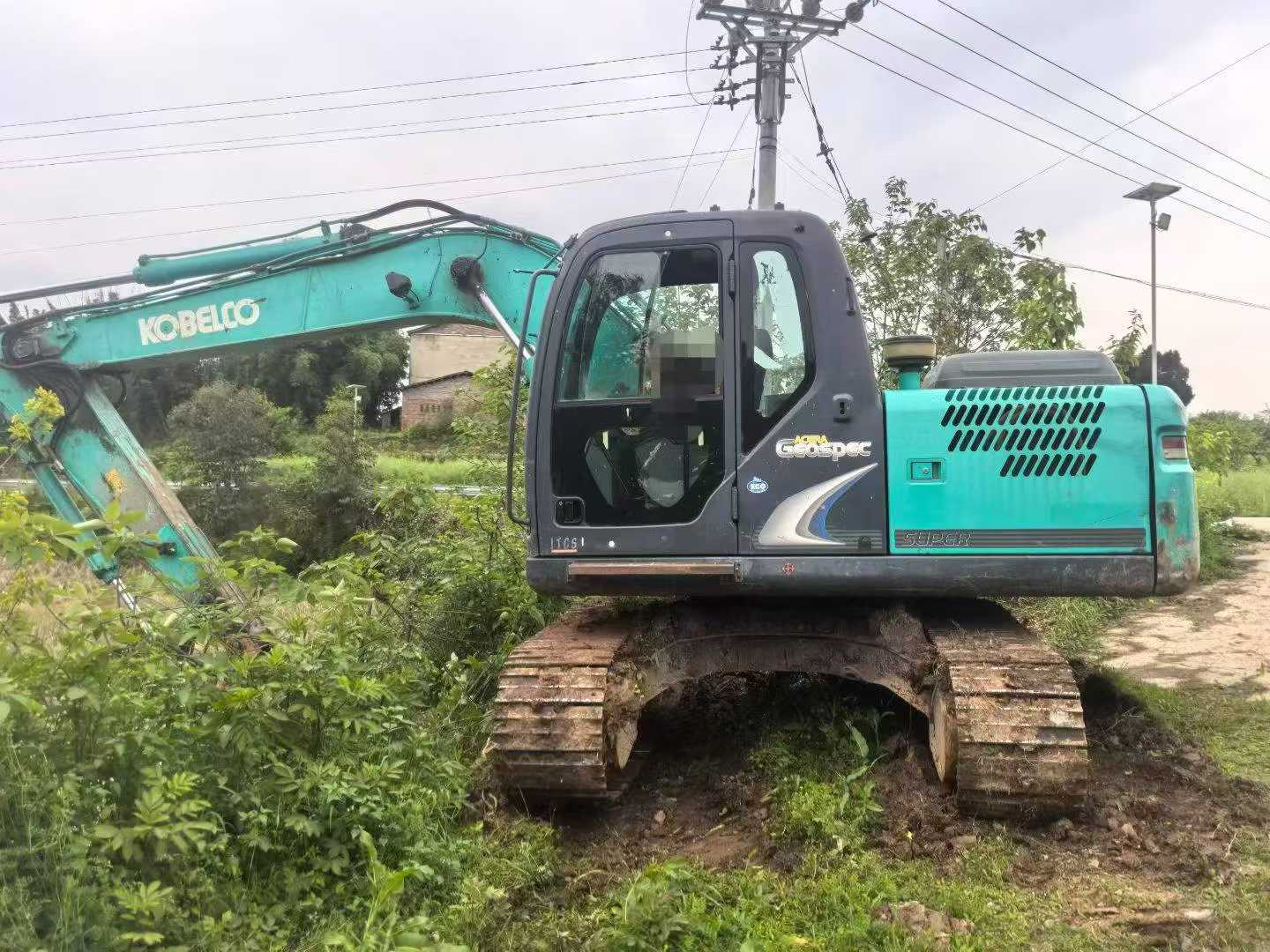

With a travel speed of up to 5.6 km/h and a fast deployment capability, the 2019 Kobelco SK130 excavator is ready for immediate use in 重庆. Featuring a powerful Mitsubishi D04FR engine with 74 kW at 2000 rpm, this machine ensures efficient and swift operations. Available now, it allows you to skip the factory lead times and get to work right away. The SK130, with a working weight of 12,800 kg and a bucket capacity of 0.52 m³, is designed for robust performance and quick turnaround on your projects. Its 70% climbing ability and 35° angle make it versatile for various terrains. With a total transport length of 7790 mm and a width of 2490 mm, it's easy to transport and maneuver, ensuring that it reaches your site without delay.
| Specifications | Value |
|---|---|
| No. | 1048888 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

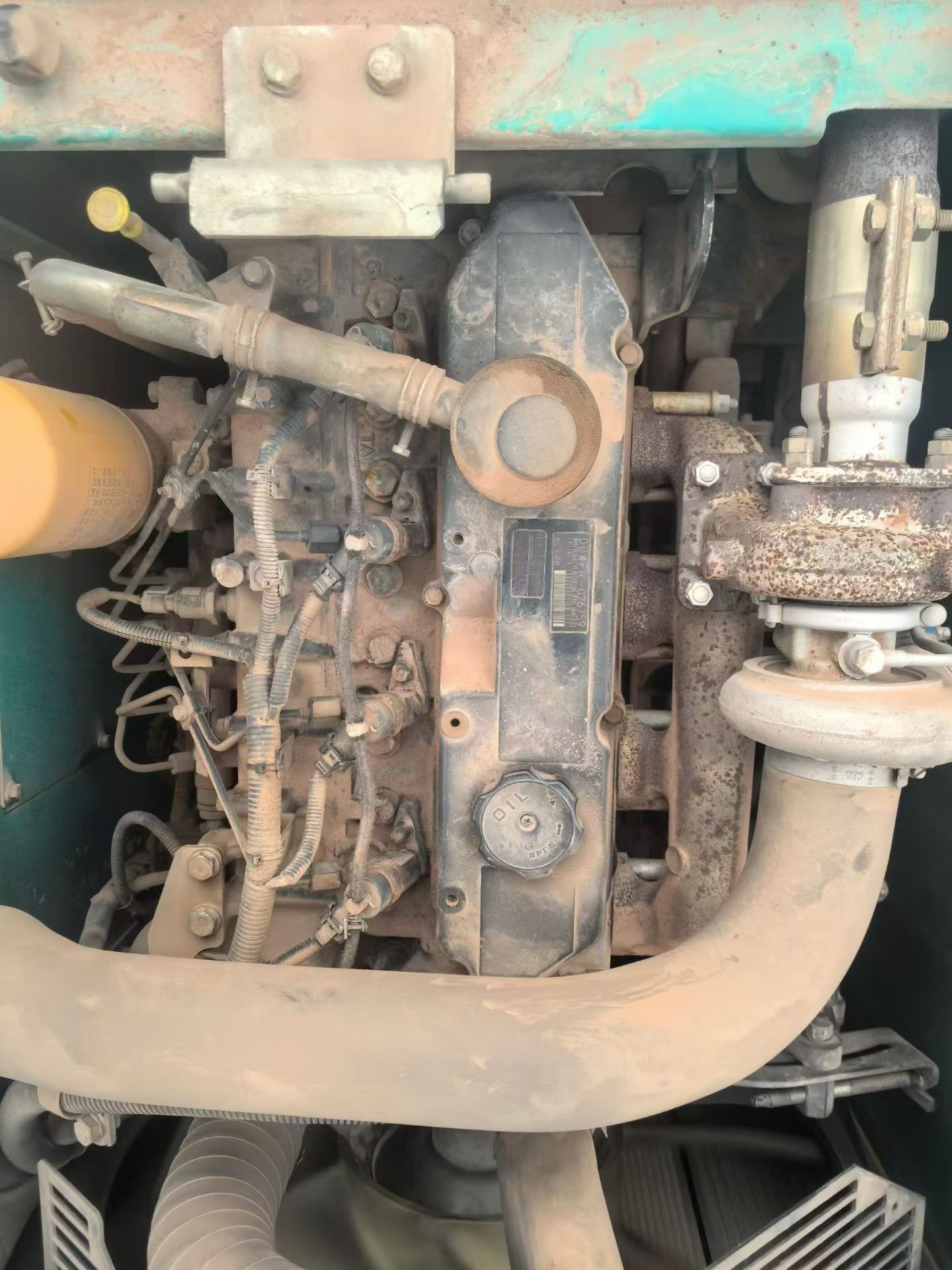

| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
