Product Description

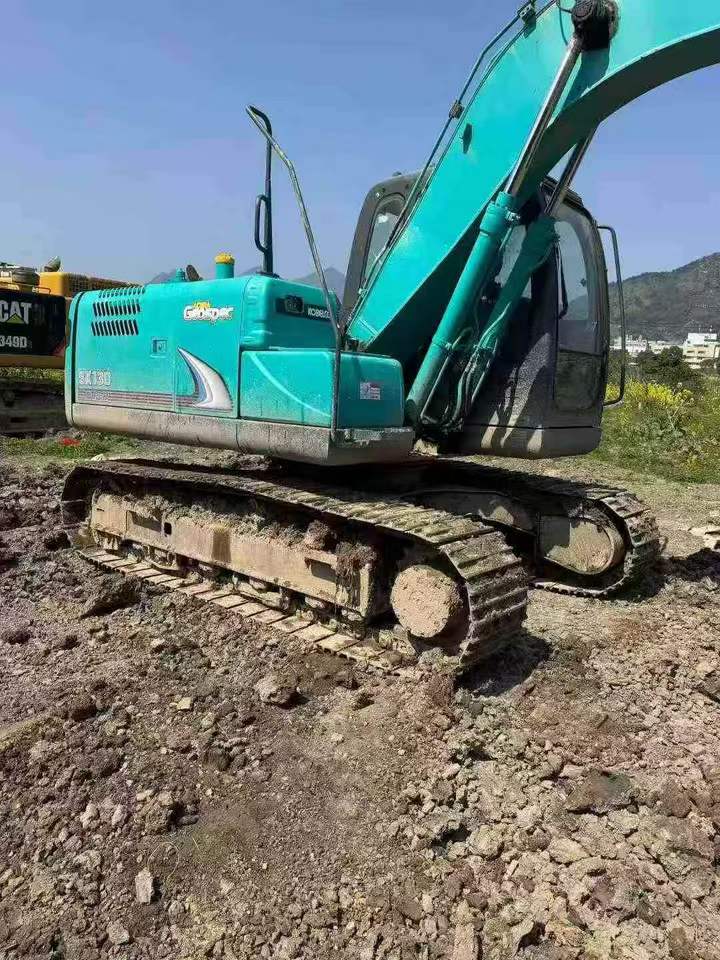

With a working weight of 12,800 kg and a bucket capacity of 0.52 m³, the 2020 Kobelco SK130 is an ideal addition to any busy contractor's fleet. Powered by a reliable Mitsubishi D04FR engine, this excavator delivers 74 kW at 2000 rpm, ensuring robust performance on any job site. Its 90.1 kN bucket digging force and 70% climbing ability make it versatile for various terrains and tasks. Equipped with a 275-liter fuel tank, it offers extended operational hours, reducing downtime and increasing productivity. The compact design, with a total transport width of 2490 mm and height of 2710 mm, facilitates easy transportation between sites. Whether as a backup or a primary unit, the Kobelco SK130 enhances your fleet's efficiency and reliability.
- Working weight: 12,800 kg
- Bucket capacity: 0.52 m³
- Engine: Mitsubishi D04FR, 74 kW at 2000 rpm
- Bucket digging force: 90.1 kN
- Fuel tank: 275 L
- Total transport dimensions: 7790 x 2490 x 2710 mm (LxWxH)
| Specifications | Value |
|---|---|
| No. | 1033415 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
