Product Description
Engineered with precision by Kobelco's joint venture manufacturing, this 2021 SK130 excavator delivers 74kW of reliable Mitsubishi D04FR power at 2000 rpm, driving a hydraulic system designed for consistent performance in demanding applications. Operating at 13 tons with a 12,800 kg working weight, this machine combines Japanese engineering standards with practical jobsite capability.
- Powerful bucket digging force of 90.1 kN with 0.52 m³ capacity for efficient material handling
- Maximum digging reach of 8,340 mm and depth of 5,520 mm for versatile excavation work
- Compact 2,190 mm rear turning radius enables operation in confined spaces
- Dual travel speeds (3.4/5.6 km/h) and 70% climbing ability for superior mobility
- 275L fuel tank and 101L hydraulic reservoir support extended operation cycles
- 11.5 rpm rotation speed provides smooth, controlled positioning
Currently located in Wenzhou, Zhejiang, this SK130 represents proven Kobelco reliability backed by Mitsubishi engine technology. Transport dimensions of 7,790 × 2,490 × 2,710 mm facilitate efficient logistics while maintaining robust construction site performance.
| Specifications | Value |
|---|---|
| No. | 1007536 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

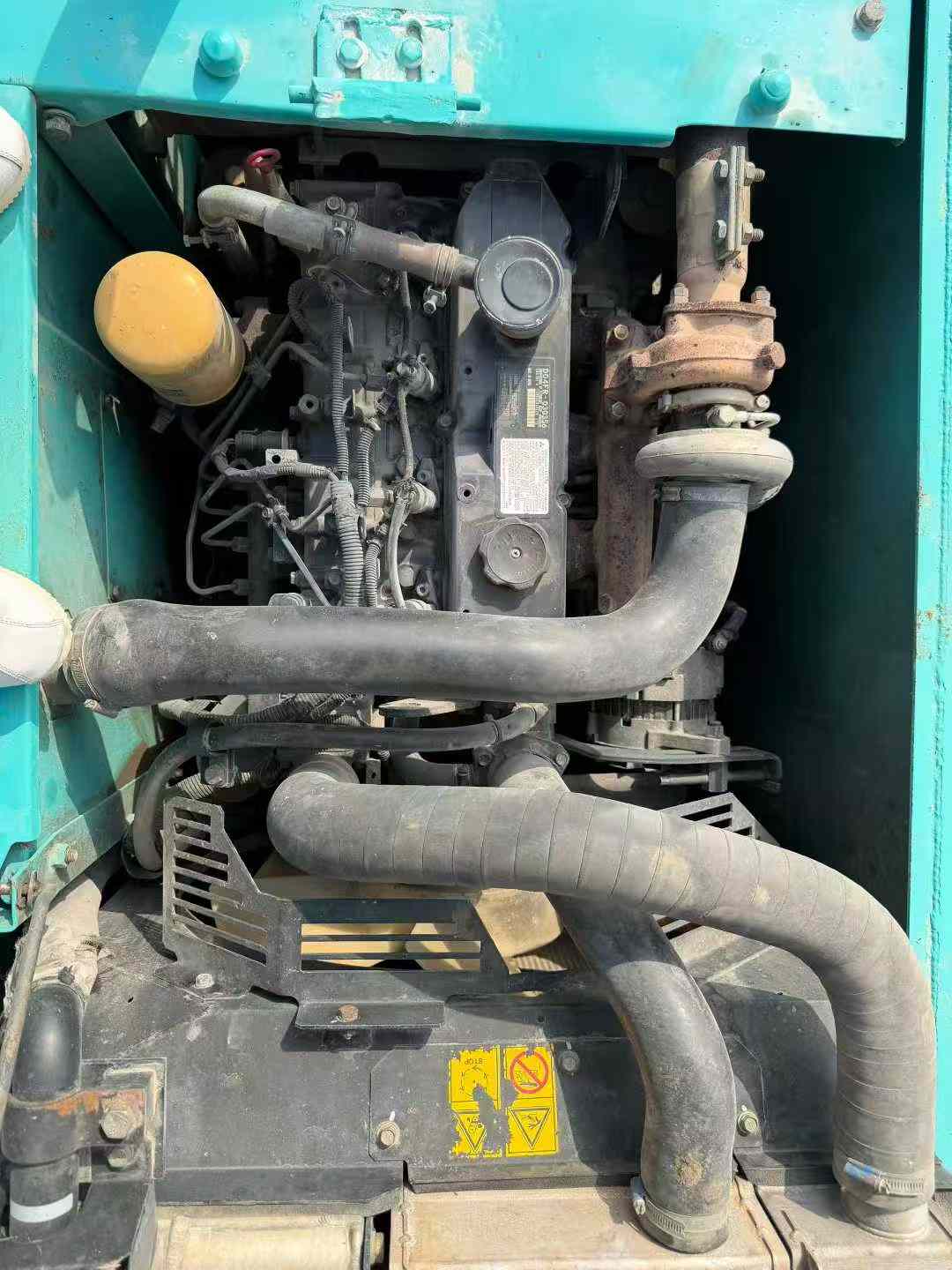

| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 2870 |
| Track plate width (mm) | 500/600/700 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Dodging plate width × height (mm) | 500 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
