Product Description

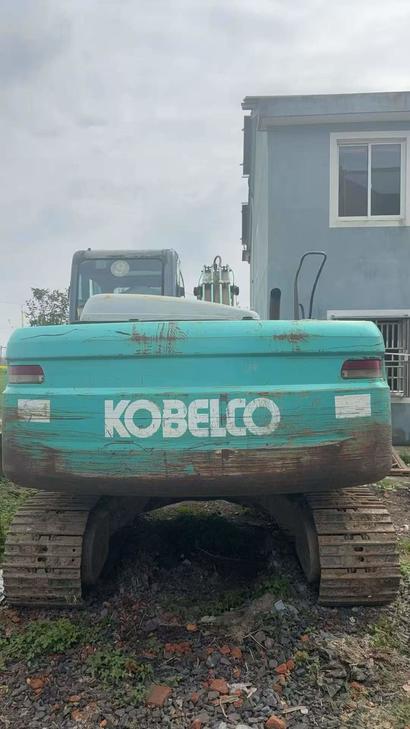

Built for precision and daily productivity, this 2011 Kobelco SK130-8 delivers 13-ton performance with operator-centered engineering. Powered by a Mitsubishi D04FR-KDP2TAAC engine producing 74kW at 2000rpm, this mid-size excavator combines reliable turbocharged power with proven hydraulic efficiency across demanding jobsites.
Operators benefit from exceptional sightlines and intuitive control layout standard to the SK130-8 platform. The spacious cabin design reduces fatigue during extended shifts, while dual variable displacement axial piston pumps supply 2×130 L/min flow for responsive digging and smooth multi-function operation. Ground-level stability comes from a 1990mm track gauge and balanced 12,800kg working weight, maintaining 40kPa ground pressure for versatility across soil conditions.
- Maximum digging reach: 8,340mm with 5,520mm depth capability
- Bucket digging force: 90.1kN; arm force: 64.4kN
- 0.52m³ backhoe bucket capacity
- Water-cooled 4-cylinder engine with intercooling
- Currently located in Hangzhou, Zhejiang
Ready for immediate deployment in construction, excavation, or site preparation applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1049597 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Rod length (mm) | 2380 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR-KDP2TAAC |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102*130 |
| Maximum torque (N.m) | 375/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.1 |
| Rod digging force (kN) | 64.4 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 5.6/3.4 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*130 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 1*20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*95*903 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*1120 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*100*1092 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Engine Oil changes (L) | 18.5 |
| Coolant (L) | 14 |
| Hydraulic System (L) | 172 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2620 |
| Back end turning radius (mm) | 2190 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
