Product Description

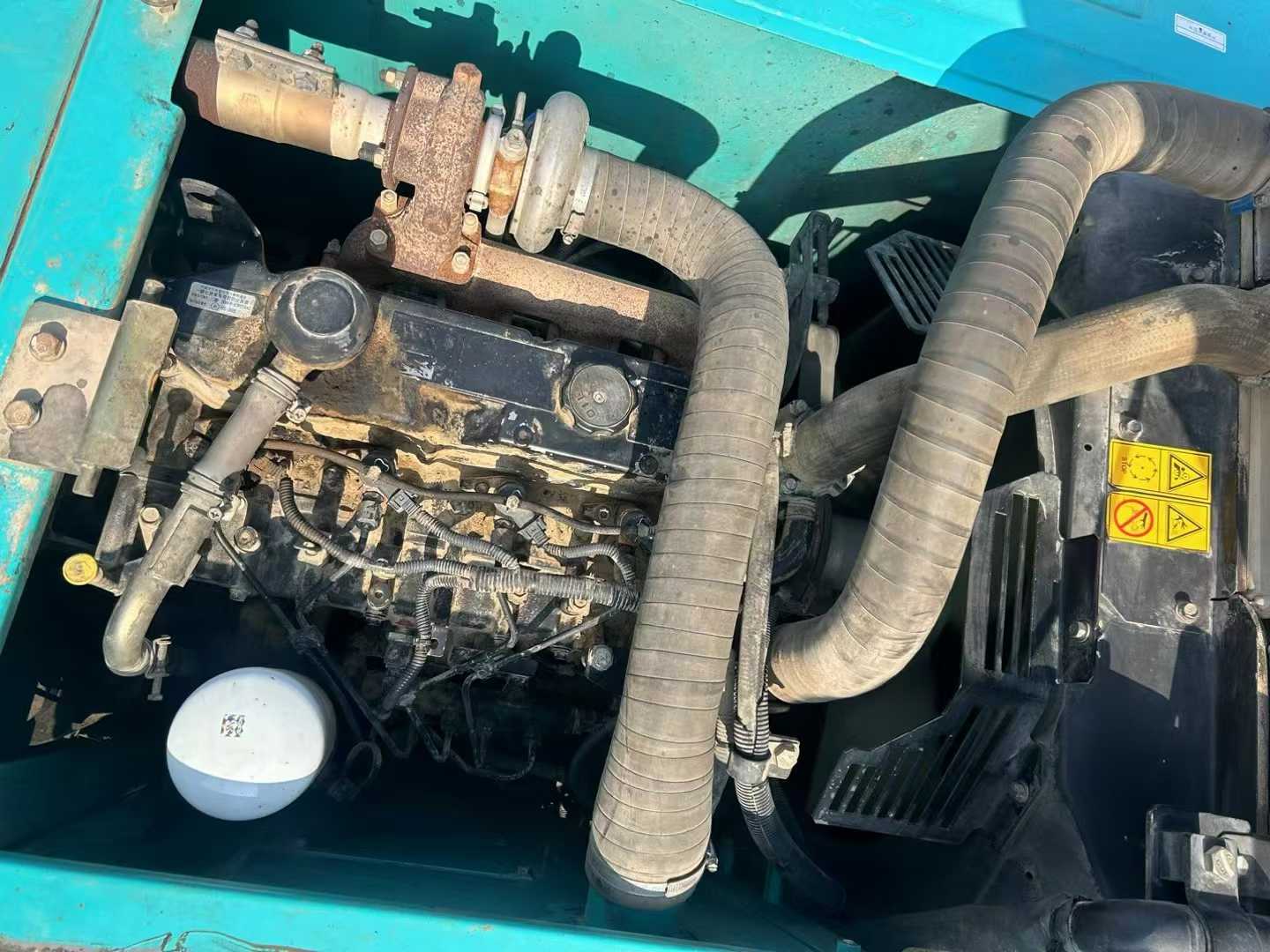

Built in 2016, this Kobelco SK130-8 excavator delivers 13 tons of proven Japanese engineering with the reliability contractors demand in challenging job sites. Powered by a Mitsubishi D04FR-KDP2TAAC engine producing 74kW at 2000 rpm, this mid-size machine combines robust performance with the fuel efficiency Kobelco is known for. With a maximum digging depth of 5,520mm and bucket digging force of 90.1kN, it handles foundation work, trenching, and loading operations with consistent precision.
Kobelco's reputation in the used equipment market stands on two critical pillars: parts availability and long-term durability. This SK130-8 benefits from a global dealer network ensuring replacement components arrive quickly, minimizing downtime costs. The brand's strong resale value protects your investment, while the Mitsubishi powerplant—shared across multiple Kobelco models—means mechanics familiar with the platform are readily available worldwide.
- Operating weight: 12,800kg with 0.52m³ bucket capacity
- Dual variable displacement axial piston pumps: 2×130 L/min flow
- Two-speed travel motors: 5.6/3.4 km/h for versatile mobility
- Compact transport dimensions: 7,790mm length, 2,490mm width
- C
| Specifications | Value |
|---|---|
| No. | 1017049 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12800 |
| Bucket capacity (m³) | 0.52 |
| Rod length (mm) | 2380 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR-KDP2TAAC |
| Rated power (kw/rpm) | 74/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102*130 |
| Maximum torque (N.m) | 375/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.1 |
| Rod digging force (kN) | 64.4 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 5.6/3.4 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*130 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable displacement axial piston pump, pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 1*20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*95*903 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*1120 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*100*1092 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Engine Oil changes (L) | 18.5 |
| Coolant (L) | 14 |
| Hydraulic System (L) | 172 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2710 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2620 |
| Back end turning radius (mm) | 2190 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
