Product Description

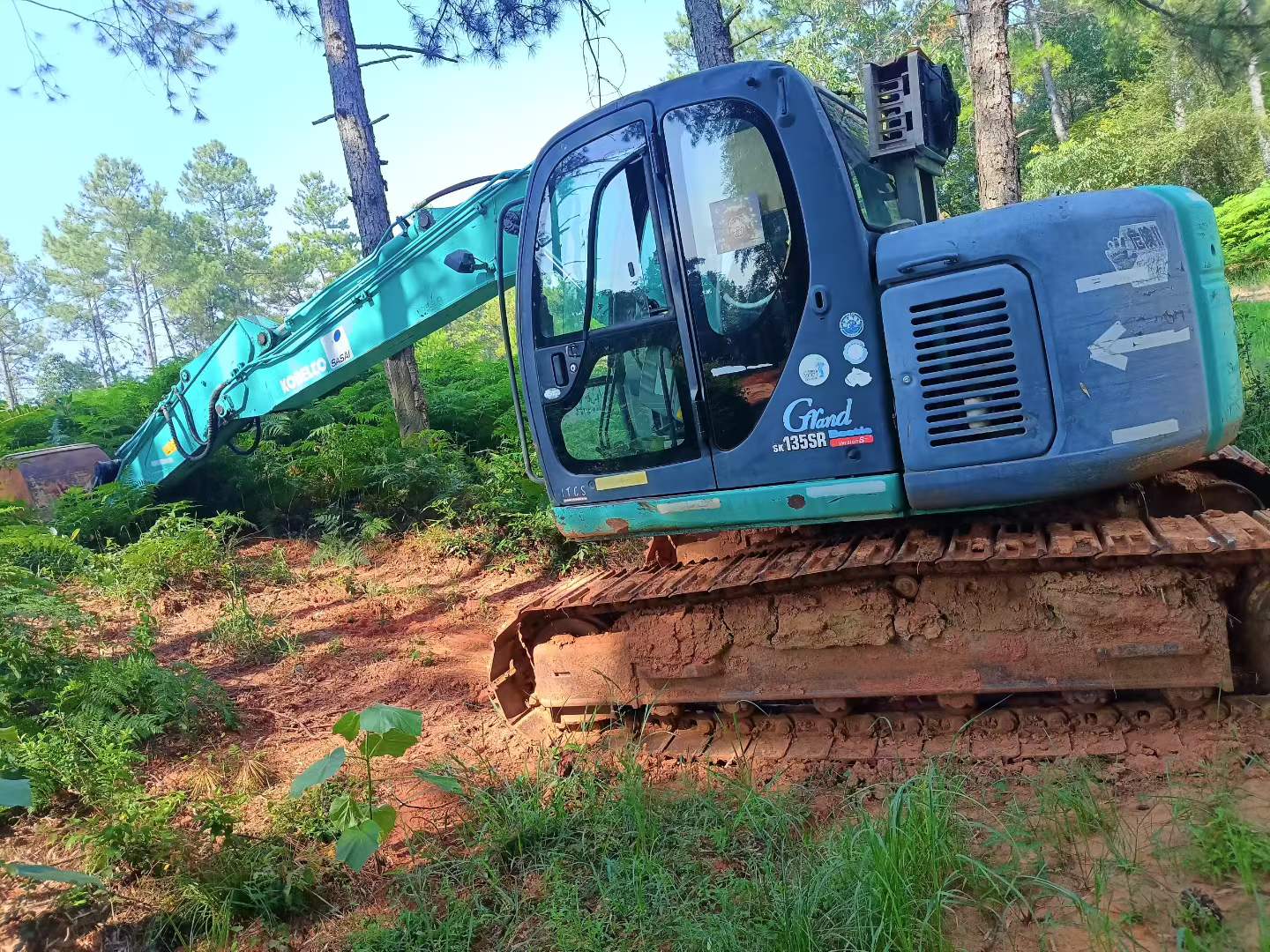

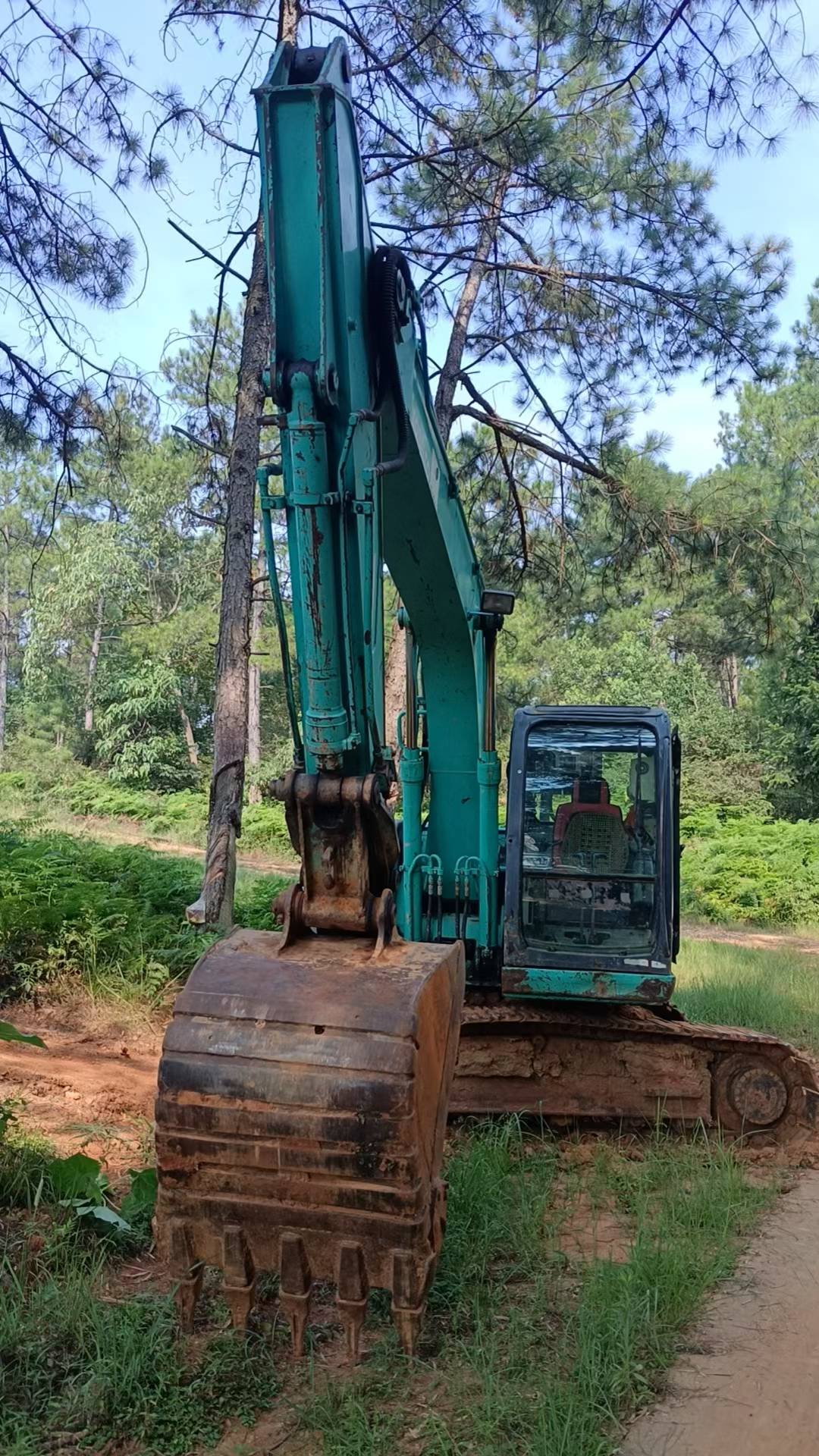

Strengthen your fleet capacity with this reliable 2016 Kobelco SK135 excavator, currently available in Jiangxi Ji'an. Operating at 13 tons with a robust 13,100 kg working weight, this Japanese-engineered machine delivers consistent performance for contractors managing multiple job sites simultaneously. Powered by a Mitsubishi D04FR engine producing 74 kW at 2000 rpm, it provides dependable output for demanding excavation tasks.
Built for versatility, this mid-size excavator features a 0.52 m³ backhoe bucket with an impressive 90.1 kN digging force. With an 8,640 mm maximum digging radius and 8,110 mm digging depth, it handles a wide range of applications from trenching to site preparation. The 11.5 rpm rotation speed ensures efficient cycle times, while dual travel speeds (3.4/5.6 km/h) optimize both precision work and site mobility.
- Maximum excavation height: 7,400 mm
- Maximum unloading height: 6,390 mm
- Climbing ability: 70% (35°)
- Fuel capacity: 275 L for extended operation
- Hydraulic tank: 172 L
Ideal as a backup unit or fleet expansion, this SK135 minimizes downtime and maintains project momentum when primary equipment is deployed elsewhere.
| Specifications | Value |
|---|---|
| No. | 1007636 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13100 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 172 |
| Maximum digging radius (mm) | 8640 |
| Maximum digging depth (mm) | 8110 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 6390 |
| Dodging plate width × height (mm) | 500 |
