Product Description

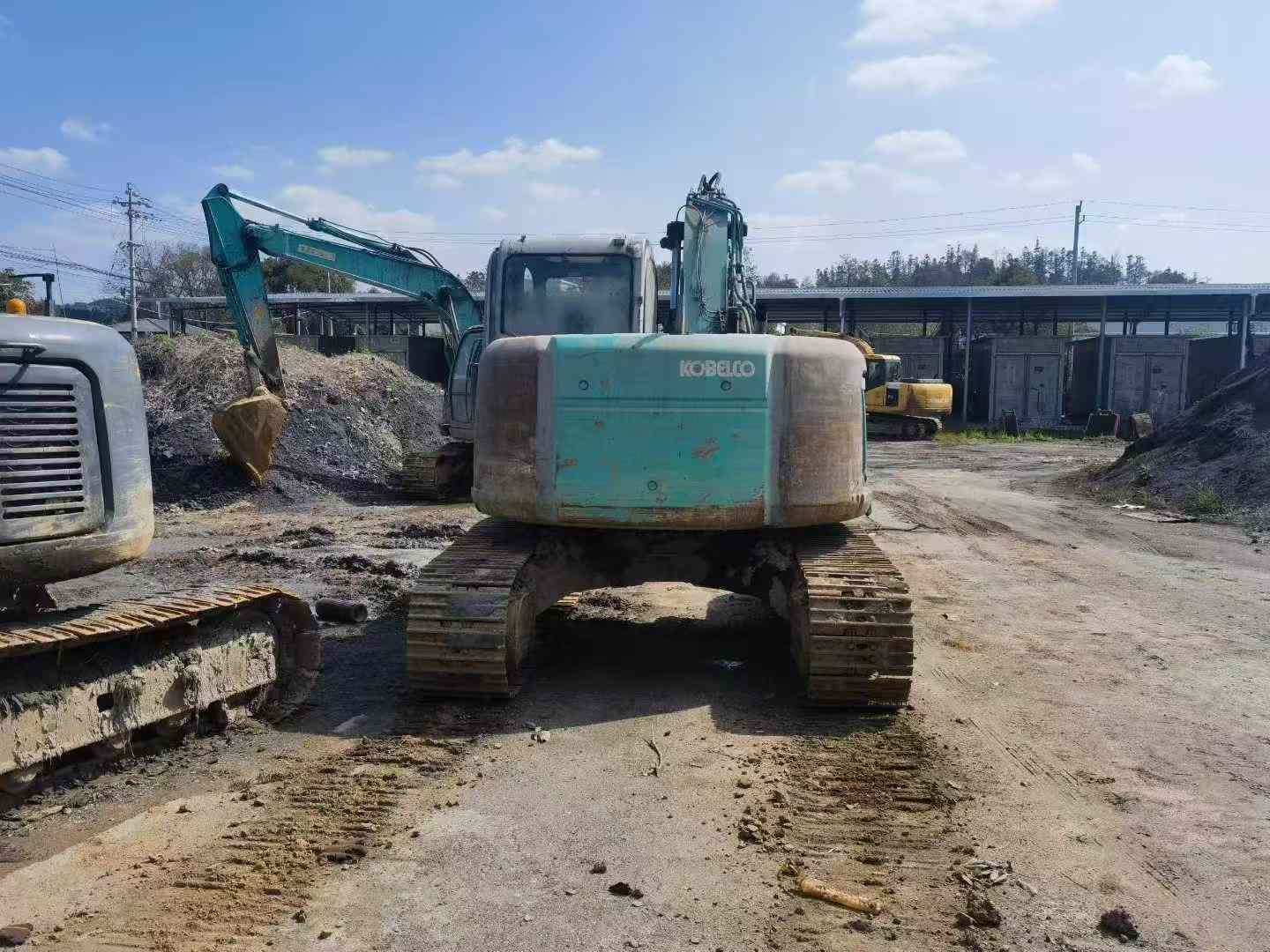

Available now in Fujian, this 2016 Kobelco SK135 excavator eliminates factory wait times and delivers immediate deployment to your worksite. Powered by a proven Mitsubishi D04FR engine generating 74kW at 2000 rpm, this 13-ton machine combines Japanese engineering with operational efficiency. Its 0.52m³ backhoe bucket tackles demanding excavation tasks with 90.1kN digging force, while the 8,640mm maximum digging radius ensures extensive reach across construction and earthmoving applications.
- Working weight: 13,100kg with optimal stability
- Maximum digging depth: 8,110mm for deep foundation work
- Dual travel speeds: 3.4/5.6 km/h for versatile site mobility
- Climbing ability: 70% (35°) for challenging terrain
- Fuel capacity: 275L for extended operation cycles
- Rotation speed: 11.5 rpm for efficient positioning
Skip lengthy procurement delays—this joint venture-manufactured excavator ships directly from Fujian, ensuring rapid logistics coordination and reduced downtime. Ready for immediate inspection and fast-track delivery to your project location.
| Specifications | Value |
|---|---|
| No. | 1028552 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13100 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 172 |
| Maximum digging radius (mm) | 8640 |
| Maximum digging depth (mm) | 8110 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 6390 |
| Dodging plate width × height (mm) | 500 |
