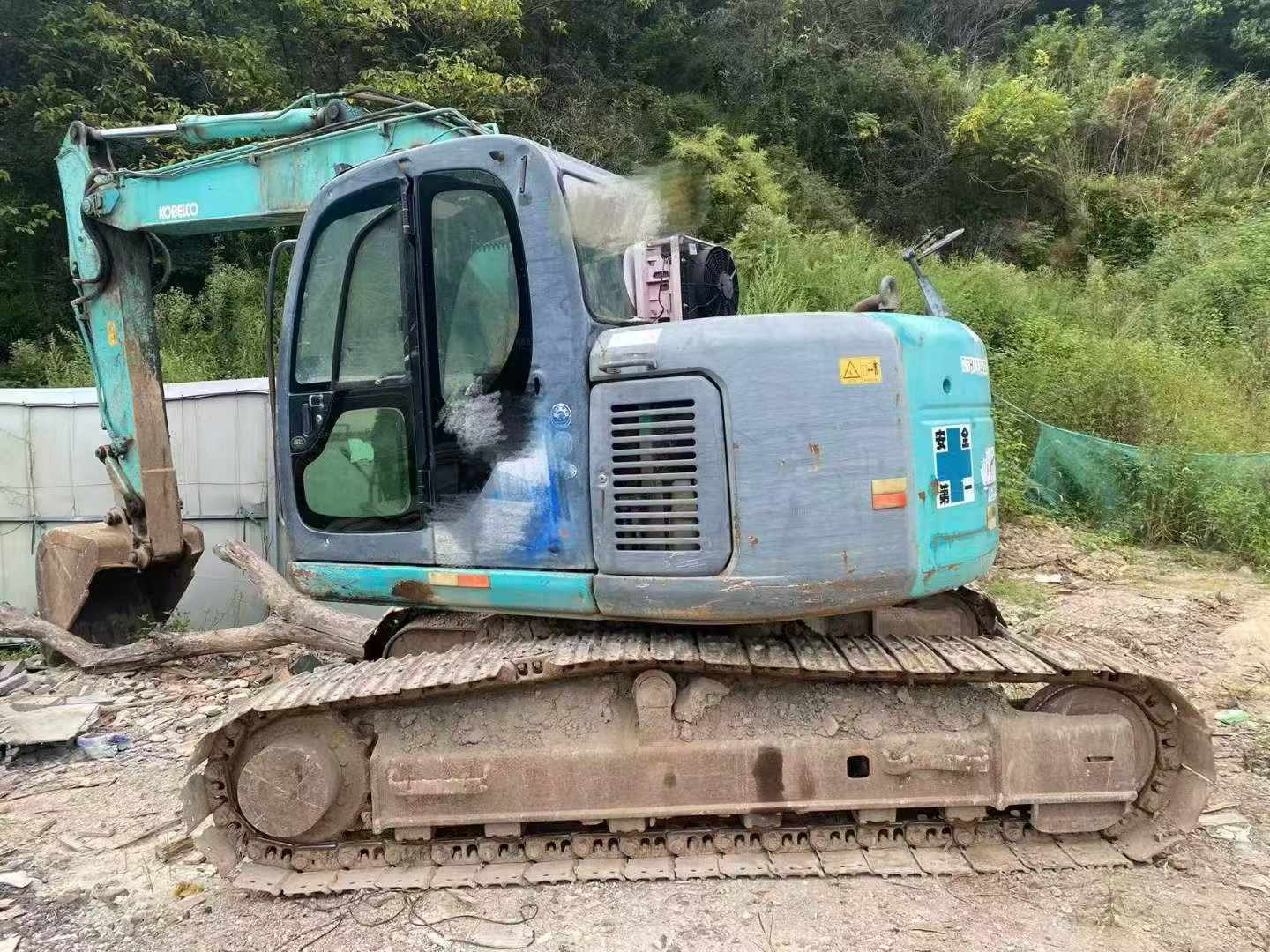

Built in 2016, this Kobelco SK135SR-2 excavator delivers proven mid-size performance with the reliability Japan's engineering standards demand. Powered by a Mitsubishi D04FR engine producing 74kW at 2000rpm, this 13-ton machine combines fuel efficiency with robust digging capability—90.1kN bucket force and 0.52m³ capacity handle demanding excavation tasks across construction and utility projects.
Kobelco's reputation in the used equipment market stands on three pillars: exceptional parts availability through established global networks, lower-than-average maintenance costs, and strong resale retention. This model features an 8,640mm maximum dig radius and 8,110mm depth reach, offering versatility for medium-scale earthmoving operations. Currently located in Hangzhou, Zhejiang, the machine includes a 275L fuel tank for extended runtime and hydraulic systems engineered for durability in high-cycle applications.
- Working weight: 13,100kg with proven stability on 70% grades
- Dual travel speeds (3.4/5.6 km/h) optimize site mobility
- Maximum unloading height: 6,390mm for efficient truck loading
- Mitsubishi engine: known for longevity in demanding conditions
Investing in Kobelco m
| Specifications | Value |
|---|---|
| No. | 1038130 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13100 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 172 |
| Maximum digging radius (mm) | 8640 |
| Maximum digging depth (mm) | 8110 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 6390 |
| Dodging plate width × height (mm) | 500 |
