Product Description

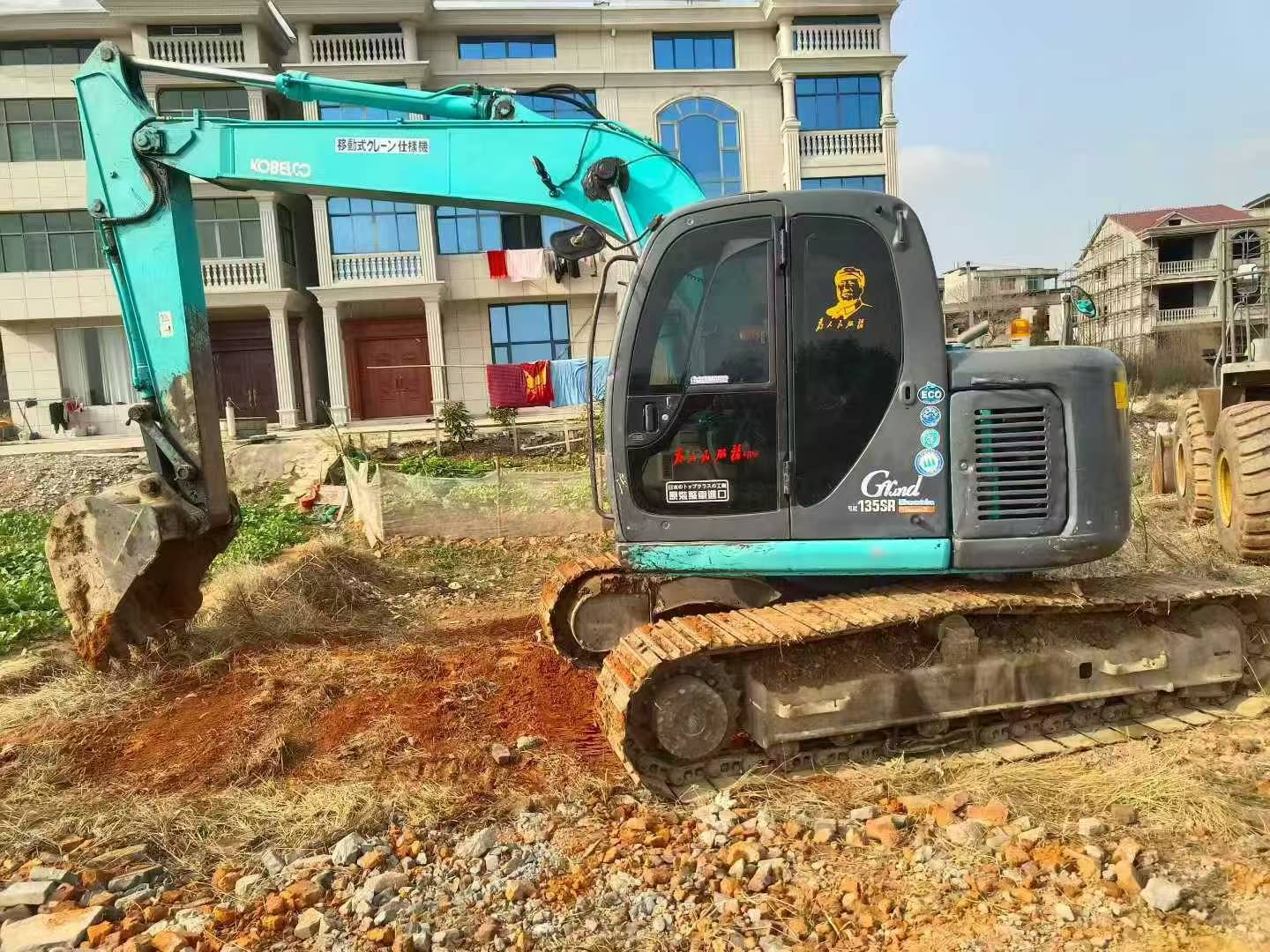

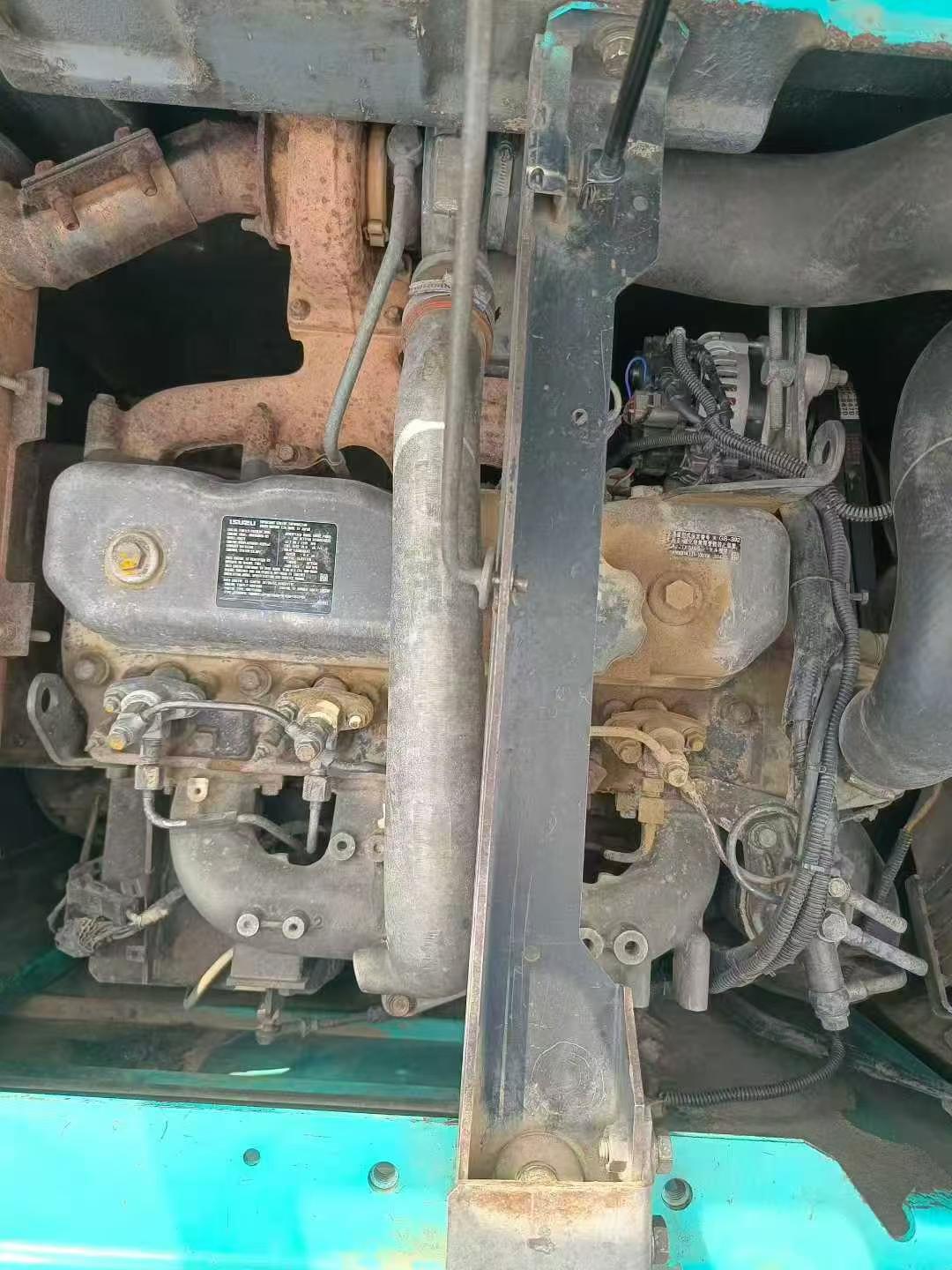

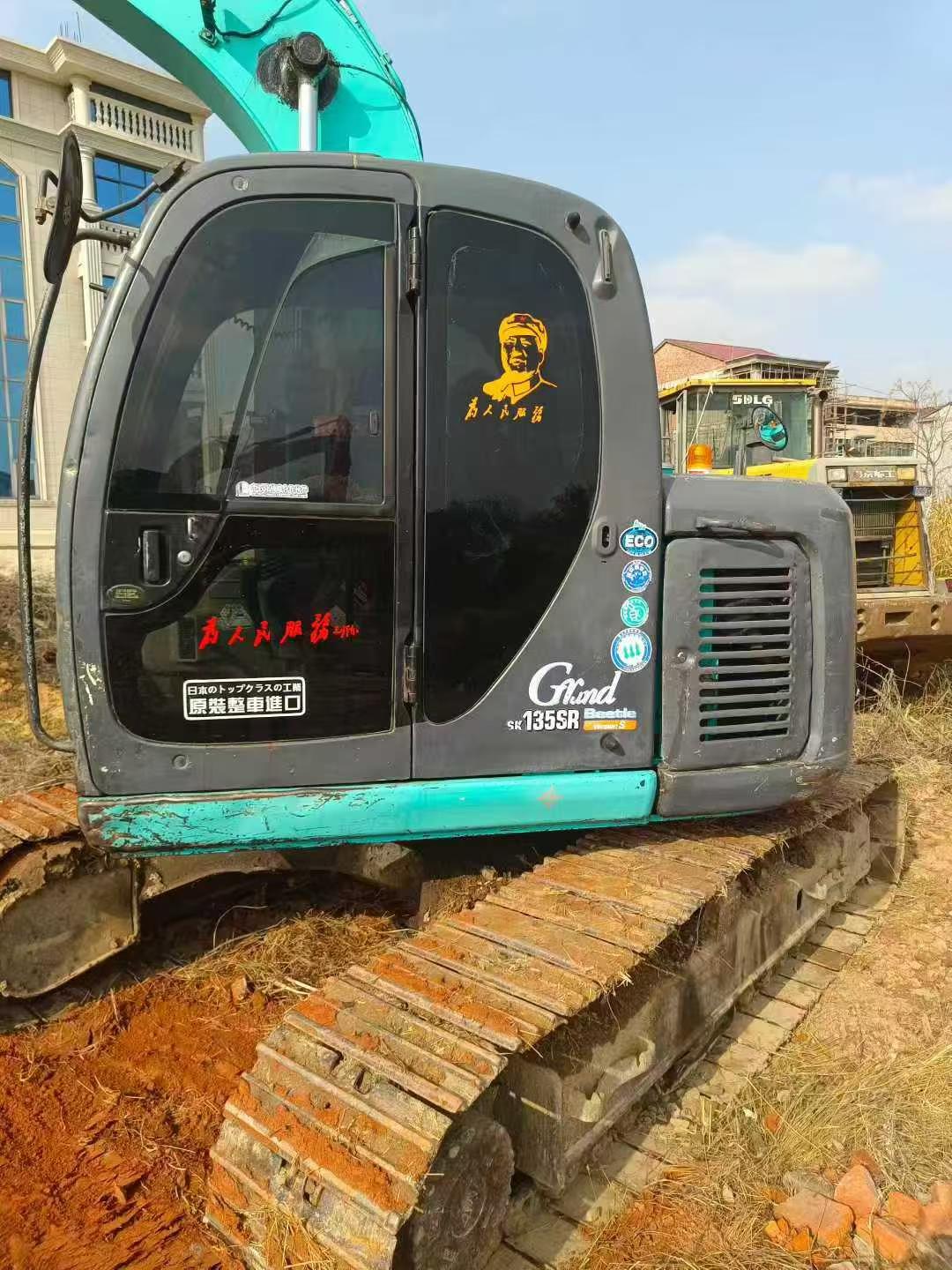

With a robust Mitsubishi D04FR engine, the 2019 Kobelco SK135 delivers 74 kW of power at 2000 rpm, ensuring efficient and reliable performance. Designed for operators, this excavator features a spacious cabin with excellent visibility, enhancing safety and precision during operations. The 13-ton machine boasts a bucket capacity of 0.52 m³, making it ideal for a variety of construction tasks.
- Working weight: 13,100 kg
- Bucket digging force: 90.1 kN
- Travel speed: 3.4/5.6 km/h
- Maximum digging depth: 8,110 mm
- Hydraulic tank: 172 L

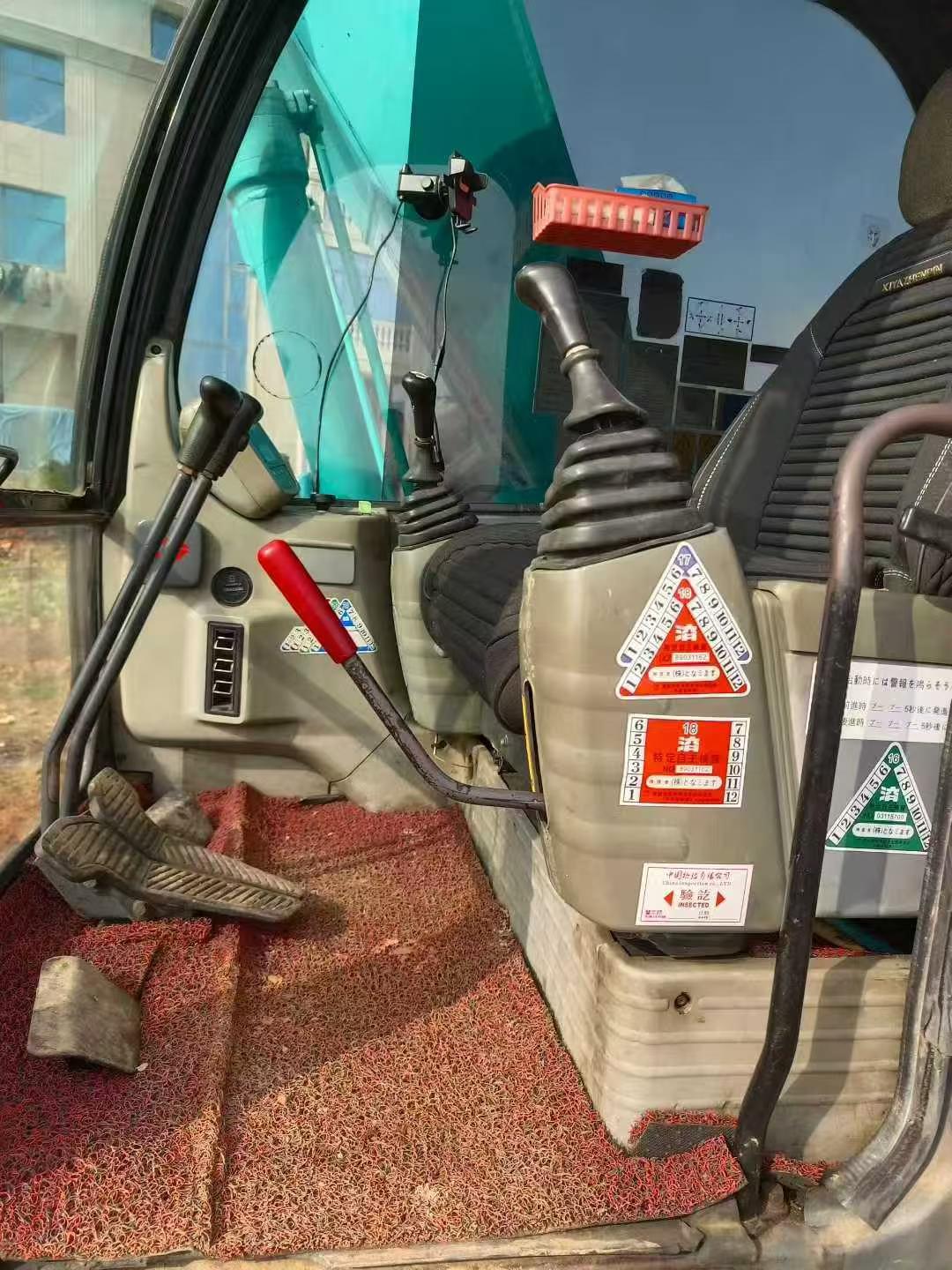

Equipped with a backhoe bucket, the SK135 provides exceptional stability and handling, allowing for smooth and precise movements. Its climbing ability of 70% and 35° rotation speed further enhance its versatility on challenging terrains. Operators can expect a comfortable and productive work environment, thanks to the well-designed cabin and ergonomic controls.
| Specifications | Value |
|---|---|
| No. | 1000916 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13100 |
| Bucket capacity (m³) | 0.52 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR |
| Rated power (kw/rpm) | 74/2000 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 90.1 |
| Travel speed (km/h) | 3.4/5.6 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 172 |
| Maximum digging radius (mm) | 8640 |
| Maximum digging depth (mm) | 8110 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 6390 |
| Dodging plate width × height (mm) | 500 |
