2020 Kobelco SK135

Built for contractors who need reliable performance without gaps in productivity, this 2020 Kobelco SK135 is a solid fleet addition or dedicated backup unit ready to keep your sites running. Sourced from Jiangxi, China, this 13-ton Japanese-engineered excavator carries the Mitsubishi D04FR engine producing 74 kW at 2,000 RPM — delivering consistent digging force without the fuel overhead of a larger machine.

• Operating Weight: 13,100 kg
• Bucket Capacity: 0.52 m³ (backhoe configuration)
• Bucket Digging Force: 90.1 kN
• Max Digging Depth: 8,110 mm
• Max Digging Radius: 8,640 mm
• Max Excavation Height: 7,400 mm
• Max Unloading Height: 6,390 mm
• Travel Speed: 3.4 / 5.6 km/h
• Climbing Ability: 70% / 35°
• Fuel Tank: 275 L | Hydraulic Tank: 172 L

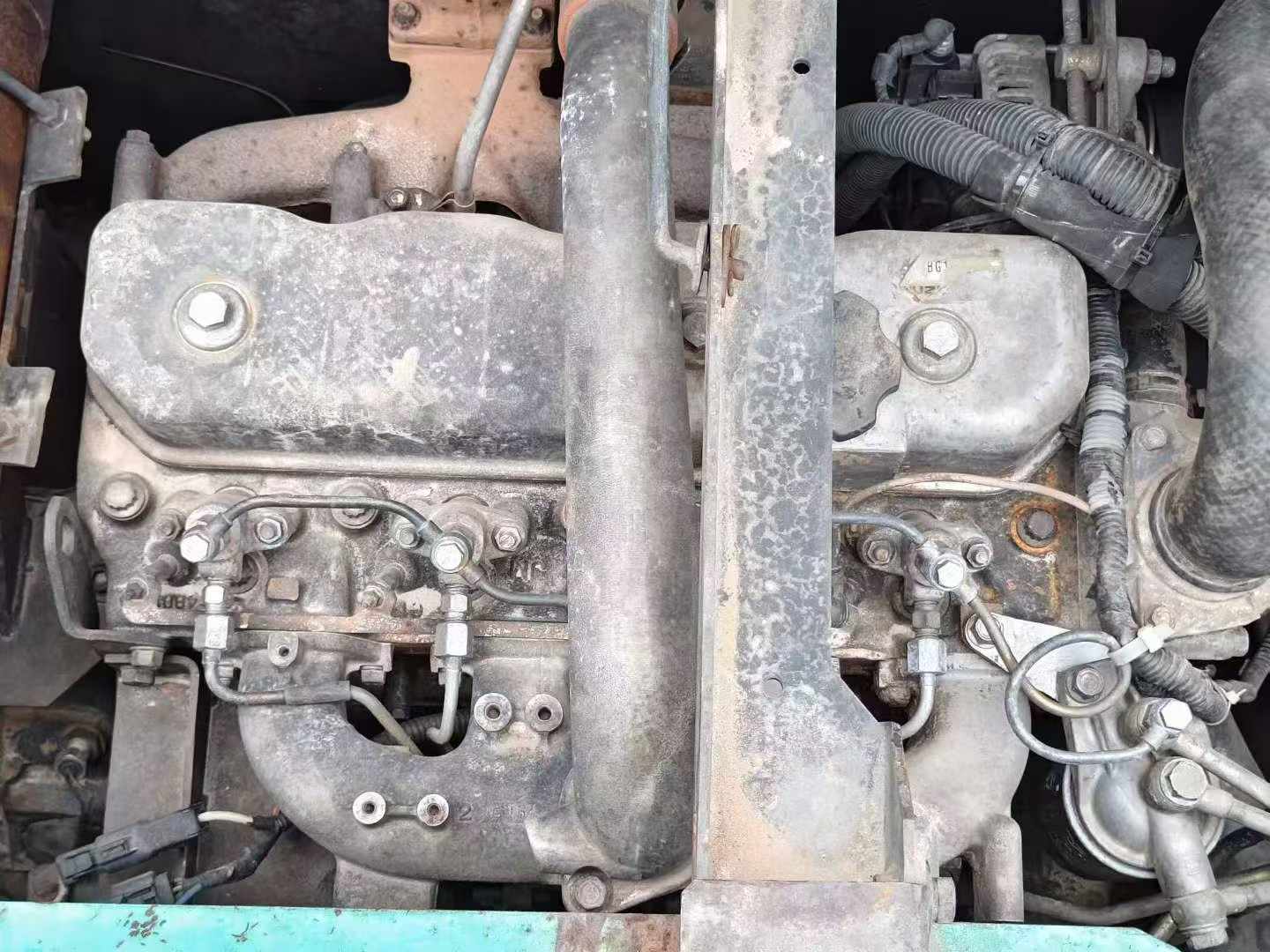

• Engine: Mitsubishi D04FR — 74 kW / 2,000 RPM

With a 275-liter fuel tank supporting long shift cycles and proven Kobelco hydraulics, this unit integrates smoothly into mixed fleets. When your primary machine is down or demand spikes, the SK135 steps in without missing a beat.
