Product Description

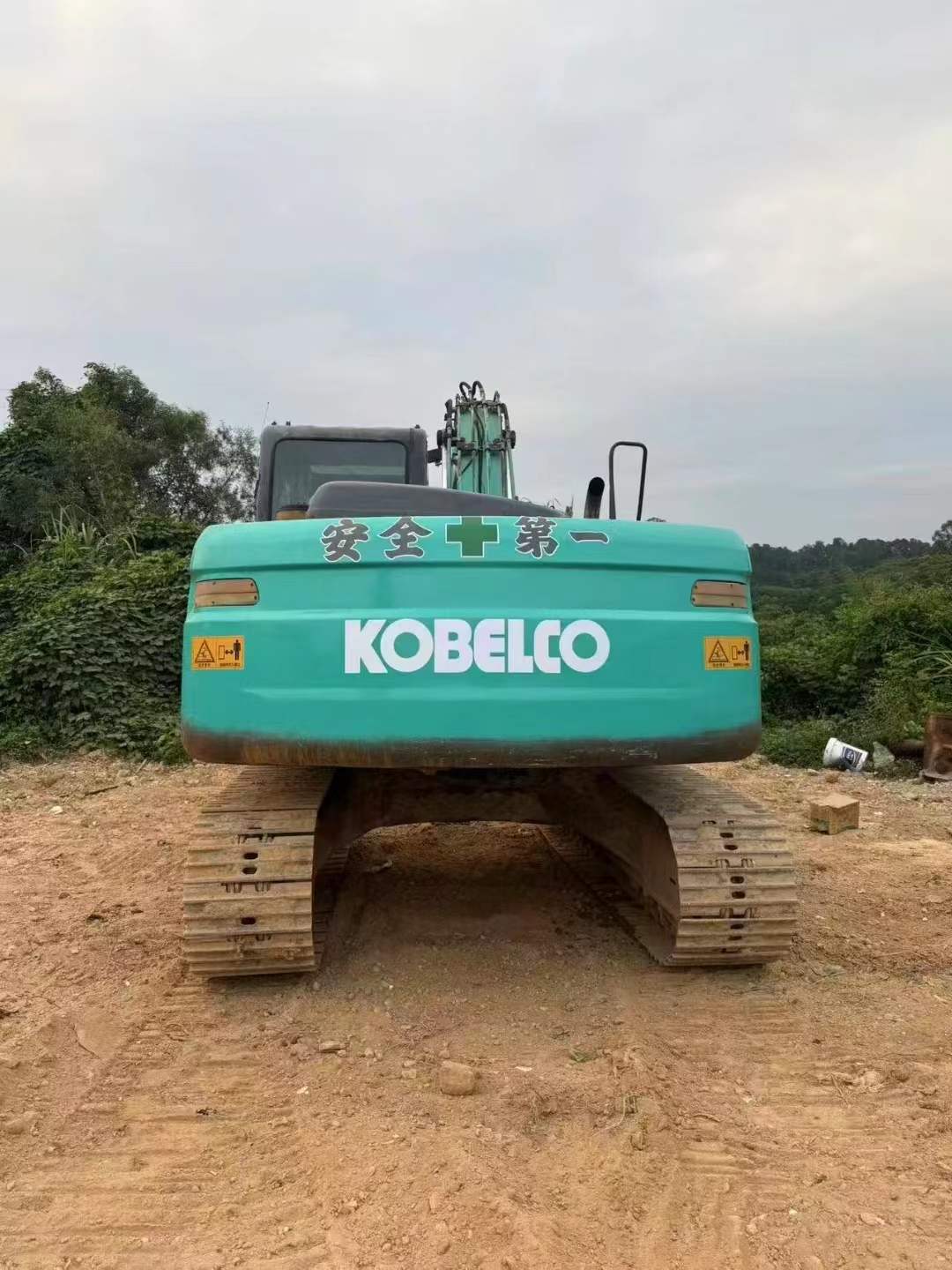

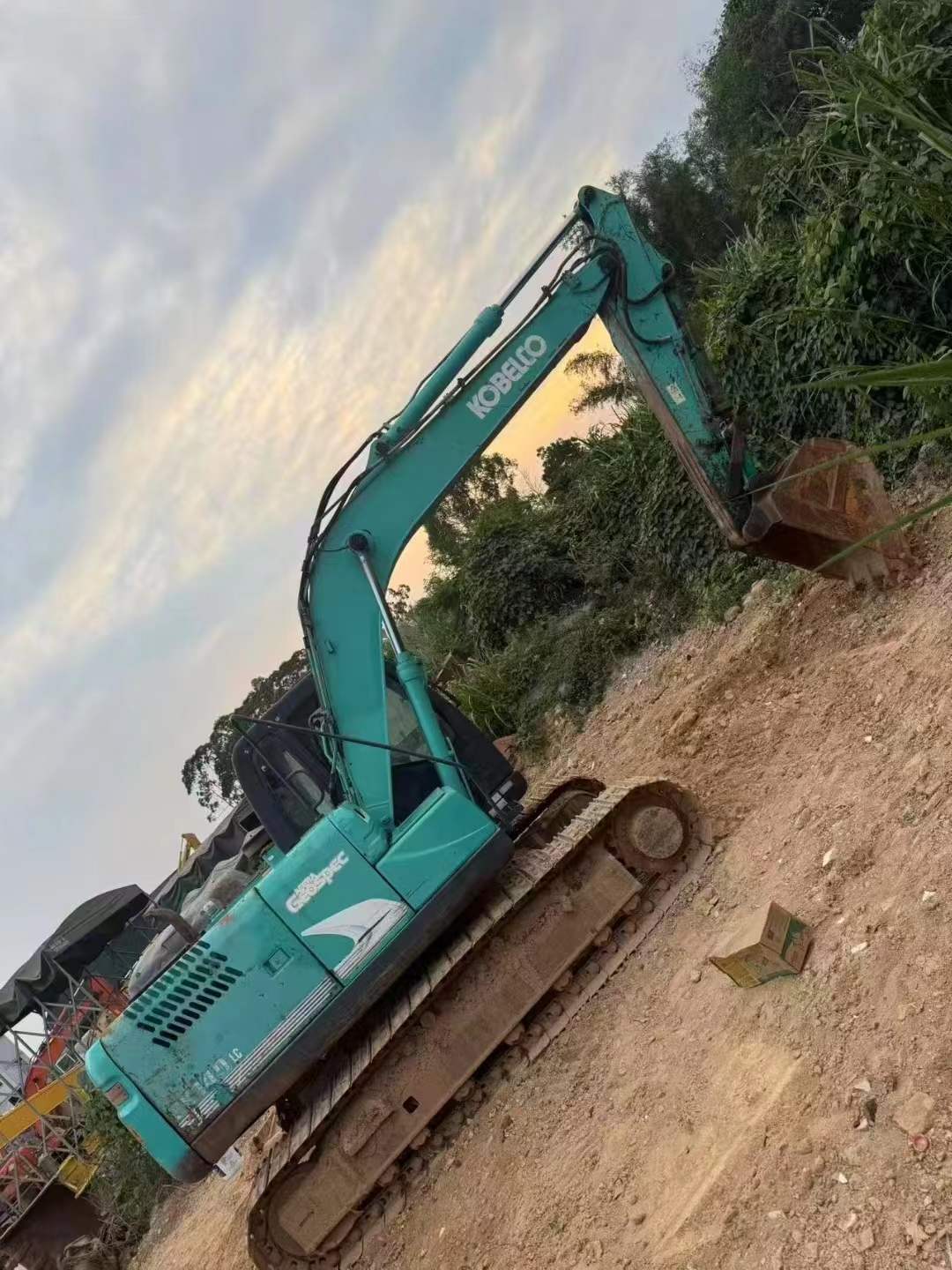

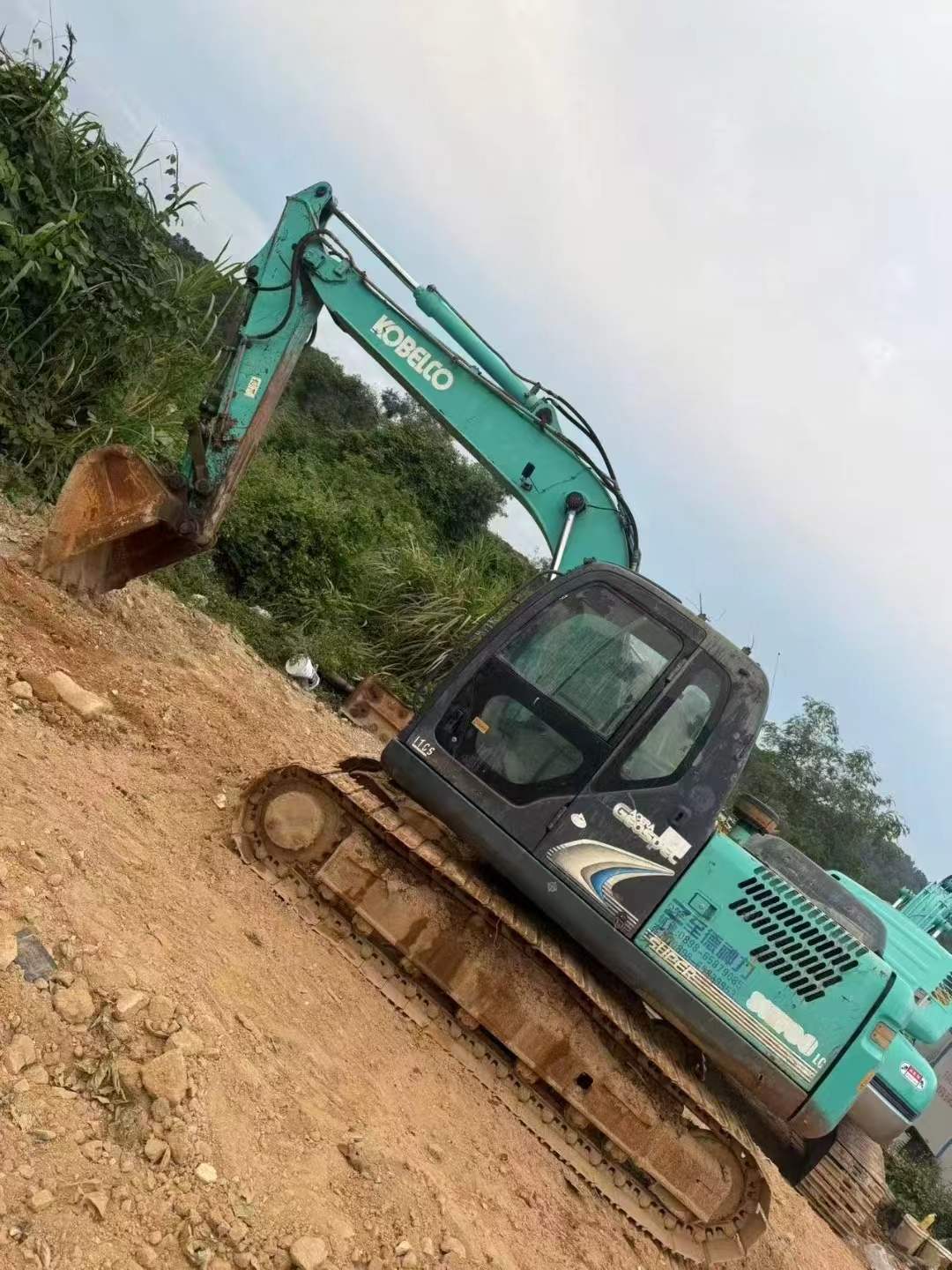

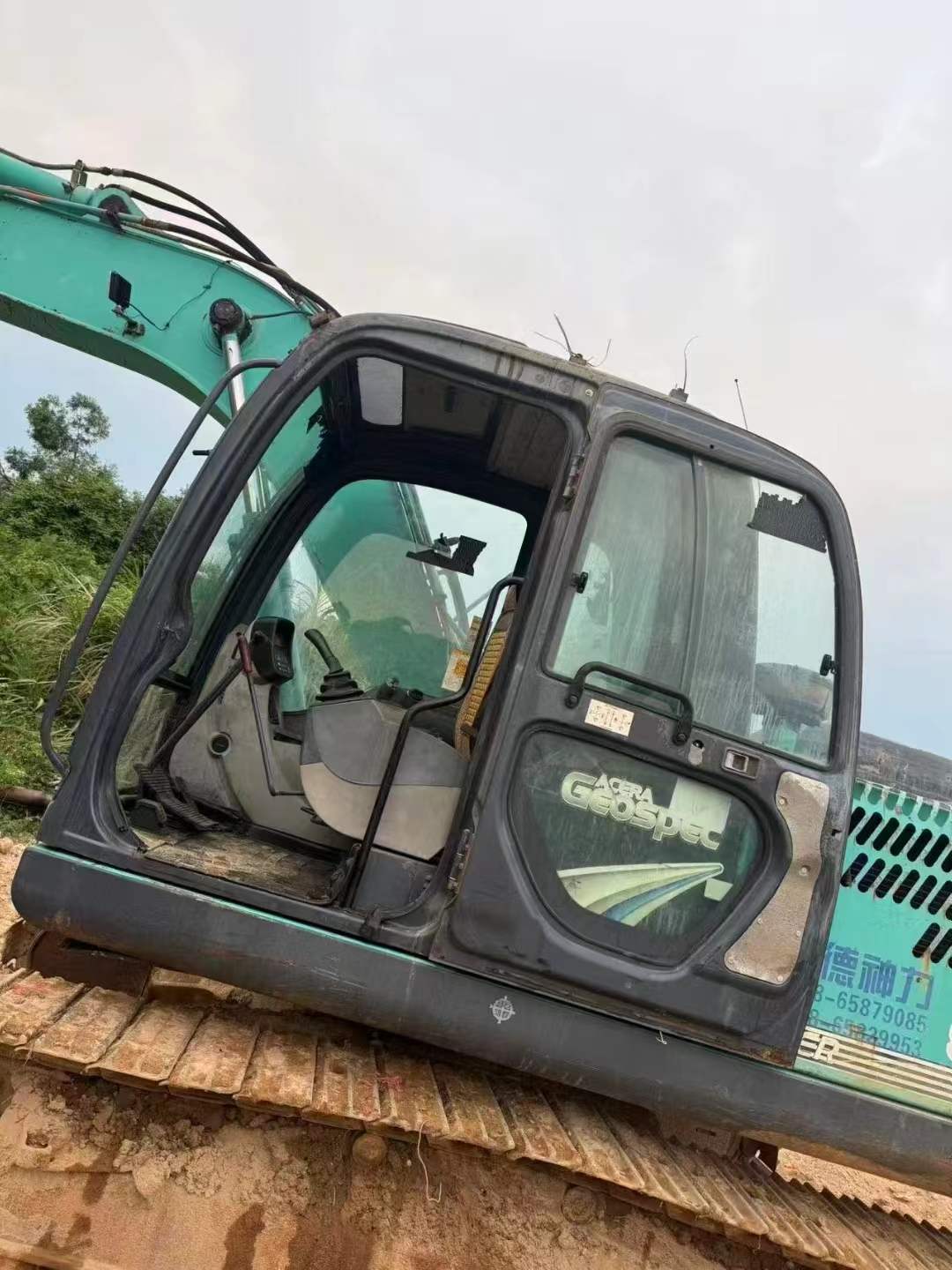

Built for precision and operator confidence, this 2016 Kobelco SK140LC-8 delivers exceptional control across demanding job sites. Operating at 14 tons with a robust Mitsubishi D04FR engine producing 74kW at 2000 rpm, this excavator combines reliable power with refined hydraulics for smooth, responsive operation. Operators benefit from enhanced visibility through the spacious cab, while advanced stability systems ensure safe performance on slopes up to 70%. The dual variable axial piston pump system provides precise metering of hydraulic flow, allowing skilled operators to execute delicate grading or aggressive digging with equal finesse.
- Working Weight: 13,200 kg with 0.57 m³ standard bucket capacity
- Reach & Depth: 8,340 mm max digging radius, 5,520 mm max digging depth
- Hydraulic Power: Dual 130 L/min pumps delivering 34.3 MPa working pressure
- Digging Force: 90.1 kN bucket force, 64.4 kN arm force for tough material
- Operator Comfort: Low ground pressure (45 kPa), smooth swing speed (11 rpm), two-speed travel (3.4/5.6 km/h)
- Location: Meizhou, Guangdong
| Specifications | Value |
|---|---|
| No. | 1031248 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.57(Standard) |
| Boom length (mm) | 4680 |
| Rod length (mm) | 2380(Standard) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR-KDP2TAAC |
| Rated power (kw/rpm) | 74/2000 |
| Cylinder diameter × stroke (mm) | 102*130 |
| Maximum torque (N.m) | 375/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.1 |
| Rod digging force (kN) | 64.4 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 3.4/5.6 |
| Turning torque (Nm) | 39.9 |
| Rotary hydraulic motor type | Axial plunger type |
| Type of walking hydraulic motor | Two sets of two-speed plungers |
| Maximum flow of main pump (l/min) | 2*130 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 1*20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*95*903 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*1120 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*100*1092 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Engine Oil changes (L) | 18.5 |
| Coolant (L) | 14 |
| Hydraulic System (L) | 171 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2870 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2620 |
| Back end turning radius (mm) | 2190 |
| Total track length (mm) | 3750 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
