Product Description

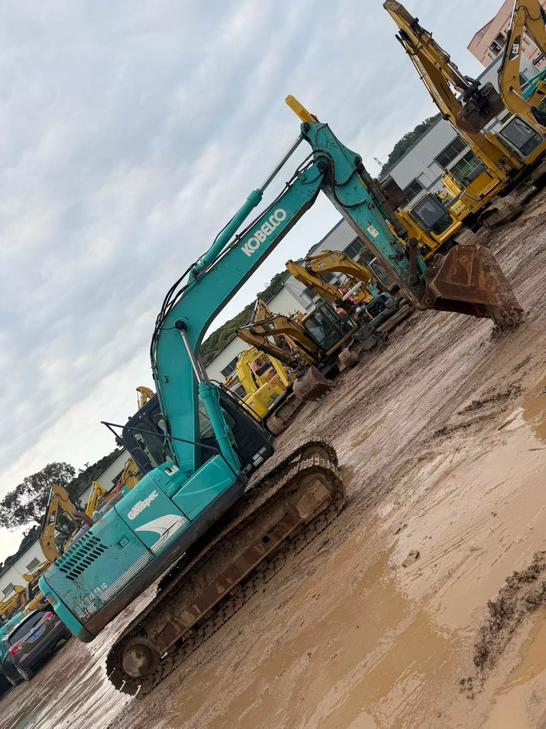

Engineered with Kobelco's precision-focused SK-8 series architecture, this 2016 SK140LC-8 excavator delivers consistent 14-ton class performance through proven Mitsubishi D04FR-KDP2TAAC power. Rated at 74kW/2000rpm with direct injection and built-in intercooling, the 4.249L turbocharged engine generates 375 N·m maximum torque at 1600rpm, providing reliable hydraulic flow through dual variable axial piston pumps (2×130 L/min) for responsive cycle times.
- Hydraulic Authority: 34.3 MPa working circuit pressure drives 90.1 kN bucket force and 64.4 kN arm force across a 5520mm maximum digging depth
- Operational Range: 8340mm maximum reach radius with 8500mm maximum digging height enables versatile jobsite positioning
- Undercarriage Stability: 3750mm track length with 500mm-wide plates maintains 45 kPa ground pressure across 13,200kg operating weight
- Component Access: 275L fuel capacity and 171L hydraulic system volume support extended work cycles
Currently located in Shenzhen, Guangdong. Factory-spec 0.57m³ bucket and 4680mm boom configuration included. Full technical documentation available upon request.
| Specifications | Value |
|---|---|
| No. | 1049601 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.57(Standard) |
| Boom length (mm) | 4680 |
| Rod length (mm) | 2380(Standard) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FR-KDP2TAAC |
| Rated power (kw/rpm) | 74/2000 |
| Cylinder diameter × stroke (mm) | 102*130 |
| Maximum torque (N.m) | 375/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.249 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.1 |
| Rod digging force (kN) | 64.4 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 3.4/5.6 |
| Turning torque (Nm) | 39.9 |
| Rotary hydraulic motor type | Axial plunger type |
| Type of walking hydraulic motor | Two sets of two-speed plungers |
| Maximum flow of main pump (l/min) | 2*130 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 1*20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*95*903 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*1120 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*100*1092 |
| Fuel Tank (L) | 275 |
| Hydraulic Tank (L) | 101 |
| Engine Oil changes (L) | 18.5 |
| Coolant (L) | 14 |
| Hydraulic System (L) | 171 |
| Total transport length (mm) | 7790 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2870 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 910 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2620 |
| Back end turning radius (mm) | 2190 |
| Total track length (mm) | 3750 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8340 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6090 |
| Maximum vertical digging depth (mm) | 4880 |
| Maximum excavation radius of stop surface (mm) | 8190 |
| Maximum effective digging depth (mm) | 5290 |
