Product Description

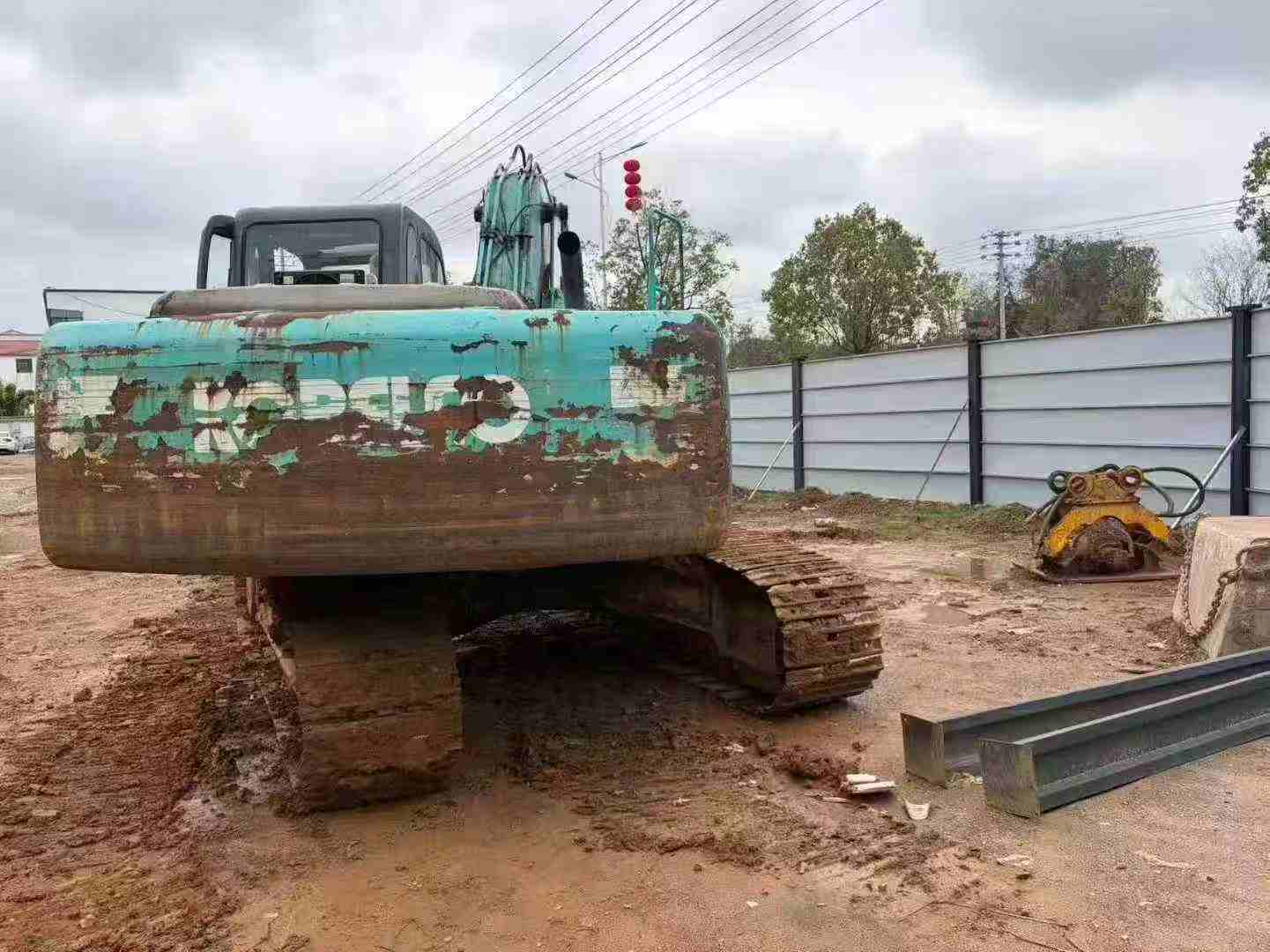

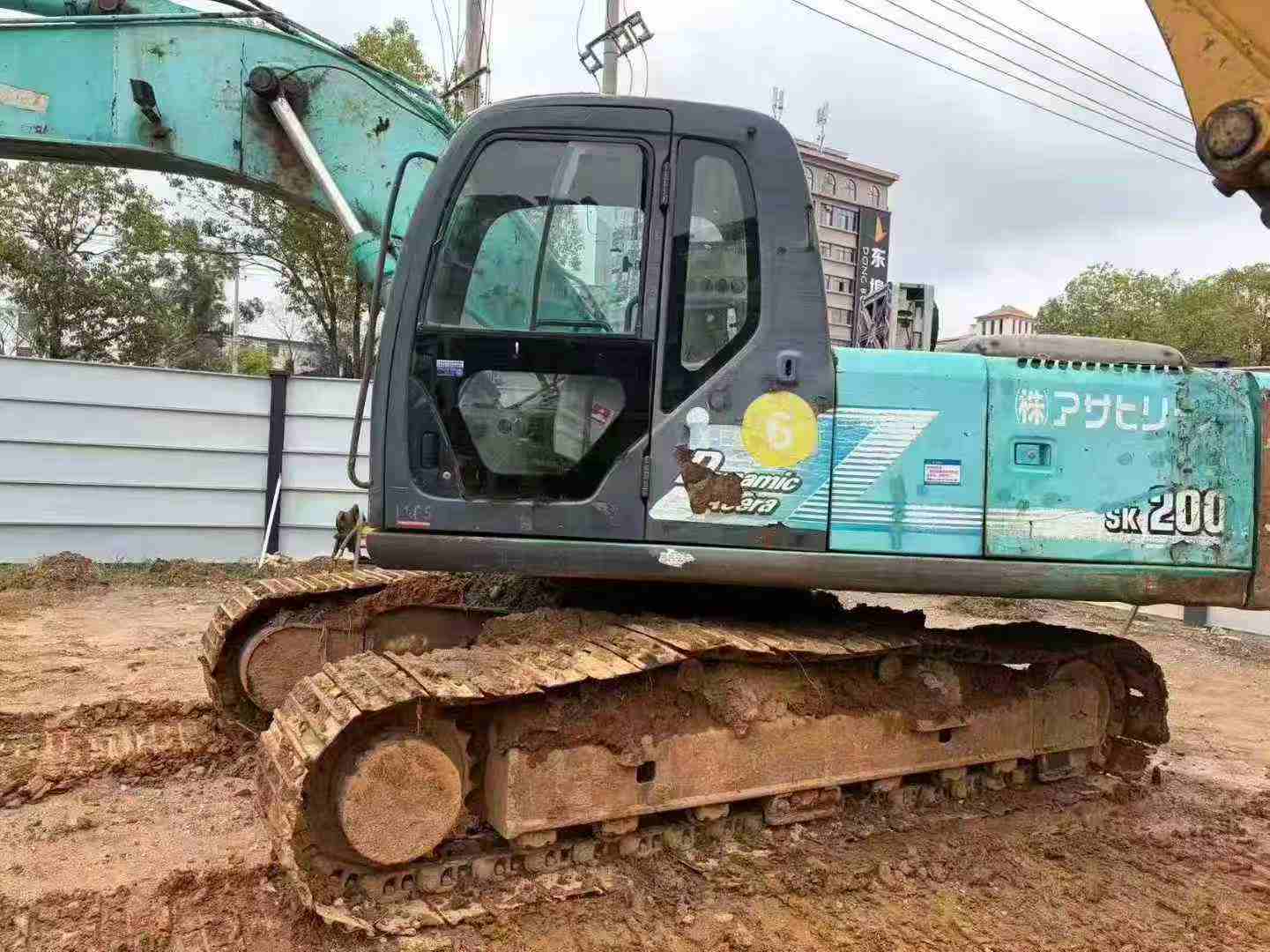

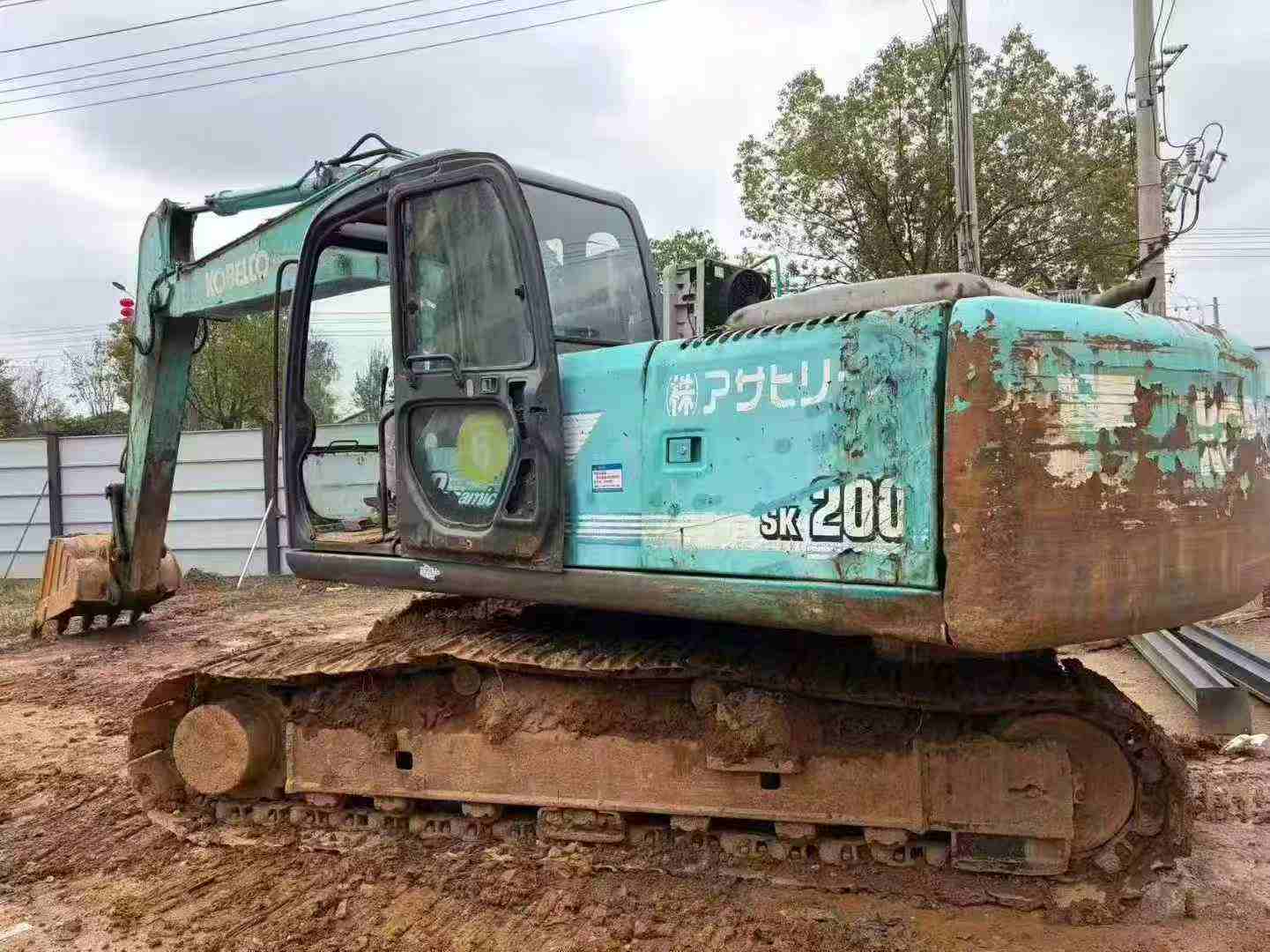

Engineered with precision by Kobelco's joint venture manufacturing, this 2016 SK200-10 excavator delivers robust performance through a 118kW rated power system operating at 2000 rpm. Built on proven hydraulic architecture, the machine generates 143kN bucket digging force and 102kN rod digging force, providing consistent breakout power for demanding excavation tasks across construction and earthmoving applications.
Operating at 21,300kg working weight with 0.8m³ bucket capacity, this 20-ton class excavator combines reach and depth capabilities that define versatility in the field:
- Maximum digging radius: 9,900mm
- Maximum digging depth: 6,700mm
- Maximum excavation height: 9,720mm
- Maximum unloading height: 6,910mm
Currently located in Jiangsu, this backhoe-configured SK200-10 represents Kobelco's tenth-generation design philosophy—refined hydraulics, fuel-efficient traditional power systems, and structural integrity built for extended operational life. Ideal for contractors requiring reliable performance in medium-scale excavation projects.
| Specifications | Value |
|---|---|
| No. | 1022928 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum unloading height (mm) | 6910 |
