2024 Kobelco SK200-12

1/9

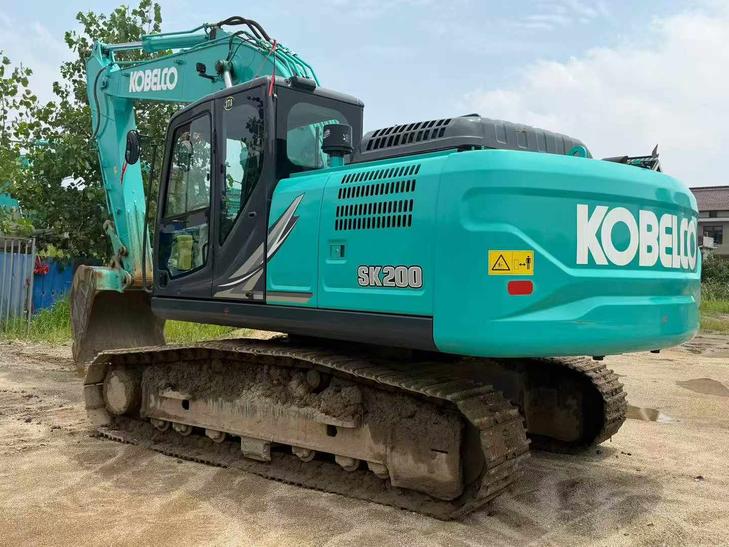

Buy Kobelco SK200-12 Used Excavator / 1
Buy Kobelco SK200-12 Used Excavator / 2
Buy Kobelco SK200-12 Used Excavator / 3
Buy Kobelco SK200-12 Used Excavator / 4
Buy Kobelco SK200-12 Used Excavator / 5
Buy Kobelco SK200-12 Used Excavator / 6
Buy Kobelco SK200-12 Used Excavator / 7
Buy Kobelco SK200-12 Used Excavator / 8
Buy Kobelco SK200-12 Used Excavator / 9

Product Description

Available for sale is a 2024 Kobelco SK200-12 excavator, currently located in Hunan, China. This machine, with genuine original features, has accumulated 3,374 operational hours, primarily in earthwork applications, ensuring its robustness and reliability. It meets the stringent National IV emission standards, reflecting its eco-friendly design. The excavator's performance and maintenance records can be conveniently accessed through the Kobelco Construction Machinery app, providing transparency and ease of management. Priced to sell at a cost-effective rate, this unit is an excellent investment for any construction or excavation project. Contact us for further details and to discuss payment options.

  • Year: 2024
  • Brand: Kobelco
  • Model: SK200-12
  • Location: Hunan, China
  • Operational Hours: 3,374
  • Emission Standard: National IV
SpecificationsValue
No.1112664
Tonnage (tons)20
Working weight (kg)21400
Bucket capacity (m³)0.93~1.0
Boom length (mm)5650
Rod length (mm)2940
powerFuel oil
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCUMMINS F4.5CS4145
Rated power (kw/rpm)108/2200
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)600/1200
Displacement (L)4.5
Rotation speed (rpm)11
Climbing ability (%)70
Bucket digging force (kN)143
Rod digging force (kN)102
Maximum tractive force (kN)227
Travel speed (km/h)3.4/5.4
Maximum flow of main pump (l/min)2*195
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Working Hydraulic Circuit (Mpa)34.3
Fuel Tank (L)420
Engine Oil changes (L)13
Coolant (L)20
Hydraulic System (L)258
Total transport length (mm)9610
Total transport width (mm)2800
Total transport height (mm)3120
Counterweight ground clearance (mm)1070
Minimum ground clearance (mm)415
Onboard width (mm)2710
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9690
Maximum unloading height (mm)6910
Maximum excavation radius of stop surface (mm)9730
see more

Overview

No.1112664

Brand Name:

Kobelco

Model Number:

SK200-12

Year:

2024

Location:

Hunan China
