Product Description

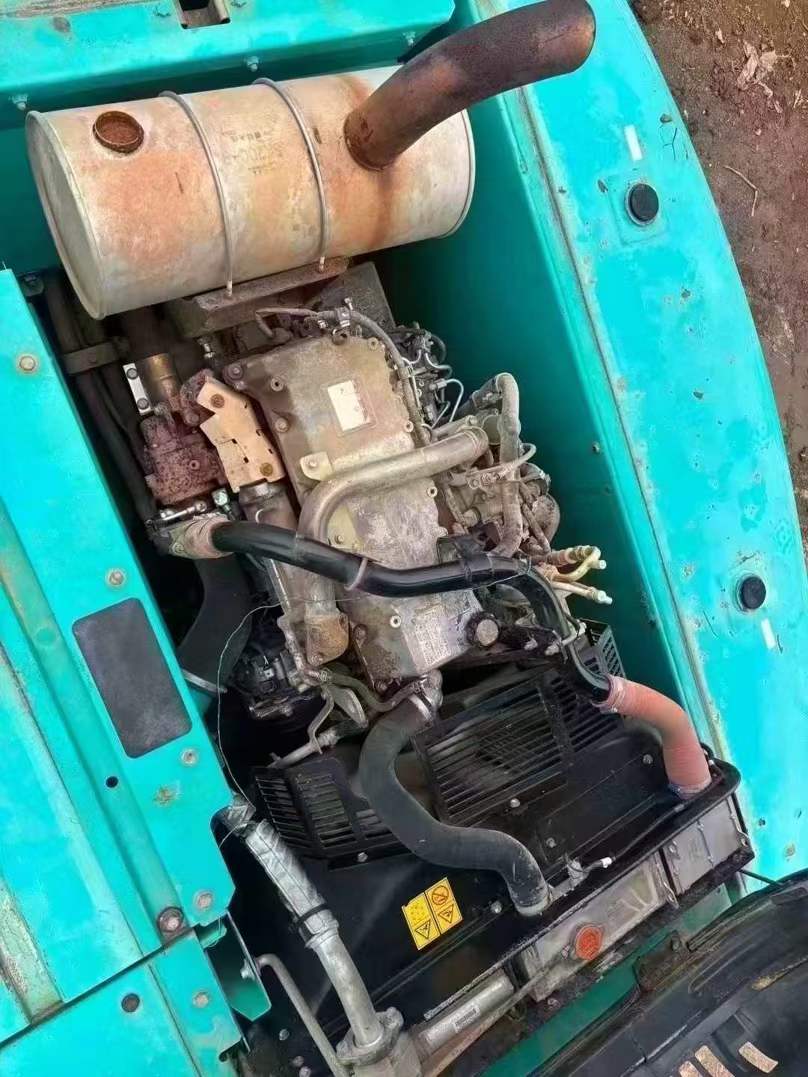

Built for precision work in demanding environments, this 2014 Kobelco SK200 delivers reliable performance with operator-centered engineering. Powered by a Mitsubishi 6D34-TLU2D engine producing 110kW at 2000rpm, this 20-ton excavator combines hydraulic efficiency with responsive controls. The water-cooled, turbocharged six-cylinder engine features built-in intercooling for consistent power delivery across extended shifts.
Operators benefit from exceptional stability and control throughout the working day:
- Wide cabin visibility enables precise bucket placement and safer site awareness
- Low ground pressure (35-45 kPa) ensures stable operation on varied terrain
- Smooth 11 rpm rotation speed facilitates controlled load handling
- Dual-speed travel (4.0/6.0 km/h) optimizes repositioning efficiency
- 143kN bucket digging force (157kN boosted) tackles compacted materials
- 0.8m³ bucket capacity balances productivity with fuel economy
Currently located in Hunan, this joint-venture manufactured excavator represents proven Kobelco reliability with comprehensive hydraulic systems and a robust 340L fuel tank for extended operation.
| Specifications | Value |
|---|---|
| No. | 1028558 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
