Product Description
Expand your operational capacity with this 2014 Kobelco SK200, a proven 20-ton workhorse engineered for demanding excavation projects. Powered by a Mitsubishi 6D34-TLU2D engine delivering 110kw at 2000rpm, this machine provides consistent performance whether you're rotating through multiple job sites or covering equipment downtime. The turbocharged, intercooled six-cylinder configuration ensures reliable output in extended duty cycles.
Built for versatility, this excavator features a 0.8m³ backhoe bucket with impressive digging force—143kN standard, boosting to 157kN in supercharged mode. Dual-speed travel (4.0/6.0 km/h) and 70% grading capability keep your crew productive across varied terrain. The double variable displacement axial piston pump system delivers precision control, while the 340L fuel tank minimizes refueling interruptions during long shifts.
- Currently located in Changzhou, Jiangsu—ready for immediate deployment
- 20,000kg operating weight with stable 45/35 Kpa ground pressure
- Water-cooled reliability with proven joint venture manufacturing standards
- Available with 600mm or 800mm track plates for site-specific requirements
Add continuity to your fleet opera
| Specifications | Value |
|---|---|
| No. | 1044304 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

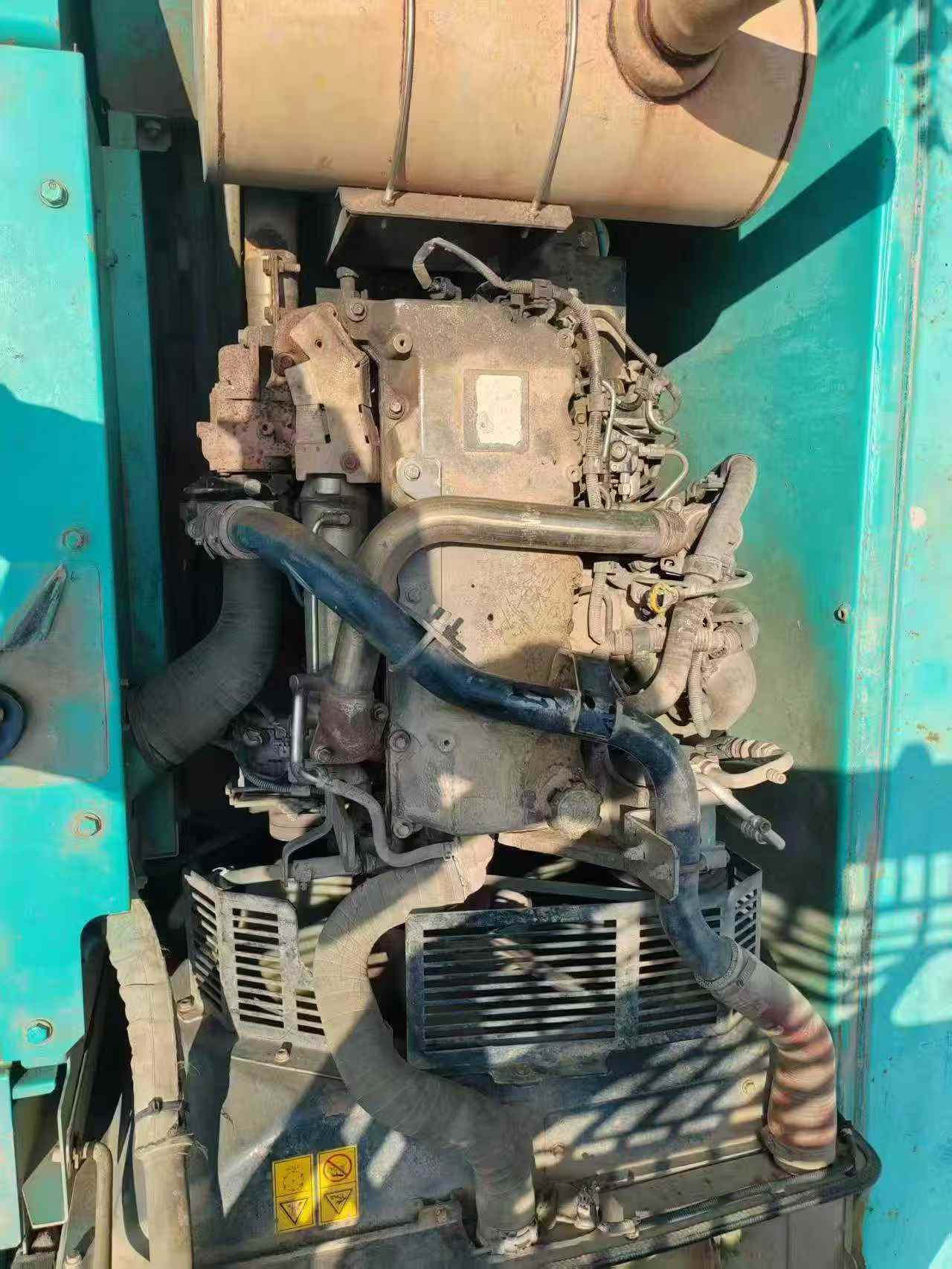

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

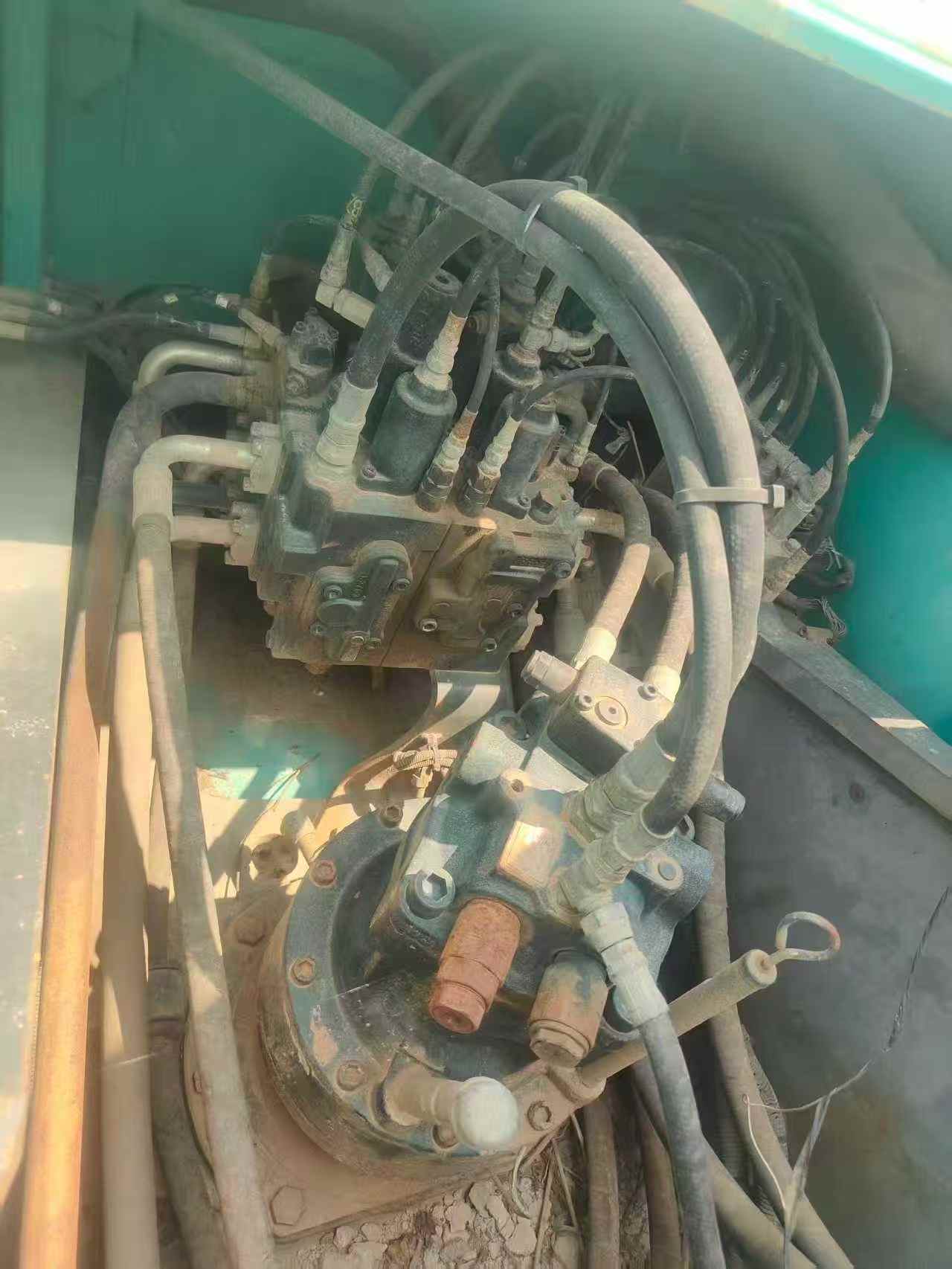

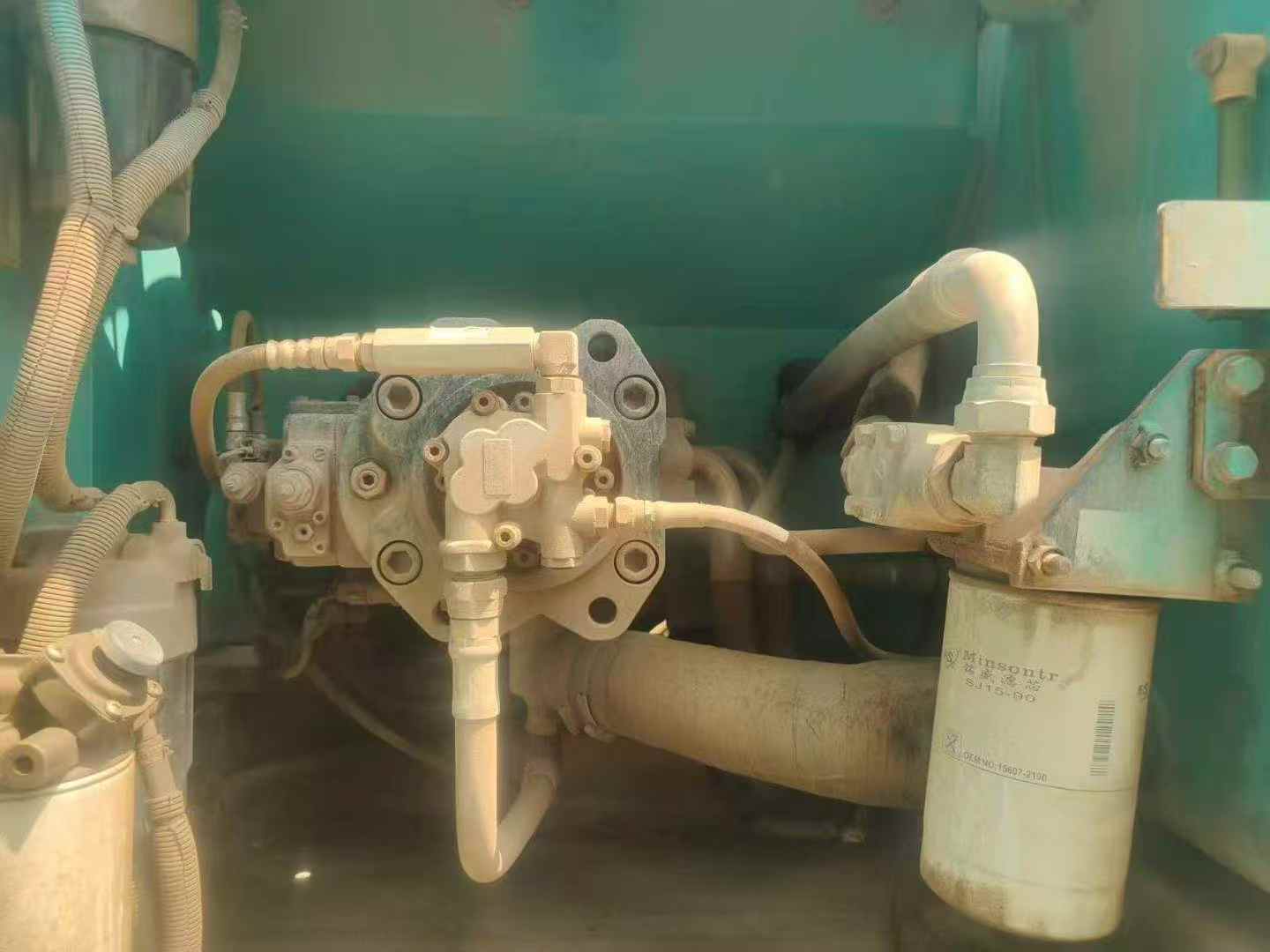

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |

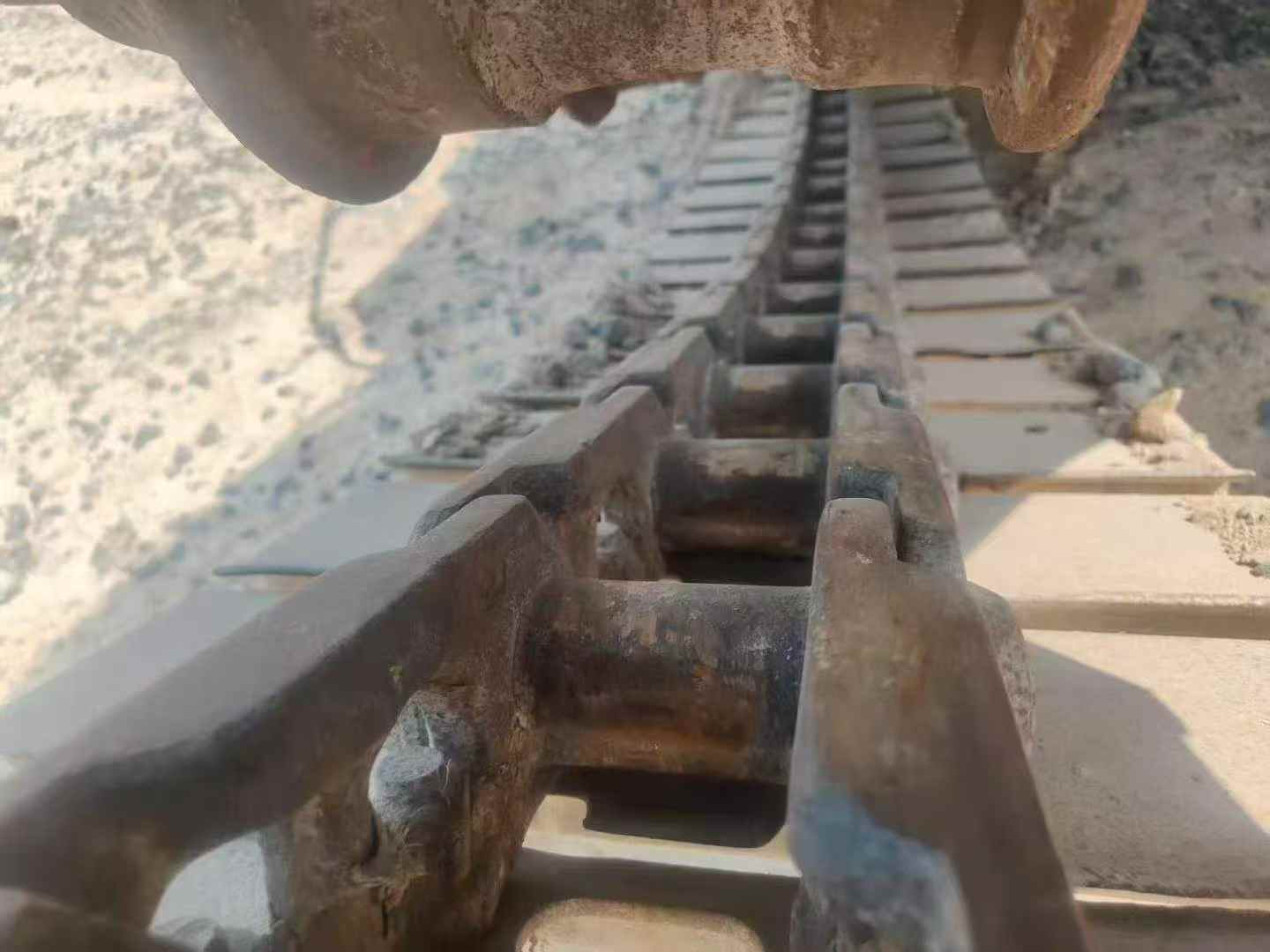

| Track plate width (mm) | 600; 800 |
