Product Description

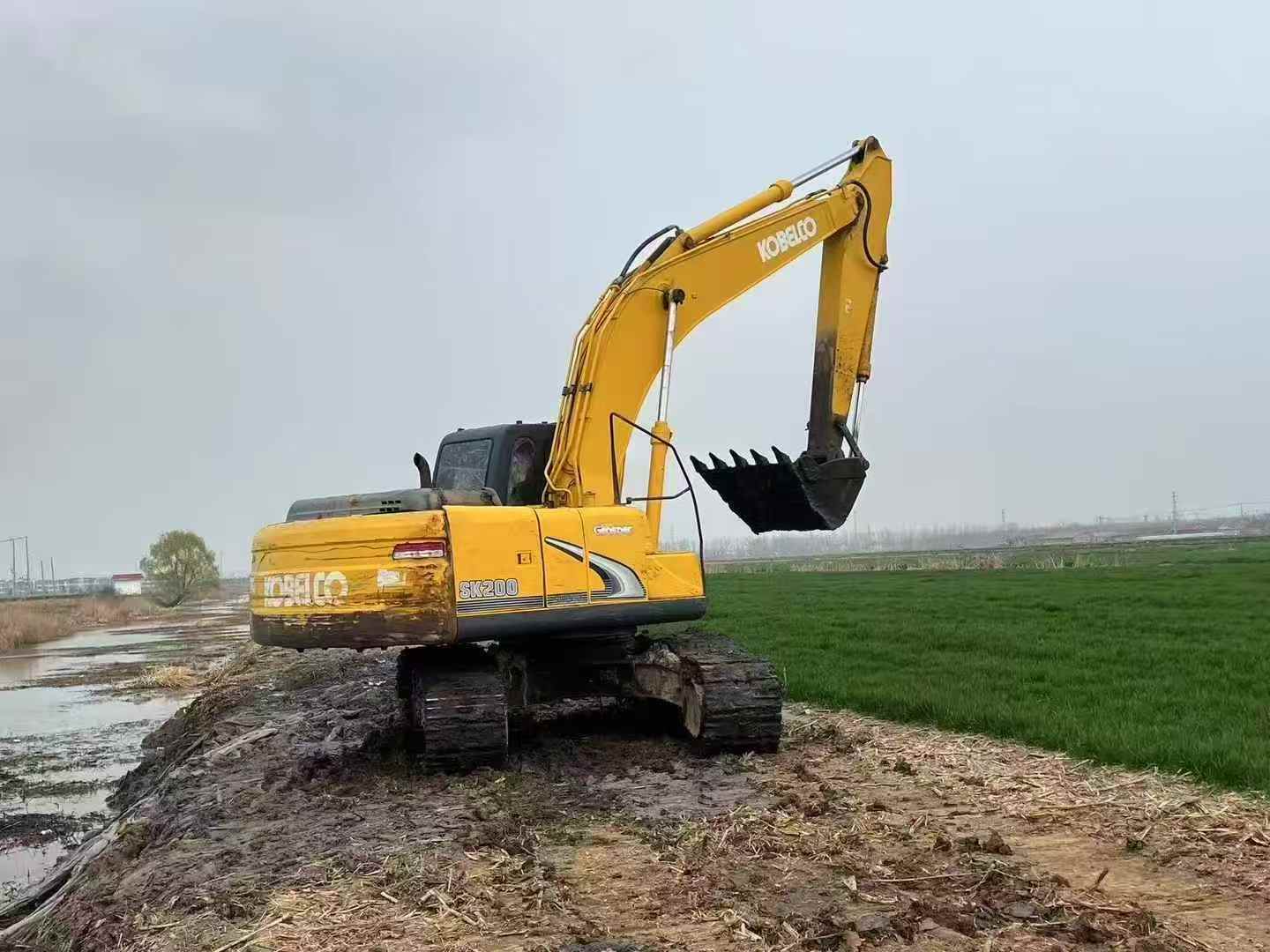

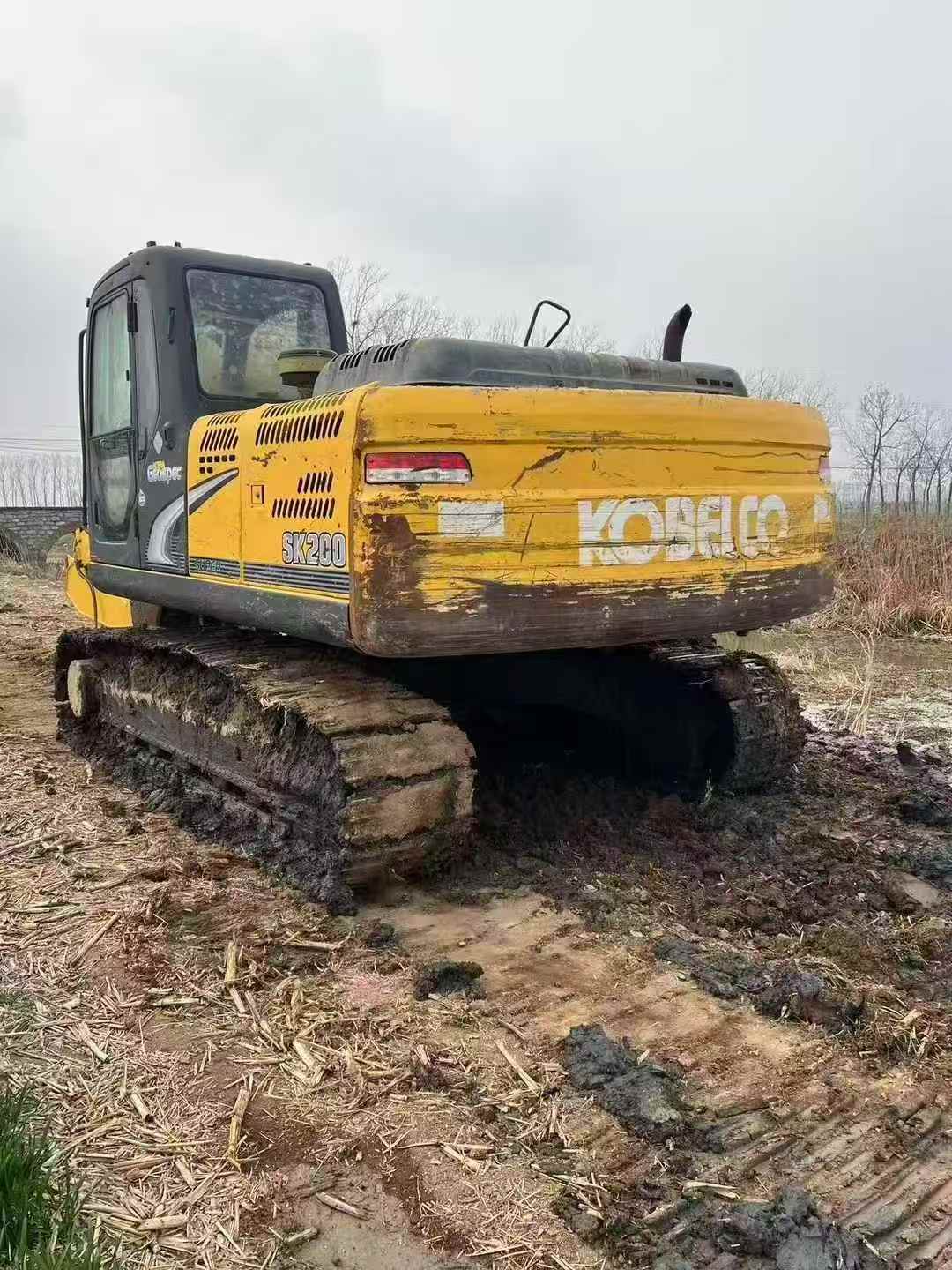

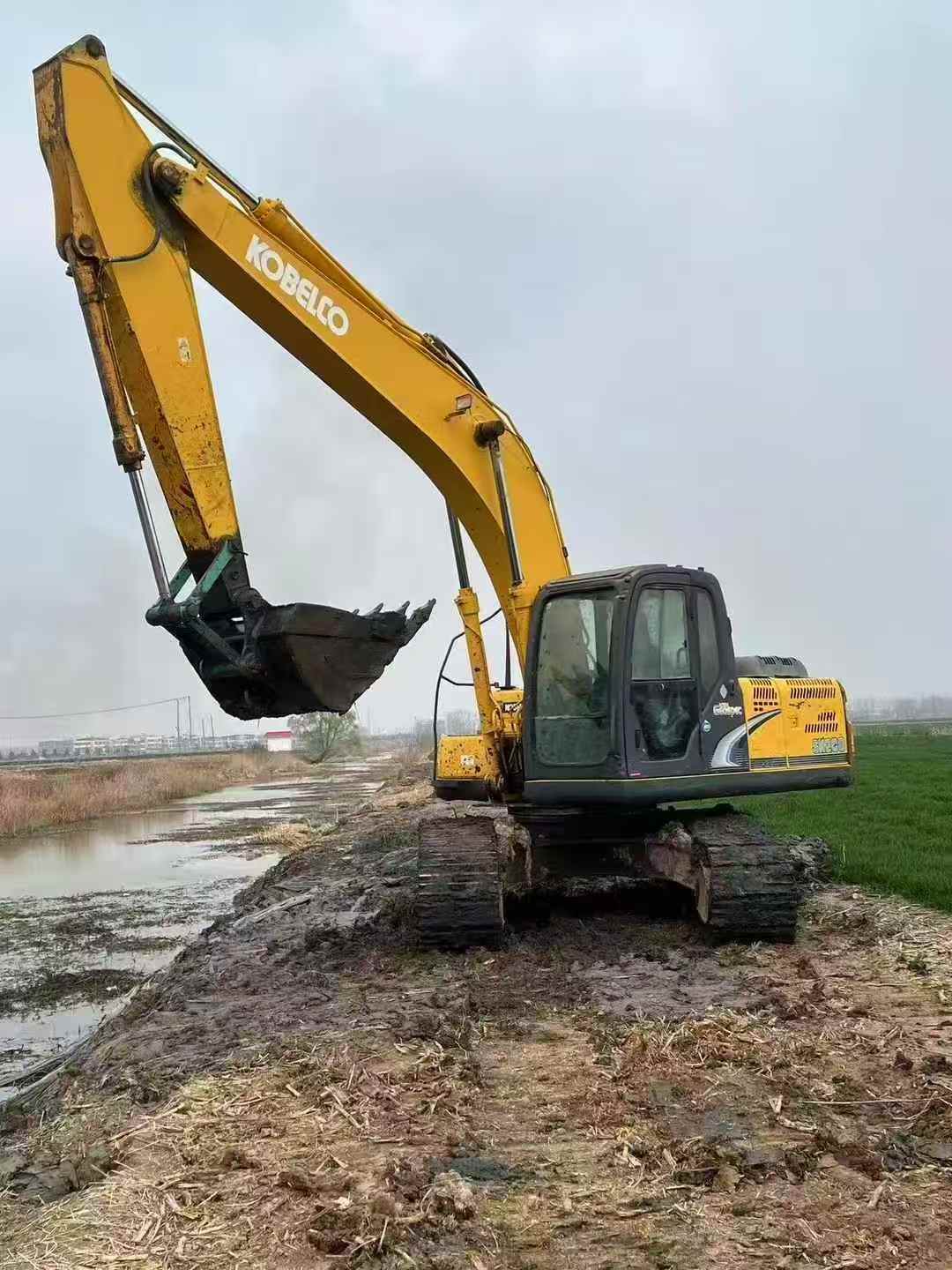

Expand your fleet capacity with this reliable 2016 Kobelco SK200 excavator, currently positioned in Jiangsu and ready for immediate deployment. Built as a joint venture model featuring proven Mitsubishi 6D34-TLU2D power, this 20-ton class machine delivers consistent performance across demanding jobsites. Contractors managing multiple projects will appreciate the 110kW rated output, 0.8m³ bucket capacity, and water-cooled efficiency that mirrors your primary equipment specifications.
- Operational Compatibility: Standardized 20,000kg working weight integrates seamlessly with existing transport and logistics
- Performance Range: Bucket digging force reaches 157kN in supercharged mode; rod force peaks at 107kN for varied excavation demands
- Fleet Uptime: 340L fuel capacity and dual variable displacement pump system minimize refueling downtime during peak scheduling
- Terrain Adaptability: 70% climbing ability and adjustable track widths (600mm/800mm) maintain productivity across mixed ground conditions
- Proven Reliability: Six-cylinder turbocharged engine with intercooling maintains power delivery under sustain
| Specifications | Value |
|---|---|
| No. | 1033078 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

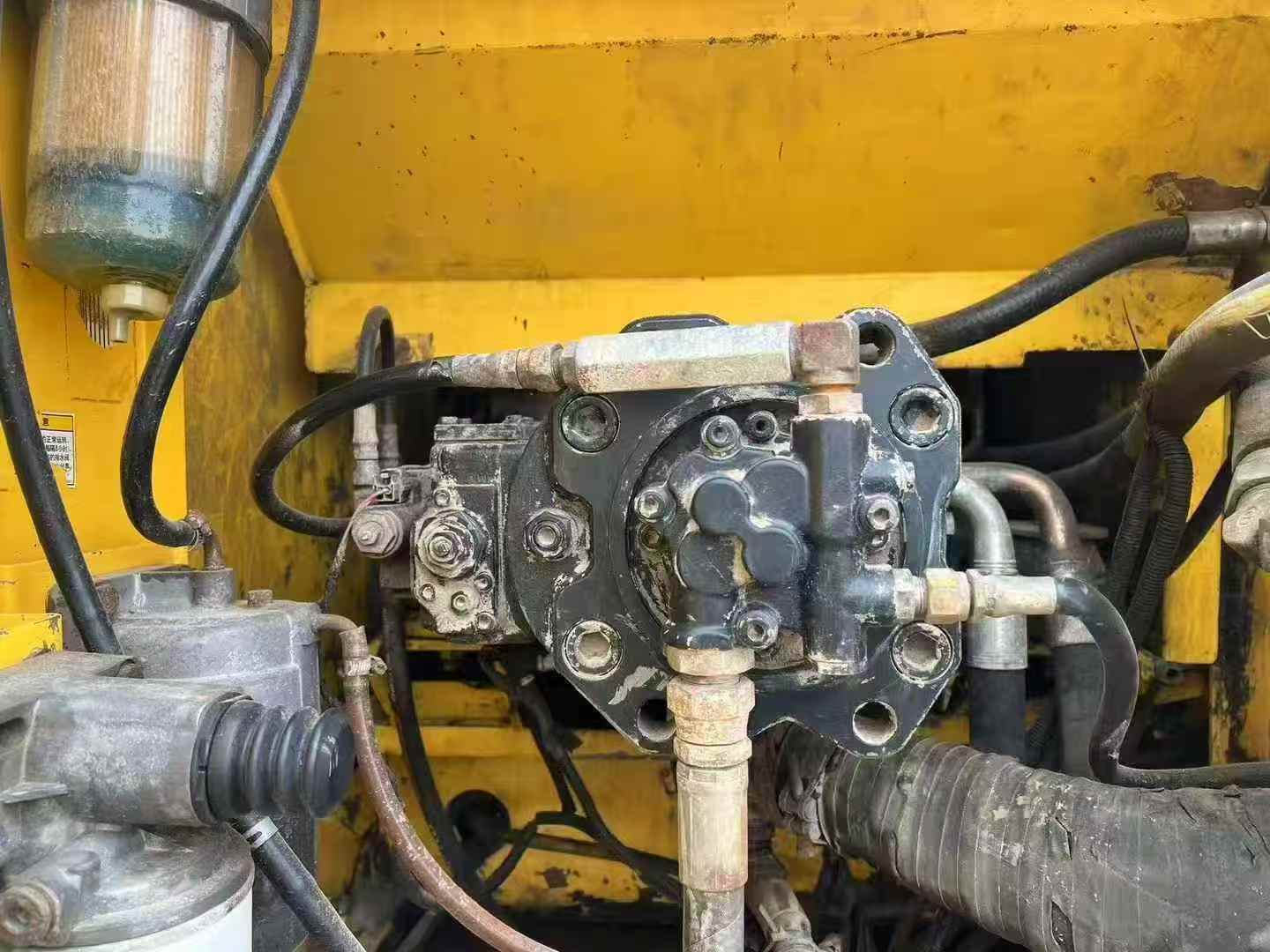

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
