Product Description

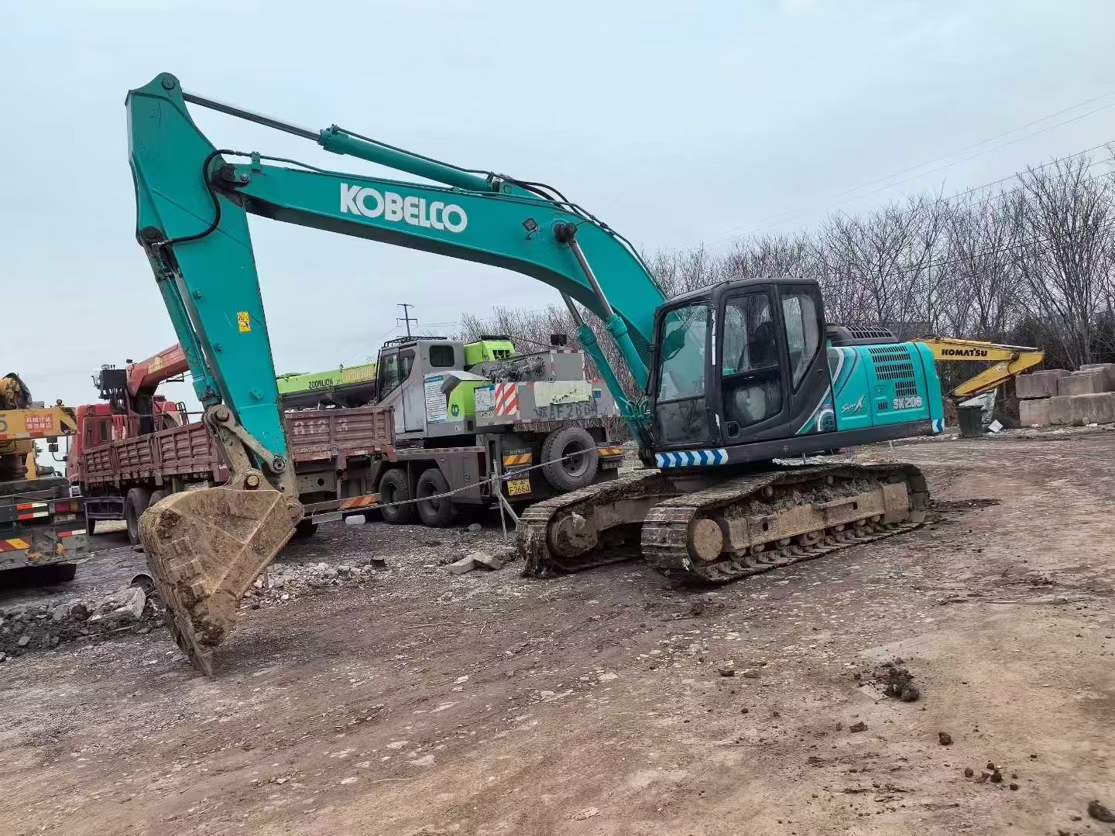

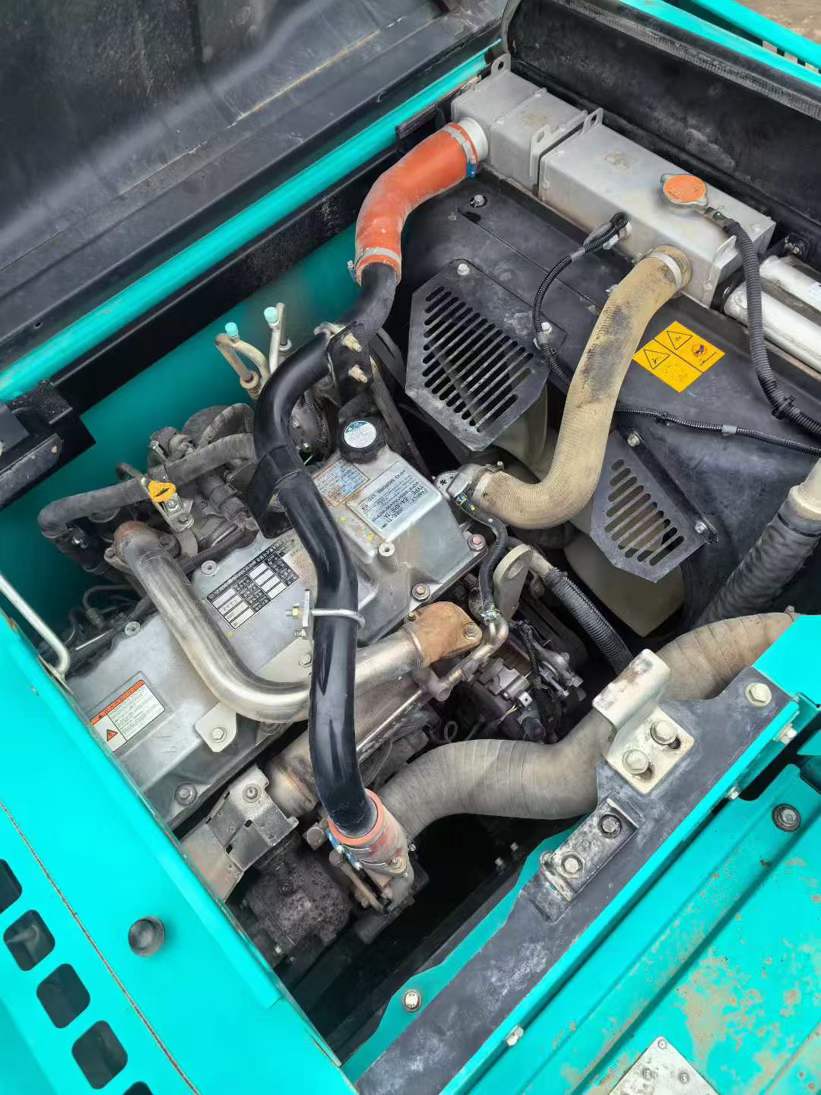

Powered by a Mitsubishi 6D34-TLU2D engine, this 2020 Kobelco SK200 delivers 110 kW at 2000 rpm, ensuring robust performance. With a working weight of 20,000 kg and a bucket capacity of 0.8 m³, it is designed for high efficiency in various construction tasks. The water-cooled, four-stroke, six-cylinder, direct injection, turbocharged engine with built-in intercooling provides reliable and consistent power.

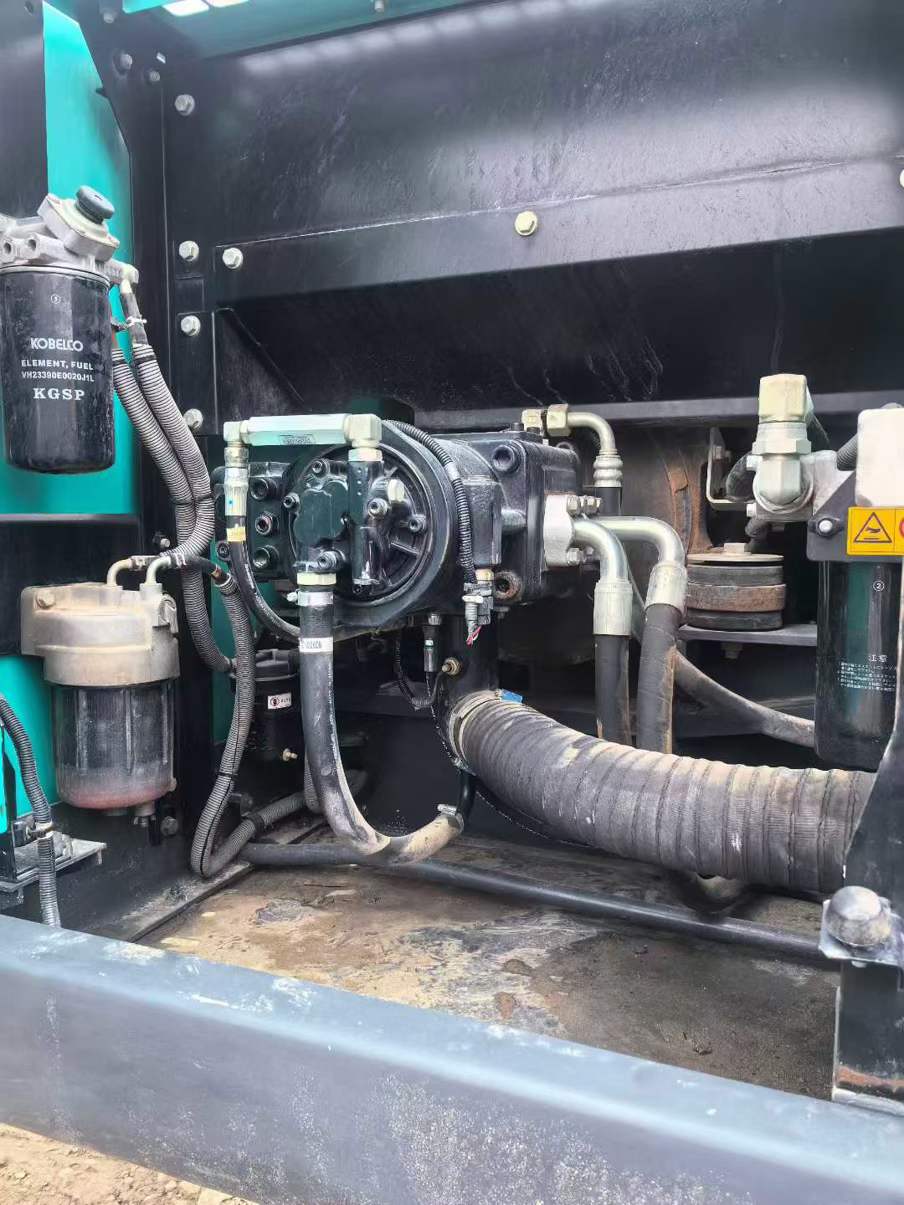

- Double variable displacement axial piston pump and pilot gear pump for precise hydraulic control
- Main overflow set pressure of 34.3 Mpa, increasing to 37.8 Mpa in supercharged state
- Bucket digging force of 143 kN, enhancing to 157 kN when supercharged
- Travel speeds of 4.0 km/h and 6.0 km/h for versatile maneuverability
- Fuel tank capacity of 340 L for extended operational hours
Located in Hunan, this excavator exemplifies the engineering quality and technical superiority of the Kobelco SK series, making it a top choice for demanding job sites.
| Specifications | Value |
|---|---|
| No. | 1016351 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
