Product Description

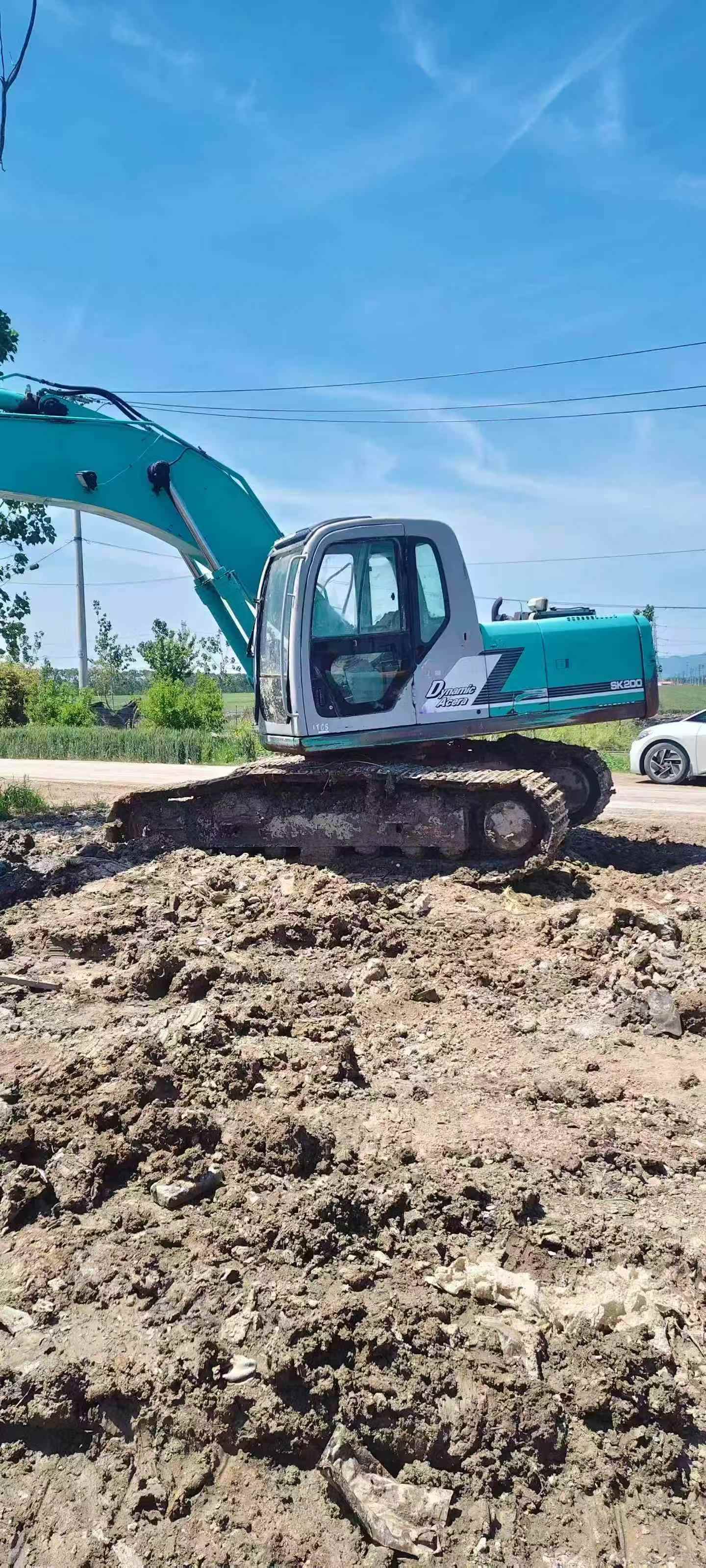

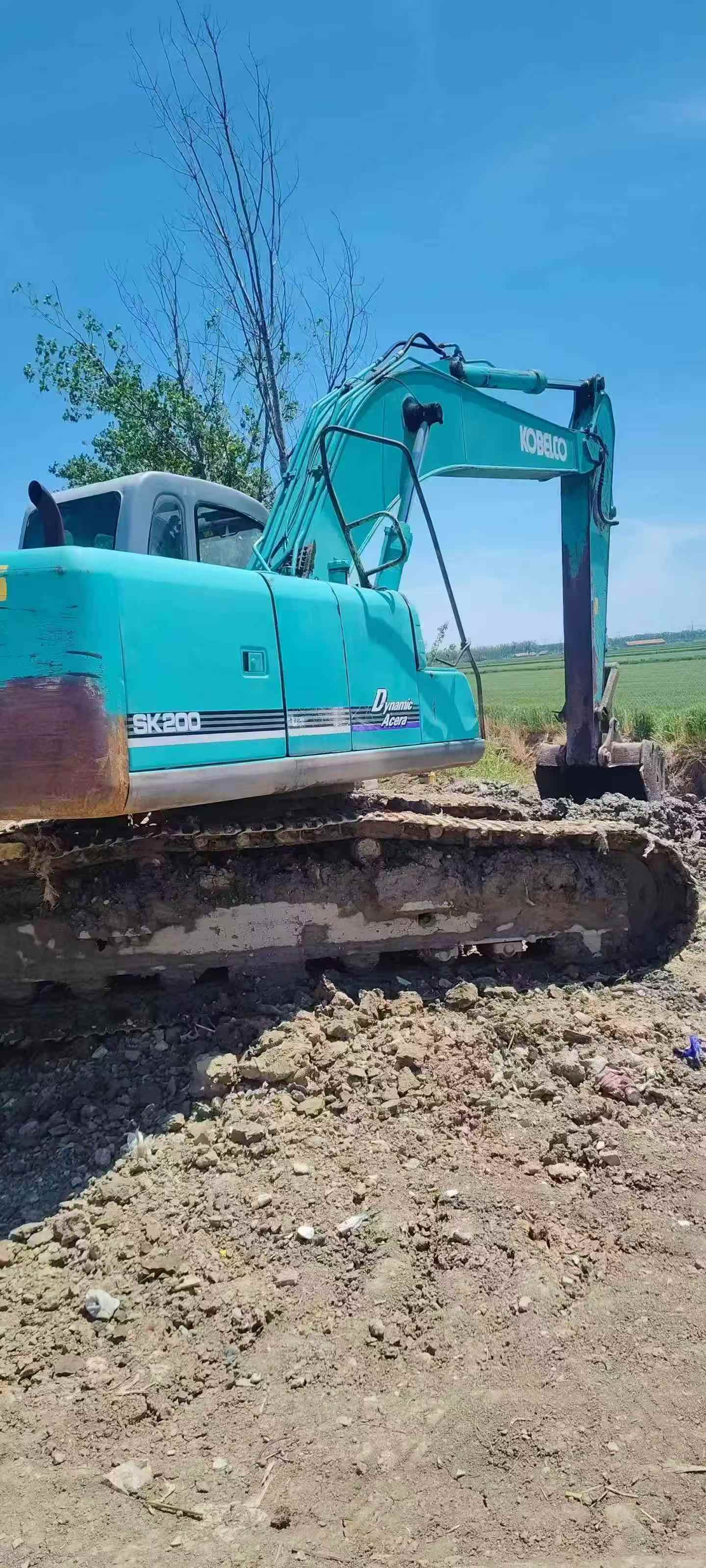

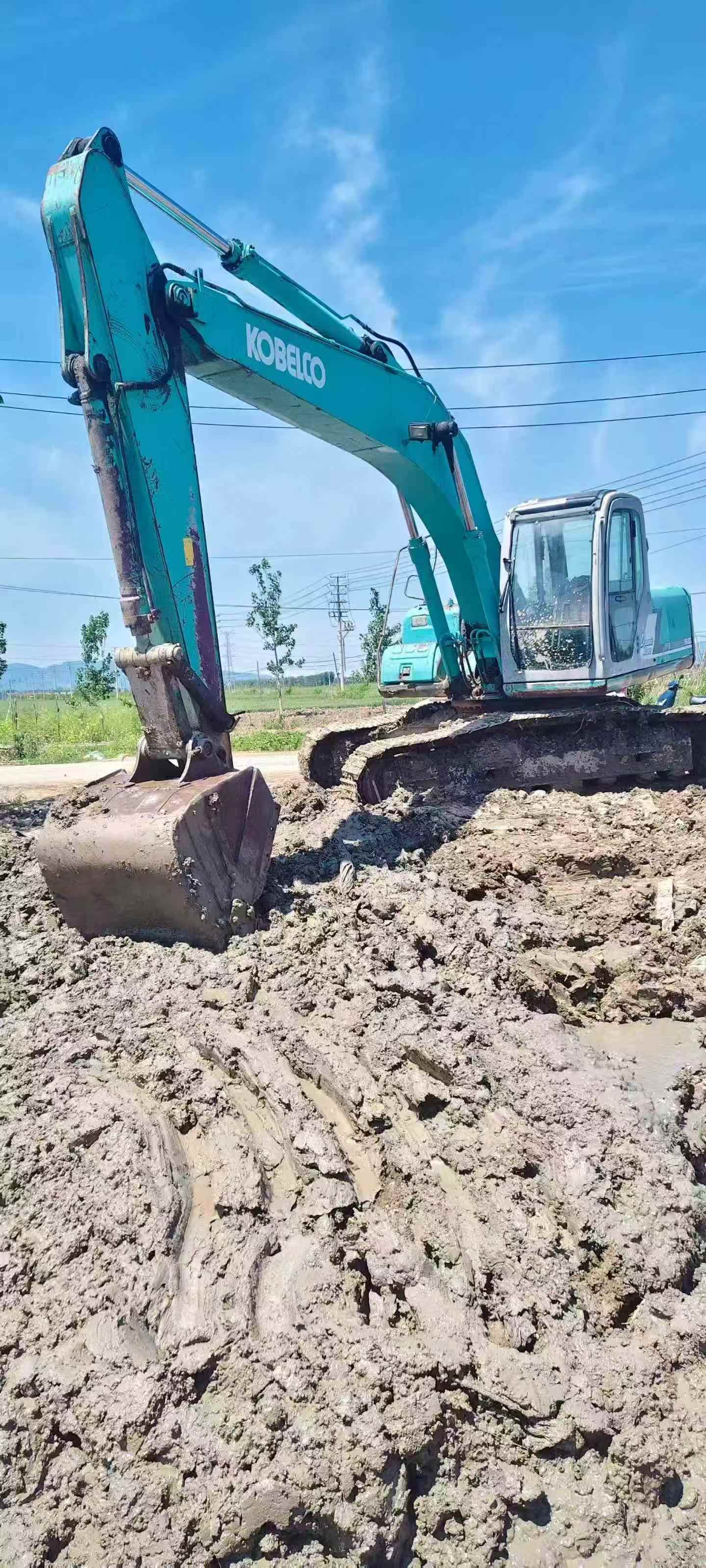

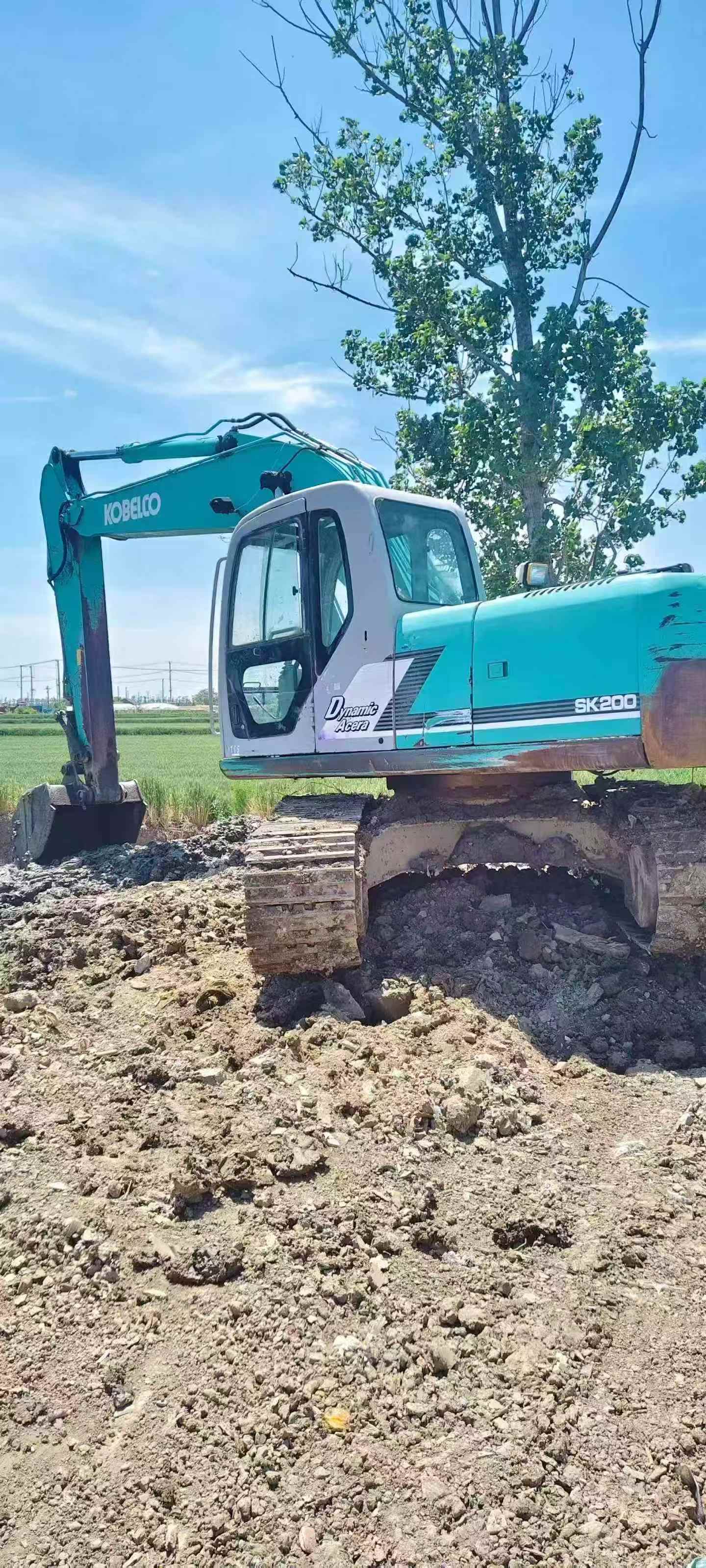

With a robust 20-ton working weight and a powerful Mitsubishi 6D34-TLU2D engine, this 2020 Kobelco SK200 excavator is an ideal fleet addition for busy contractors. Equipped with a 0.8 m³ bucket capacity and a rated power of 110 kW at 2000 rpm, it ensures efficient and reliable performance on any job site. The water-cooled, turbocharged, and intercooled engine provides consistent power, while the double variable displacement axial piston pump and pilot gear pump ensure smooth operation. Featuring a 70% climbing ability and a 340-liter fuel tank, this excavator is ready to tackle demanding tasks. Its 600 mm or 800 mm track plate width options offer versatility in various terrains, making it a versatile and dependable backup for your fleet.
- Working weight: 20,000 kg
- Bucket capacity: 0.8 m³
- Engine type: Mitsubishi 6D34-TLU2D, 110 kW/2000 rpm
- Fuel Tank: 340 L
- Track plate width: 600 mm or 800 mm
| Specifications | Value |
|---|---|
| No. | 1057543 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

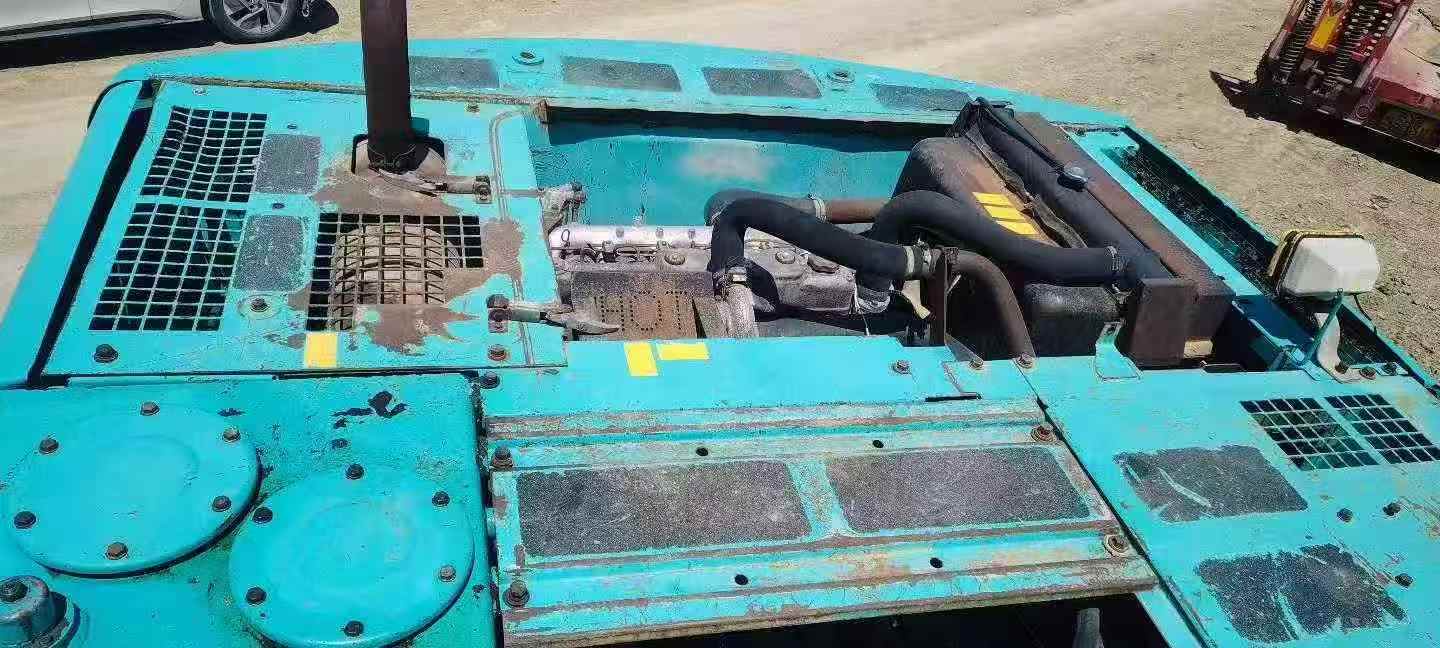

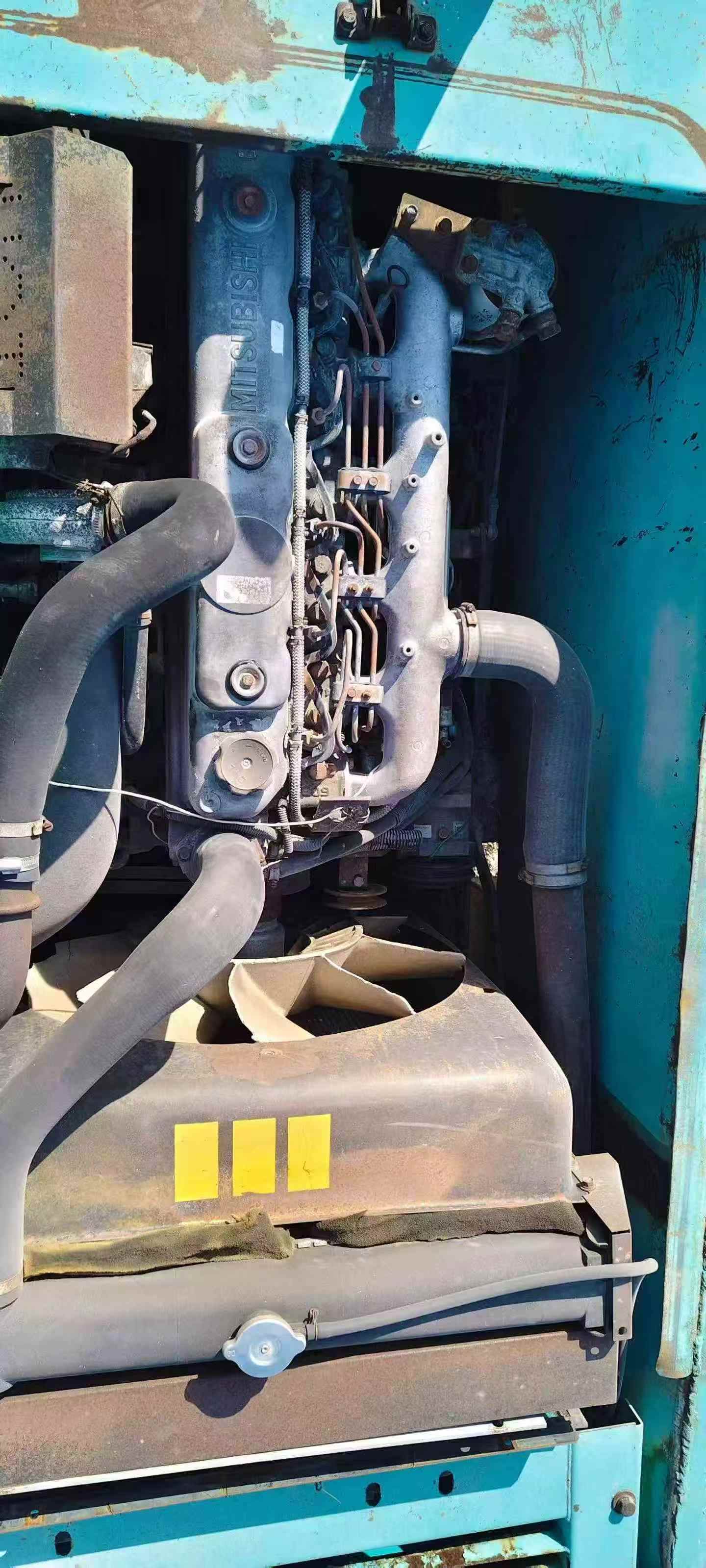

| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

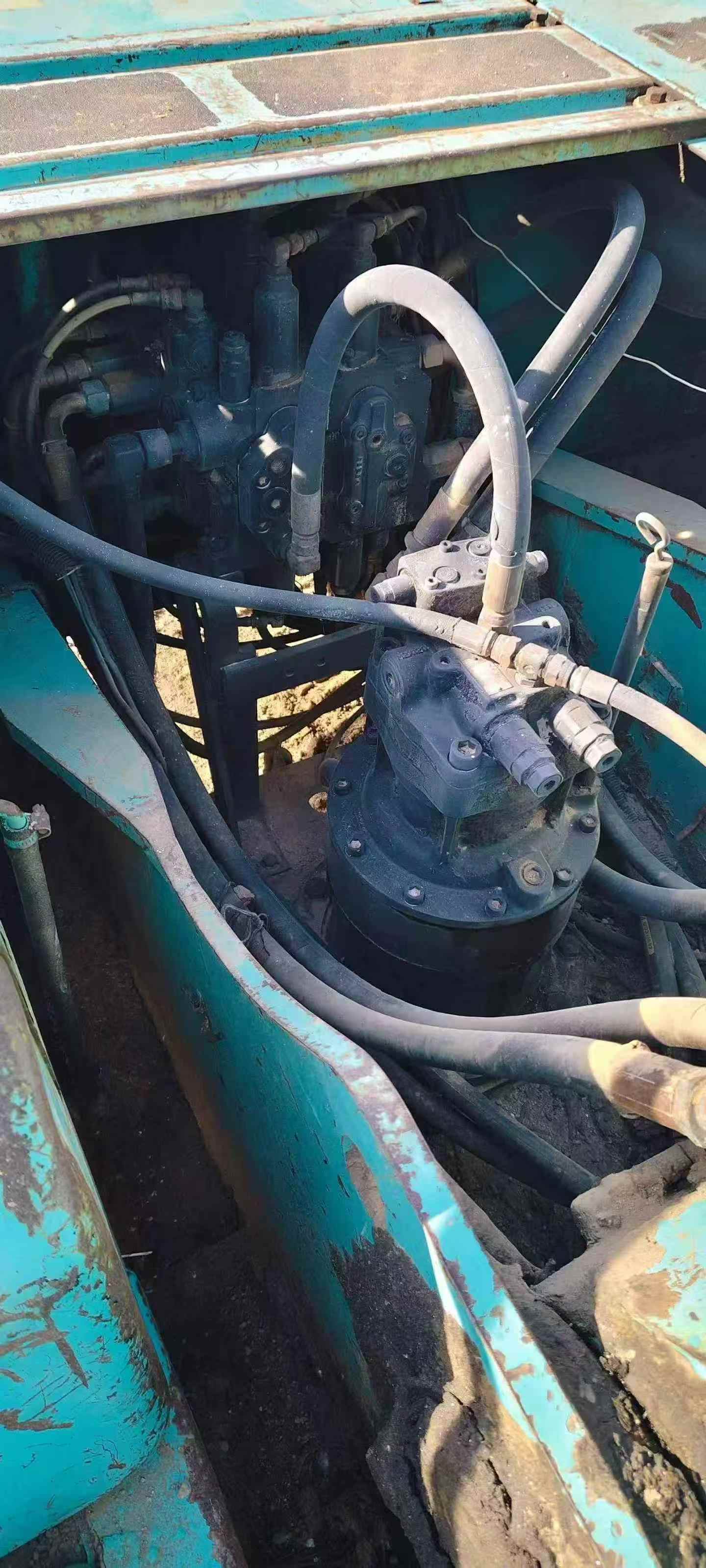

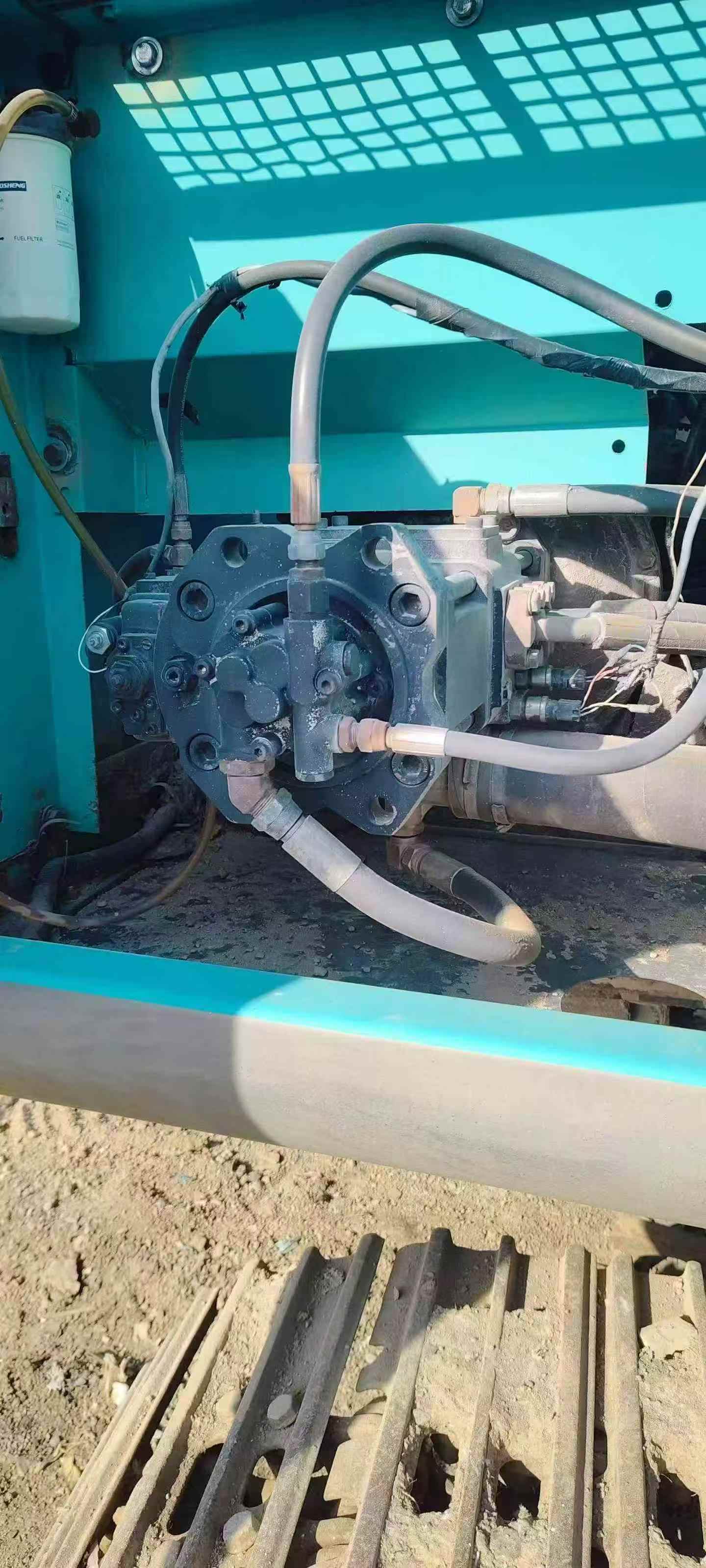

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
