Product Description

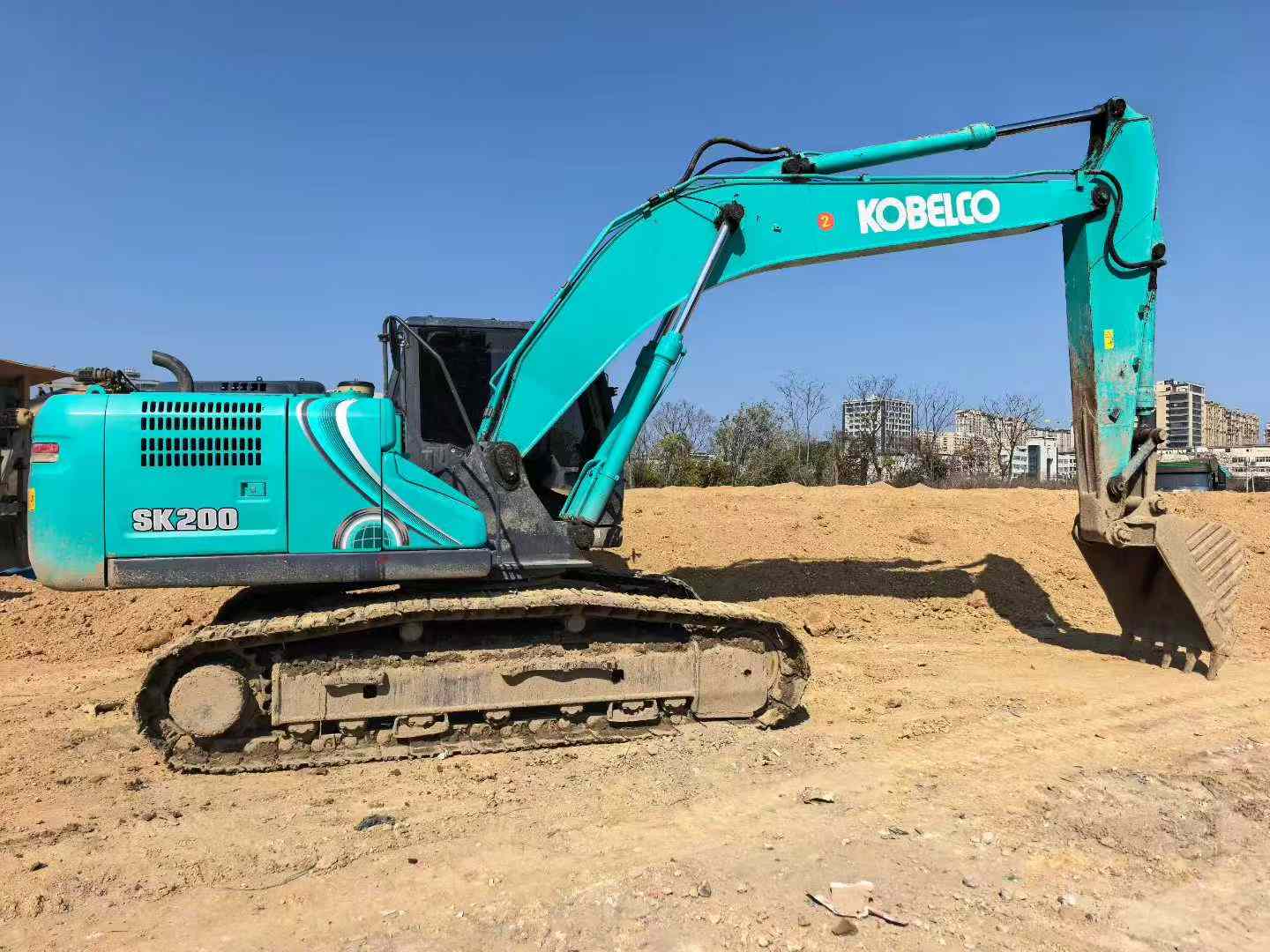

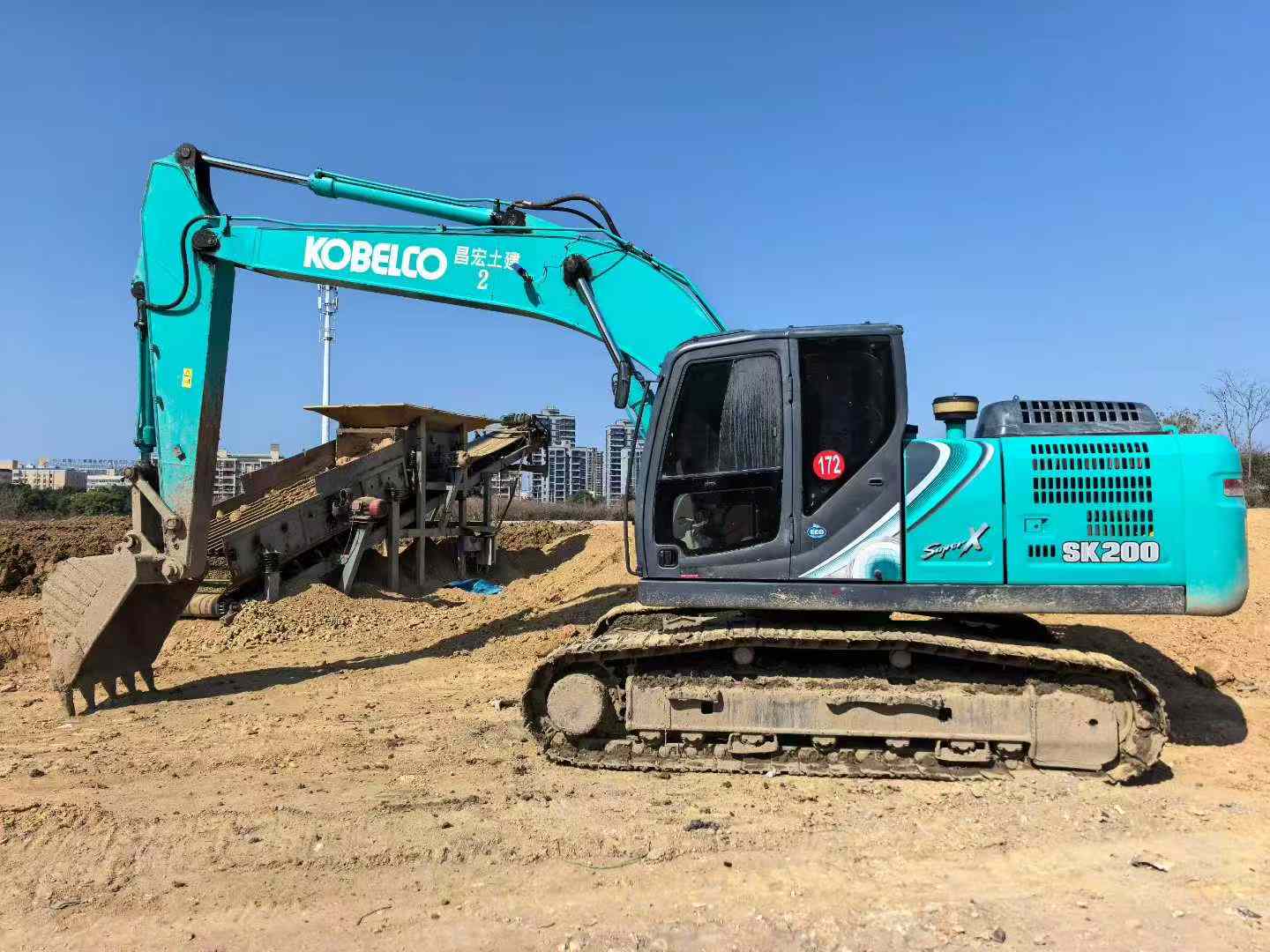

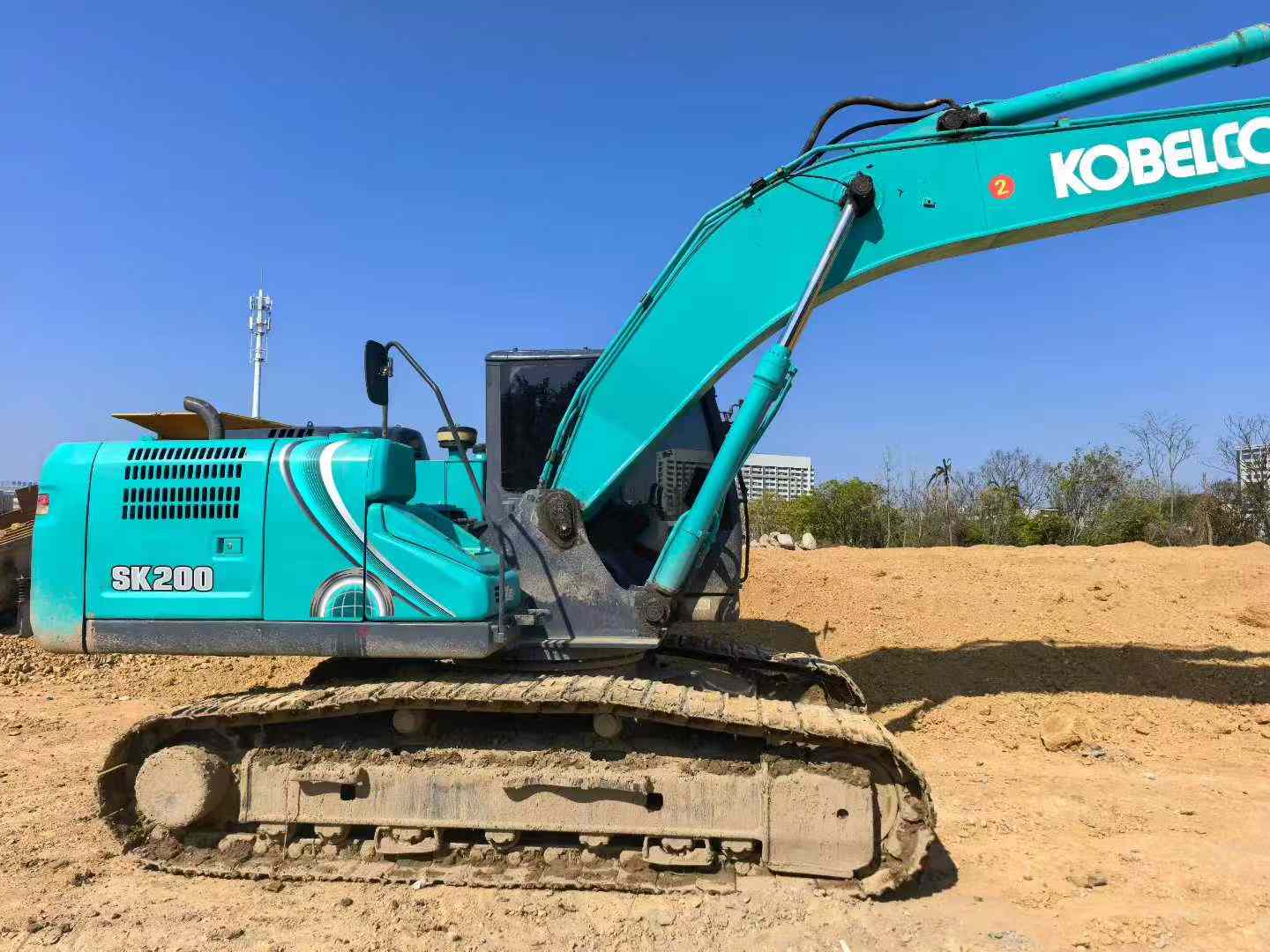

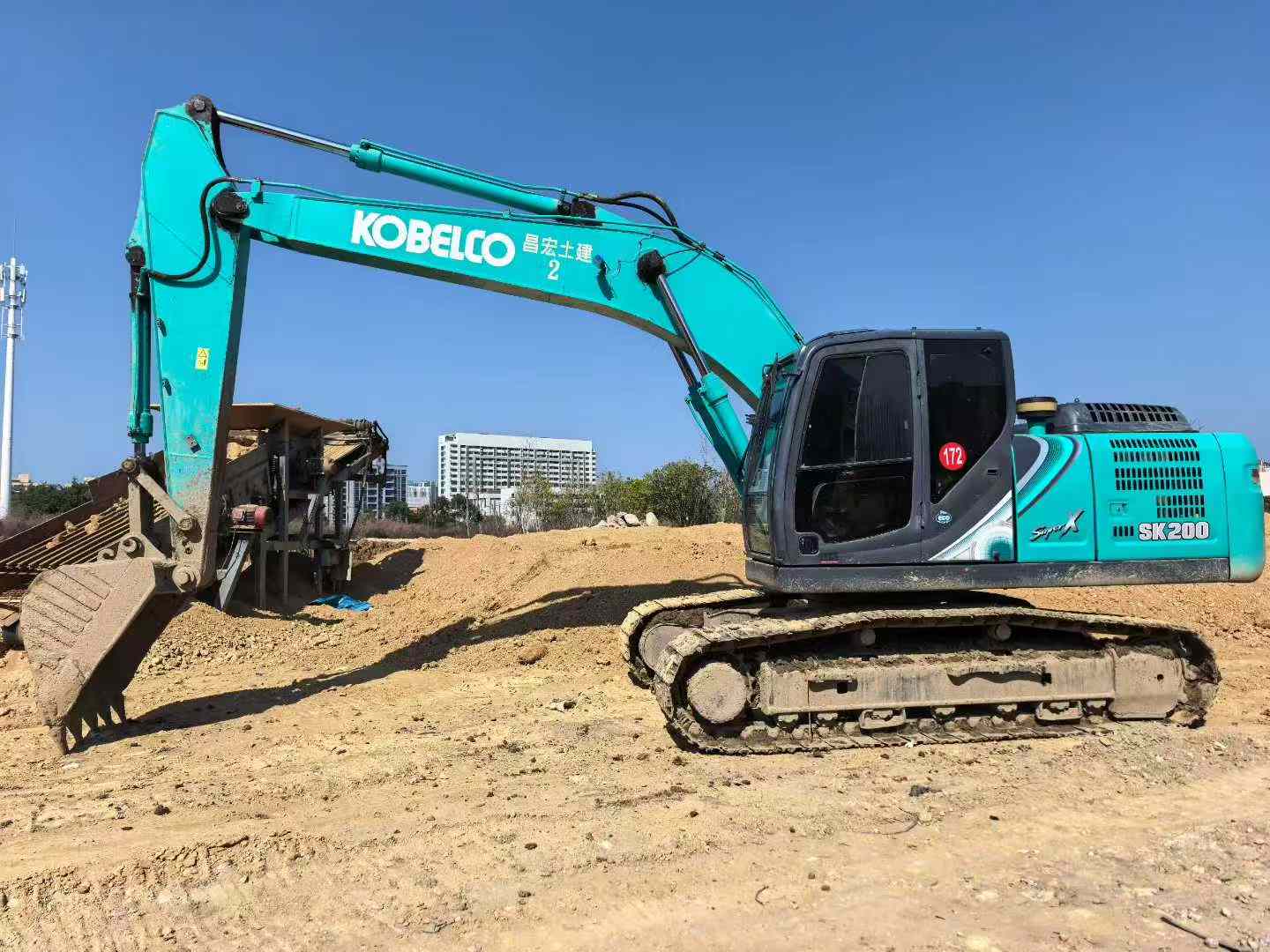

Engineered for precision and operator confidence, this 2021 Kobelco SK200 delivers exceptional control across demanding jobsites. Operating at 20 tons with a robust Mitsubishi 6D34-TLU2D engine producing 110kW at 2000rpm, this machine combines proven hydraulic performance with refined handling characteristics. Dual-speed travel capability reaches 6.0 km/h, while the 11 rpm rotation speed ensures smooth, predictable positioning during complex excavation tasks.

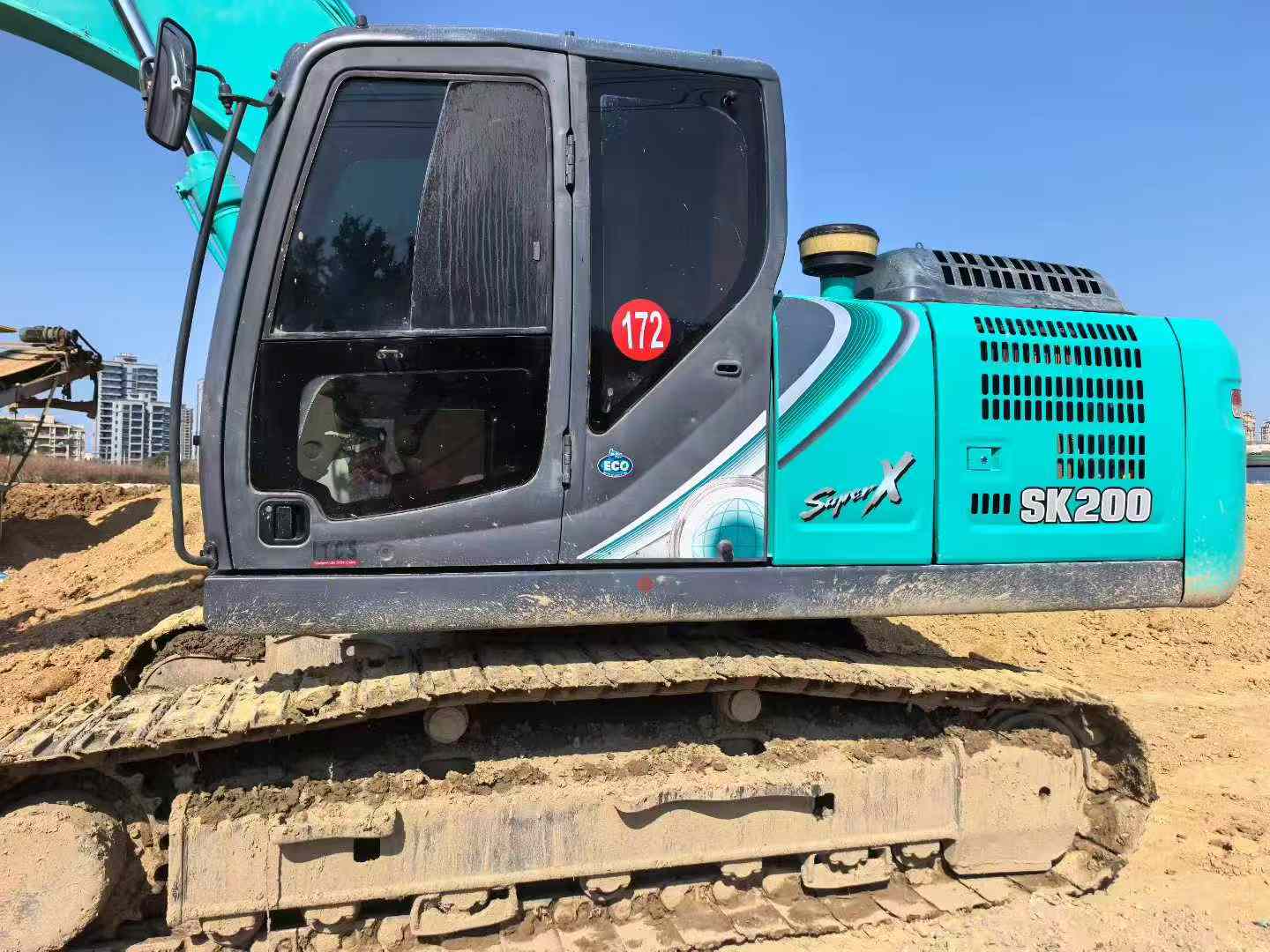

Operators benefit from superior visibility and ergonomic design standards that define this model generation. The water-cooled, turbocharged six-cylinder engine with built-in intercooling maintains consistent power delivery throughout extended shifts. Hydraulic responsiveness is optimized through the double variable displacement axial piston pump system, providing bucket digging force up to 157kN in supercharged mode and rod force reaching 107kN.
- Cabin stability enhanced by 45/35 Kpa ground pressure distribution
- 340L fuel capacity supports full-day operations

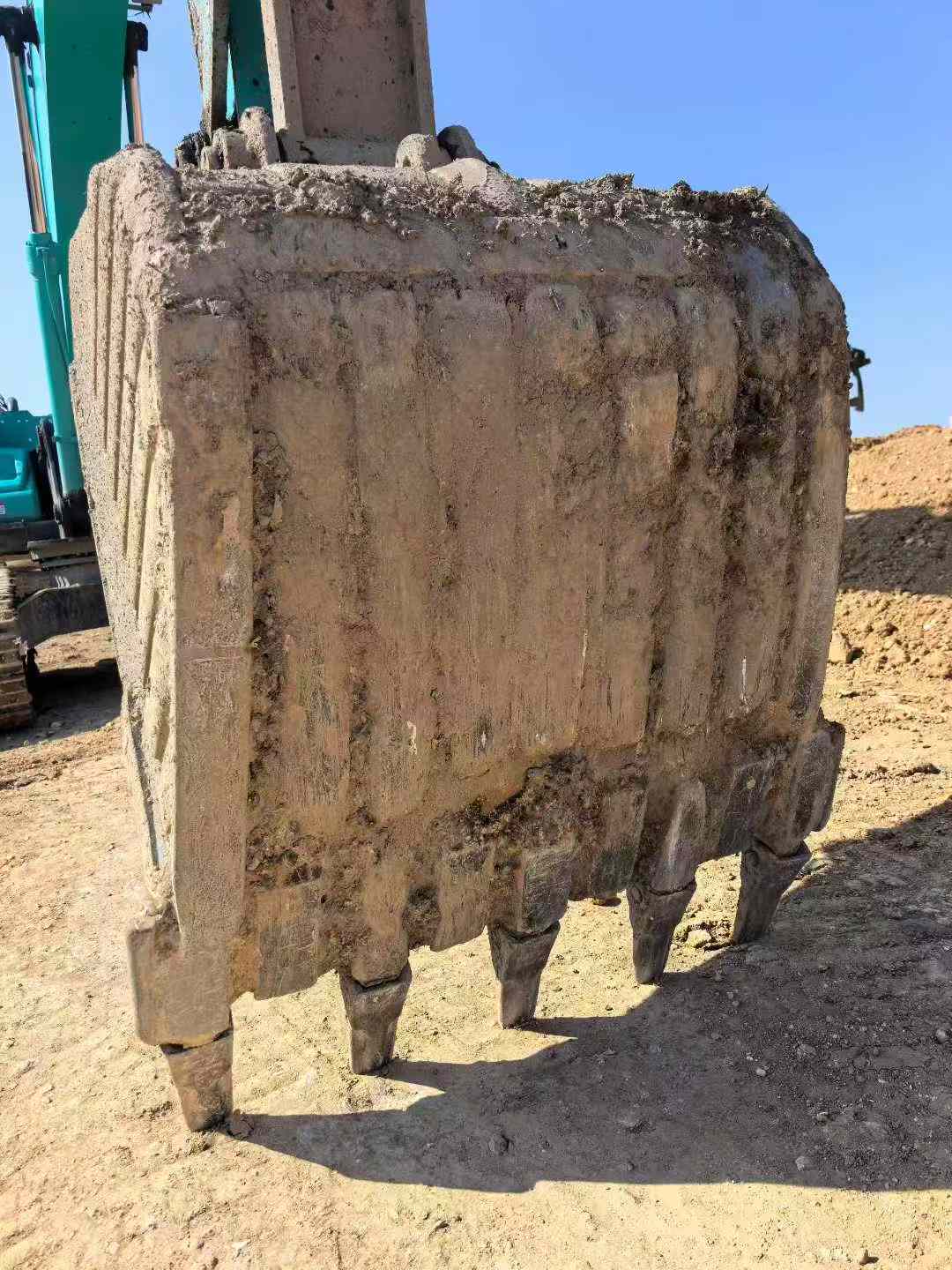

- 0.8m³ bucket capacity with backhoe configuration
- 70% climbing ability for challenging terrain navigation
- Available with 600mm or 800mm track plates
Cu
| Specifications | Value |
|---|---|
| No. | 1009614 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
