Product Description

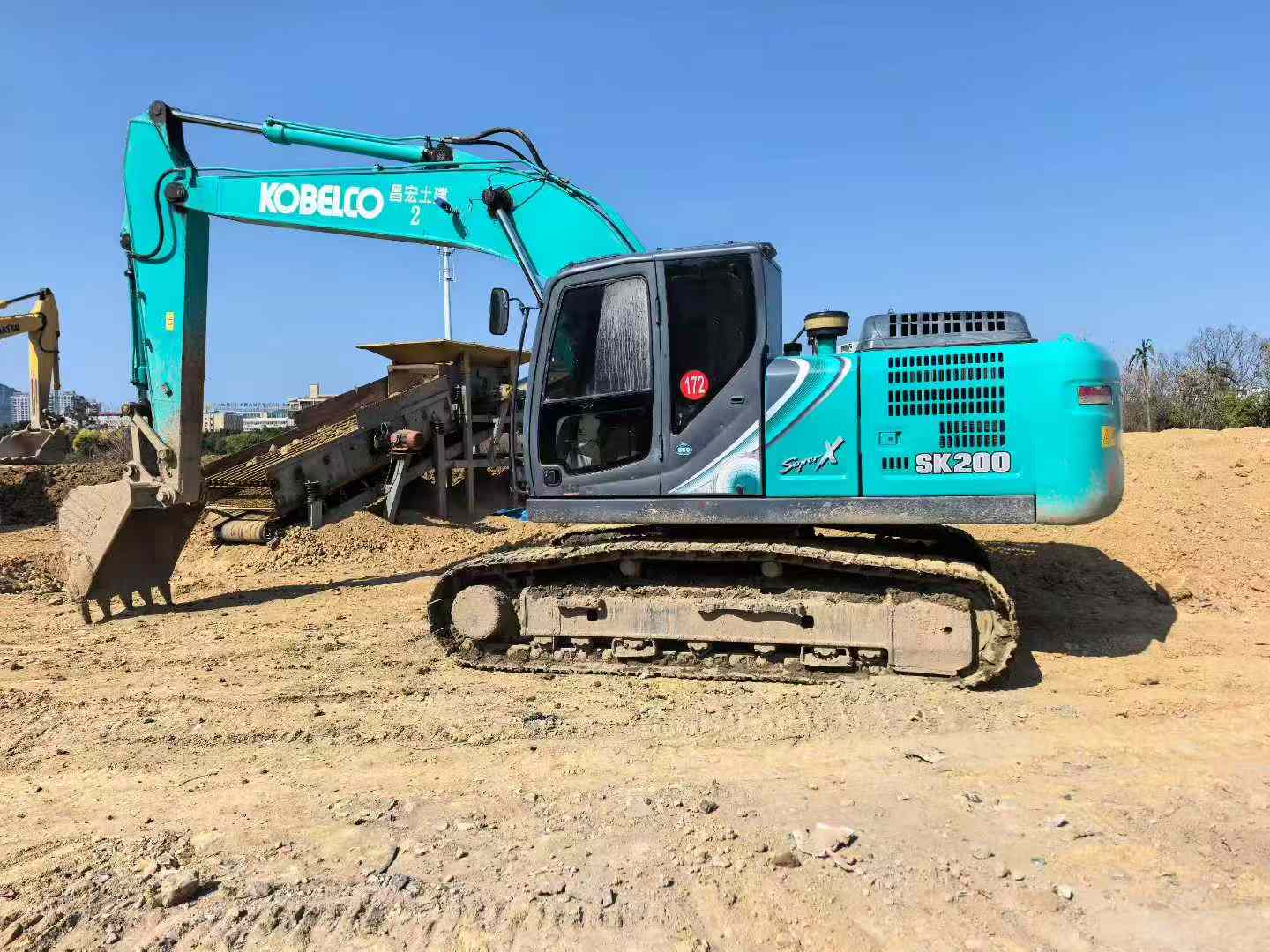

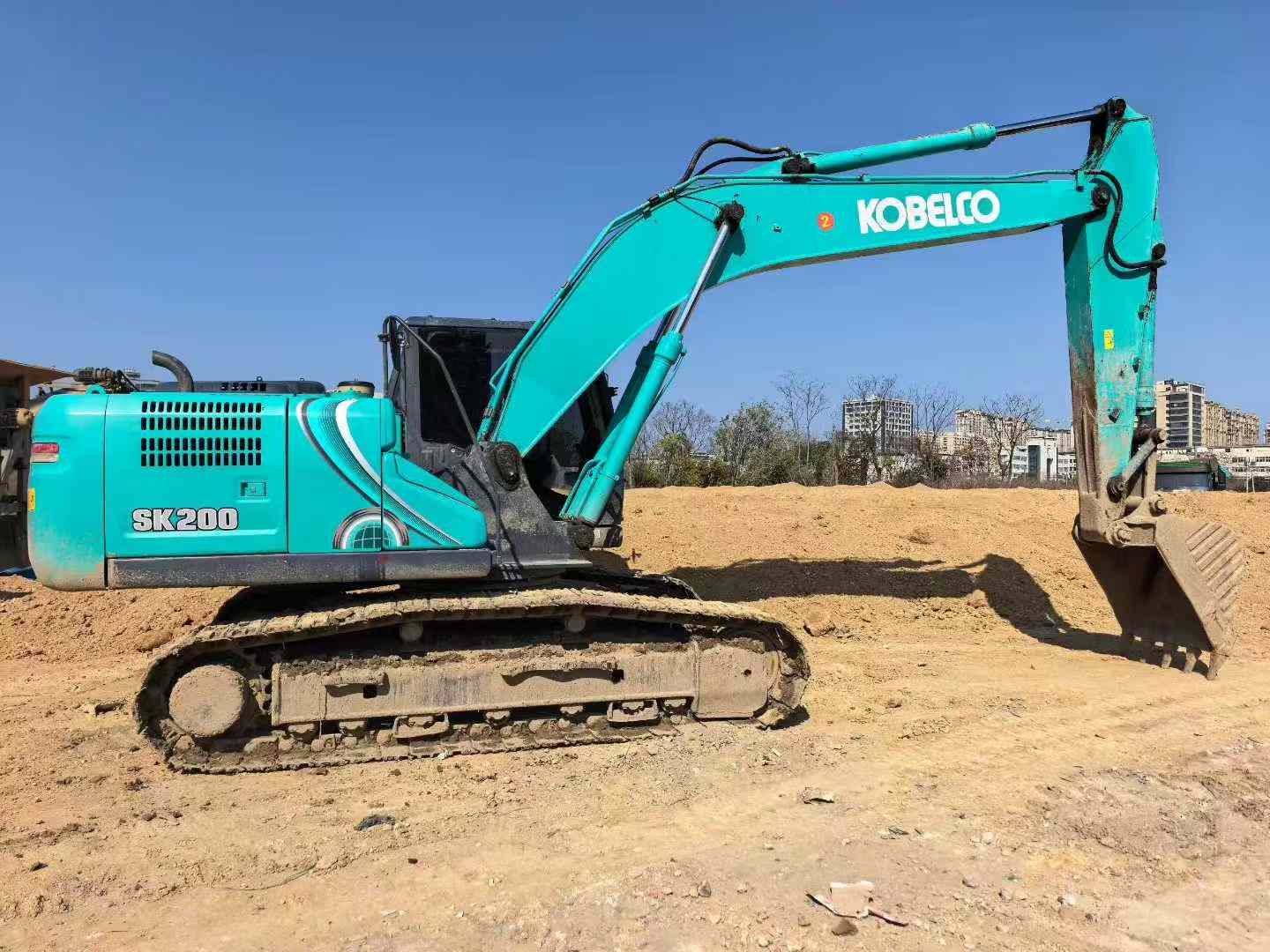

Built to withstand the most demanding jobsites, this 2021 Kobelco SK200 represents proven engineering excellence from one of the industry's most trusted manufacturers. Operating at 20 tons with a robust Mitsubishi 6D34-TLU2D engine delivering 110kW of reliable power, this excavator has established itself as a dependable workhorse in Wenzhou, Zhejiang. The water-cooled, turbocharged six-cylinder engine with built-in intercooling ensures consistent performance under heavy loads, while the dual variable displacement axial piston pump system provides precise hydraulic control.
- Bucket digging force: 143kN (157kN supercharged)
- Rod digging force: 97.1kN (107kN supercharged)
- 0.8m³ bucket capacity for optimal productivity
- 70% climbing ability tackles challenging terrain
- 340L fuel tank for extended operation
- Dual travel speeds: 4.0/6.0 km/h
- 600mm/800mm track plate options available
With its joint venture/import pedigree and proven track record, this SK200 delivers the durability and reliability that construction professionals demand. A machine engineered for longevity and consistent performance.
| Specifications | Value |
|---|---|
| No. | 1009615 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |

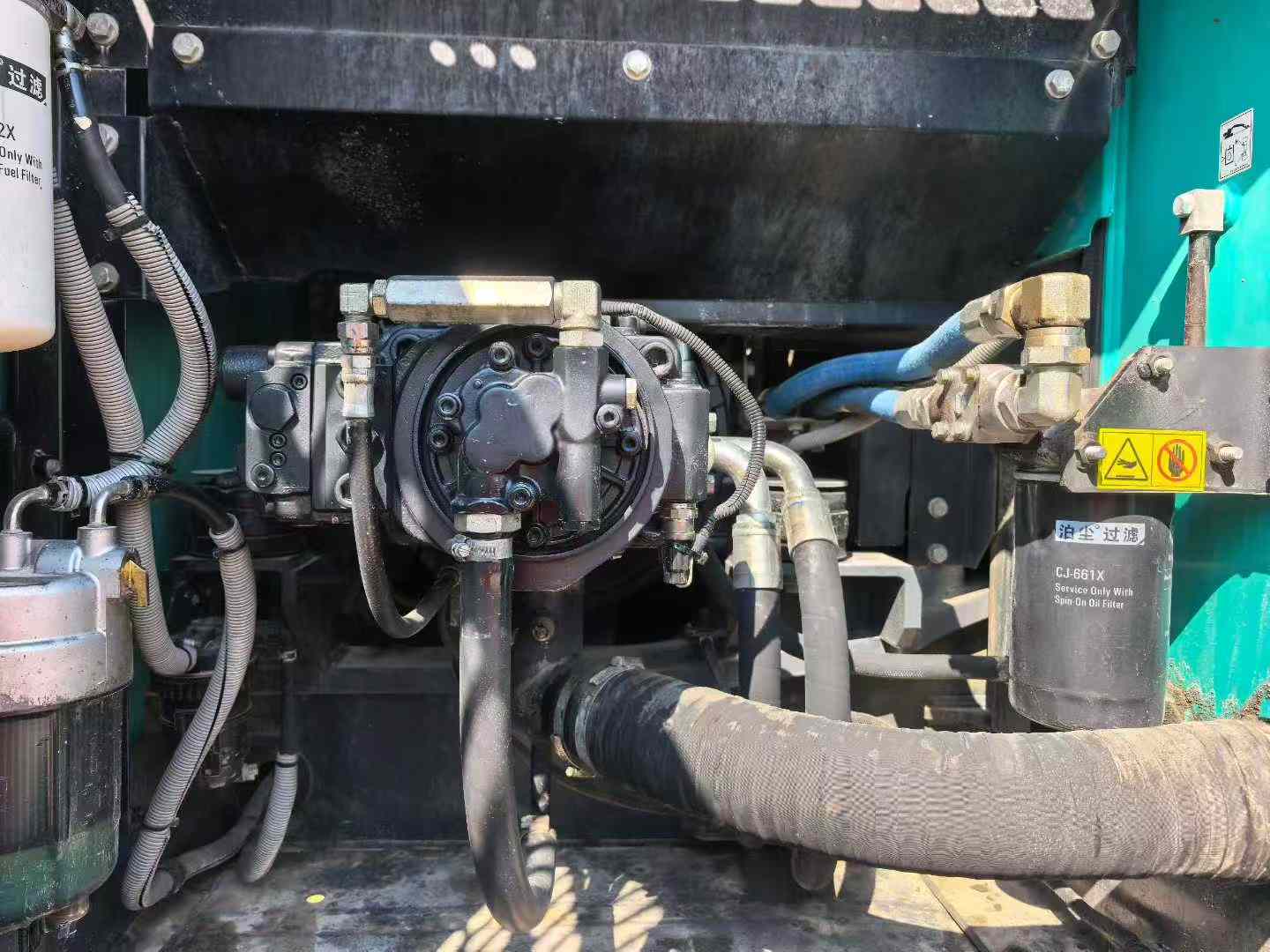

| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
