Product Description

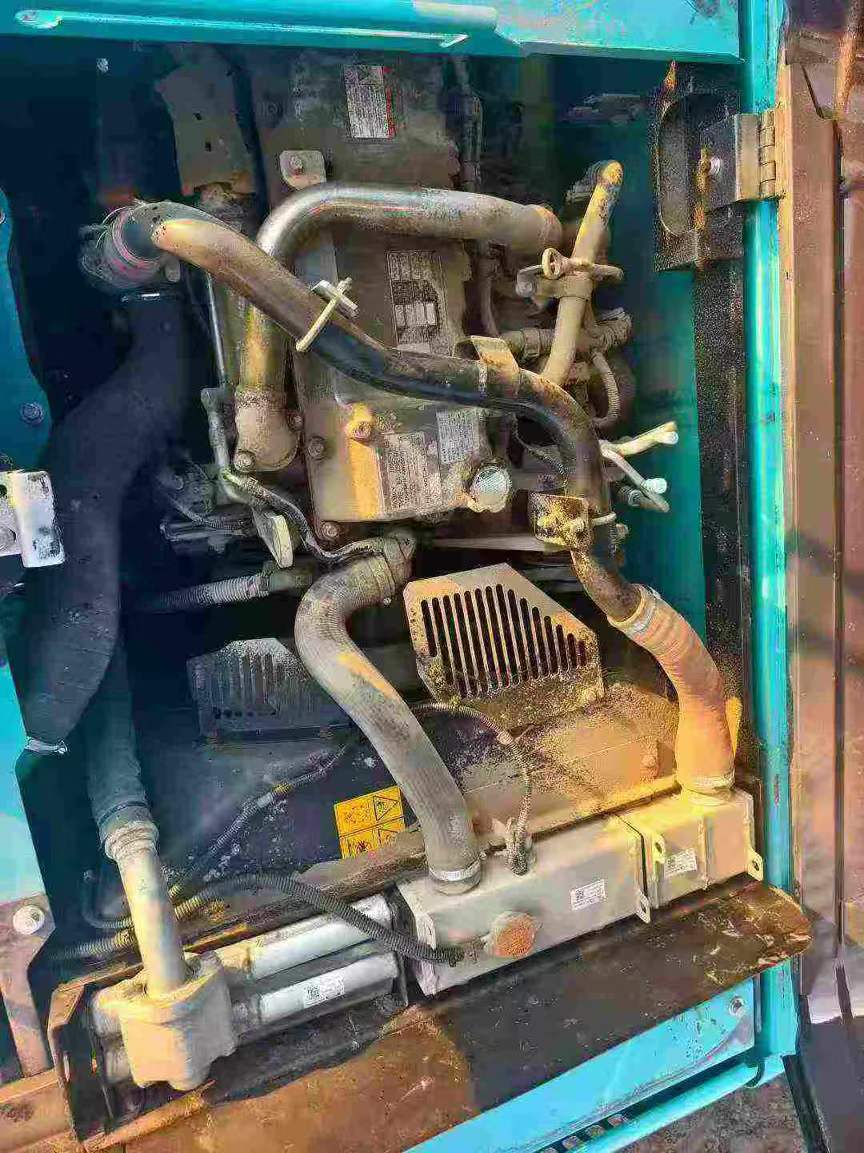

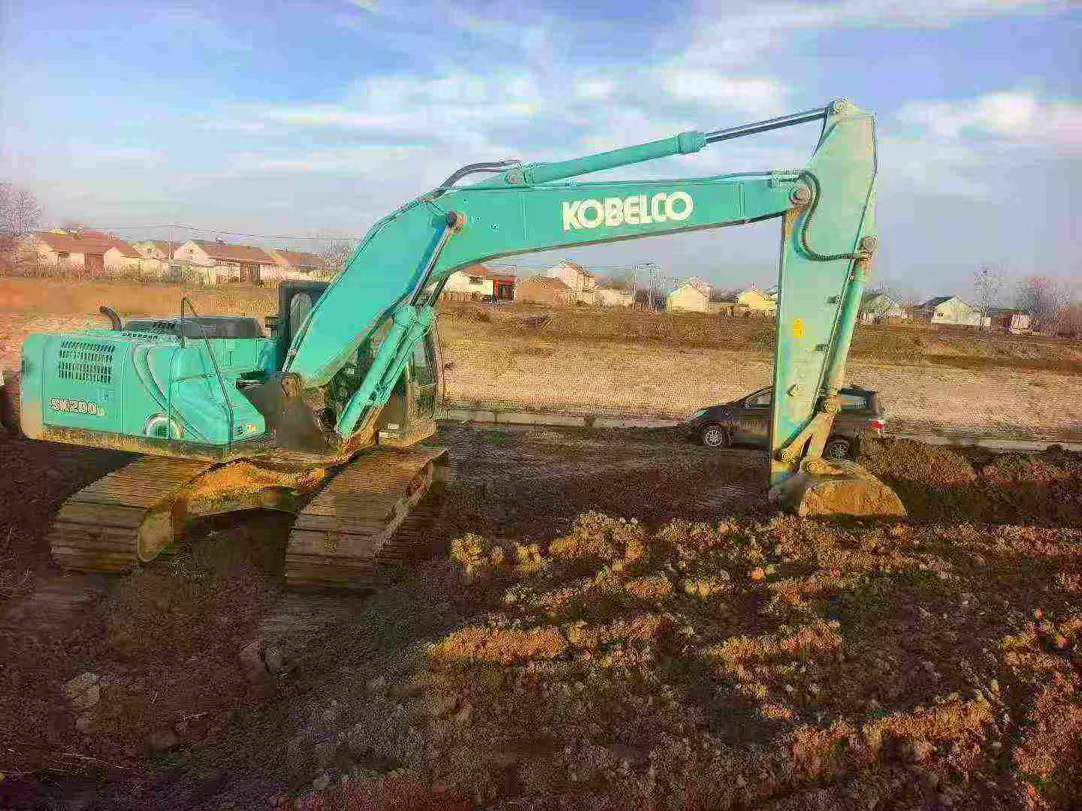

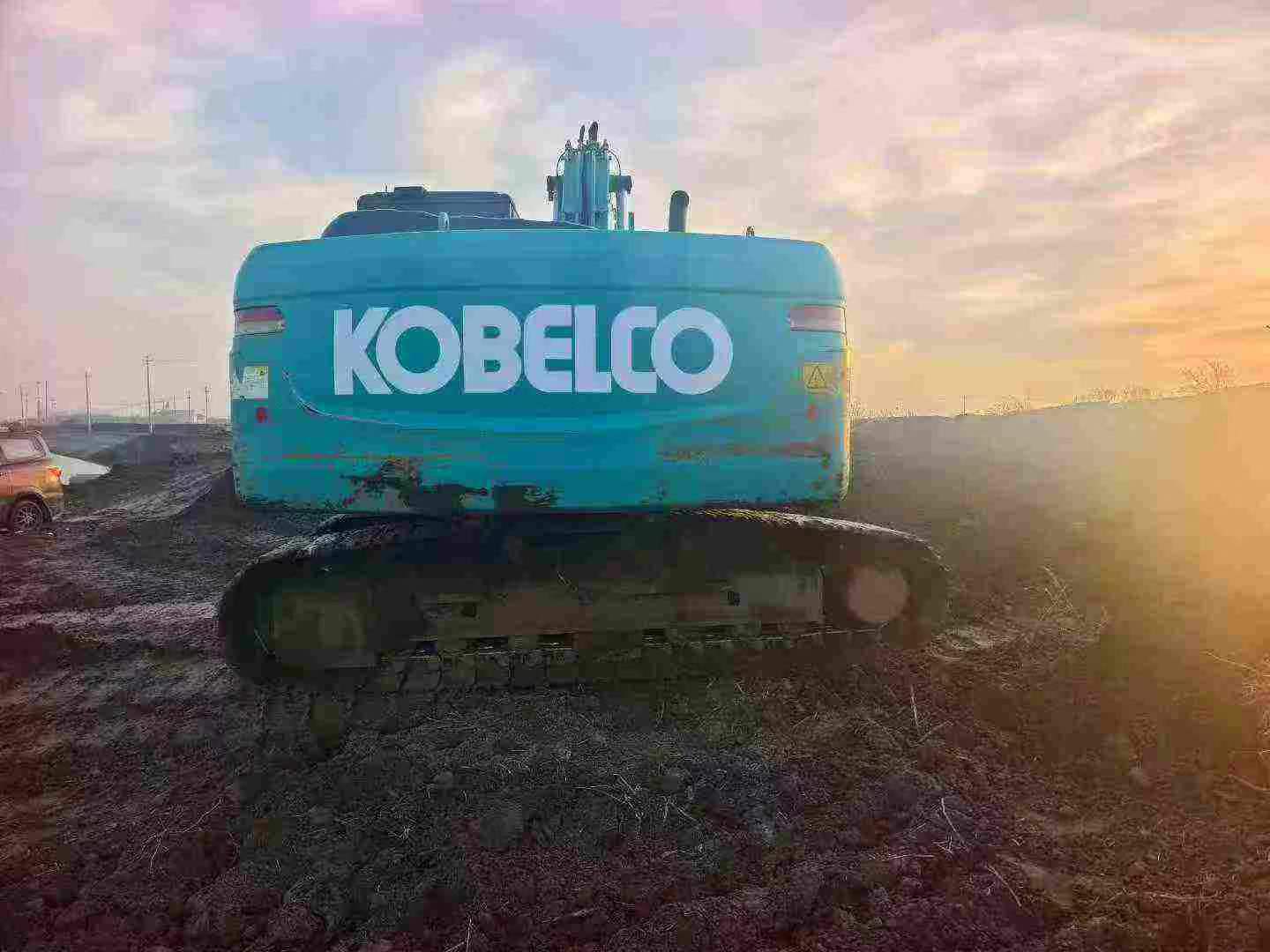

Engineered with precision hydraulics and proven Mitsubishi power, this 2022 Kobelco SK200 delivers 20-ton performance built on decades of Japanese manufacturing excellence. The water-cooled 6D34-TLU2D engine generates 110 kW at 2000 rpm through a turbocharged, intercooled six-cylinder configuration, while dual variable displacement axial piston pumps maintain 34.3 MPa system pressure—boosting to 37.8 MPa in supercharged mode for demanding applications.
Hydraulic force reaches 143 kN bucket breakout and 97.1 kN arm tearout in standard operation, with supercharged performance increasing these figures to 157 kN and 107 kN respectively. The 0.8 m³ backhoe bucket handles high-volume excavation efficiently, supported by 340-liter fuel capacity for extended site operations. Currently located in Dezhou, Shandong, this joint-venture manufactured excavator combines robust engineering with field-proven reliability across infrastructure and earthmoving projects worldwide.
- Mitsubishi 6D34-TLU2D turbocharged engine: 110 kW output
- Dual variable displacement piston pumps with 37.8 MPa peak pressure
- 20,000 kg operating weight with 0.8 m³ bucket capacity
- 70% gradeability and 6.0 km/h maximum travel spe
| Specifications | Value |
|---|---|
| No. | 1013347 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20000 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TLU2D |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Working form | Water-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 45; 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143; Supercharged state: 157 |
| Rod digging force (kN) | 97.1; Supercharged state: 107 |
| Travel speed (km/h) | 1 speed: 4.0 2 speed :6.0 |
| Main overflow set pressure (Mpa) | 34.3; Supercharged state: 37.8 |
| Main pump type | Double variable displacement axial piston pump pilot gear pump |
| Fuel Tank (L) | 340 |
| Track plate width (mm) | 600; 800 |
