Product Description

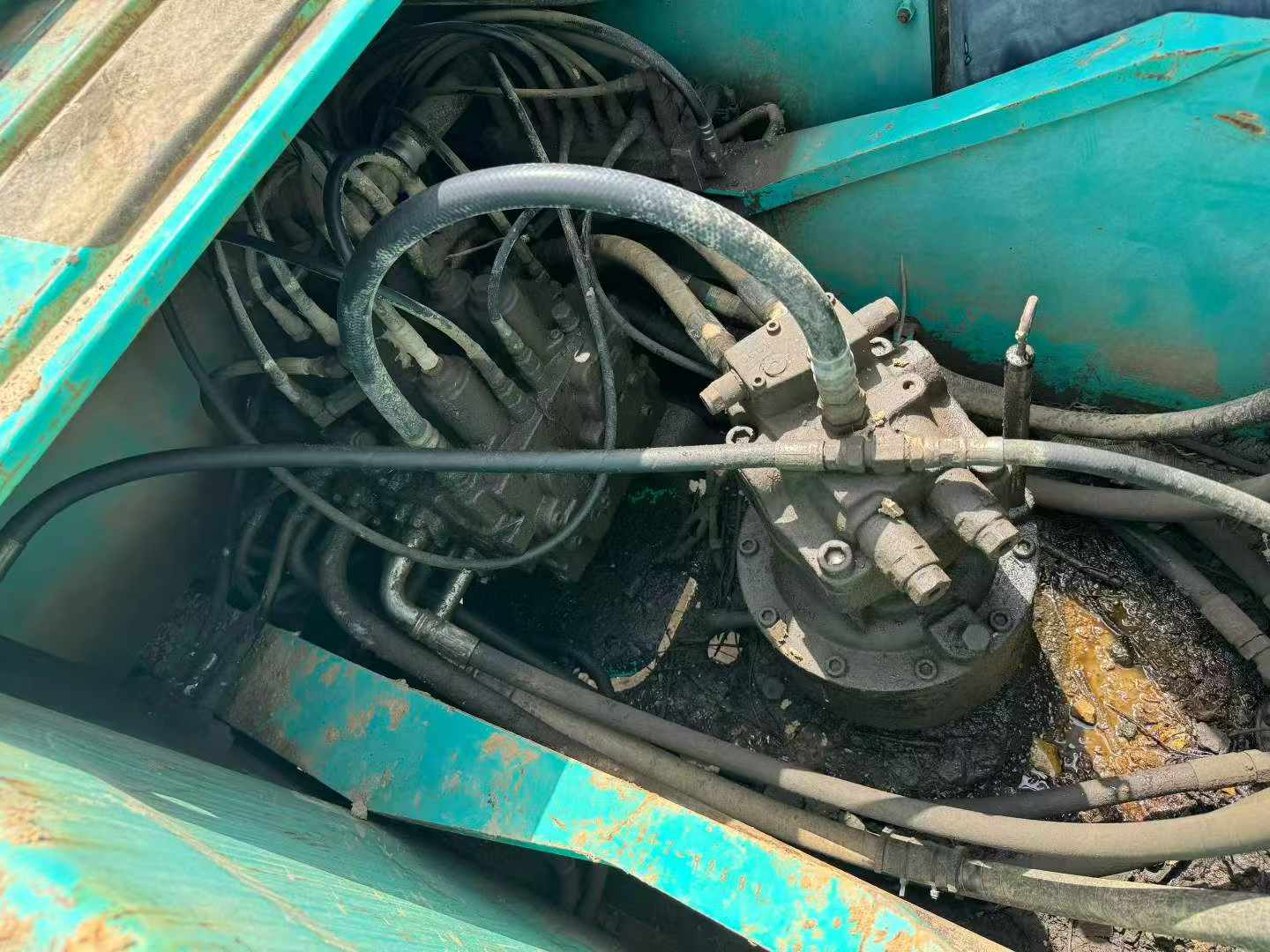

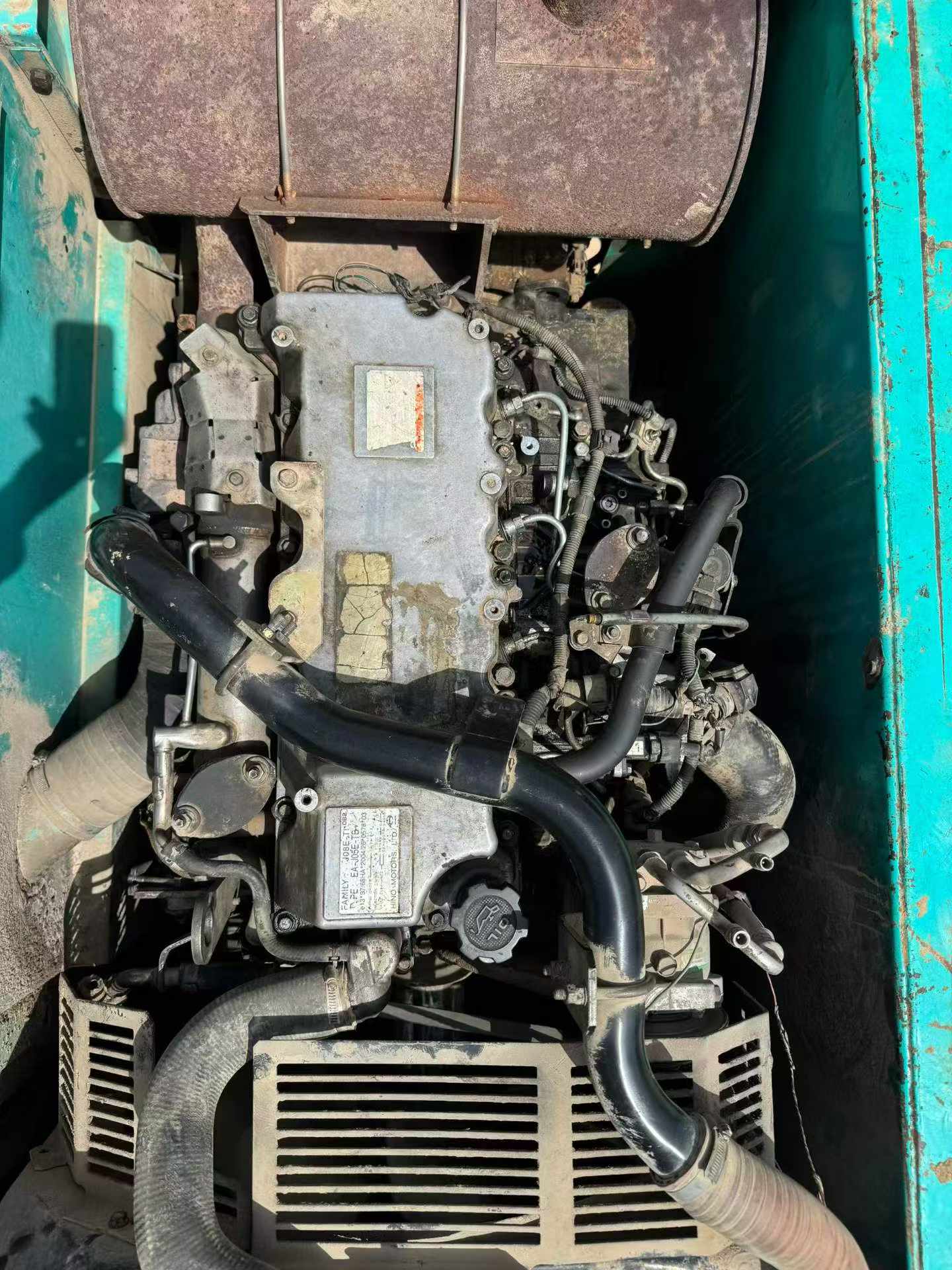

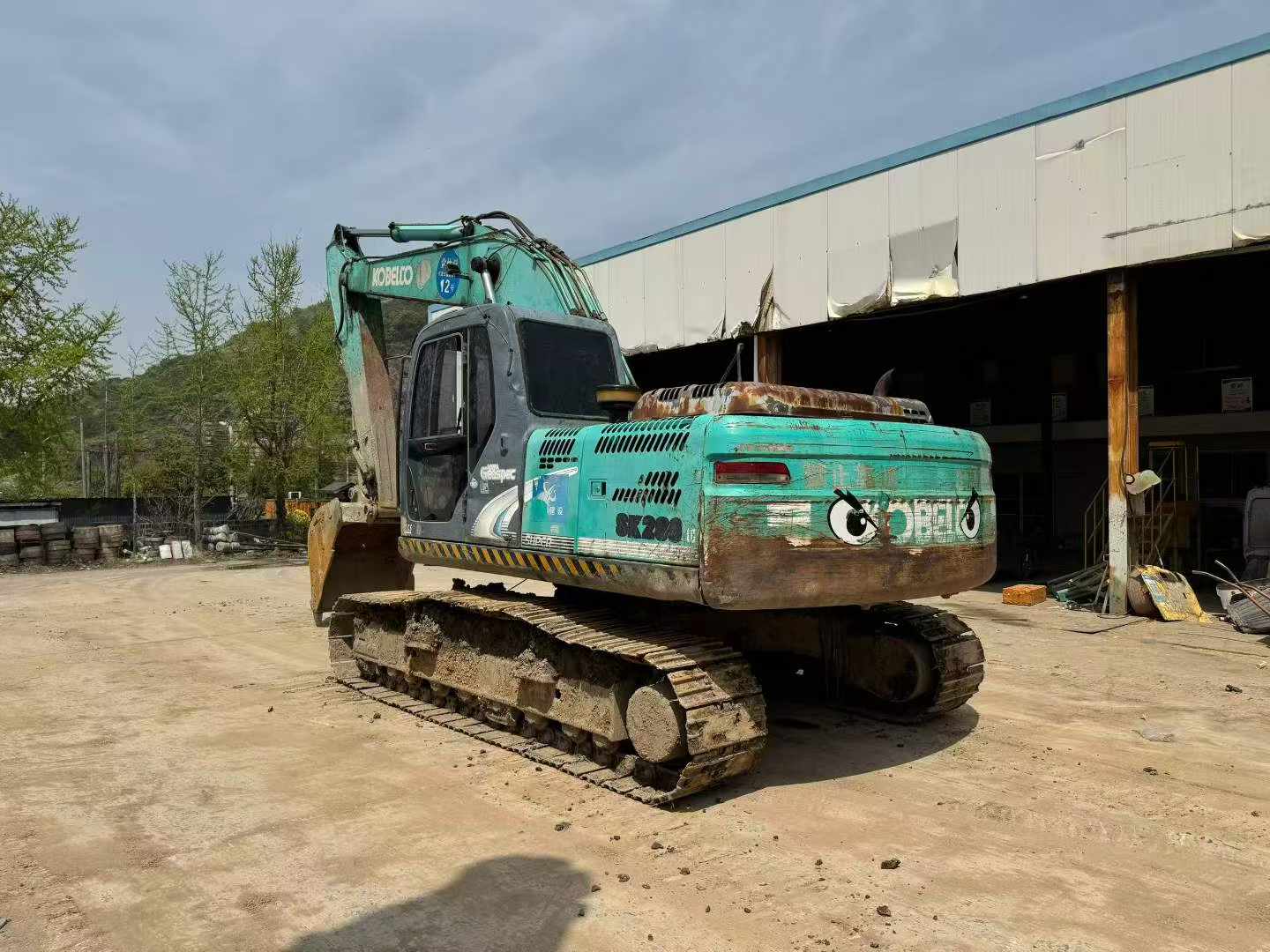

Engineered with Kobelco's proven SK-8 series hydraulic architecture, this 2011 SK200-8 delivers exceptional power density through its dual variable displacement axial piston pumps producing 2×220 l/min combined flow at 34.3 MPa working pressure. At the heart sits a robust Hino J05E turbocharged engine developing 114 kW at 2000 rpm, matched to a 5.123L displacement with water-cooled, direct-injection efficiency.
Core Technical Specifications:
- Operating weight: 20,600 kg with 0.8 m³ bucket capacity
- Maximum digging reach: 9,900 mm; depth capability: 6,700 mm
- Bucket digging force: 143 kN; arm force: 102 kN
- 2.94 m rod length optimized for versatility

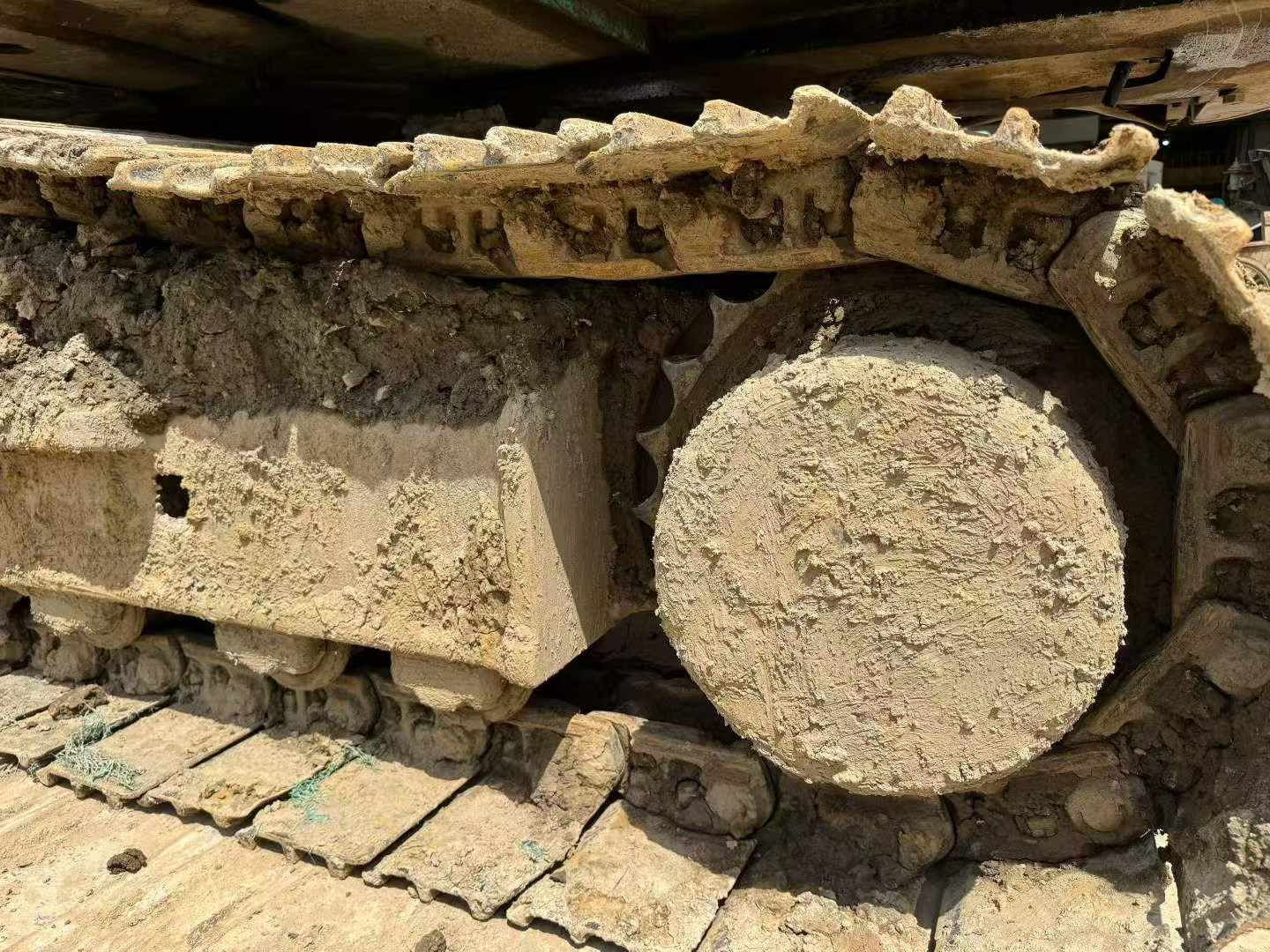

- Ground pressure: 46 kPa on 600 mm tracks
- Factory-equipped hydraulic breaker circuit
Built at Kobelco's joint-venture facility in Hangzhou, this machine combines Japanese engineering precision with practical reliability. Currently located in Zhejiang Lishui, ready for immediate deployment across infrastructure, demolition, or quarry applications requiring proven 20-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1051146 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2.94 |
| Country of origin | Hangzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 114/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Travel speed (km/h) | 3.6/6.0 |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |

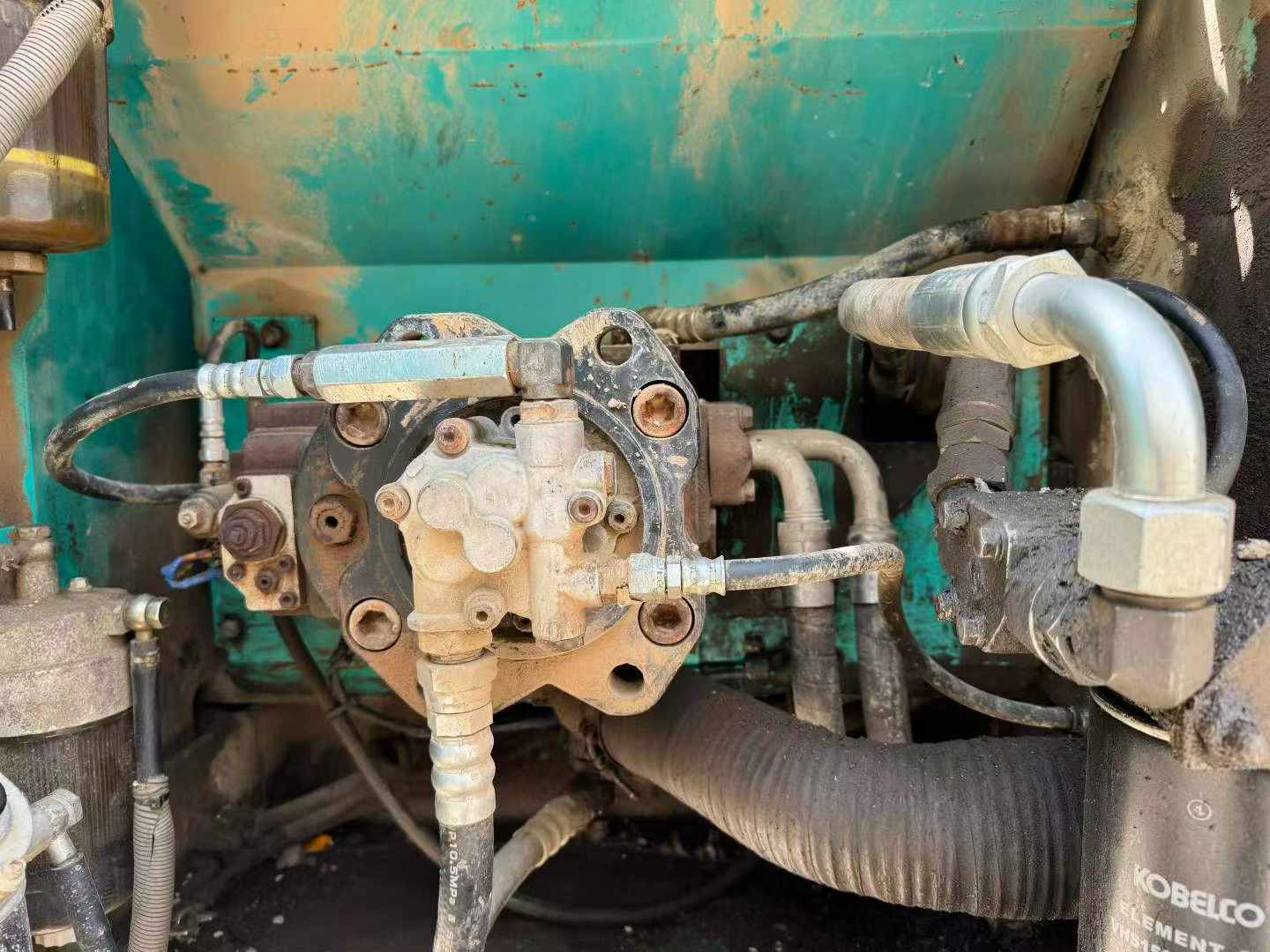

| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1080 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 x 1558 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1355 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 146 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 22 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3540 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600/700/800 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6100 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6520 |
