2013 Kobelco SK200-8

1/9
Buy Kobelco SK200-8 Used Excavator / 1
Buy Kobelco SK200-8 Used Excavator / 2
Buy Kobelco SK200-8 Used Excavator / 3
Buy Kobelco SK200-8 Used Excavator / 4
Buy Kobelco SK200-8 Used Excavator / 5
Buy Kobelco SK200-8 Used Excavator / 6

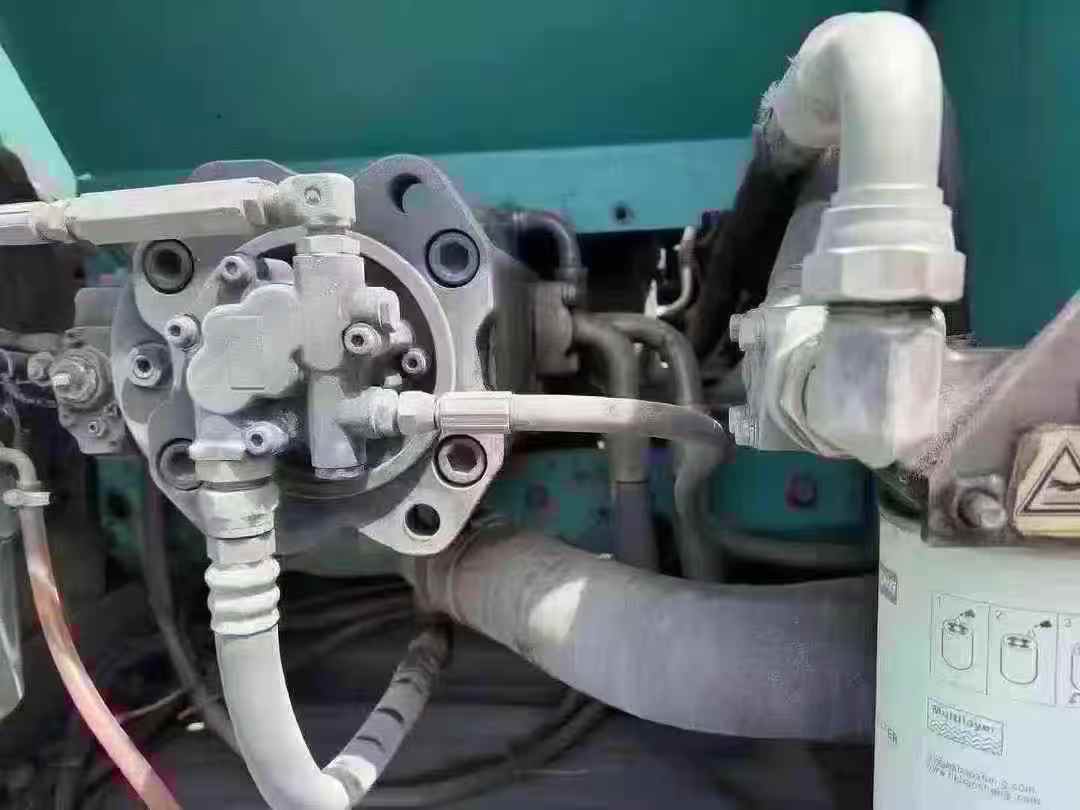

Buy Kobelco SK200-8 Used Excavator / 7
Buy Kobelco SK200-8 Used Excavator / 8
Buy Kobelco SK200-8 Used Excavator / 9

Product Description

This 2013 Kobelco SK200-8 excavator is available in Jiangsu, China. The machine features a robust undercarriage and demonstrates reliable performance across all operational functions. The engine runs cleanly with minimal emissions, while the hydraulic system delivers consistent power for demanding excavation tasks.

Key highlights include:

  • Smooth slewing operation with responsive controls
  • Stable idle performance during all work cycles

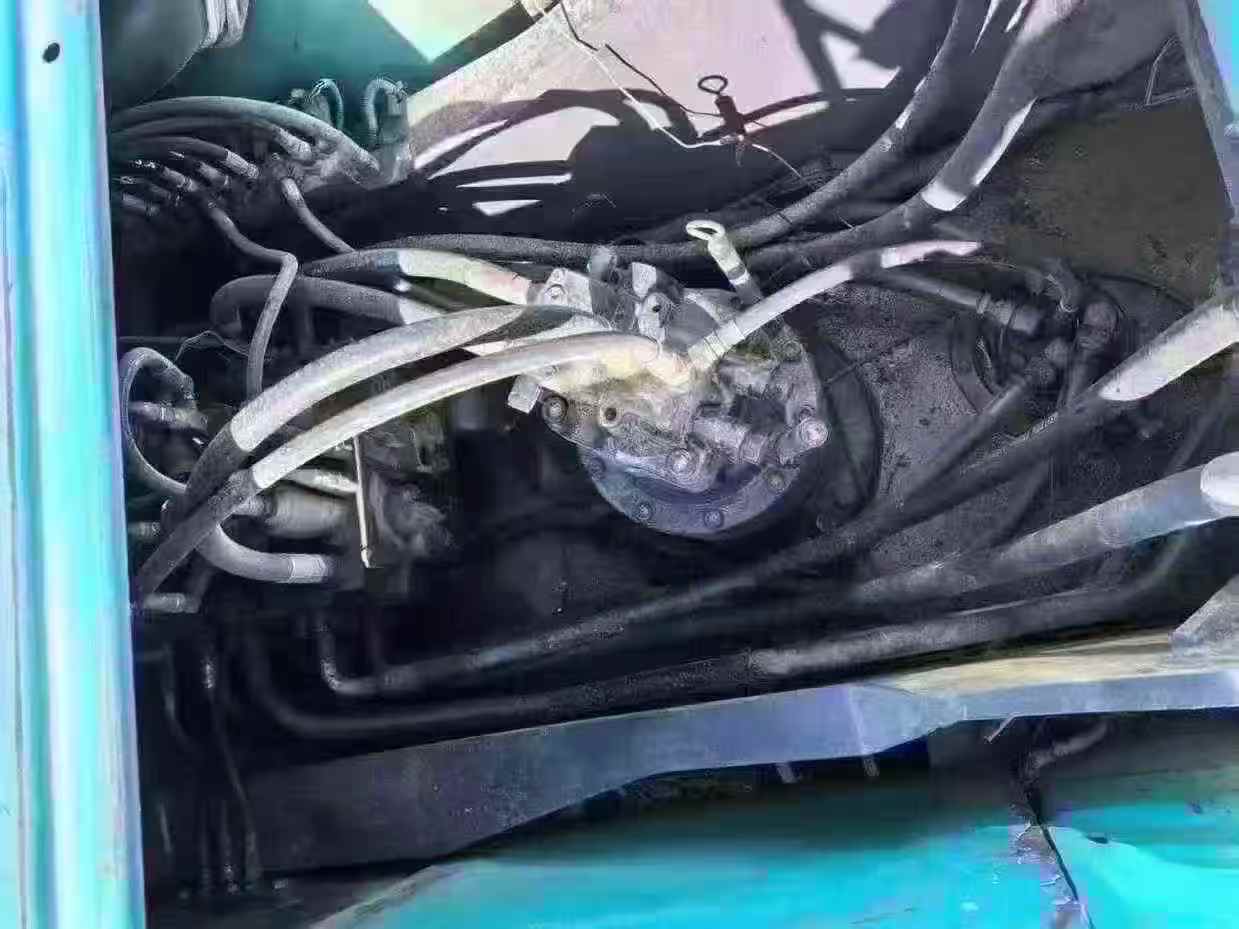

  • Well-maintained hydraulic components
  • Available for inspection and test operation

The SK200-8 is known for its fuel efficiency and operator comfort in the 20-ton class. This unit has been maintained in working condition and is ready for deployment. Suitable for earthmoving, site preparation, and general construction applications. Viewing and trial runs can be arranged for serious buyers.

SpecificationsValue
No.1074370
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

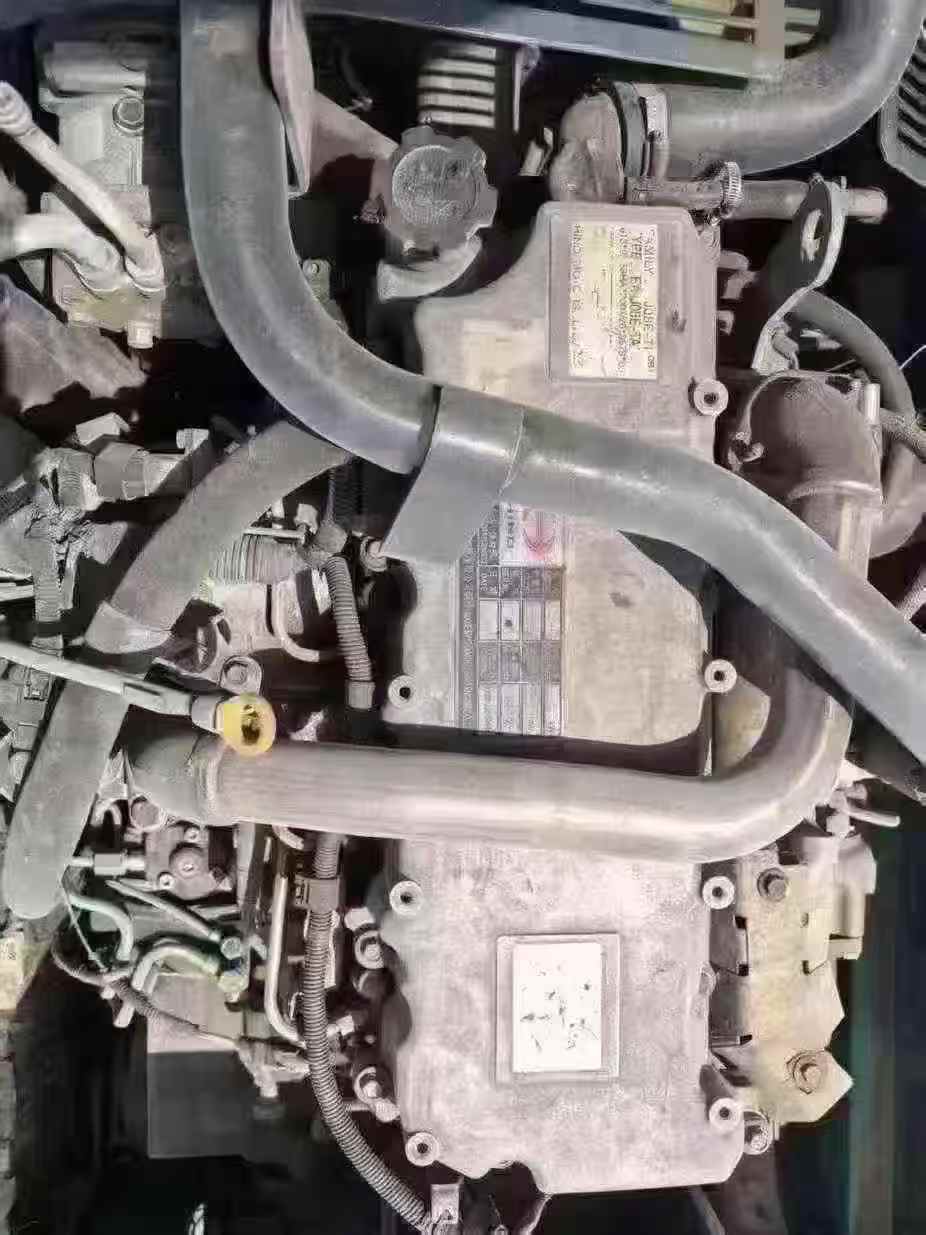

Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600/700/800
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.1074370

Brand Name:

Kobelco

Model Number:

SK200-8

Year:

2013

Location:

Jiangsu China

Pub Date
