Product Description

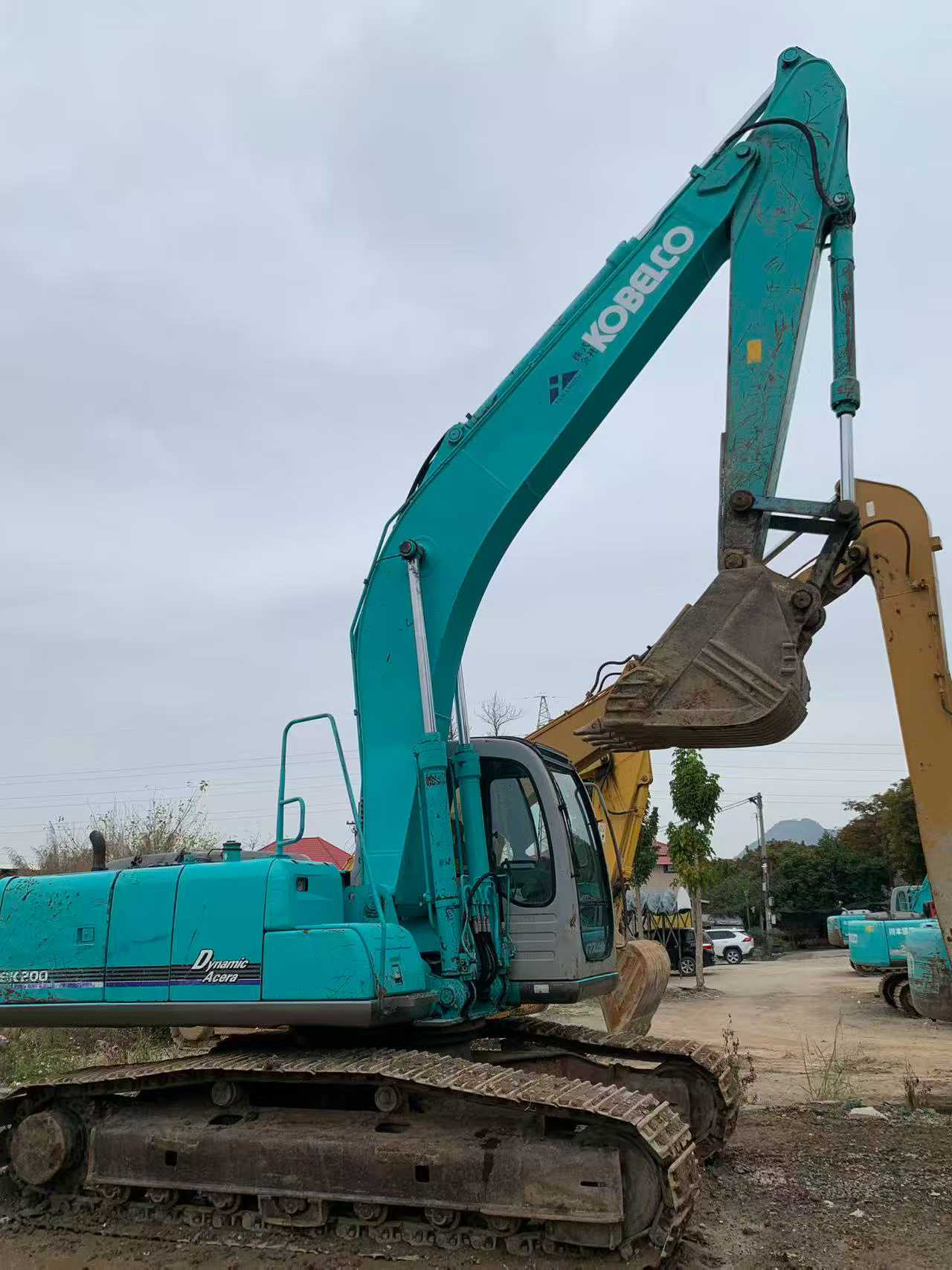

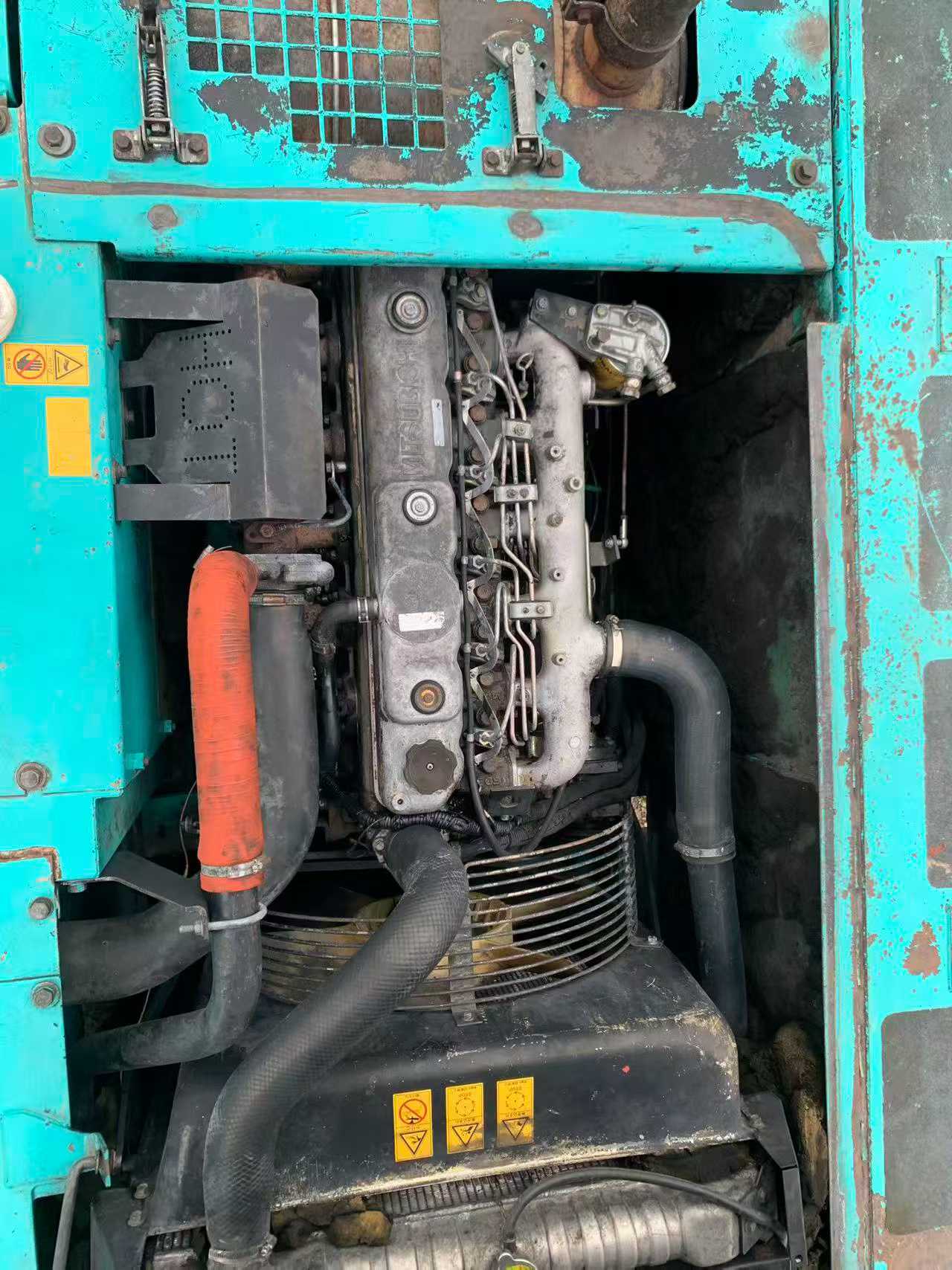

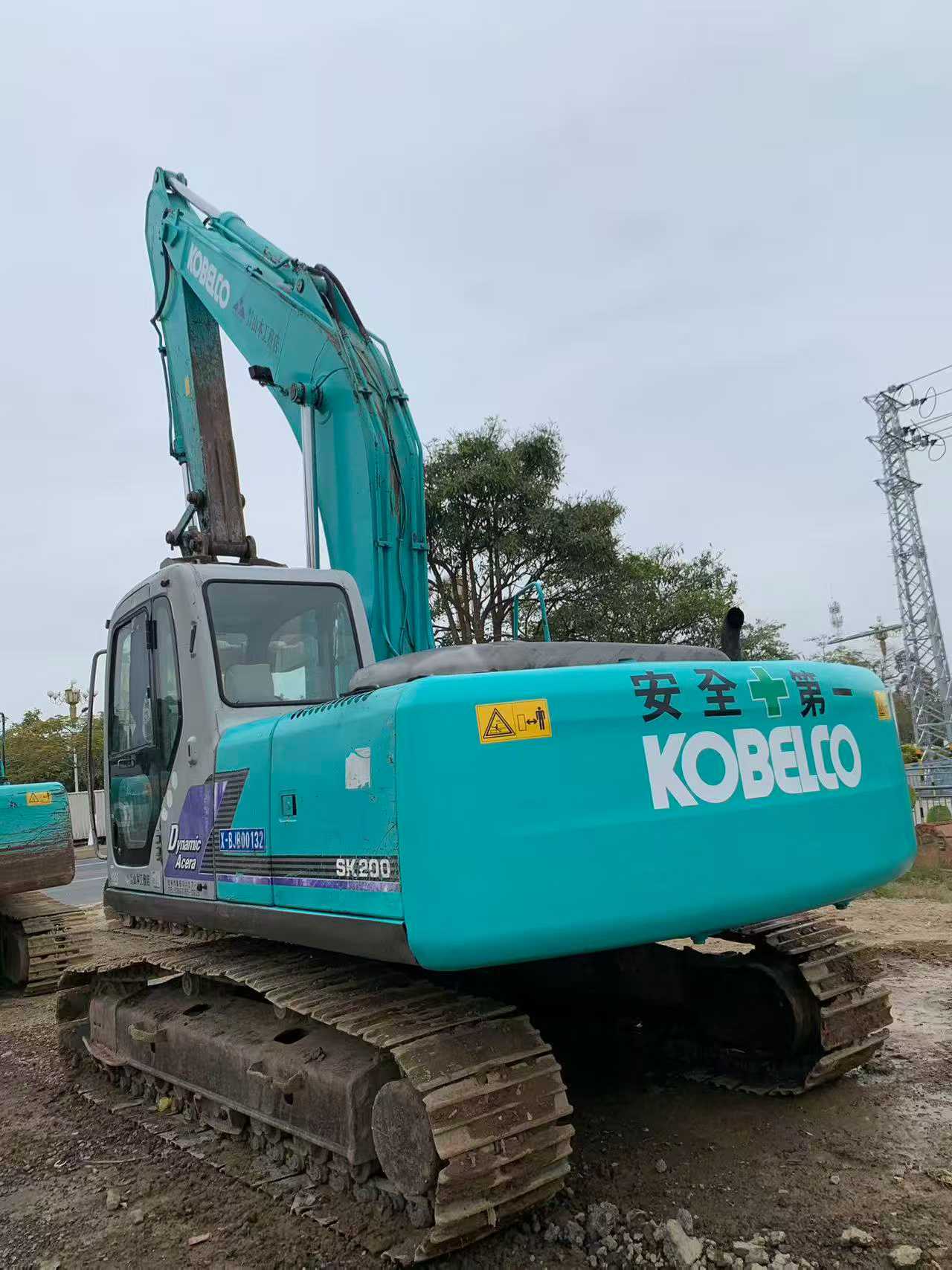

Available now in Zhangzhou, Fujian, this 2016 Kobelco SK200-9 eliminates factory wait times and delivers immediate operational capability. Powered by a Hino J05E-TJ engine producing 117 kW at 2000 rpm, this 20-ton excavator combines proven reliability with the performance metrics demanded by high-volume earthmoving operations. Skip the lead times—this machine is ready for fast deployment directly to your site.
- Working weight: 19,900 kg with 0.80 m³ bucket capacity
- Maximum digging reach: 9,900 mm; depth: 6,700 mm
- Bucket digging force: 143 kN; arm digging force: 102 kN
- Travel speed: 6.0 km/h (high) / 3.6 km/h (low)
- 370L fuel tank for extended operating shifts
- Transport dimensions: 9,560 × 2,800 × 3,070 mm
- 70% gradeability with 45 kPa ground pressure
- Joint venture/Import manufacturing quality
Positioned in Fujian's logistics hub, this SK200-9 offers rapid shipping access throughout China and international ports. Immediate acquisition means your project timeline stays on track without production delays or extended procurement cycles.
| Specifications | Value |
|---|---|
| No. | 1013999 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.80 / 0.59 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E-TJ |
| Rated power (kw/rpm) | 117 / 2000 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Travel speed (km/h) | 6.0/3.6 (High/Low) |
| Fuel Tank (L) | 370 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3070 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
