Product Description

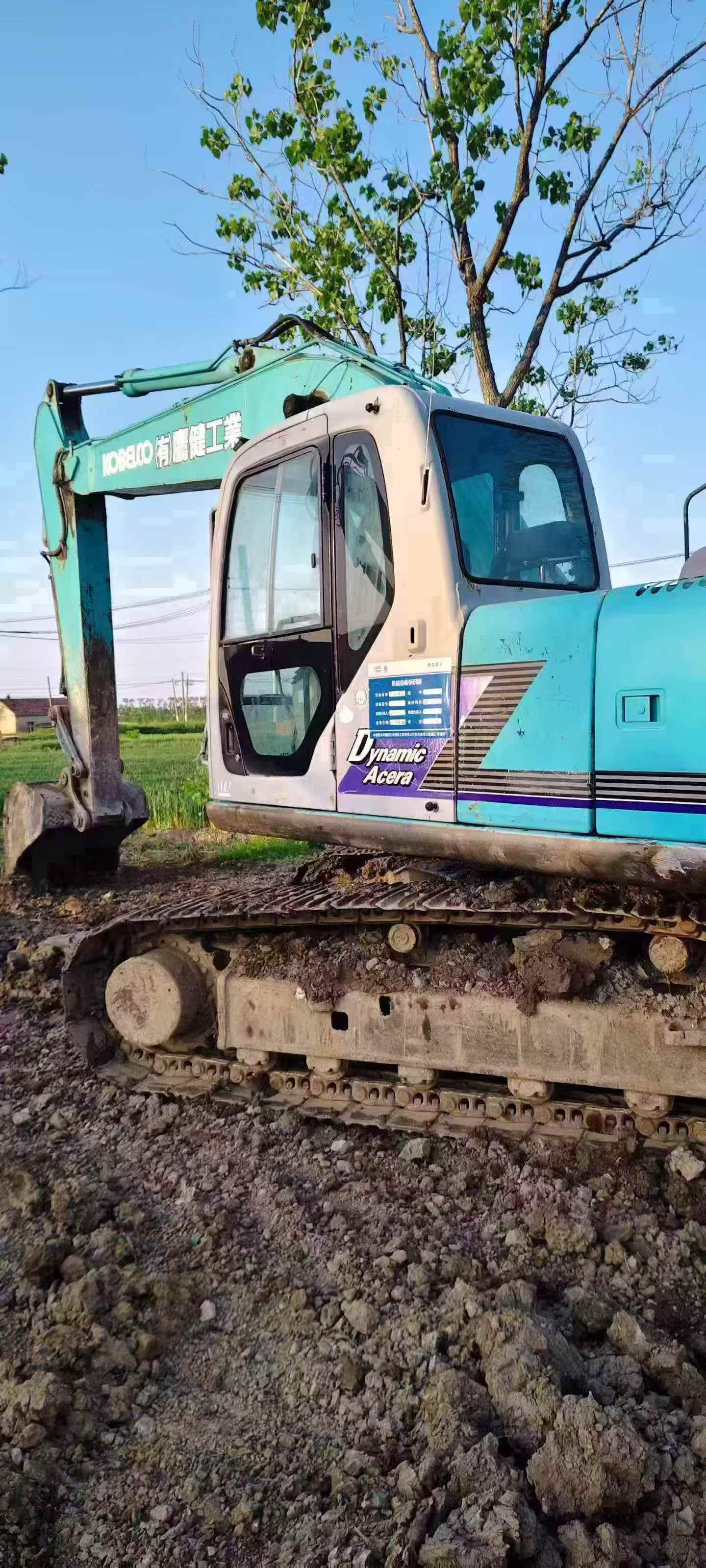

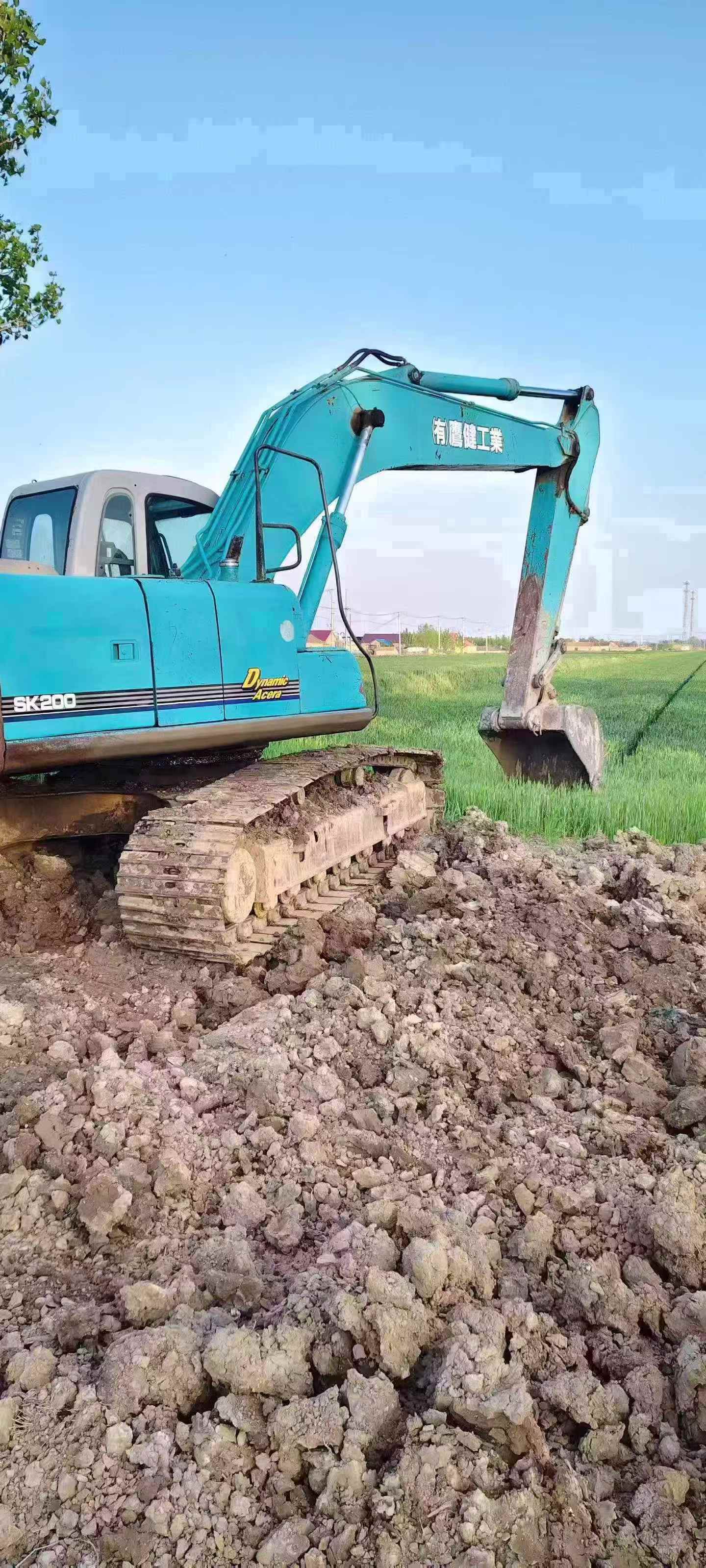

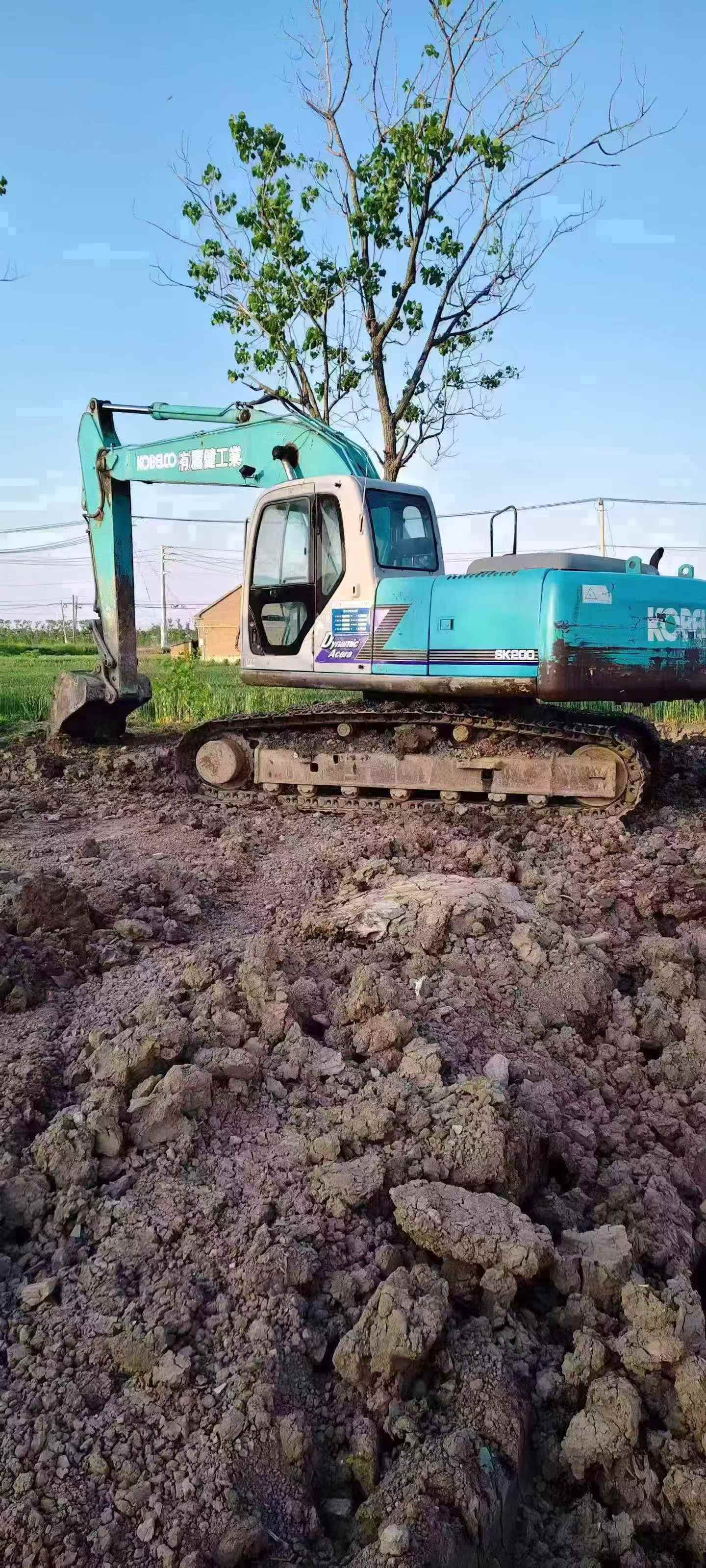

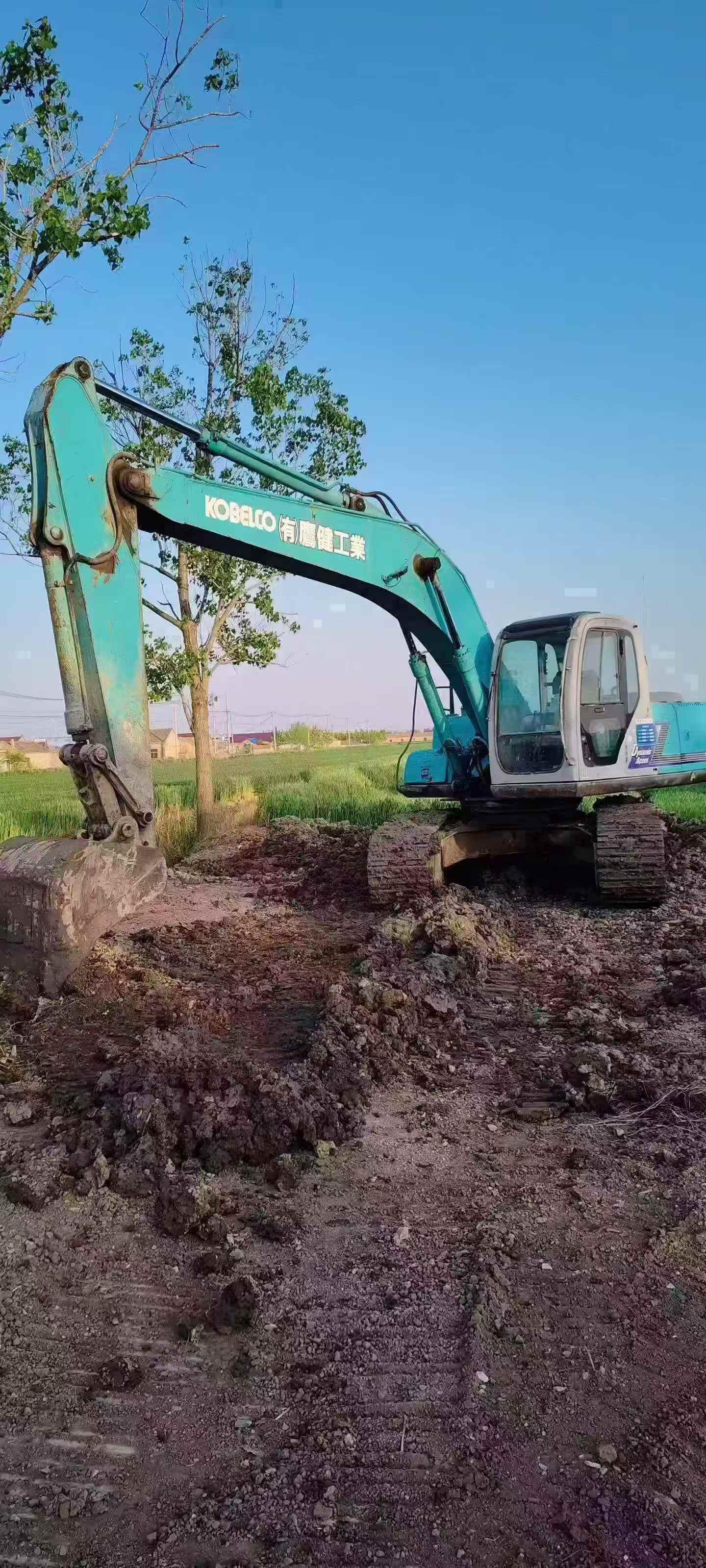

With a 20-ton capacity and a powerful Hino J05E-TJ engine, this 2020 Kobelco SK200-9 excavator is designed for immediate deployment on your site. Featuring a bucket capacity of 0.80/0.59 m³, it excels in digging, grading, and demolition tasks. The machine delivers a robust 143 kN bucket digging force and 102 kN rod digging force, ensuring efficient performance in tough conditions. Capable of traveling at speeds up to 6.0 km/h, it offers a maximum digging depth of 6700 mm and a maximum digging radius of 9900 mm. Equipped with a 370 L fuel tank, this excavator is ready to handle long hours of continuous operation. Its 45 Kpa ground specific pressure and 70% climbing ability make it versatile for various terrains. Ready to work right out of the gate, this SK200-9 is a reliable addition to any construction fleet.
| Specifications | Value |
|---|---|
| No. | 1056760 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.80 / 0.59 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

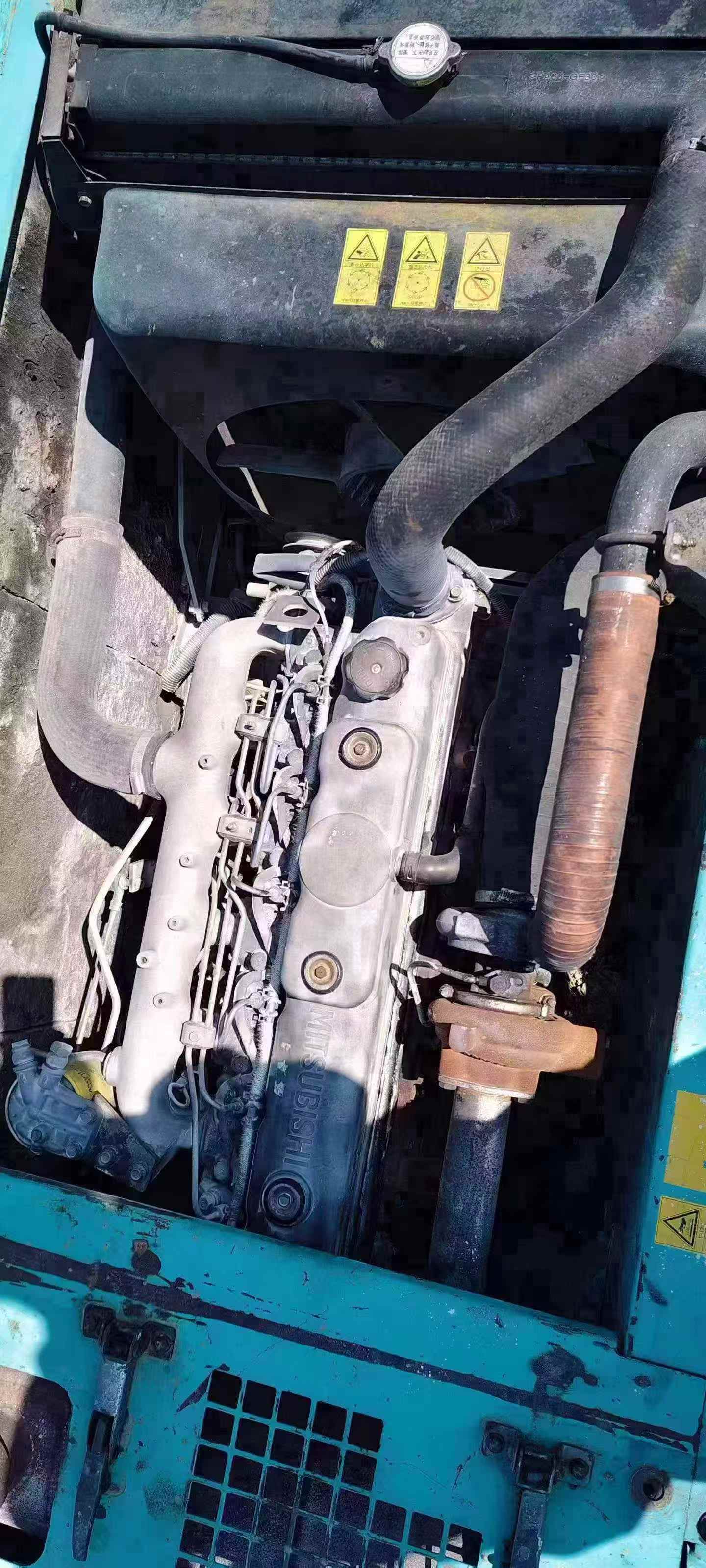

| Engine type | Hino J05E-TJ |
| Rated power (kw/rpm) | 117 / 2000 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Travel speed (km/h) | 6.0/3.6 (High/Low) |
| Fuel Tank (L) | 370 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3070 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
